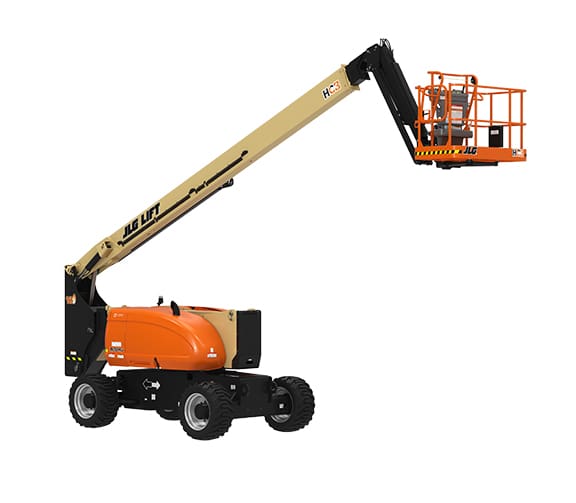

800AJ HC3 Extended Front RF New

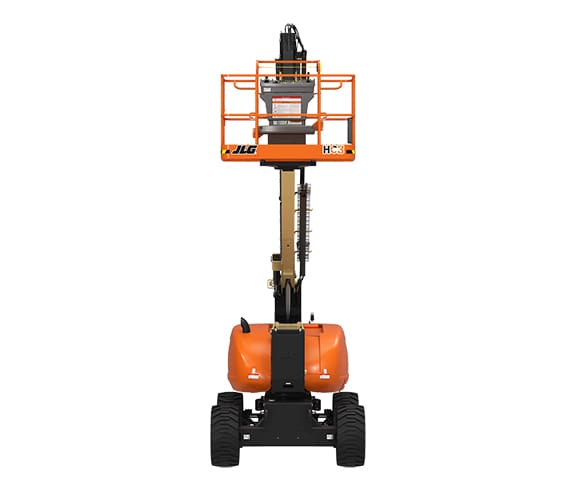

800AJ HC3 Extended Front New

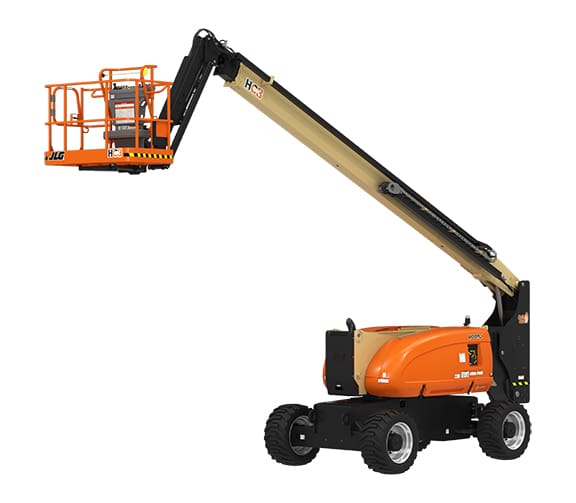

800AJ HC3 Extended Front LF New

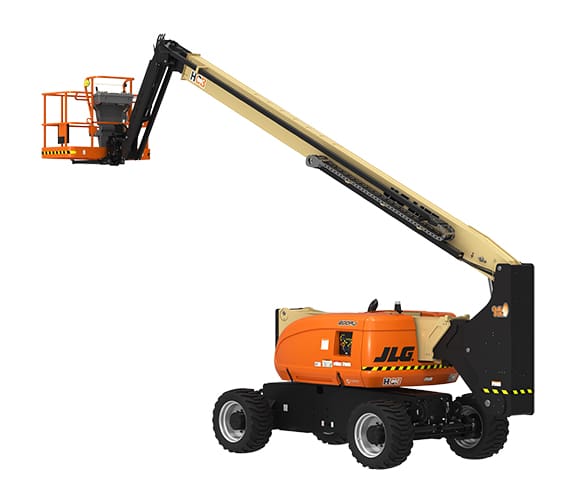

800AJ HC3 Extended Rear LF New

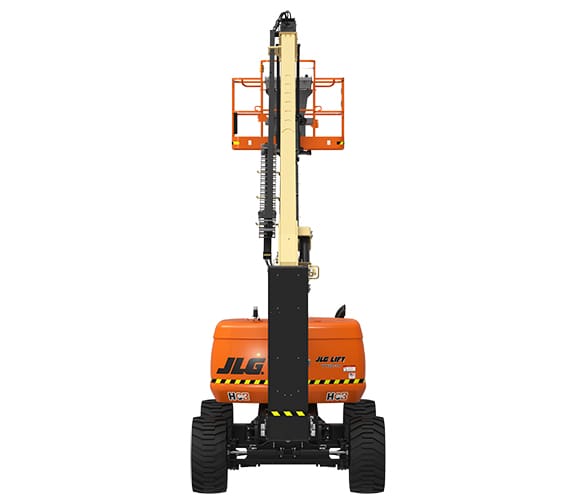

800AJ HC3 Extended Rear New

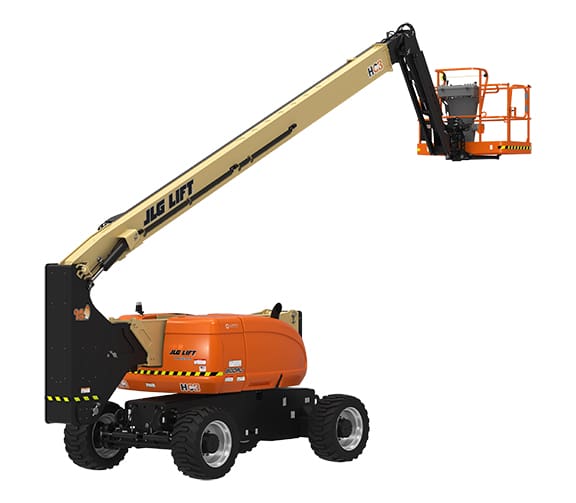

800AJ HC3 Extended Rear RF New

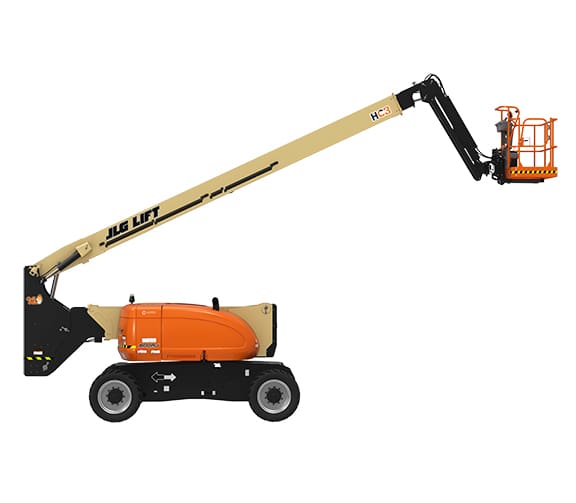

800AJ HC3 Extended Side LF New
800AJ HC3 Top New

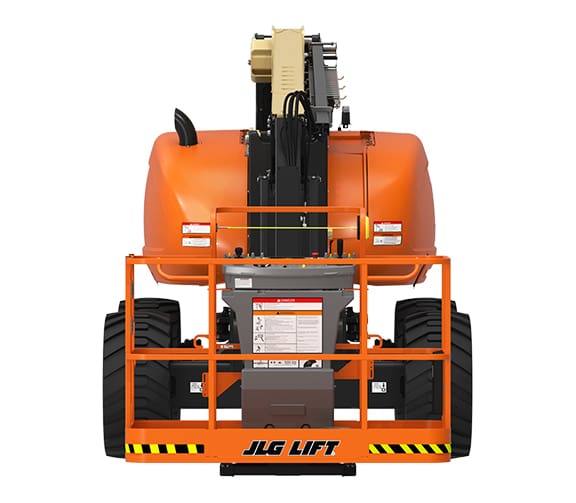

800AJ HC3 Retracted Front New

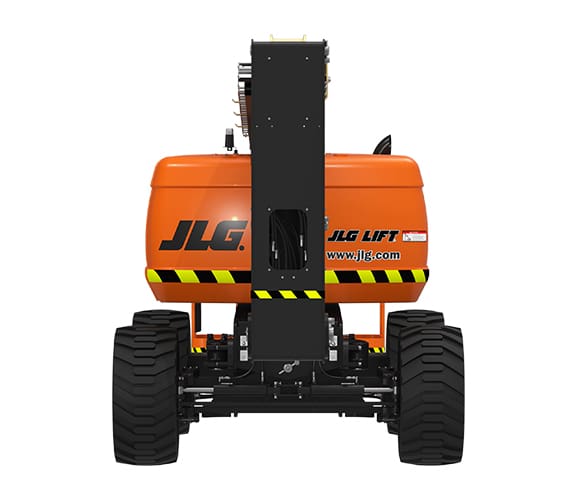

800AJ HC3 Retracted Rear New

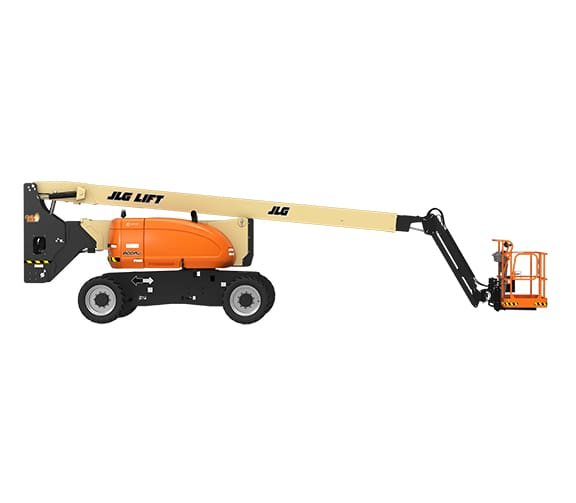

800AJ HC3 Retracted Side RF New
JLG 800AJ HC3 Articulating Boom Lift - Image 12

JLG 800AJ HC3 Articulating Boom Lift

  • 80 ft. 4.4 in. Platform Height
  • 52 ft. 3.8 in. Horizontal Outreach
  • 660 – 1,000 lb. Platform Capacity
  • 32 ft. 5.1 in. Up and Over Height
  • 45% Gradeability
Request a Quote

Documents

Product Documents

The JLG 800AJ HC3 is an articulating hi-capacity boom lift built to help crews work higher, farther, and more efficiently on demanding jobsites. With an 80-foot platform height, over 52 feet of horizontal outreach, and three capacity zones rated for up to three workers plus tools and materials, it gives operations teams the flexibility to take on more work from a single machine.

Its articulating jib and up-and-over reach make it easier to access elevated areas around obstacles, while proportional controls help operators position the platform with confidence. Standard features like load sensing, SkyGuard SkyLine, a tilt alarm, oscillating axle, and ClearSky Smart Fleet hardware support safer, smarter, and more productive operation. For managers looking to reduce downtime, improve crew efficiency, and handle high-reach applications with fewer compromises, the 800AJ HC3 is a strong fit.

Model Numbers: JLG H800AJ HC3

Additional Information

Brand

JLG
Condition

New
MEWP Type

Boom Lift, Articulated
Power

Bi-Energy, Engine
MEWP Lift Height

61 – 100ft
MEWP Capacity

Up to 500 lbs
  • Designed for more flexibility at height with 80 ft 4.4 in of platform height and 52 ft 3.8 in of horizontal outreach.
  • HC3 hi-capacity design provides three working zones, allowing up to three workers plus tools and materials on the platform.
  • Offers enhanced platform capacity with up to 1,000 lb restricted capacity and 660 lb unrestricted capacity.
  • Articulating boom design provides 32 ft 5.1 in of up-and-over height for reaching over obstacles and accessing elevated work areas.
  • Zero calibration automatic load sensing system eliminates the need for external weights during machine calibration.
  • ClearSky Smart Fleet hardware comes standard to support fleet connectivity and equipment management.
  • 4-degree tilt alarm and indicator light
  • 12V DC auxiliary power
  • 110V AC receptacle in the platform
  • All motion alarm
  • Articulating jib
  • Center storage tray
  • ClearSky Smart Fleet hardware
  • Control ADE system
  • Engine distress warning and selectable engine distress shutdown
  • Gull-wing hoods
  • Hourmeter
  • Hydrostatic drive
  • LED motion/amber beacon
  • Lifting and tie-down lugs
  • Load sensing system
  • Oscillating axle
  • Proportional controls
  • Platform console machine status light panel
  • Rapid replaceable platform with self-closing gate
  • Swing-out engine tray
  • SkyGuard SkyLine
  • USB-A and USB-C charger
  • 1/2 in air line to platform
  • 43.5 lb propane tank
  • 2,500W or 4,000W AC generator
  • SkyGlazier package
  • SkyPower package
  • SkyWelder package
  • Arctic package
  • Cold Weather Start package
  • Hostile Environment package
  • Light packages
  • Platform mesh to mid rail or top rail
  • Aluminum or plastic platforms
  • Multiple platform configurations, including drop bar, fall arrest, rear entry, inward self-closing swing gate, and tri-entry options
  • SkySense enhanced detection system
  • Soft Touch
  • Tower boom stow indicator
  • Welder Ready package
  • Up to three workers can fit on the platform with tools and materials, helping crews work more efficiently at height.
  • Proportional controls support smoother, more precise machine operation.
  • Platform console machine status light panel gives operators clearer visibility into machine status from the platform.
  • Upgraded light panel is designed to be more visible in sunlight.
  • USB-A and USB-C charger provides convenient charging access on the machine.
  • Articulating jib with 130 degrees of articulation helps operators position the platform more effectively around obstacles.
  • Load sensing system helps monitor platform load and supports safe operation within rated capacity zones.
  • Chassis tilt alarm alerts the operator when the machine is on a slope that exceeds 5 degrees.
  • 4-degree tilt alarm and indicator light come standard.
  • All motion alarm helps alert nearby personnel when the machine is moving.
  • LED motion/amber beacon improves jobsite visibility.
  • SkyGuard SkyLine comes standard as an enhanced operator protection feature.
  • Self-closing platform gate helps maintain secure platform entry.
  • Optional SkySense enhanced detection system is available for added operator awareness.
  • Machine meets or exceeds applicable ANSI and CSA requirements based on the original machine configuration.
  • 80 ft 4.4 in platform height
  • 52 ft 3.8 in horizontal outreach
  • 32 ft 5.1 in up-and-over height
  • 660 lb unrestricted platform capacity
  • 750 lb and 1,000 lb restricted platform capacity zones
  • 360-degree continuous swing
  • 180-degree hydraulic platform rotator
  • 6 ft jib with 130 degrees of articulation
  • 45% gradeability
  • 4.13 mph drive speed
  • Oscillating axle for improved terrain capability
  • Dual fuel and diesel engine options available
  • Zero calibration automatic load sensing system eliminates the need to use external weights during calibration.
  • Swing-out engine tray improves access for service and maintenance.
  • Gull-wing hoods provide improved access to internal components.
  • Engine distress warning and selectable engine distress shutdown help identify and respond to machine issues.
  • Hourmeter supports maintenance tracking.
  • ClearSky Smart Fleet hardware helps support fleet visibility and equipment management.
  • Backed by JLG service and support, including one-year full coverage and five-year coverage on specified major structural components.
  • Construction
  • Industrial maintenance
  • Facility maintenance
  • Steel erection and welding applications
  • Glass and glazing applications
  • Cold-weather jobsites
  • Outdoor maintenance and repair
  • Large-scale commercial and infrastructure projects
