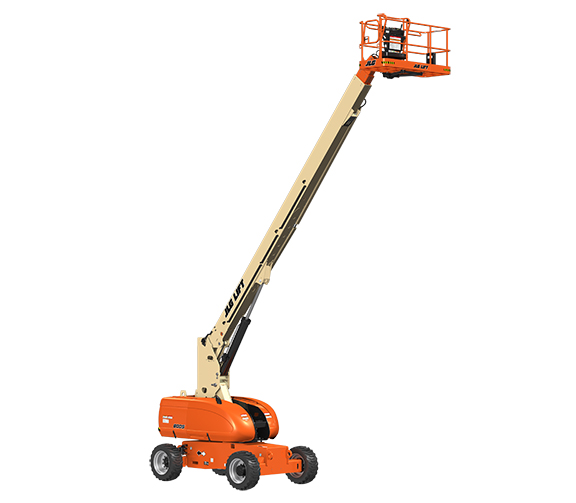

800S Extended Front RF New

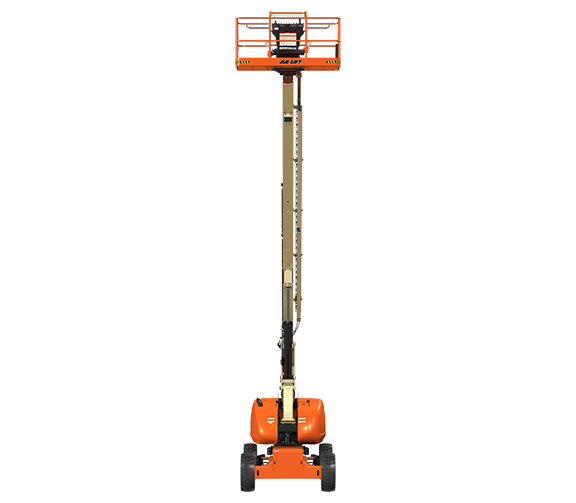

800S Extended Front New

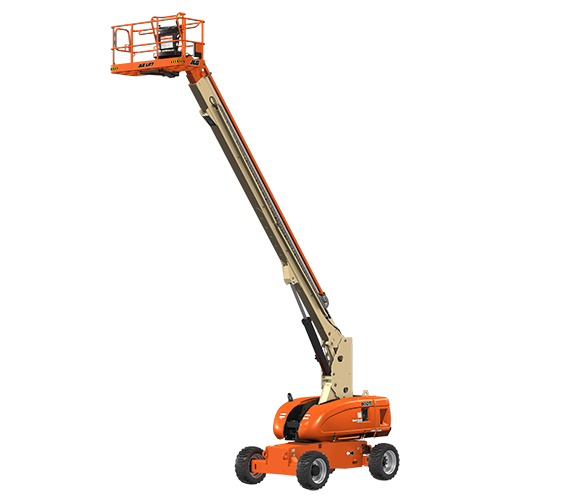

800S Extended Front LF New
800S Extended Rear LF New

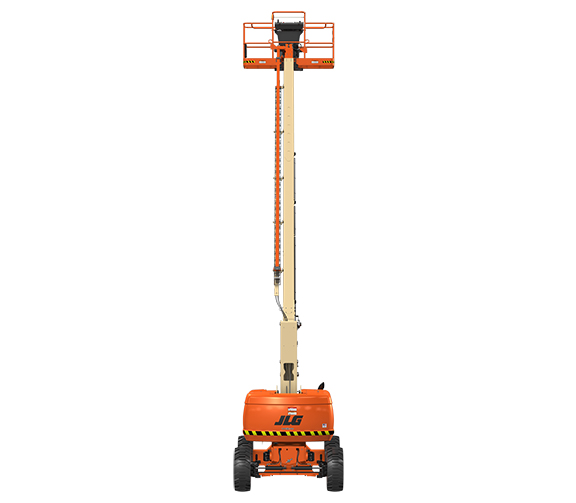

800S Extended Rear New
800S Extended Rear RF New

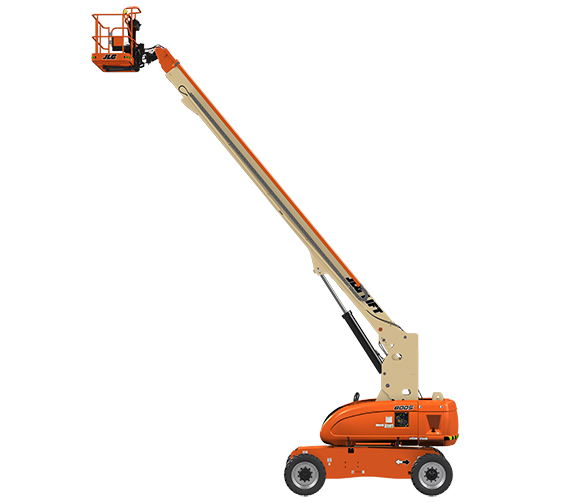

800S Extended Side LF New

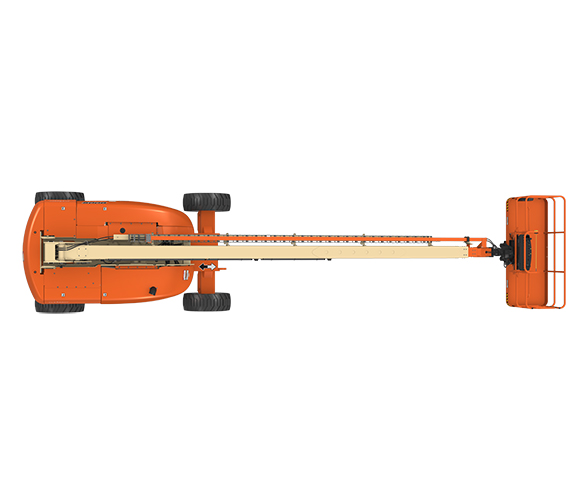

800S Top New

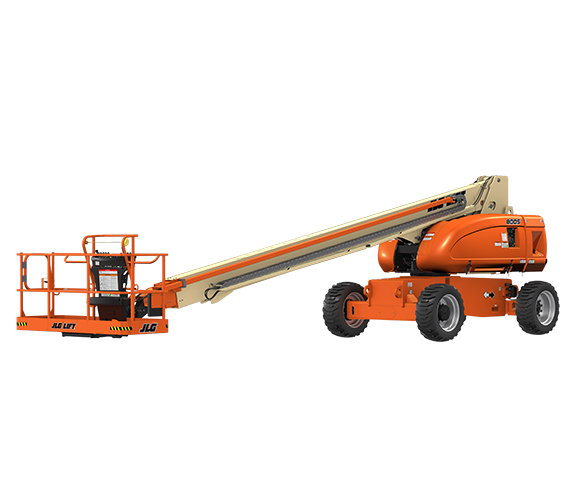

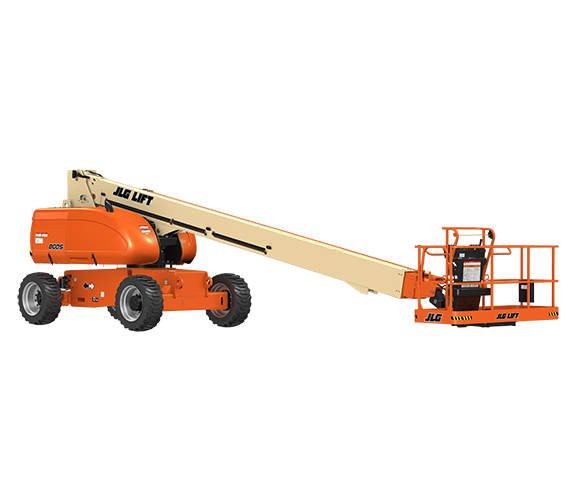

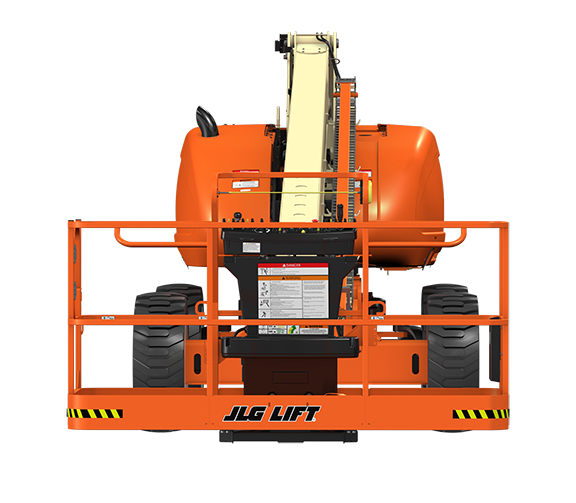

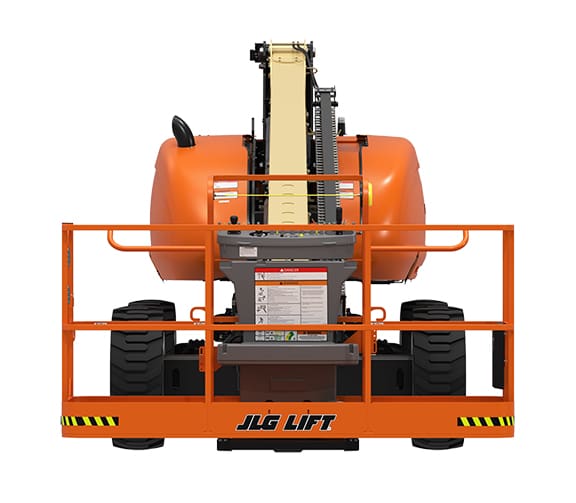

800S Retracted Front New

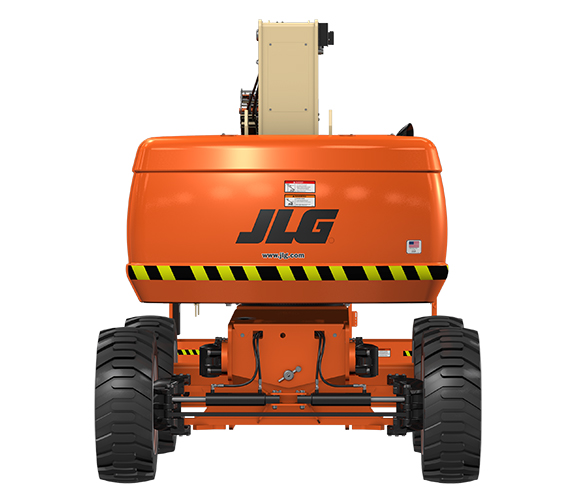

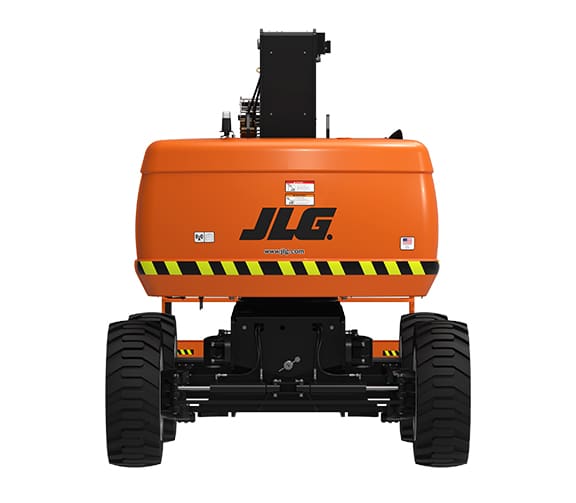

800S Retracted Rear New
800S Retracted Side RF New

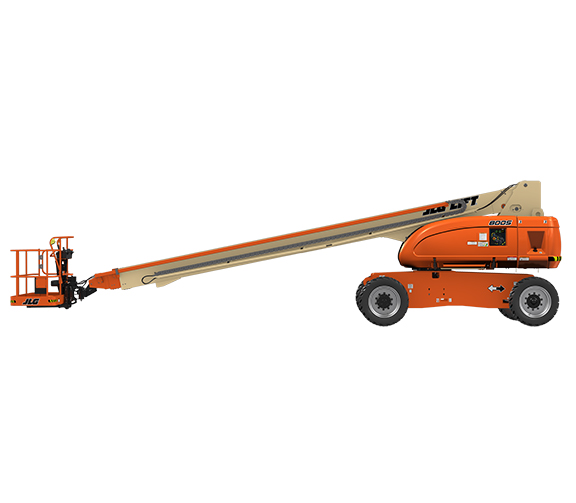

800S Retracted Side LF New

JLG 800S Telescopic Boom Lift

  • 80-ft platform height
  • 71-ft horizontal outreach
  • 1,000-lb restricted and 500-lb unrestricted platform capacity
  • Full elevation in less than 70 seconds
  • 45% 4WD gradeability
Request a Quote

Documents

Product Documents

The JLG 800S is an engine-powered telescopic boom lift built for jobs that need substantial height, outreach, and platform capacity. It delivers an 80-ft platform height, 71-ft horizontal outreach, and up to 1,000 lb of restricted platform capacity, giving crews room for workers, tools, and materials within the approved work zone.
Standard features such as 360-degree continuous swing, 180-degree hydraulic platform rotation, automatic load sensing, and ClearSky Smart Fleet hardware help make the machine practical for demanding jobsites. With available power, welding, glass-handling, cold-weather, and tire packages, the 800S can be configured for a wide range of elevated work applications.

Model Numbers: 800S

Additional Information

Condition

New
Brand

JLG
MEWP Type

Boom Lift, Telescopic
Power

Engine
MEWP Lift Height

61 – 100ft
MEWP Capacity

501 – 1,000 lbs
  • Reach elevated work areas with an 80 ft platform height and 71 ft of horizontal outreach, reducing the need to reposition the machine as often.
  • Carry more tools and materials in approved areas of the work envelope with up to 1,000 lb of restricted platform capacity.
  • Use the full reach range with 500 lb of unrestricted platform capacity for lighter crews and standard tool loads.
  • Get to work height quickly with full elevation in less than 70 seconds.
  • Work with added positioning flexibility thanks to three working zones designed for different capacity and reach needs.
  • Simplify calibration with automatic load sensing that does not require external weights.
  • 360-degree continuous swing helps operators position the boom efficiently around the work area.
  • 180-degree hydraulic platform rotation makes it easier to align the platform with the task at hand.
  • A 36 x 96 in platform gives crews space for workers, tools, and materials.
  • Hydrostatic drive, proportional controls, and improved multi-function controls support smooth machine operation.
  • An oscillating axle and 11 in ground clearance help the machine travel across uneven jobsite surfaces.
  • ClearSky Smart Fleet hardware and an LED Motion / Amber Beacon are included as standard equipment.
  • The platform console includes machine status lights for key operating information.
  • Power access in the platform includes a 110V AC receptacle, 12V DC auxiliary power, and USB-A / USB-C charging.
  • A swing-out engine tray improves access during inspection and service work.
  • Choose between a dual fuel Ford MSG425 engine or a Deutz D2.9L4 Tier 4 Final diesel engine.
  • Add SkyPower, SkyWelder, or SkyGlazier packages to support power generation, welding, or glass and panel handling work.
  • Equip the machine with SkySense enhanced detection or the Soft Touch System for added jobsite awareness.
  • Add a 2500W or 4000W AC generator for power at height.
  • Run pneumatic tools from the platform with the optional 1/2 in air line.
  • Prepare the machine for demanding environments with Cold Weather, Arctic, or Hostile Environment packages.
  • Select from foam filled, non-marking, or turf and sand tire options to better match the jobsite surface.
  • Configure the platform with available drop bar, swing gate, fall arrest, or inward self-closing swing gate styles.
  • Improved multi-function controls and proportional controls give operators more precise control over boom and drive functions.
  • Machine status lights at the platform console keep key alerts visible from the operator position.
  • Hydraulic platform rotation helps operators line up with the work area without unnecessary repositioning.
  • USB-A and USB-C charging support common phones, tablets, and work devices used on the jobsite.
  • A tilt alarm and indicator light alert the operator when the machine reaches the tilt cut-out threshold.
  • The chassis tilt alarm warns the operator when the machine is on a slope exceeding 5 degrees.
  • Automatic load sensing helps monitor platform load without requiring external calibration weights.
  • SkyGuard SkyLine is included as a standard operator protection feature.
  • Standard horn, motion alarm, LED Motion / Amber Beacon, lifting lugs, and tie-down lugs support safer jobsite operation and transport.
  • 80 ft platform height and 71 ft horizontal outreach support high-reach construction, maintenance, and industrial work.
  • Platform capacity is rated at 1,000 lb restricted and 500 lb unrestricted.
  • 3.5 mph drive speed helps crews move the boom lift around the site efficiently.
  • 45% gradeability with 4WD helps the machine travel on sloped jobsite terrain.
  • A 12 ft 6 in inside turning radius supports maneuverability for a machine in this height class.
  • Available engine choices include an 84 hp dual fuel engine and a 67 hp diesel engine.
  • The swing-out engine tray gives technicians better access to service points.
  • Automatic load sensing reduces calibration steps by eliminating the need for external weights.
  • The Control ADE system is designed to improve fuel efficiency while reducing emissions.
  • ClearSky Smart Fleet hardware supports connected fleet visibility when used with JLG’s fleet management tools.
  • An hourmeter and interactive ground-control display help support routine inspection and maintenance planning.
