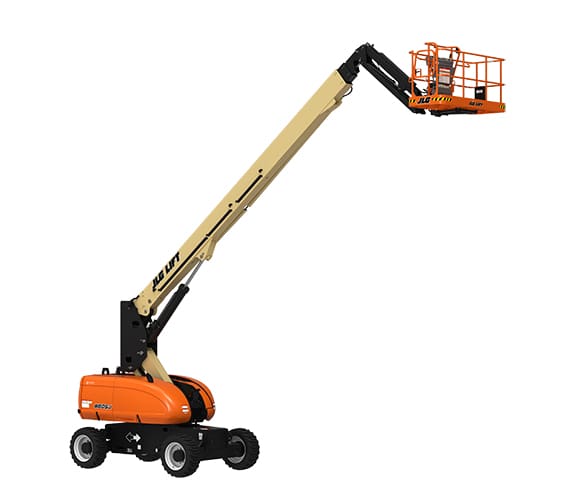

860SJ Extended Front RF New
860SJ Extended Front New

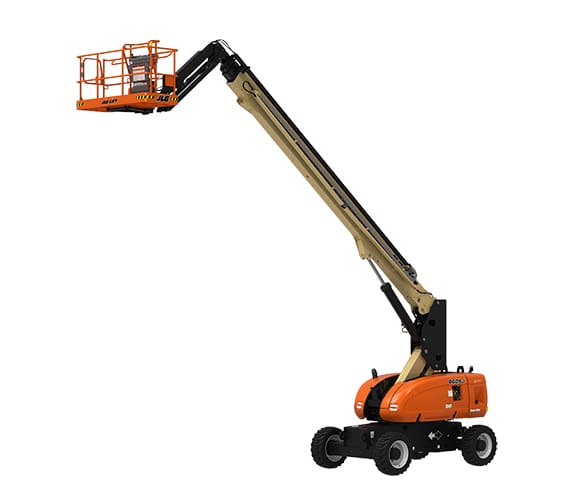

860SJ Extended Front LF New

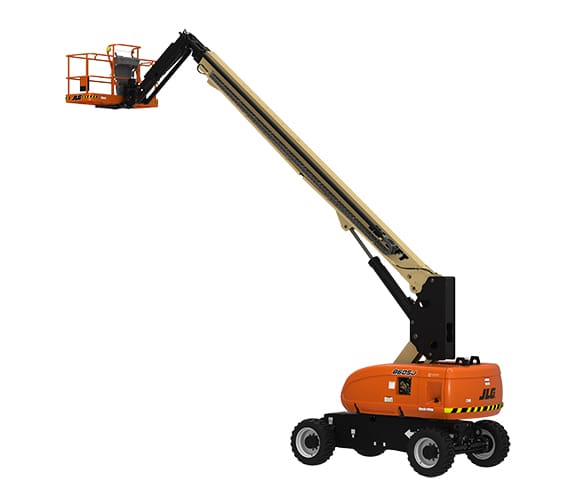

860SJ Extended Rear LF New
860SJ Extended Rear New

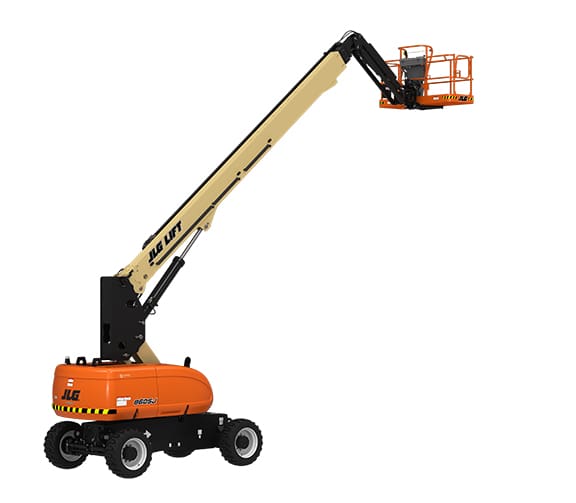

860SJ Extended Rear RF New

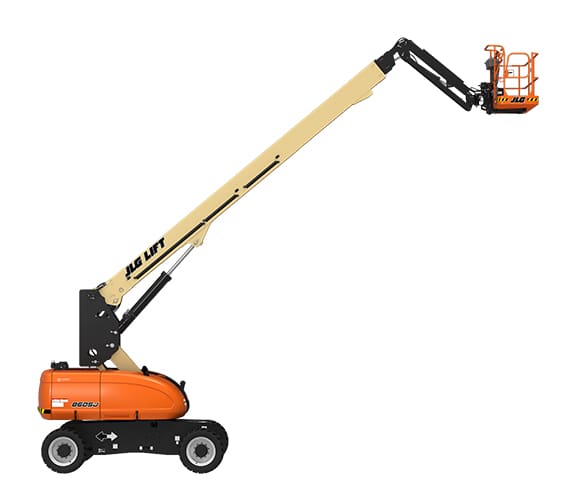

860SJ Extended Side RF New
860SJ Top New

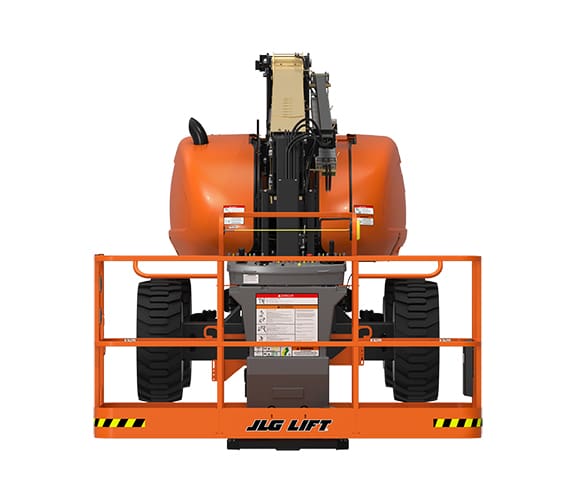

860SJ Retracted Front New

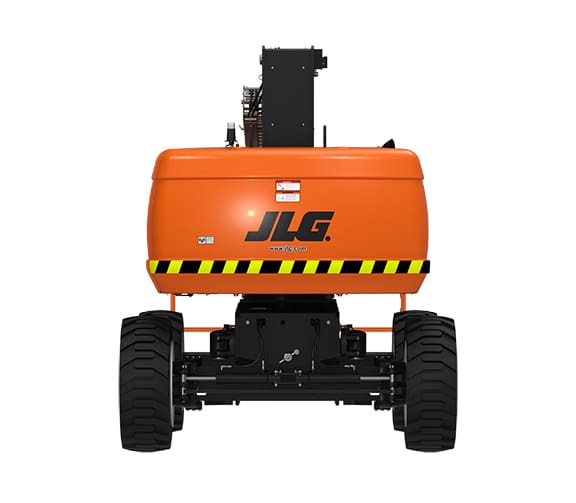

860SJ Retracted Rear New
860SJ Retracted Side RF New
860SJ Retracted Side LF New

JLG 860SJ Telescopic Boom Lift

  • 86-ft platform height and 75-ft horizontal outreach.
  • 750-lb restricted and 500-lb unrestricted platform capacity.
  • Full elevation in less than 70 seconds.
  • 6-ft jib with 131-degree articulation
  • 180-degree hydraulic platform rotator
Request a Quote

Documents

Product Documents

The JLG 860SJ is an engine-powered telescopic boom lift built for crews that need long reach, fast elevation, and practical jobsite mobility. With an 86-ft platform height, 75-ft horizontal outreach, and up to 750 lb of restricted platform capacity, it gives operators the reach and carrying capability needed for elevated construction, industrial maintenance, steel work, and exterior building tasks. Its 6-ft jib, 180-degree platform rotator, and continuous 360-degree swing help place the platform more precisely once the machine is in position.
The 860SJ also includes service- and fleet-focused features such as a swing-out engine tray, machine status light panel, ClearSky Smart Fleet hardware, and JLG’s Advanced Design Electronics System.

Model Numbers: 860SJ

Additional Information

Condition

New
Brand

JLG
MEWP Type

Boom Lift, Telescopic
Power

Engine
MEWP Lift Height

61 – 100ft
MEWP Capacity

501 – 1,000 lbs
  • 86-ft platform height and 75-ft horizontal outreach help crews access elevated or hard-to-reach work areas.
  • Reaches full elevation in less than 70 seconds to help operators get into position faster.
  • 750-lb restricted and 500-lb unrestricted platform capacity support workers, tools, and materials across the work envelope.
  • Fuel-efficient Tier 4 Final diesel engine option and JLG Advanced Design Electronics System support lower fuel use and reduced emissions.
  • Available accessories and packages let teams configure the machine for welding, glass handling, cold-weather work, and demanding environments.
  • 86-ft platform height with 75-ft horizontal outreach.
  • 6-ft jib with 131 degrees of articulation for more precise platform positioning.
  • 180-degree hydraulic platform rotator.
  • 360-degree continuous swing.
  • Hydrostatic drive with 3.5 mph drive speed.
  • Oscillating axle and 45% gradeability in 4WD configuration.
  • 36 x 96-in platform with rapid replaceable platform and self-closing gate.
  • ClearSky Smart Fleet hardware and platform console machine status light panel.
  • USB-A and USB-C charger.
  • SkyPower package with built-in generator and power cable to the platform.
  • SkyWelder package with 280-amp Miller CST 280 welder positioned beside the control station.
  • SkyGlazier package for glass and panel handling.
  • SkySense enhanced detection system.
  • Cold Weather, Arctic, and Hostile Environment packages.
  • 1/2-in air line to platform and 2,500W or 4,000W AC generator options.
  • Foam-filled non-marking, standard foam-filled, and turf-and-sand tire options.
  • Multiple platform sizes and entry styles, including drop bar, rear entry, swing gate, and tri-entry configurations.
  • Improved multi-function controls and proportional controls support smooth operation from the platform.
  • Interactive display at ground controls helps crews access machine information from the ground station.
  • Hydraulic platform rotation and jib articulation help operators position the platform without unnecessary machine repositioning.
  • USB-A and USB-C charging in the platform supports everyday device use on the job.
  • Zero-calibration automatic load sensing system eliminates the need for external weights during machine calibration.
  • SkyGuard SkyLine is included as a standard feature.
  • 4-degree tilt alarm and indicator light help alert operators when operating limits are reached.
  • Motion alarm, horn, LED motion/amber beacon, and self-closing platform gate support jobsite awareness and platform access control.
  • 12V DC auxiliary power is included for backup operation support.
  • Platform height: 86 ft.
  • Horizontal outreach: 75 ft.
  • Platform capacity: 750 lb restricted and 500 lb unrestricted.
  • Drive speed: 3.5 mph.
  • Gradeability: 25% in 2WD and 45% in 4WD.
  • Machine weight: 36,840 lb.
  • Power options include Deutz TD2.9L4 Tier 4 Final diesel engine or Ford MSG425 dual-fuel engine.
  • Swing-out engine tray improves service access.
  • Advanced Design Electronics System supports efficient machine control and diagnostics.
  • Platform console machine status light panel provides indicators for system distress, low fuel, tilt status, and foot switch status.
  • Rapid replaceable platform design supports faster platform replacement when needed.
  • Steel erection and welding.
  • Glass and drywall installation.
  • Electrical transmission and distribution.
  • HVAC work.
  • Concrete and precast applications.
  • Heavy construction jobsites where extended reach and rough-terrain access are needed.
