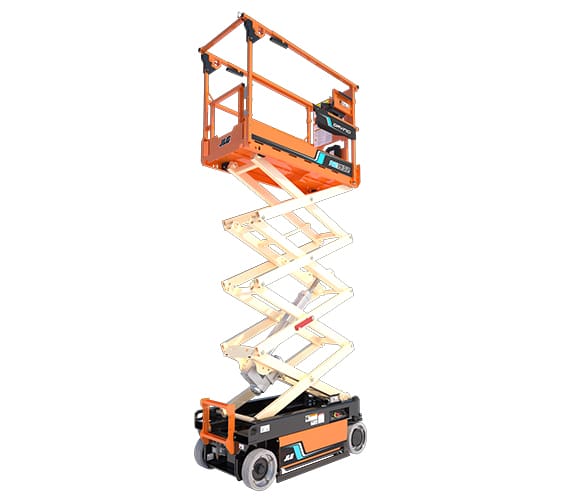

AE1932 Rear Raised 34 RF

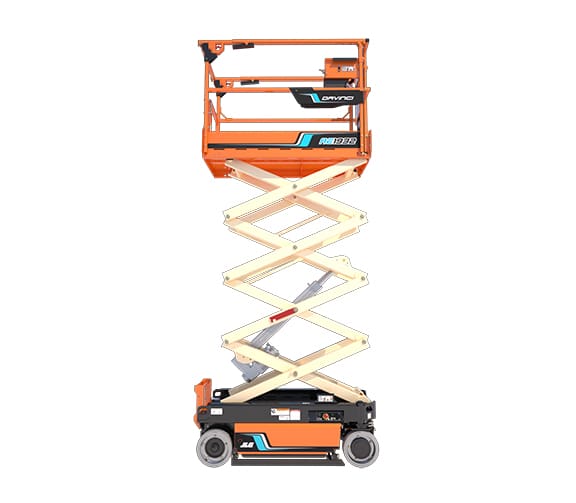

AE1932 Side Raised RF

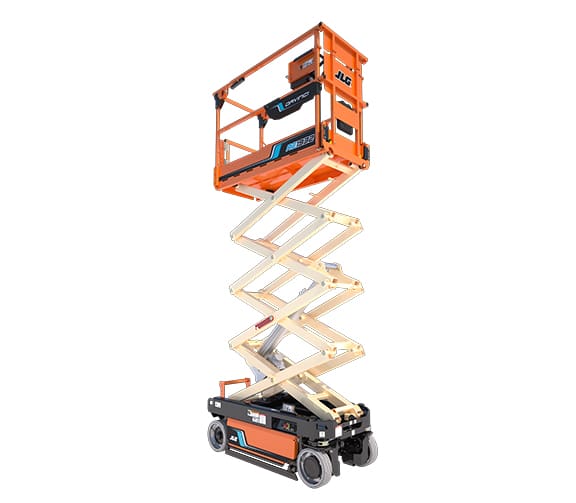

AE1932 Front Raised 34 RF

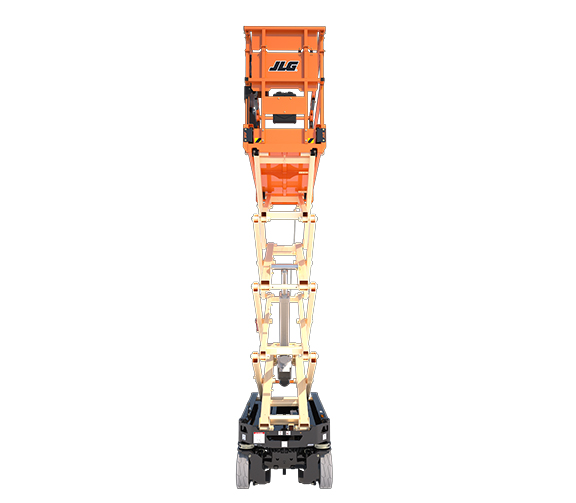

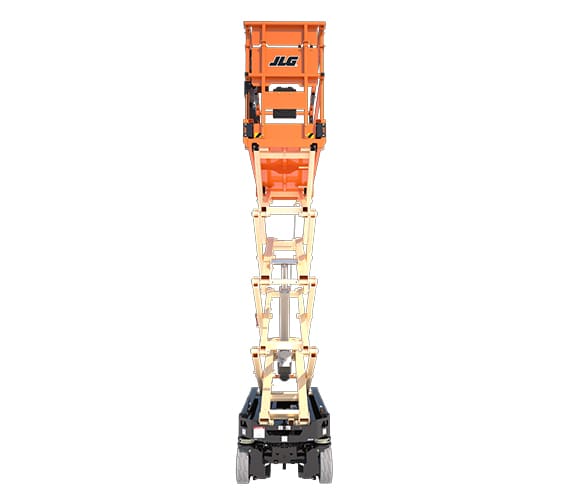

AE1932 Front Raised

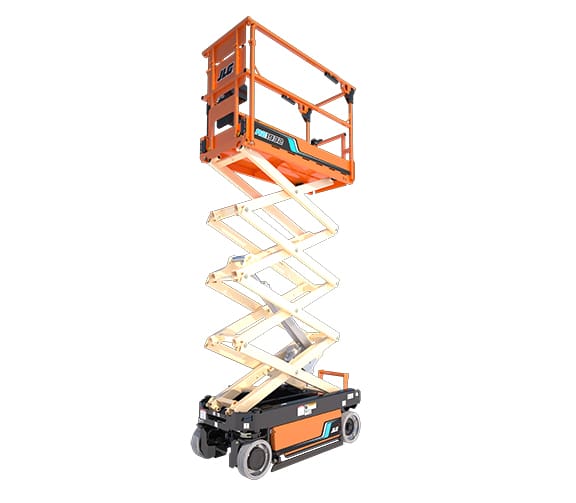

AE1932 Front Raised 34 LF

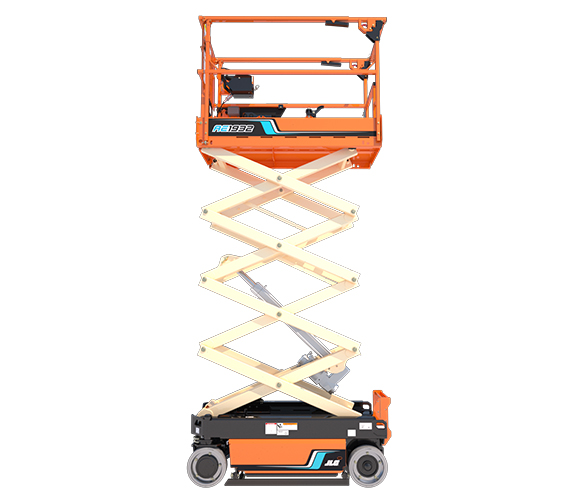

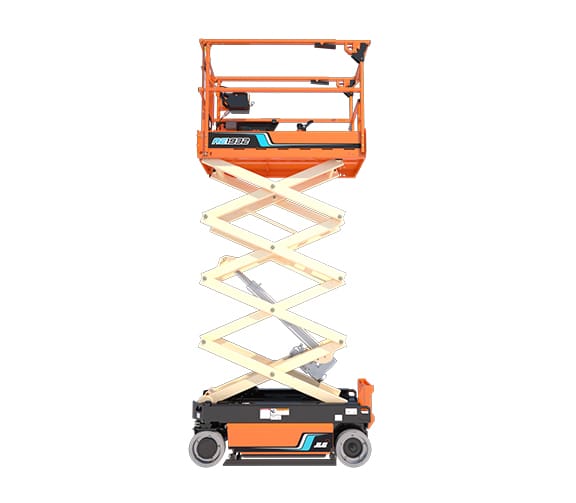

AE1932 Side Raised LF

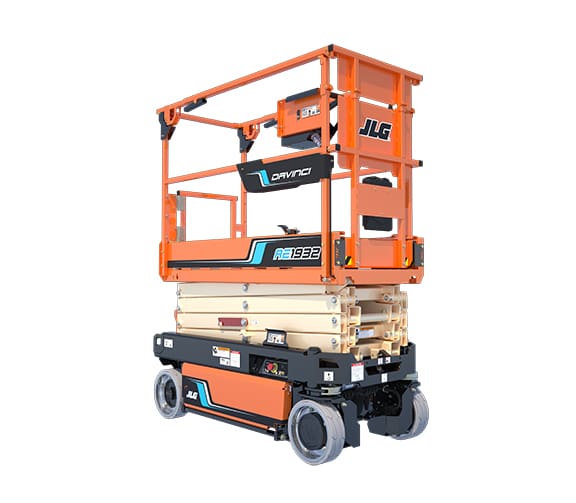

AE1932 Davinci SkySense Stowed Front RF 34

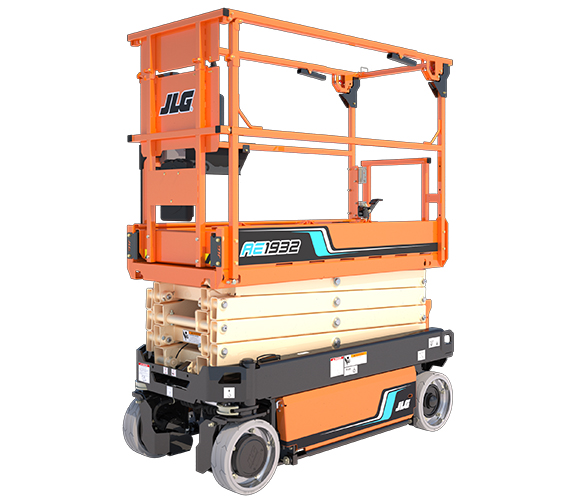

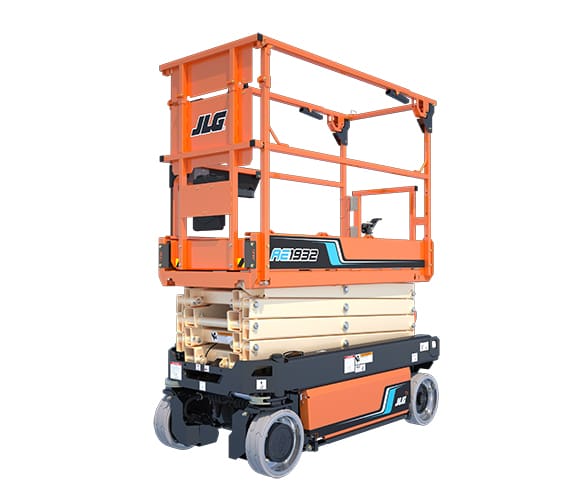

AE1932 Davinci SkySense Stowed Front LF 34

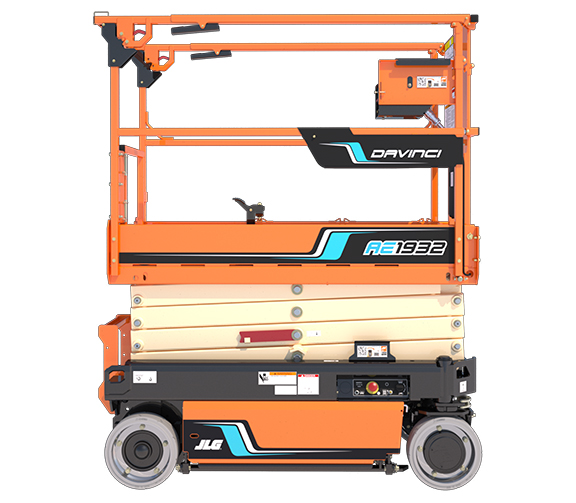

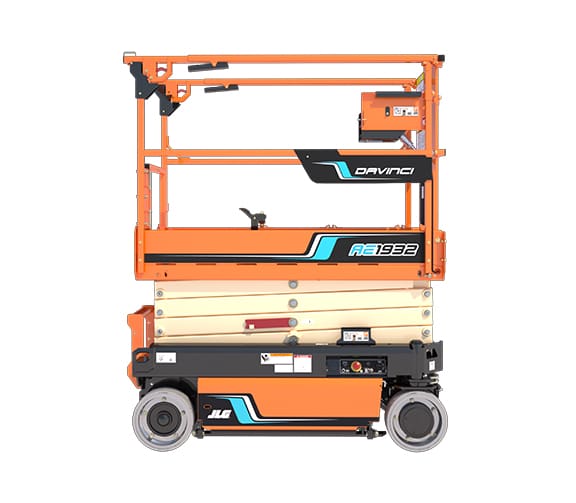

AE1932 Stowed Side RF

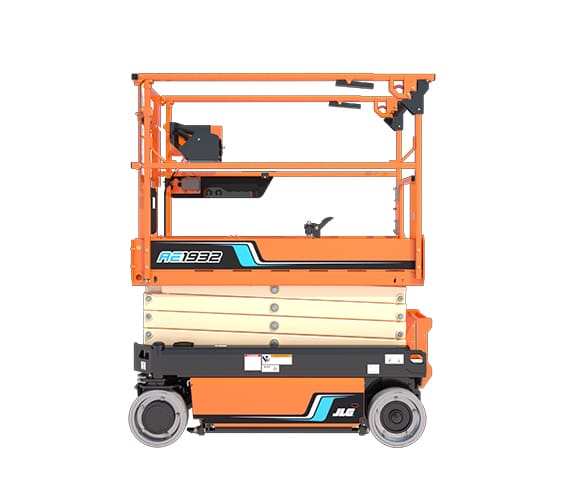

AE1932 Stowed Side LF

JLG AE1932 DaVinci All-Electric Scissor Lift

  • 19 ft. Platform Height
  • 606 lbs. Platform Capacity
  • 33.5-hour Full Charge
  • Single 24V Lithium-Ion
  • Zero Inside Turning Radius
Request a Quote

Documents

Product Documents

The JLG AE1932 DaVinci Series scissor lift is an all-electric 19-ft platform-height machine built for indoor work where maneuverability, floor protection, and reduced maintenance matter. Its 606-lb platform capacity, 36-in deck extension, 32-in machine width, and zero inside turning radius help crews work efficiently in compact spaces.

A single 24V lithium-ion battery, fully electric lift and steer systems, and zero leak points reduce the routine service demands associated with hydraulic components. With a 3.5-hour full charge, quick-charge capability, smart-device diagnostics, and a 4 mph lowered drive speed, the AE1932 is designed to keep work moving with fewer maintenance interruptions.

Model Number: AE1932

Additional Information

Condition

New
MEWP Type

Scissor Lift
Brand

JLG
Power

Electric
MEWP Capacity

501 – 1,000 lbs
MEWP Lift Height

Up to 25ft
  • All-electric design with fully electric lift, steer, and drive systems helps reduce routine hydraulic maintenance points.
  • Single 24V lithium-ion battery provides 72 Ah power and is listed with a 5-year lithium-ion battery warranty.
  • 3.5-hour full charge with the standard 650W CAN charger helps reduce charging downtime.
  • Quick charge capability provides 100 ft of drive from a five-minute charge, plus enough torque for loading.
  • Zero inside turning radius and 32-in machine width support maneuvering in tight interior work areas.
  • Independent wheel motor control is designed to reduce tire wear and limit damage to sensitive flooring.
  • 24V AC electric drive with fully electric lift and steer systems.
  • Single 24V lithium-ion, 72 Ah battery.
  • 650W CAN charger with 3.5-hour full charge time.
  • AC receptacle in platform, USB charger, and phone holder.
  • Foot-actuated 36-in deck extension.
  • Movable, removable platform control with proportional controls.
  • QuikFold rails and removable ladder.
  • Diamond tread steel deck, steel drop-down doors, forklift pockets, and lifting/tie-down points.
  • DaVinciGO app for intelligent diagnostics and JLG Mobile Control.
  • 900W CAN charger with 2.5-hour full charge time.
  • 900W inverter.
  • Anti-vandalism package.
  • Coiled platform control box cable.
  • Dual LED flashing amber beacon.
  • LCD platform control box.
  • QuikAccess platform.
  • White noise alarm.
  • SkySense enhanced detection system.
  • Movable, removable platform control lets operators position controls where they are most useful for the task.
  • Proportional controls support smooth drive and lift function control.
  • 36-in platform extension provides additional reach from the deck.
  • QuikFold rails help reduce stowed height for transport through lower clearances.
  • USB charger and phone holder support common operator device needs on the platform.
  • ANSI A92.20 compliant configuration listed in the standard features.
  • Active pothole protection system supports elevated driving stability.
  • Load sensing system, tilt alarm and light, and variable tilt visual zone indicator provide operator feedback.
  • Self-closing gate and lanyard attach points support platform access and tie-off needs.
  • All motion alarm, horn, LED motion/amber beacon, and optional white noise alarm help alert nearby personnel.
  • Manual descent cable, electric brake release, dynamic braking, and scissor maintenance prop support controlled operation and service access.
  • Platform height: 19 ft.
  • Platform capacity: 606 lb.
  • Capacity on platform extension: 265 lb.
  • Lift/lower time: 24/26 seconds.
  • Drive speed, lowered: 4 mph.
  • Drive speed, elevated: 0.5 mph.
  • Gradeability: 25%.
  • Machine weight: 3,450 lb, with certain options or country standards increasing weight.
  • Outside turning radius: 66 in; inside turning radius: zero.
  • All-electric architecture is listed with zero leak points.
  • DaVinciGO app provides intelligent diagnostics from a smart device.
  • Greaseless kingpin joints and lubrication-free scissor arm bushings reduce routine lubrication needs.
  • Battery condition indicator, hourmeter, and CAN-enabled charger support maintenance visibility.
  • Drive motor covers and steel drop-down doors help protect and access key machine components.
