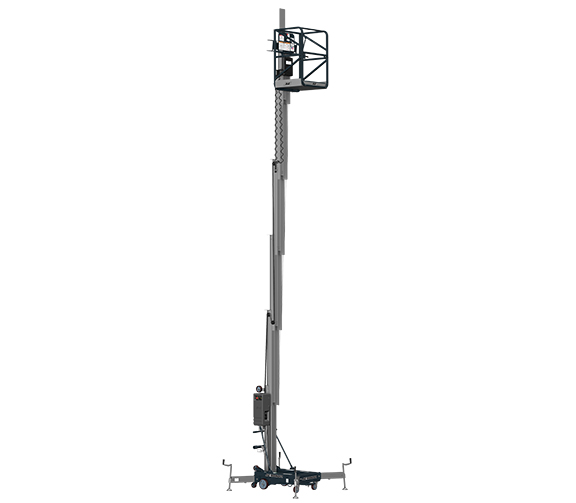

25AM_Raised_Front_RF

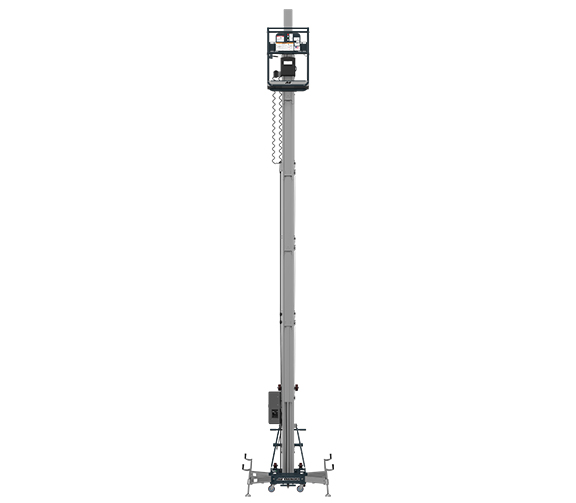

25AM_Raised_Front

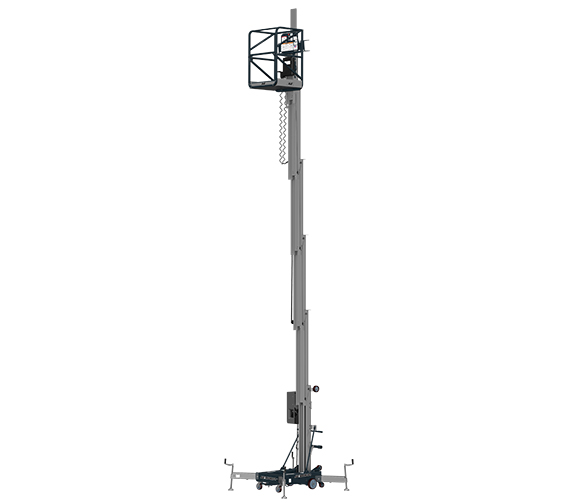

25AM_Raised_Front_LF

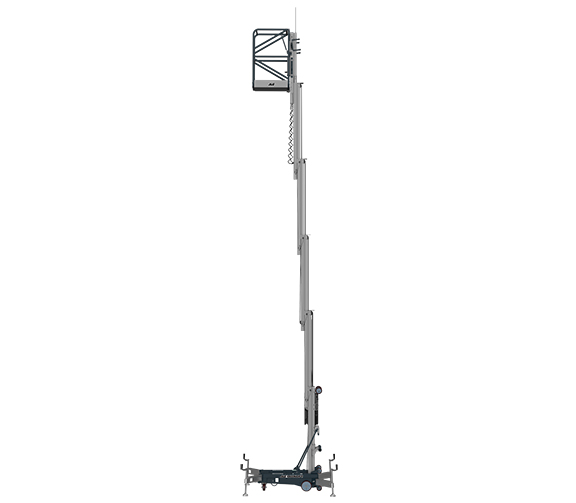

25AM_Raised_Side_LF
25AM_Raised_Rear_LF

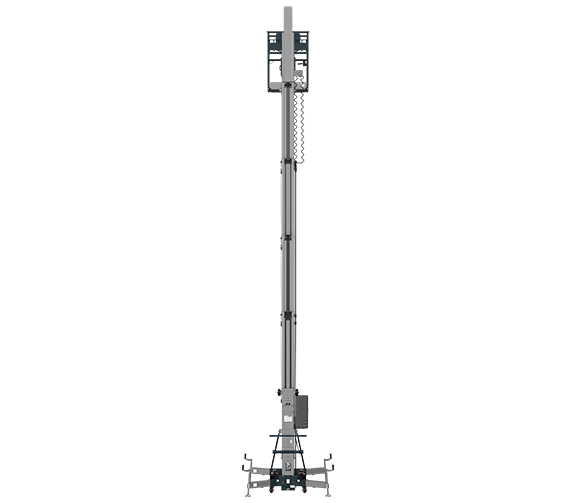

25AM_Raised_Rear
25AM_Raised_Rear_RF
25AM_Raised_Side_RF

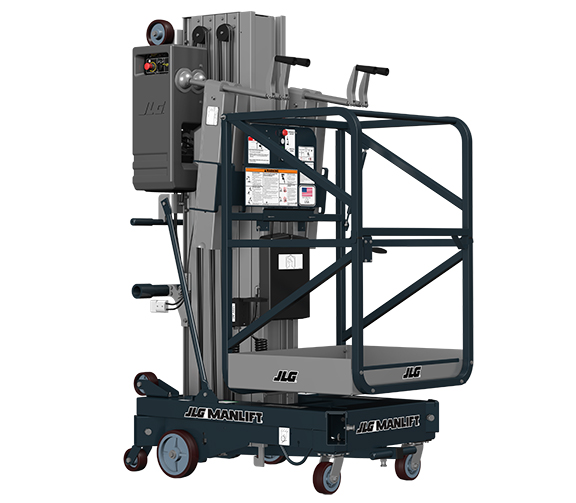

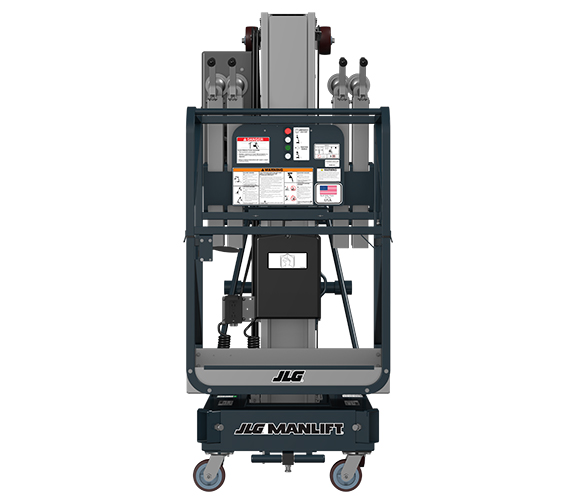

25AM_Stowed_Front_RF

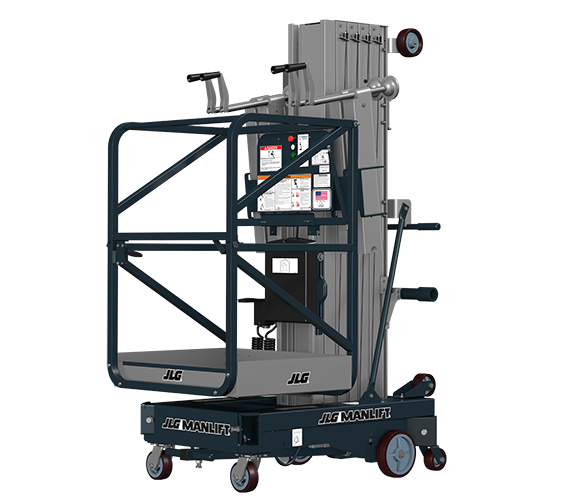

25AM_Stowed_Front_LF
JLG 25AM Push Around Mast Lift - Image 11

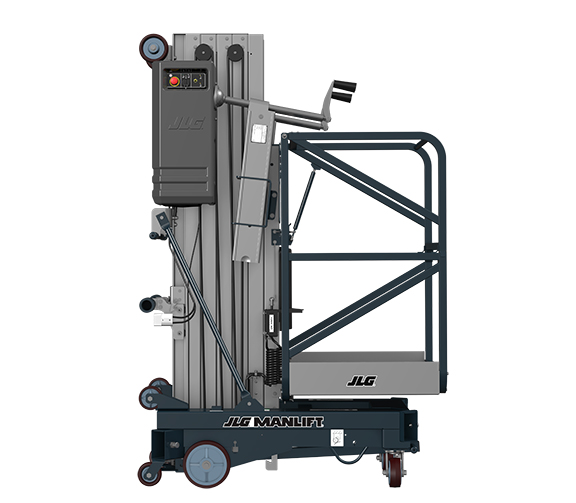

25AM_Stowed_Side_RF

JLG 25AM Push Around Mast Lift

  • 25-ft 2-in platform height
  • 350 lbs. platform capacity
  • 29.5-in machine width
  • Rigid mast design
  • C model battery package with 93 Ah battery, automatic charger, BDI, and auto power saver.
Request a Quote

Documents

Product Documents

The JLG 25AM AccessMaster is a push-around vertical mast lift built for indoor overhead work and maintenance applications. It provides a 25-ft 2-in platform height, 31-ft working height, and 350-lb platform capacity in a narrow 29.5-in-wide machine. A rigid mast, gull-wing platform entry, and six-wheel design support stable, comfortable positioning in tight indoor spaces. DC models add a 93 Ah battery, automatic charger, battery discharge indicator, and auto power saver to help crews stay productive between charges.

Model Numbers: 25AM

Additional Information

MEWP Type

Vertical Mast Lifts
Brand

JLG
Condition

New
Power

Electric
MEWP Lift Height

26 – 40ft
MEWP Capacity

Up to 500 lbs
  • 25 ft 2 in platform height and 31 ft working height support indoor overhead maintenance and access work.
  • 350 lb platform capacity gives one operator room for tools and materials within the rated limit.
  • Six-wheel design improves maneuverability when positioning the lift in indoor work areas.
  • 29.5 in machine width helps the unit move through tighter indoor paths.
  • DC model supports productive battery-powered operation with a 93 Ah battery and automatic charger.
  • 26 x 28 in gull-wing entry platform.
  • 110V double receptacle in the platform.
  • 93 Ah lead-acid battery on DC models.
  • Automatic battery charger on DC models.
  • Battery discharge indicator.
  • Hourmeter.
  • Non-marking tires.
  • Quick-change platform mounts.

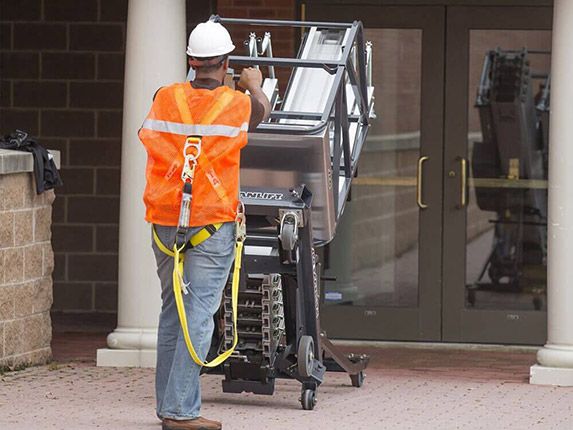

  • Roller loading device for loading onto pickup trucks.
  • 12V 100 Ah AGM battery.
  • 22 x 22 in gull-wing platform.
  • 26 x 26 in right-side entry platform.
  • Amber beacon.
  • Auxiliary lowering.
  • Crane hook.
  • Fluorescent tube caddy.
  • Locking casters.
  • Programmable 4-digit security lock.
  • 8 x 18 x 5 in tool tray.
  • Gull-wing platform entry supports straightforward access to the work platform.
  • 18.9 in ground entry height helps operators step into the platform from floor level.
  • 110V double receptacle in the platform keeps power available at height for compatible tools.
  • Rigid mast construction supports operator comfort and stability.
  • Lanyard attachment anchor is included for body harness connection.
  • Descent alarm helps alert nearby personnel while the platform is lowering.
  • Outriggers provide a 67.87 in length and 62 in width footprint when deployed.
  • Machine meets or exceeds applicable ANSI and CSA requirements based on its original manufactured configuration.
  • 25 ft 2 in platform height.
  • 31 ft working height.
  • 350 lb maximum platform capacity.
  • Indoor-only rating.
  • 6 in front distance to wall and 11.5 in side distance to wall.
  • AC model weighs 825 lb and DC model weighs 905 lb before added weight from certain options or country standards.
  • Machine dimensions are 78 in high, 29.5 in wide, and 48 in long.
  • Low-maintenance anodized mast is designed for longer service life than previous models.
  • Hourmeter supports maintenance tracking and usage monitoring.
  • Battery discharge indicator helps operators monitor battery status on DC models.
  • Auto power saver shuts off power when the machine is idle.
  • Quick-change platform mounts simplify platform changes when different platform configurations are needed.
