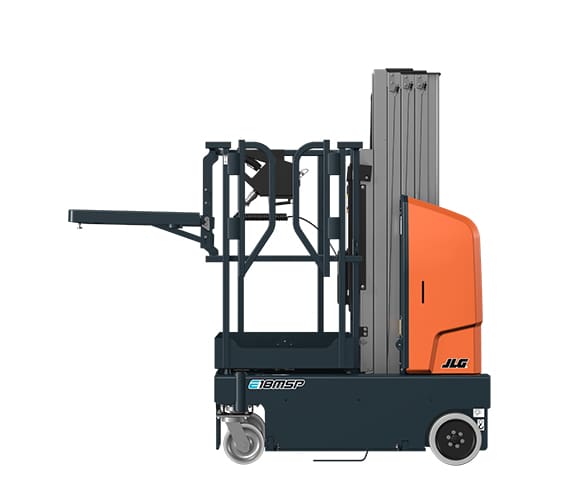

E18MSP_Stowed_Side_LF

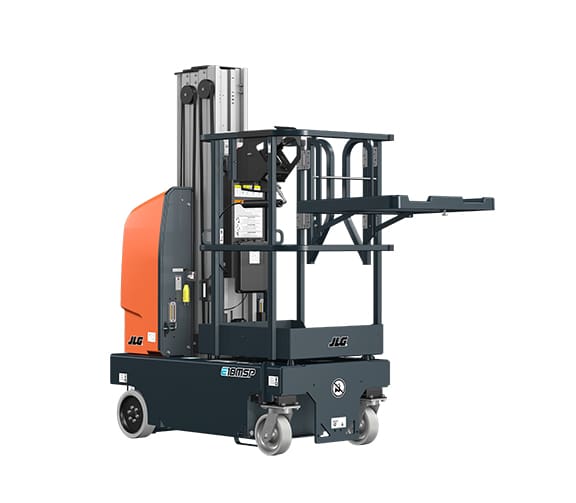

E18MSP_Stowed_Front_RF

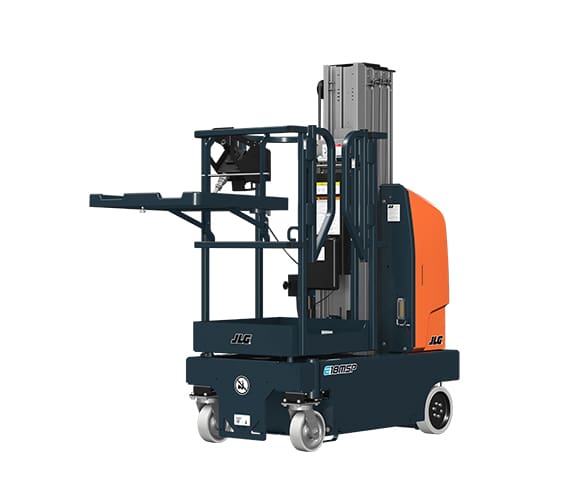

E18MSP_Stowed_Front_LF

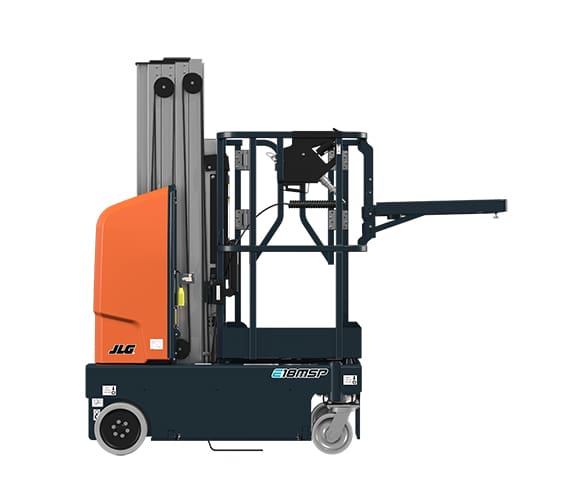

E18MSP_Stowed_Side_RF

JLG E18MSP Mobile Stock Picker

  • 18 ft. Platform Height
  • 400 lbs. Capacity
  • Zero inside turning radius
  • Fully elevated drive capability
  • Point & Go steering
Request a Quote

Documents

Product Documents

The JLG E18MSP is a driveable indoor stock picker built for elevated picking, facility maintenance, and tight-space work where maneuverability matters. It provides an 18-ft platform height, 24-ft working height, 400-lb platform capacity, and a 100-lb work tray capacity in a compact 30-in-wide machine.

Operators can drive at full elevation, use Point & Go steering, and work from a side-entry platform designed for easier access and familiar control feel. With zero inside turning radius, non-marking tires, active pothole protection, onboard diagnostics, and multiple battery options, the E18MSP is designed to help teams move efficiently through indoor tasks while keeping service and uptime needs in view.

Model Number: e18MSP

Additional Information

Brand

JLG
Condition

New
MEWP Type

Vertical Mast Lifts
MEWP Capacity

Up to 500 lbs
MEWP Lift Height

Up to 25ft
  • 18-ft platform height and 24-ft working height support elevated stock picking and maintenance tasks indoors.
  • 400-lb platform capacity plus 100-lb work tray capacity lets one operator handle tools, parts, or inventory at height.
  • Zero inside turning radius and 30-in machine width help the unit work in tight aisles and compact spaces.
  • Driveable at full elevation, reducing the need to lower, reposition, and raise the platform between picks.
  • Lightweight 1,950-lb machine weight supports use on sensitive flooring where heavier equipment may be less practical.
  • Four 6V 220 AH batteries, a 27 amp charger, and direct electric drive support longer productive run time.
  • 28 x 29.5-in side-entry work tray platform with saloon doors.
  • Point & Go steering with proportional controls and ergonomic joystick operation.
  • Movable, removable platform control with 6-ft coiled cable.
  • AC receptacle in platform, battery condition indicator, hourmeter, and multi-display indicator.
  • DC electric drive with 4-brush direct electric drive and planetary gear.
  • Fork lift pockets, lifting and tie-down points, and non-marking tires.
  • Analyzer port for diagnostics and telematics-ready configuration.
  • AGM battery package with four 6V 213 amp-hour batteries.
  • Lithium battery and Lithium+ battery options.
  • ClearSky telematics.
  • CleanGuard leak containment system.
  • Anti-vandalism package.
  • Front and side bumpers, gate latch, crane hook, and platform entry step.
  • USB charger and phone cradle.
  • JLG Mobile Control.
  • Quick-change platform options, including fold-down work tray platform and side-entry drop bar.
  • Designed around familiar controls, Point & Go steering, and an ergonomic joystick.
  • 18.5-in platform entry height supports easier entry and exit from the platform.
  • Side-entry platform with saloon doors helps simplify operator access.
  • Work tray platform keeps tools, parts, or picked items within reach while elevated.
  • Active pothole protection system.
  • Load sensing system.
  • Tilt alarm and light.
  • All motion alarm, gate alarm, horn, dual amber beacon, and lanyard attach points.
  • Dynamic braking, electric brakes, and electric brake release.
  • Manual descent and mast maintenance prop.
  • 18-ft platform height and 24-ft working height.
  • 400-lb platform capacity and 100-lb work tray capacity.
  • 2.5 mph lowered drive speed and 0.5 mph elevated drive speed.
  • 23-second lift time and 23-second lower time.
  • 30% gradeability.
  • 48-in outside turning radius and zero inside turning radius.
  • Maximum drive height: fully elevated.
  • Quick access to key scissor components supports more efficient service work.
  • Durable mast protection helps protect critical lift components.
  • Multi-display indicator provides real-time fault code and maintenance information.
  • Analyzer port supports diagnostics.
  • Greaseless kingpin joints reduce routine lubrication points.
