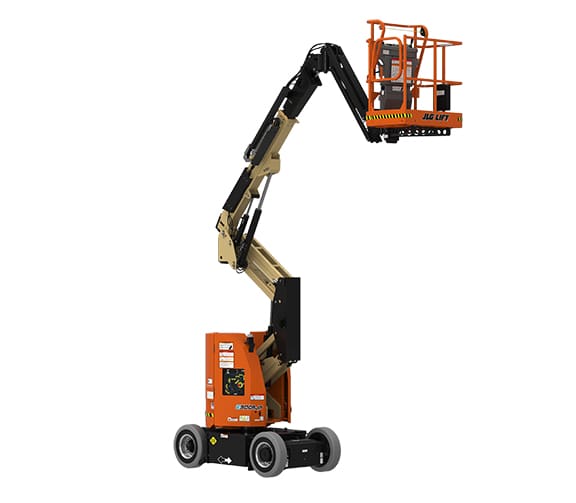

E300AJP Extended Front RF New

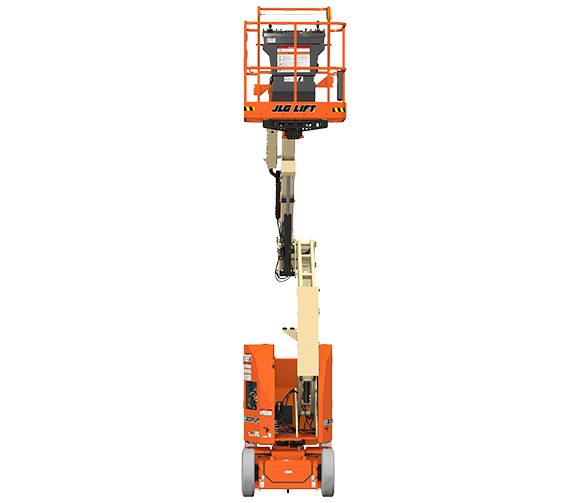

E300AJP Extended Front New

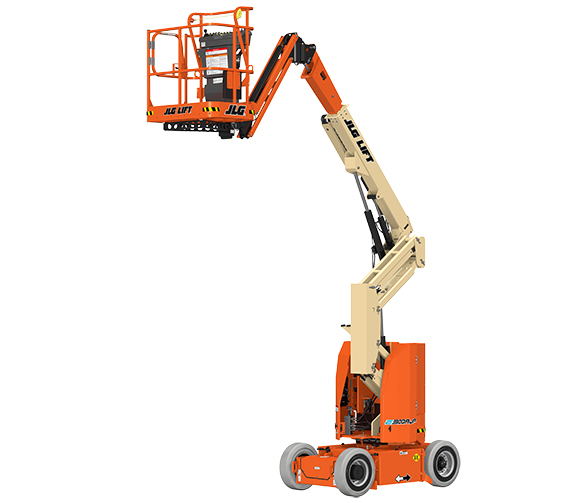

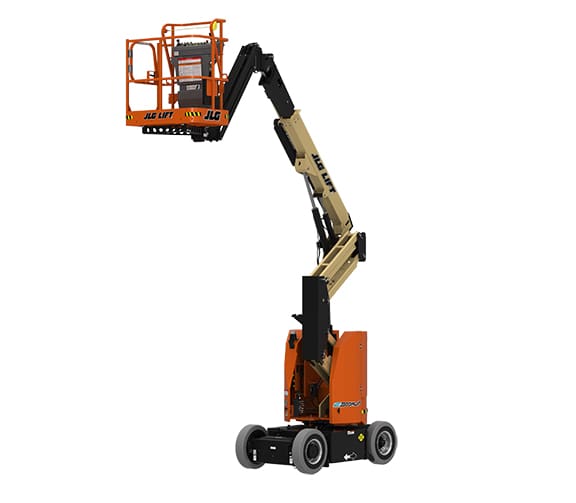

E300AJP Extended Front LF New

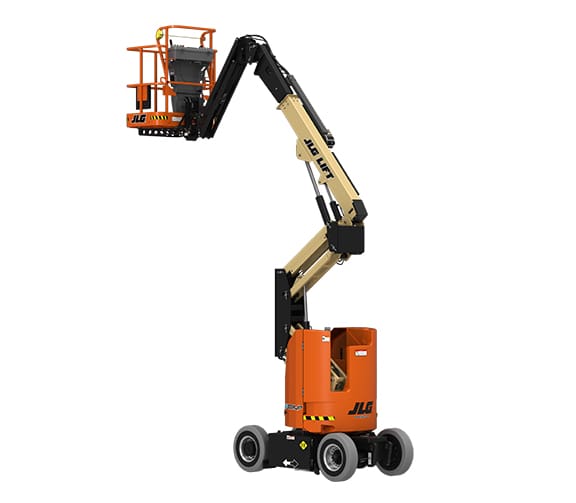

E300AJP Extended Rear LF New

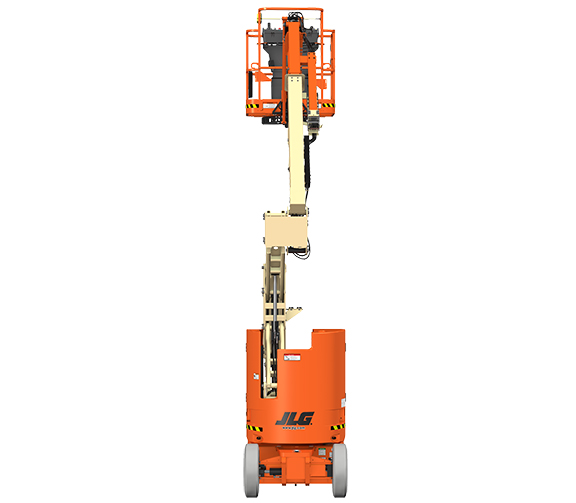

E300AJP Extended Rear New

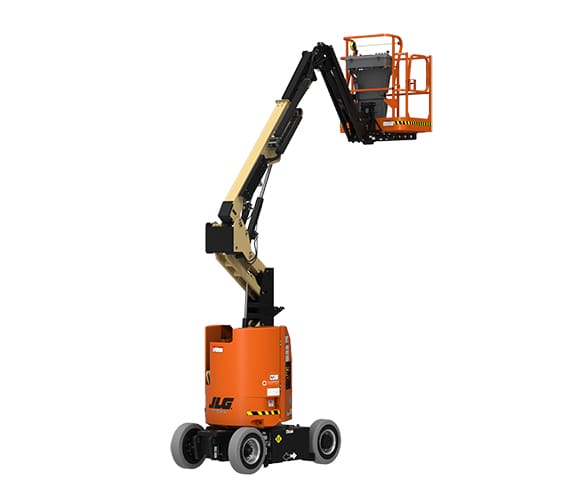

E300AJP Extended Rear_RF New

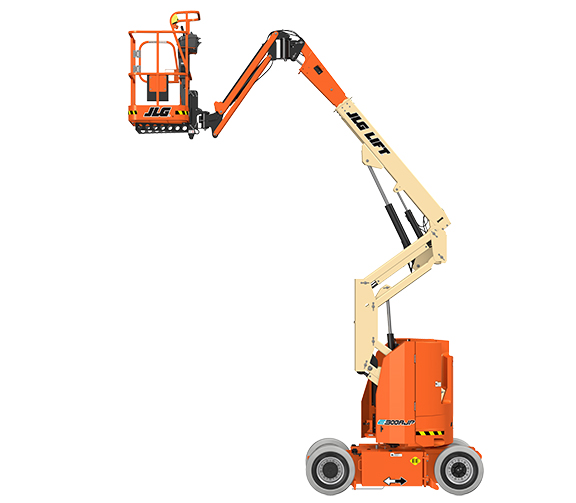

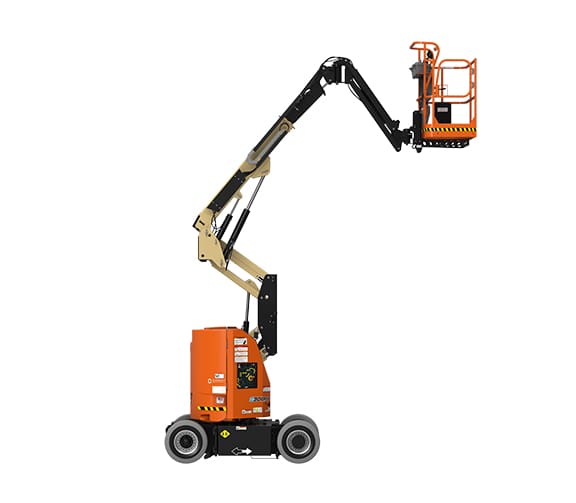

E300AJP Extended Side LF New

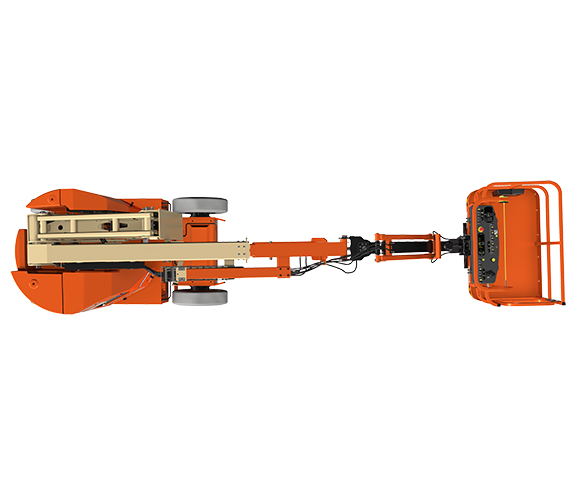

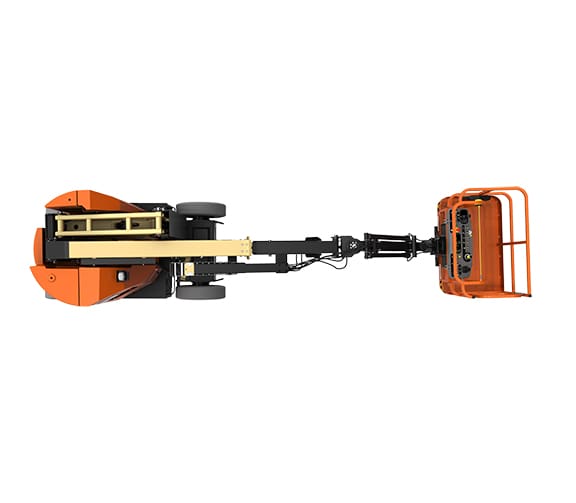

E300AJP Top New

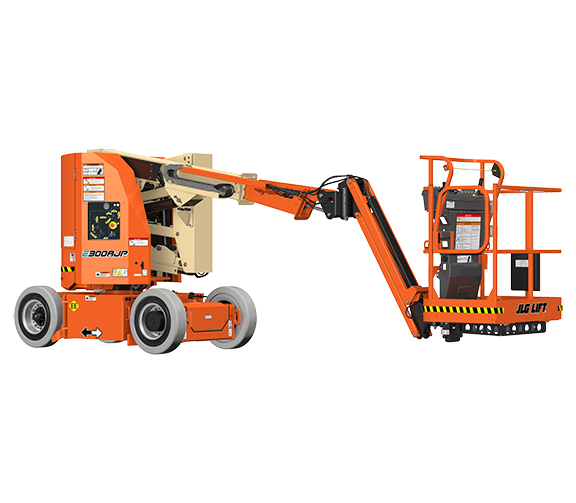

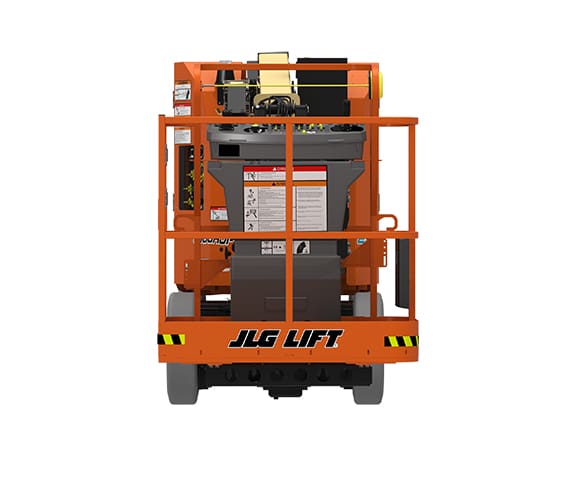

E300AJP Retracted Front New

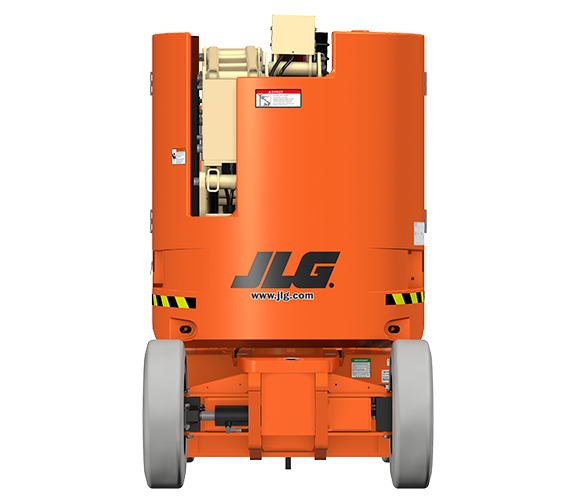

E300AJP Retracted Rear New

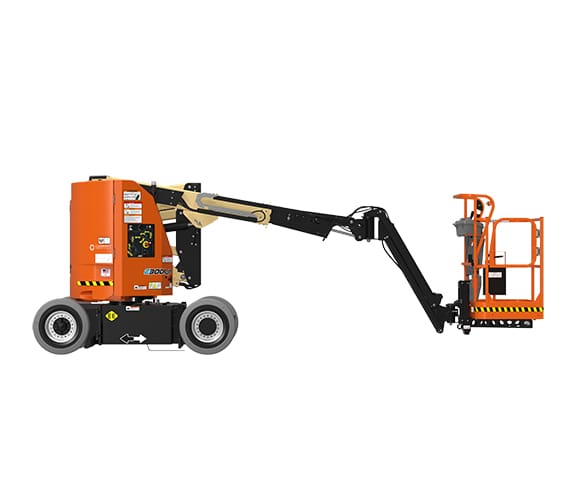

E300AJP Retracted Side RF New

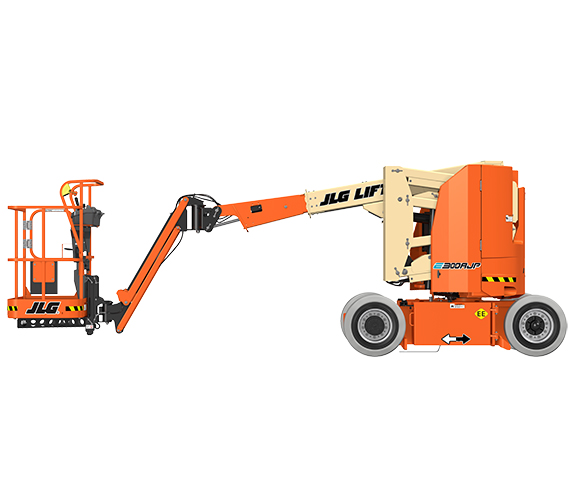

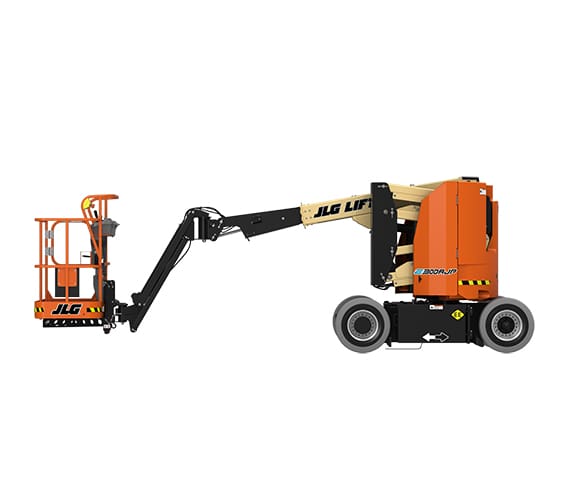

E300AJP Retracted Side LF New

JLG E300AJP Articulating Boom Lift

  • 29 ft. 5 in. Platform Height
  • 20 ft. 1 in. Horizontal Outreach
  • 500 lb. Platform Capacity
  • 15,400 lb. Machine Weight
  • 4.5 mph Maximum Drive Speed
Request a Quote

Documents

Product Documents

The JLG E300AJP electric boom lift gives operations teams a practical way to reach up, over, and around obstacles without bringing emissions into the work area. Its compact 4-foot machine width, zero tailswing, non-marking tires, and Automatic Traction Control make it well suited for tight indoor spaces, congested facilities, and uneven surfaces. With a 29 ft 5 in platform height, 20 ft 1 in horizontal outreach, and 500 lb platform capacity, it gives operators the reach and room they need to handle maintenance, installation, inspection, and repair work efficiently.

Standard features like SkyGuard SkyLine, load sensing, tilt alarm, USB charging, and ClearSky Smart Fleet hardware help support safer operation, better visibility, and easier fleet management. For facilities looking to improve access while minimizing noise, emissions, and disruption, the E300AJP is a versatile electric boom lift built for productive day-to-day use.

Model Number: JLG E300AJP

Additional Information

Condition

New
Brand

JLG
MEWP Type

Boom Lift, Articulated
Power

Electric
MEWP Lift Height

26 – 40ft
MEWP Capacity

Up to 500 lbs
  • Electric, zero-emission operation makes the E300AJP a strong fit for indoor work, occupied facilities, and jobsites where emissions need to be minimized.
  • Compact 4-ft machine width and zero tailswing help operators work in tight spaces and congested areas.
  • Up-and-over access, enhanced by the jib, helps operators reach around obstacles and into hard-to-access work areas.
  • Automatic Traction Control improves maneuverability when traveling over uneven or challenging surfaces.
  • Longer duty cycles help maximize productivity and reduce interruptions during the workday.
  • Non-marking tires support use on finished floors and indoor surfaces.
  • ClearSky Smart Fleet hardware comes standard for fleet visibility and connected equipment management.
  • 48V DC electric power system with 8 x 6V, 305 amp-hour batteries.
  • Dual electric traction drive motors.
  • 25 x 7 x 12-in non-marking tires.
  • 110V AC receptacle in the platform.
  • 12V DC auxiliary power.
  • 180-degree hydraulic platform rotator.
  • 3-degree tilt cut-out.
  • All motion alarm.
  • Automatic Traction Control.
  • Battery condition indicator.
  • Brushless AC motors.
  • Center storage tray.
  • ClearSky Smart Fleet hardware.
  • Horn and hourmeter.
  • LED motion/amber beacon.
  • Lifting/tie-down lugs.
  • Load sensing system.
  • Platform console machine status light panel.
  • Rapid replaceable platform with self-closing gate.
  • SkyGuard SkyLine.
  • Tilt light and alarm.
  • USB-A and USB-C charger.
  • Ambient white noise alarm.
  • Higher-capacity battery options, including 375 amp-hour batteries and AGM battery options.
  • Hostile environment package with console cover, boom wipers, and cylinder bellows.
  • 48V, 1000W inverter.
  • Platform mesh to mid rail or top rail.
  • Aluminum or plastic platform options.
  • Drop bar, 30 x 48-in platform.
  • Inward self-closing swing gate, 30 x 48-in platform.
  • UL EE rating.
  • Additional fleet and productivity accessories such as light packages, cold weather packages, platform mesh kits, and other boom lift accessories where applicable.
  • 30 x 48-in platform provides room for the operator, tools, and materials while maintaining a compact footprint.
  • 180-degree hydraulic platform rotation helps operators position the platform more precisely without constantly repositioning the machine.
  • Up-and-over boom design helps operators access work from the right angle, especially around racking, fixtures, building structures, and equipment.
  • USB-A and USB-C charger supports convenient device charging from the platform.
  • Center storage tray helps keep small tools and items organized.
  • Optional platform mesh can help retain tools and materials inside the basket while maintaining visibility and airflow.
  • SkyGuard SkyLine provides enhanced operator protection at the platform.
  • Load sensing system helps monitor rated platform load.
  • 3-degree tilt cut-out, tilt light, and tilt alarm support safer operation on slopes or uneven surfaces.
  • All motion alarm and horn help alert people nearby when the machine is operating.
  • LED motion/amber beacon improves jobsite visibility.
  • Platform console machine status light panel provides operator-facing machine alerts and status indicators.
  • Lifting and tie-down lugs support safer loading, unloading, and transport.
  • Optional platform mesh helps reduce the risk of tools or materials falling from the basket.
  • 29-ft 5-in platform height.
  • 20-ft 1-in horizontal outreach.
  • 13-ft 2-in up-and-over clearance.
  • 500-lb unrestricted platform capacity.
  • 350-degree non-continuous swing.
  • 180-degree hydraulic platform rotator.
  • 4.5 mph maximum drive speed.
  • 25% gradeability.
  • 5-ft inside turning radius and 10-ft 2-in outside turning radius.
  • 15,400-lb machine weight.
  • Maximum tire load of 8,200 lb and maximum ground bearing pressure of 170 psi.
  • Zero-emission electric operation for indoor and environmentally sensitive applications.
  • Brushless AC motors help reduce maintenance compared with traditional brush-style motor designs.
  • Electric powertrain eliminates engine-related maintenance items associated with diesel or dual-fuel machines.
  • ClearSky Smart Fleet hardware supports connected fleet visibility and machine management.
  • Platform console machine status light panel helps operators and service teams quickly identify system status information.
  • Rapid replaceable platform design supports faster platform replacement when needed.
  • JLG support resources include manuals, parts access, service training, technical support, and authorized service providers.
  • Facility maintenance.
  • Warehousing and distribution.
  • Manufacturing plants.
  • Retail, institutional, and commercial building maintenance.
  • Electrical work.
  • HVAC work.
  • General construction and renovation.
  • Indoor applications where zero emissions and non-marking tires are important.
  • Jobsites with tight aisles, narrow access points, overhead obstacles, or congested work areas.
