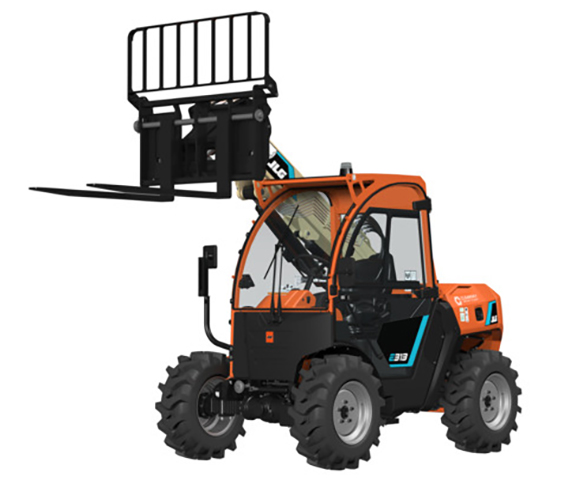

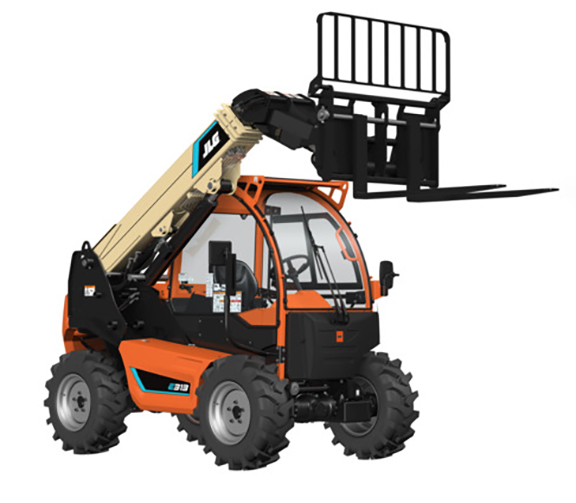

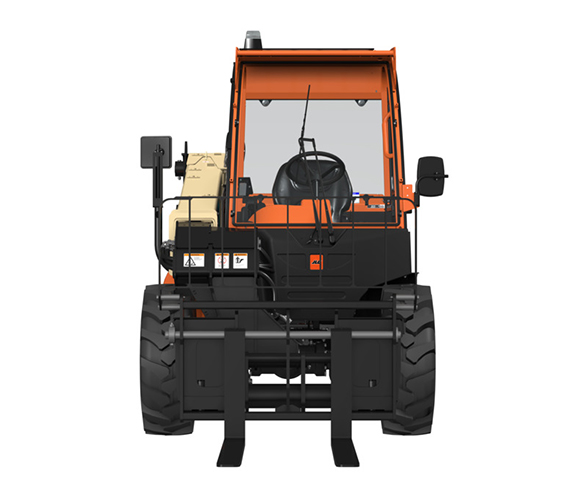

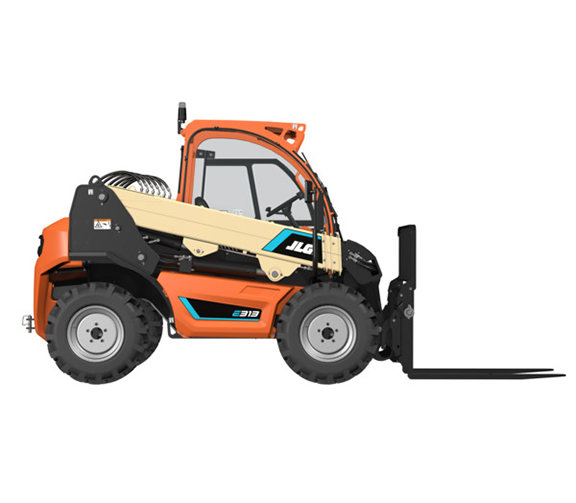

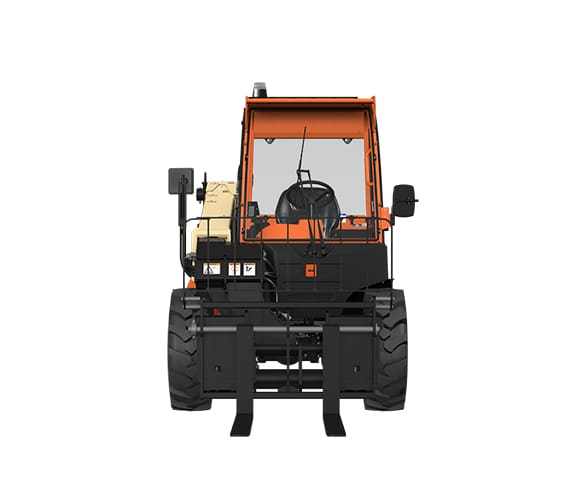

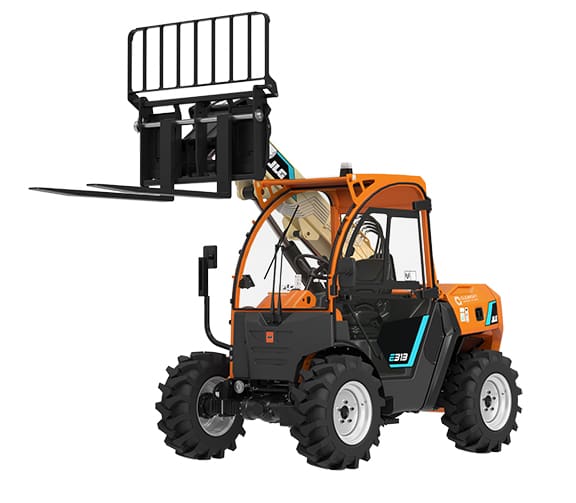

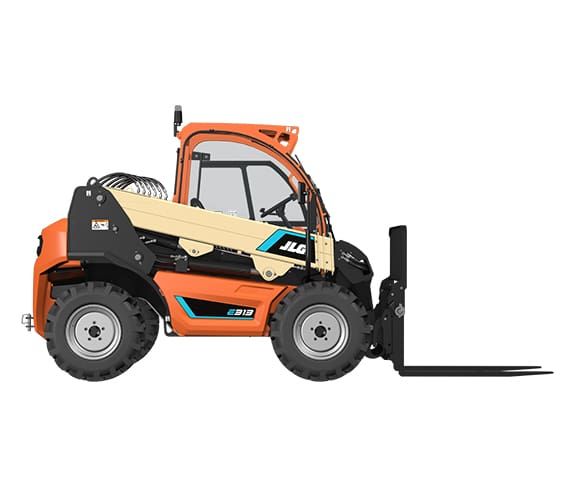

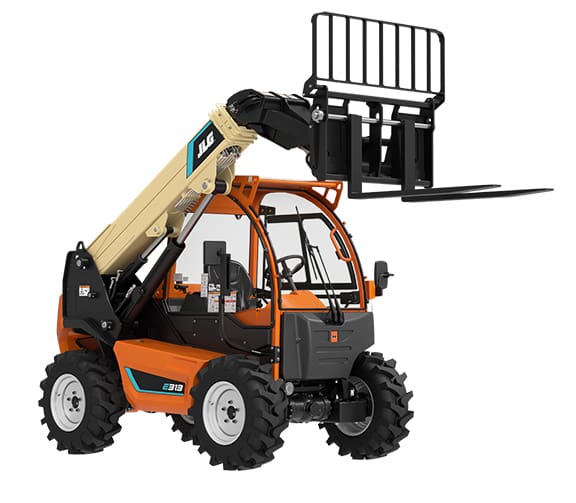

JLG E313 Telehandler

13 ft. Platform Height
3,500 lbs. Rated Capacity
48V Lithium-ion Battery System
7 ft. 6 in. Maximum Forward Reach
4-ft 10-in Machine Width

Documents

Product Documents

Videos

The JLG E313 is a compact electric telehandler designed for material handling in emission-free, low-noise work environments. It delivers a 3,500-lb rated capacity, 13-ft 1-in maximum lift height, and 7-ft 7-in maximum forward reach in a machine that is only 4-ft 10-in wide.

Its 48V lithium-ion battery system, dual onboard chargers, and maintenance-free battery design help reduce service demands while supporting indoor, urban, municipal, and residential applications. Standard forks, auxiliary hydraulics, and a mechanical universal skid steer coupler give operators practical attachment flexibility for everyday jobsite work.

Model Numbers: E313

Additional Information

Condition	New
Brand	JLG
MEWP Type	Telehandler
Power	Electric
MEWP Lift Height	Up to 25ft
MEWP Capacity	Over 2,000 lbs

All-electric operation supports work in emission-free spaces, including indoor, urban, residential, and municipal environments.
Low-noise performance makes the machine a good fit for noise-sensitive sites, extended work hours, and overnight shifts where allowed.
Compact 4-ft 10-in width and 134-in outside turning radius help operators maneuver in tight work areas.
Maintenance-free lithium-ion batteries and optimized service access help reduce service time and operating costs.
Standard forks, carriage, auxiliary hydraulics, and universal skid steer coupler support common material handling tasks from day one.

3,500-lb rated capacity with 13-ft 1-in maximum lift height.
48V lithium-ion battery system with six 3.1 kWh batteries and integrated battery heaters.
Dual onboard 3 kW battery chargers with 110V and 220V charging adapters.
41-in carriage with bolt-on backrest and 48-in pallet forks.
Mechanical universal skid steer coupler and auxiliary hydraulics.
2WD and 4WD modes with electric 2-speed transmission.
Road lights, work lights, wiper package, hourmeter, and integrated electronic display.

Enclosed cab for added operator protection from jobsite conditions.
Hydraulic universal skid steer coupler for easier attachment changes.
High auxiliary flow package rated at 10.5 gpm / 3045 psi.
Foam-filled ag tread tires or turf tires for different ground conditions.
Front brick guard, boom prop, and LED motion / amber beacon with ClearSky Smart Fleet hardware.
General purpose bucket attachment.

Adjustable suspension seat supports operator comfort during daily use.
Single joystick proportional controls help operators manage boom and attachment functions smoothly.
Integrated arm rest supports a more comfortable operating position.
Rear view mirrors and integrated display keep visibility aids and machine information within easy view.

Certified ROPS/FOPS structure.
Longitudinal Stability Indication System helps operators monitor load stability conditions.
Seatbelt engagement and operator assurance features are included.
Backup alarm, horn, and rear view mirrors support jobsite awareness.
Wet disc service brakes and spring-applied hydraulic release parking brakes support controlled stopping and parking.

3,500-lb rated capacity for compact material handling applications.
1,800-lb capacity at maximum lift height and 1,415-lb capacity at maximum reach.
13-ft 1-in maximum lift height and 7-ft 7-in maximum forward reach.
9.3 mph top travel speed with electric 2-speed transmission.
Lift speed with boom retracted is 11 seconds up and 8 seconds down.
Electric drive motor rated at 8.6 kW and electric implement motor rated at 15 kW.

Maintenance-free lithium-ion batteries reduce routine battery service requirements.
Optimized service access helps reduce time spent on maintenance.
Electric power reduces engine-related service items found on combustion-powered equipment.
Approximate 20% to 80% charge time is 11-12 hours on 110V or 2-3 hours on 220V.

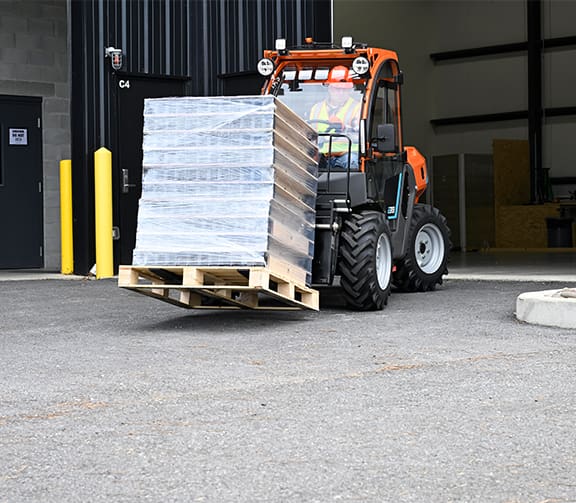

Indoor material handling applications where zero emissions are required or preferred.
Urban and municipal jobsites with emissions or noise concerns.
Residential work areas where low-noise operation is valuable.
Tight-access sites that benefit from compact telehandler dimensions.
