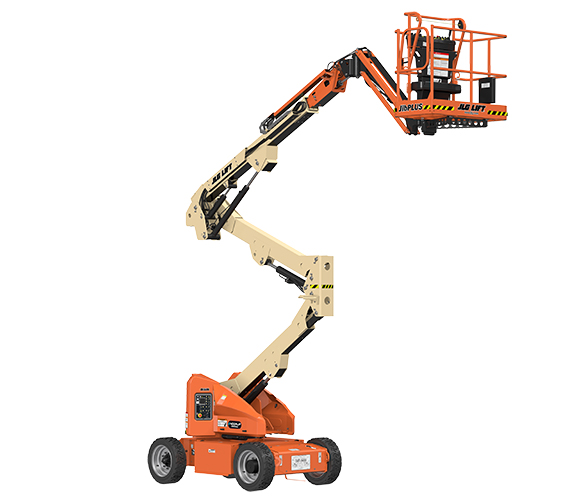

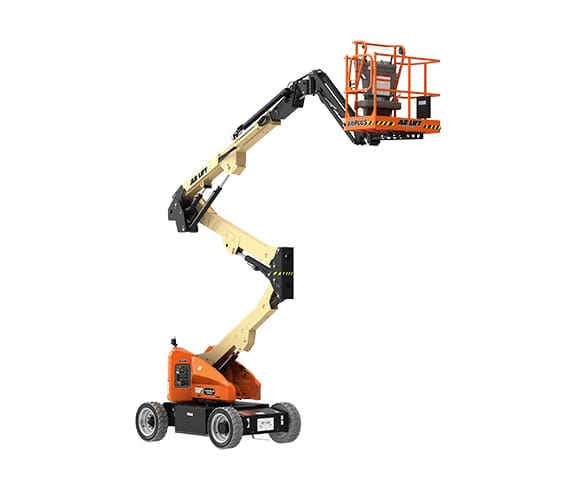

E400AJPN Extended Front RF New

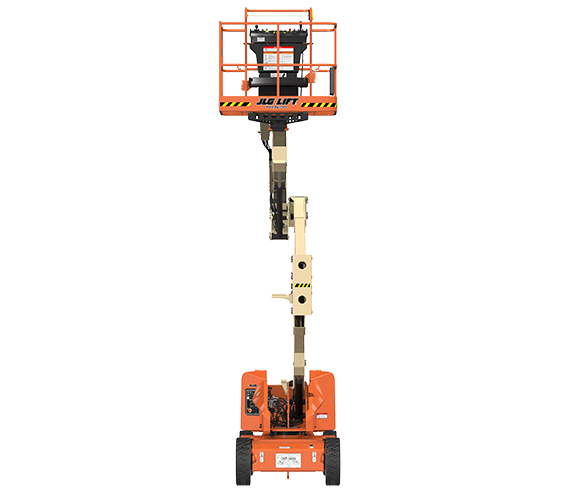

E400AJPN Extended Front New

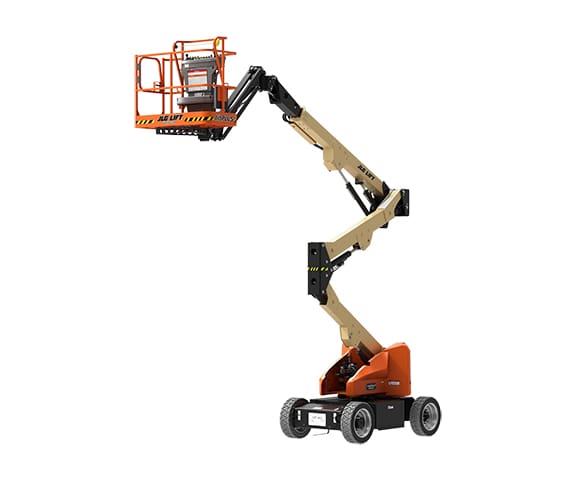

E400AJPN Extended Front LF New

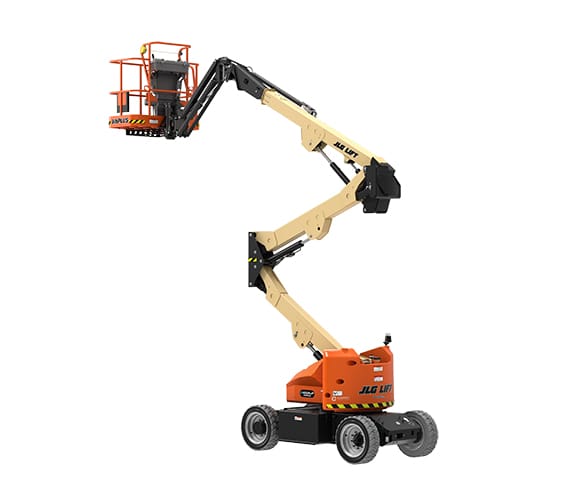

E400AJPN Extended Rear LF New

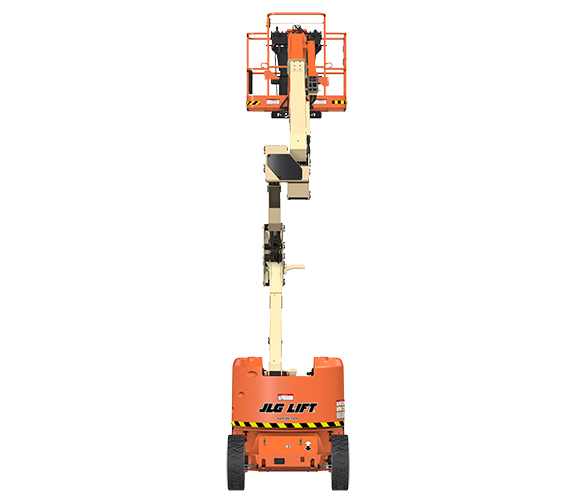

E400AJPN Extended Rear New

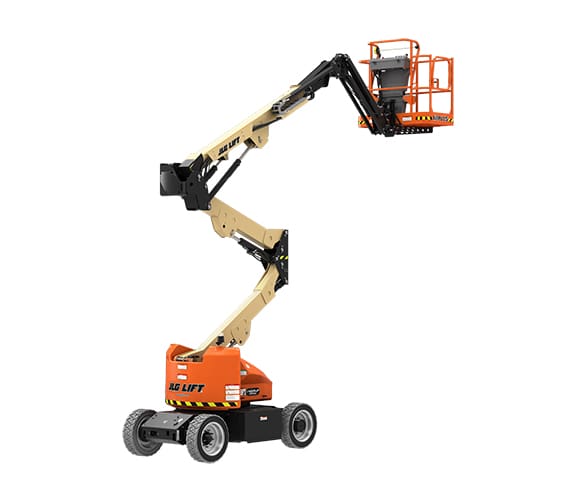

E400AJPN Extended Rear RF New

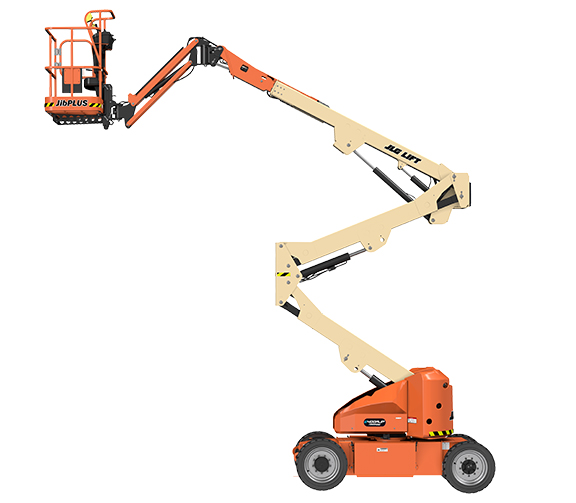

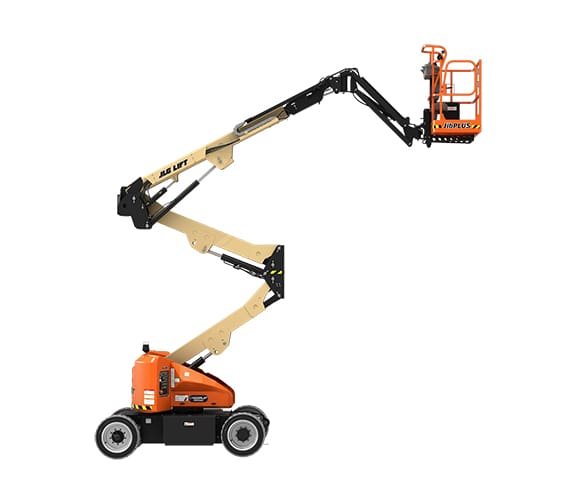

E400AJPN Extended Side LF New

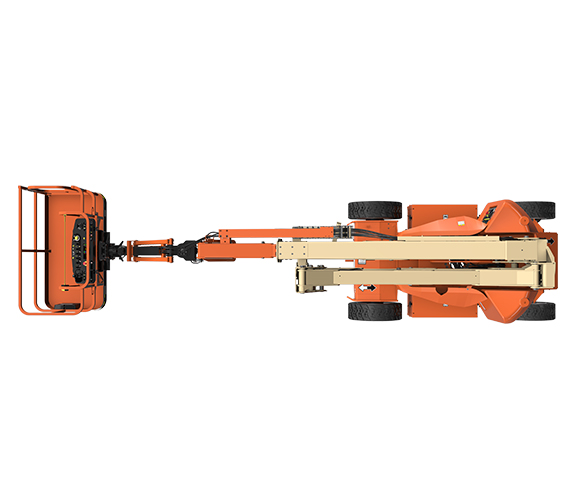

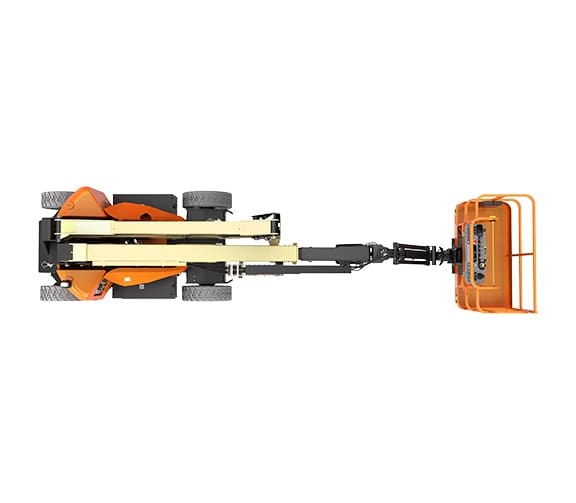

E400AJPN Top New

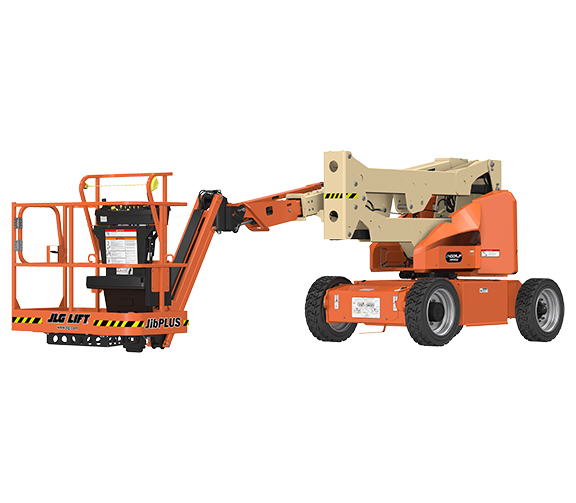

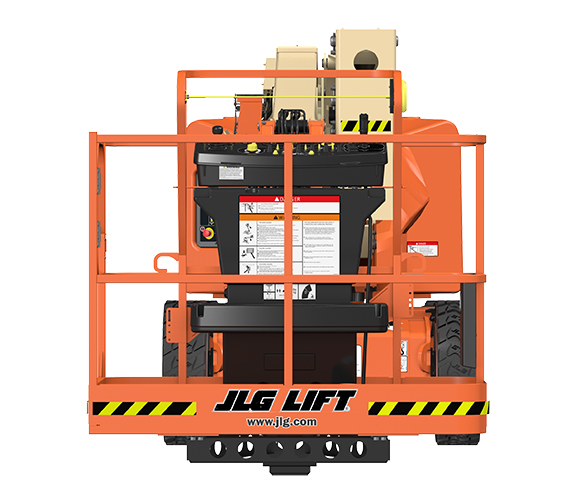

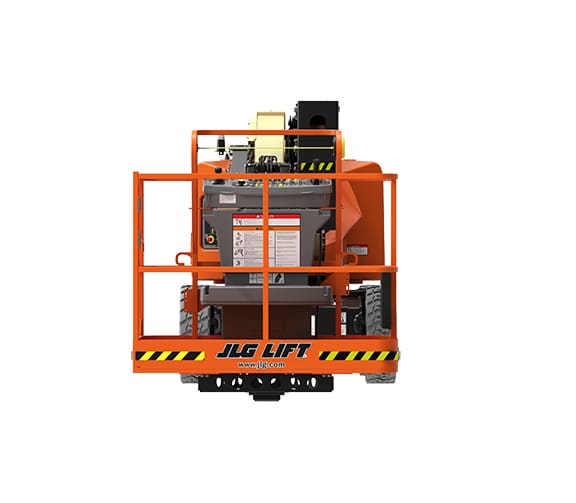

E400AJPN Retracted Front New

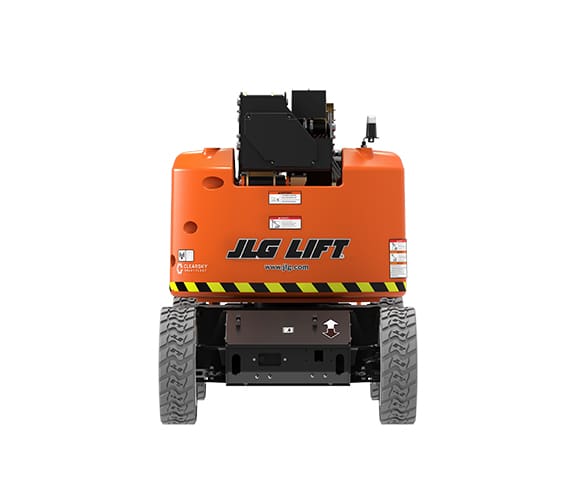

E400AJPN Retracted Rear New

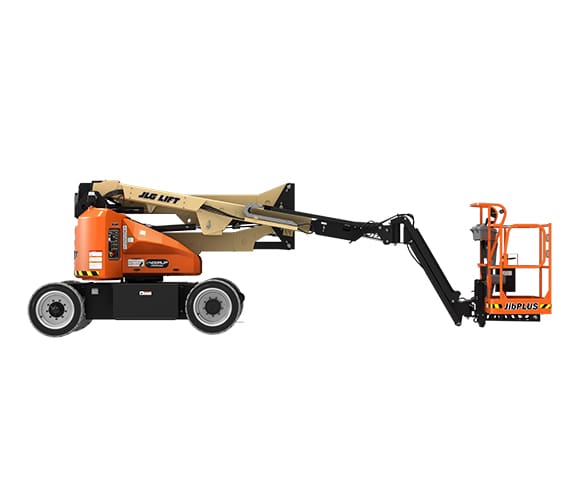

E400AJPN Retracted Side RF New

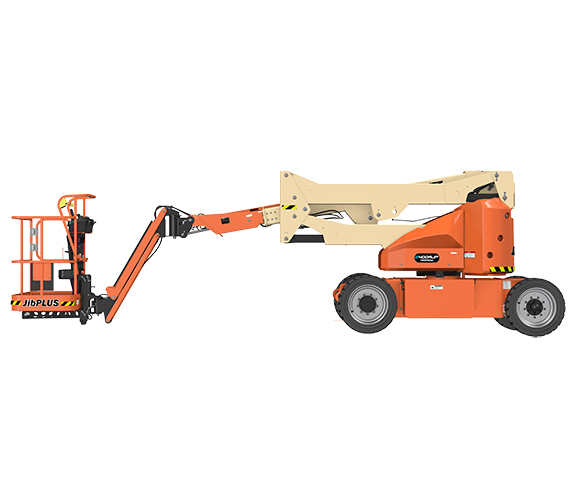

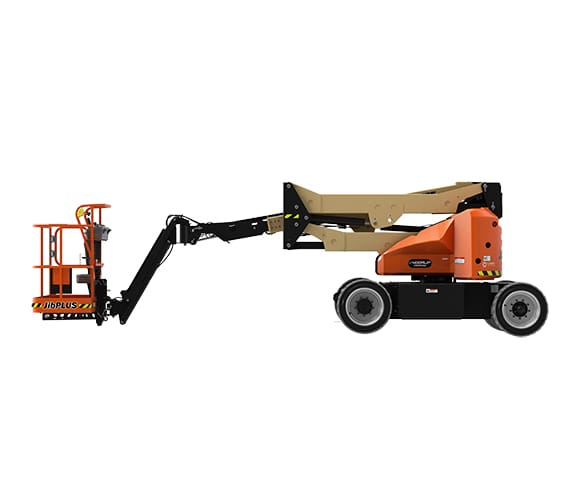

E400AJPN Retracted Side LF New

JLG E400AJPN Articulating Boom Lift

  • 40 ft. Platform Height
  • 22 ft. 5 in. Horizontal Outreach
  • 500 lb. Platform Capacity
  • 4 ft. 11 in. Machine Width
  • Zero-Emission Electric Power
Request a Quote

Documents

Product Documents

The JLG E400AJPN is an electric articulating boom lift built to help crews work safely and efficiently in tight or sensitive environments. Its narrow 4 ft 11 in profile, 40 ft platform height, and 22 ft 5 in horizontal outreach make it ideal for reaching up, over, and around obstacles in warehouses, facilities, and commercial job sites.

With zero-emission electric power, solid non-marking tires, and longer duty cycles, it’s a practical choice for indoor work where productivity and floor protection matter. Operators also benefit from features like Automatic Traction Control, hydraulic platform rotation, and a 500 lb platform capacity for confident positioning with tools and materials. For operations managers, the E400AJPN offers a versatile way to handle maintenance, installation, and overhead work without sacrificing maneuverability or jobsite efficiency.

Model Number: JLG E4ooAJP

Additional Information

Condition

New
Brand

JLG
MEWP Type

Boom Lift, Articulated
Power

Electric
MEWP Lift Height

26 – 40ft
MEWP Capacity

Up to 500 lbs
  • Electric-powered operation produces zero emissions, making it well suited for indoor work and environmentally sensitive job sites.
  • Narrow 4-ft 11-in machine width helps operators work in tight aisles, congested spaces, and areas with limited access.
  • Up-and-over access helps operators reach around obstacles such as shelving, HVAC systems, electrical fixtures, roof trusses, and other jobsite obstructions.
  • 40-ft platform height, 22-ft 5-in horizontal outreach, and 21-ft 6-in up-and-over reach provide versatile access for overhead and hard-to-reach work.
  • 500-lb platform capacity supports operators, tools, and materials.
  • Longer duty cycles help maximize productivity with fewer interruptions.
  • Automatic Traction Control helps improve maneuverability over uneven or challenging surfaces.
  • Solid non-marking tires help protect indoor floors.
  • 110V-AC receptacle in the platform
  • 12V DC auxiliary power
  • 180-degree hydraulic platform rotator
  • 3-degree tilt cut-out
  • All motion alarm
  • Automatic Traction Control
  • Battery condition indicator
  • Brushless AC motors
  • Center storage tray
  • ClearSky Smart Fleet hardware
  • Horn and hourmeter
  • LED motion/amber beacon
  • Lifting and tie-down lugs
  • Load sensing system
  • Platform console machine status light panel
  • Rapid replaceable platform with self-closing gate
  • SkyGuard SkyLine
  • Tilt light and alarm
  • USB-A and USB-C charger
  • 1/2-in airline to platform
  • AGM batteries
  • Ambient white noise alarm
  • 1200W inverter
  • Inward self-closing swing gate
  • Light packages
  • Platform mesh to mid rail or top rail
  • Aluminum or plastic platforms
  • 30 x 36-in or 30 x 48-in drop bar platforms
  • 30 x 48-in inward self-closing swing gate platform
  • 30 x 60-in inward self-closing swing gate with stop
  • UL EE rating
  • Articulating boom design allows operators to position the platform up, over, and around obstacles for improved access to the work area.
  • Hydraulic platform rotation helps position the operator more precisely without requiring frequent machine repositioning.
  • 144-degree vertical jib articulation improves access to hard-to-reach areas.
  • Compact dimensions and narrow operating profile make it easier to maneuver in confined workspaces.
  • USB-A and USB-C charging in the platform helps operators keep jobsite devices powered.
  • Center storage tray provides convenient space for tools and small items.
  • Optional platform mesh can help retain tools and materials while maintaining visibility and airflow.
  • Load sensing system helps monitor platform capacity.
  • SkyGuard SkyLine provides enhanced operator protection.
  • 3-degree tilt cut-out, tilt light, and alarm help alert operators to unsafe operating conditions.
  • All motion alarm and LED motion/amber beacon increase awareness around the machine.
  • Platform console machine status light panel gives operators visibility into machine status and system alerts.
  • Rapid replaceable platform with self-closing gate helps support secure entry and exit.
  • Solid non-marking tires support indoor use while reducing floor marking.
  • Optional ambient white noise alarm and light packages can improve awareness in active work environments.
  • 40-ft platform height
  • 22-ft 5-in horizontal outreach
  • 21-ft 6-in up-and-over clearance
  • 500-lb platform capacity
  • 360-degree non-continuous swing
  • 180-degree hydraulic platform rotation
  • 4.2 mph maximum drive speed
  • 30% gradeability
  • 48V DC electrical system with 8 x 6V, 312 amp-hr batteries
  • Dual electric traction drive motors
  • Brushless AC motors for efficient electric performance
  • ClearSky Smart Fleet hardware supports fleet connectivity, machine tracking, and operational visibility.
  • Platform console machine status light panel helps operators and service teams identify machine status information more quickly.
  • Hourmeter supports maintenance tracking.
  • Rapid replaceable platform helps simplify platform replacement when needed.
  • JLG support resources include manuals, parts access, service training, troubleshooting tools, and a nationwide service network.
  • Electric drive design produces fewer emissions and can reduce scheduled service needs compared with engine-powered equipment.
  • Warehousing and distribution
  • Facility maintenance
  • Electrical work
  • HVAC installation and service
  • Manufacturing plants
  • Retail and commercial facilities
  • Glass and drywall
  • Steel erection and welding
  • Concrete and precast
  • General construction
