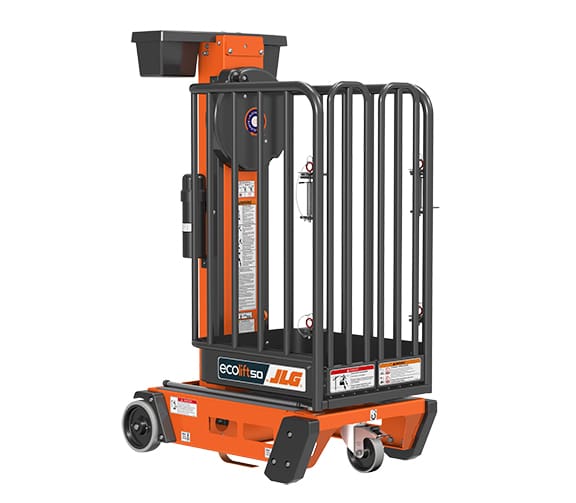

JLG EcoLift 50 Non-Powered Mast Lift

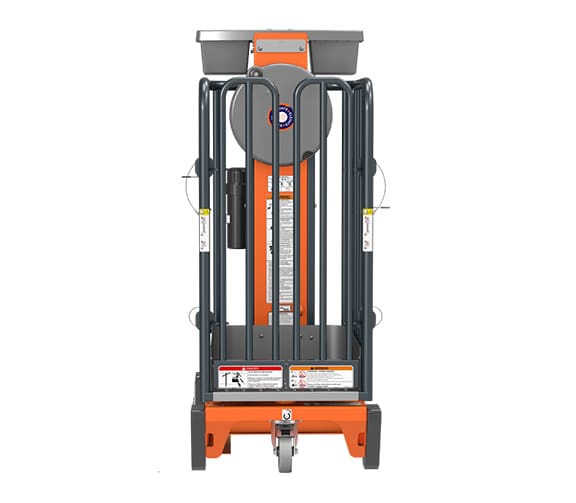

EcoLift 50 Front

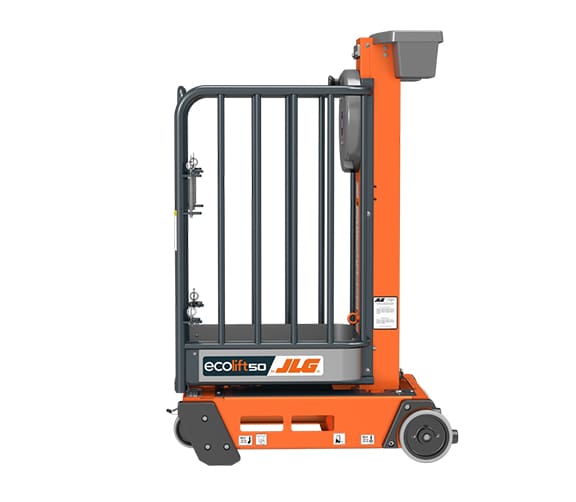

EcoLift 50 Side

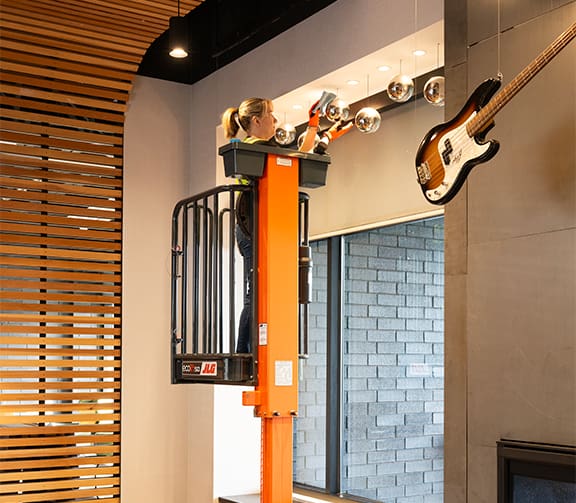

jlg-EcoLift50_RJP5382-Full-Img-P1

JLG EcoLift 50 Non-Powered Mast Lift

  • 5-ft platform height
  • 330-lb rated platform capacity
  • 28-in machine width
  • 432-lb machine weight
  • No batteries or hydraulics
Request a Quote

Documents

Product Documents

The JLG EcoLift 50 is a non-powered low-level access lift designed as a safer, more ergonomic alternative to ladders. It offers a 5-ft platform height, 11-ft working height, and 330-lb rated capacity in a compact 28-in-wide machine that fits through most doorways and freight elevators.

Its patented stored-power lift/lower system lets operators elevate by turning a flywheel, with no batteries, hydraulics, alarms, or hydraulic oil. Standard features such as non-marking wheels, protective wall bumpers, a frame-mounted bubble level, tool storage, auto-locking brakes, and an emergency descent rod make it practical for indoor maintenance, fit-out work, and sensitive flooring applications.

Model Numbers: Ecolift50

Additional Information

Condition

New
Brand

JLG
MEWP Type

Vertical Mast Lifts
MEWP Capacity

Up to 500 lbs
MEWP Lift Height

Up to 25ft
  • Non-powered design uses no batteries or hydraulics, reducing routine maintenance needs.
  • Stored-power lift/lower system lets operators elevate with the turn of a flywheel.
  • 28-in machine width and 39-in machine length help the lift fit through most doorways and freight elevators.
  • 432-lb machine weight supports easy maneuverability around indoor work areas.
  • Low ground bearing pressure makes the lift well suited for fit-out applications and sensitive flooring.
  • 5-ft platform height with 330-lb rated platform capacity.
  • 28 x 24-in steel platform.
  • Self-closing saloon-style entry gate with quick pull-out pins for easy removal.
  • Plastic tool tray, lanyard attach point, and maintenance tray with slatted design to tether tools.
  • Non-marking wheels, protective wall bumpers, and static strap.
  • Frame-mounted bubble level and integrated fork pockets.
  • Auto-locking brake on elevation and auto-braked function when entering the platform.
  • Emergency descent rod.
  • Steel tray option.
  • Provides an ergonomic alternative to ladders for low-level access work.
  • Platform design allows operators to work comfortably with both hands and a 360-degree range of motion.
  • Stored-power lift/lower system enables elevation with the turn of a flywheel.
  • Lightweight design supports easy maneuverability around indoor work areas.
  • Tool tray, lanyard attach point, and maintenance tray help keep tools accessible while working.
  • Auto-locking brake engages on elevation.
  • Auto-braked function activates when entering the platform.
  • Frame-mounted bubble level helps operators confirm positioning before elevation.
  • Emergency descent rod supports controlled lowering when needed.
  • Protective wall bumpers and non-marking wheels help reduce contact damage in indoor environments.
  • Maximum operating gradient is 0.5 degrees.
  • 11-ft working height and 5-ft platform height for low-level access tasks.
  • 330-lb rated platform capacity.
  • 28-in machine width and 39-in machine length for compact positioning.
  • 432-lb machine weight.
  • 5-degree maximum gradient for pushing.
  • Maximum ground bearing pressure is 160 psi at the front and 168 psi at the rear.
  • No batteries or hydraulics reduces routine service requirements.
  • Non-powered lift design helps support more uptime and lower overall cost of ownership.
  • Integrated fork pockets support easier movement when needed.
  • Gate uses quick pull-out pins for easy removal.
  • Warranty coverage includes one full year on the machine and five years on specified major structural components.
  • Facility maintenance and indoor low-level access work.
  • Fit-out applications and areas with sensitive flooring.
  • Retail, institutional, and commercial spaces where compact access equipment is needed.
  • Work areas where operators need a safer, more ergonomic alternative to ladders.
  • Indoor environments that benefit from non-marking wheels and low-noise operation.
