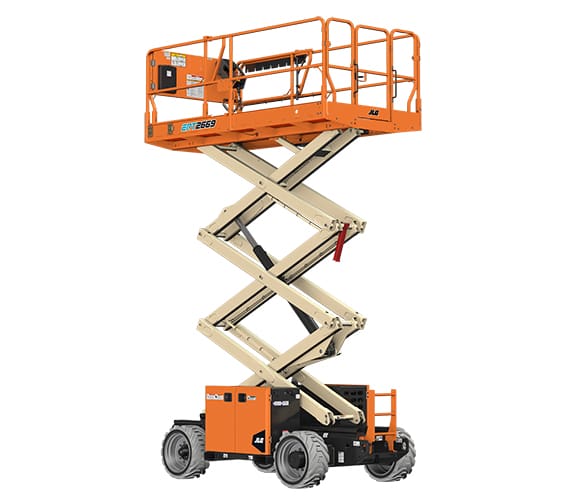

ERT2669_Raised_Rear_LF

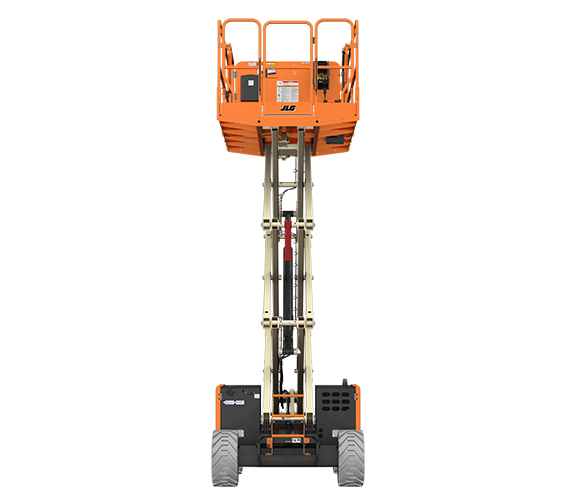

Ert 2669 Raised Rear

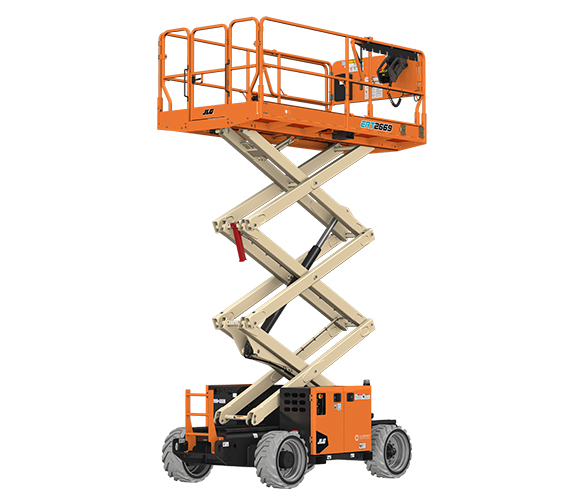

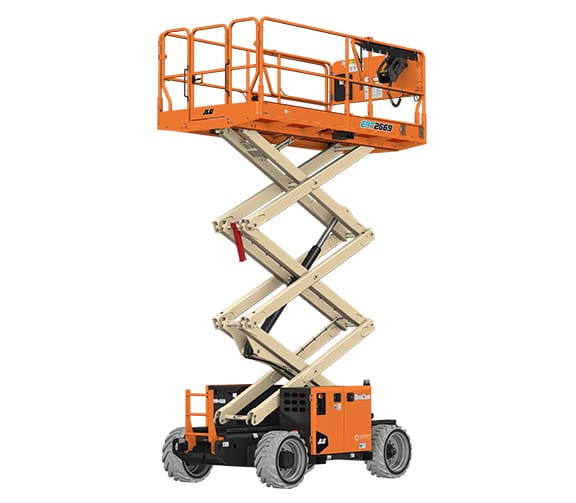

Ert 2669 Raised Rear RF

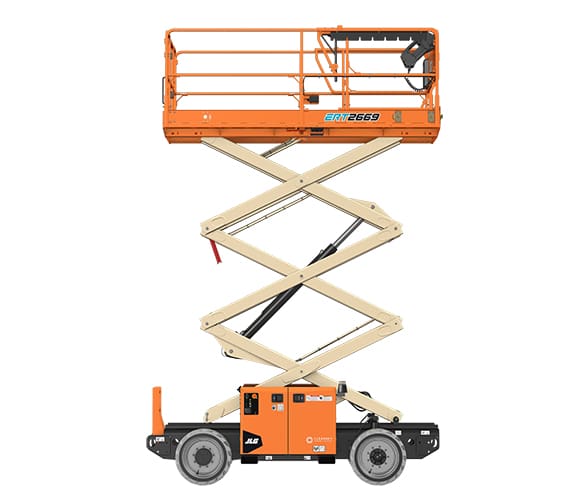

ERT2669_Raised_Side_RF
ERT2669_Raised_Rear_LF

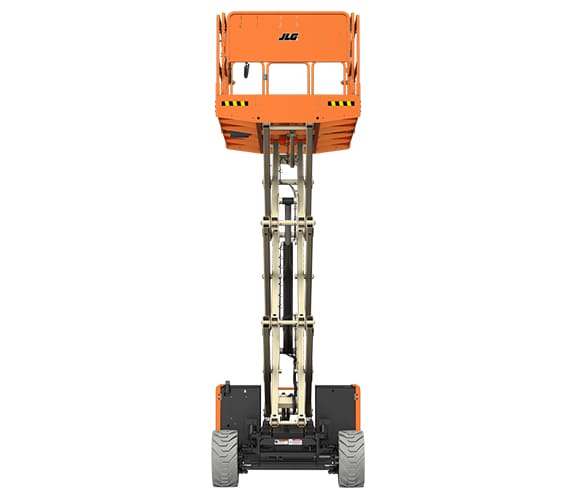

Ert 2669 Raised Front
JLG ERT2669 Electric Rough Terrain Scissor Lift - Image 7

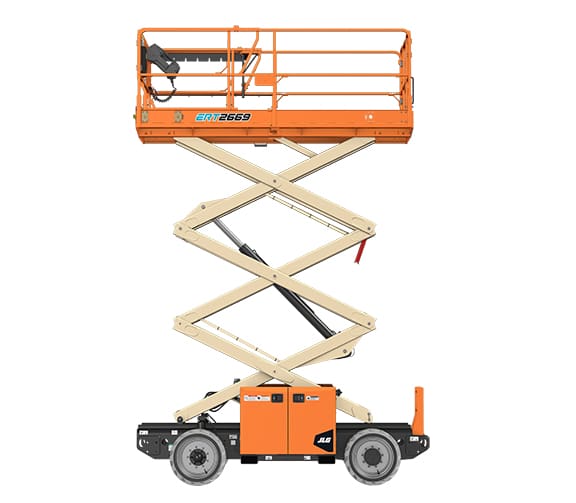

ERT2669_Raised_Side_LF

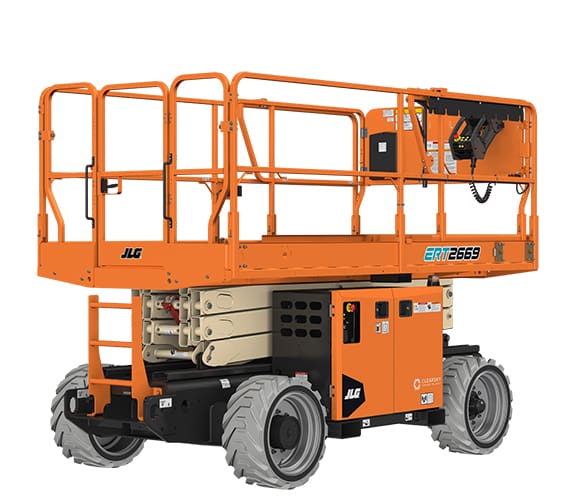

ERT2669_Stowed_Rear_RF

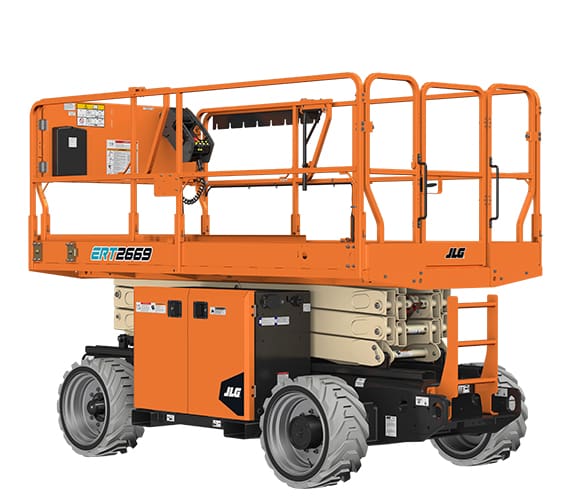

ERT2669_Stowed_Rear_LF

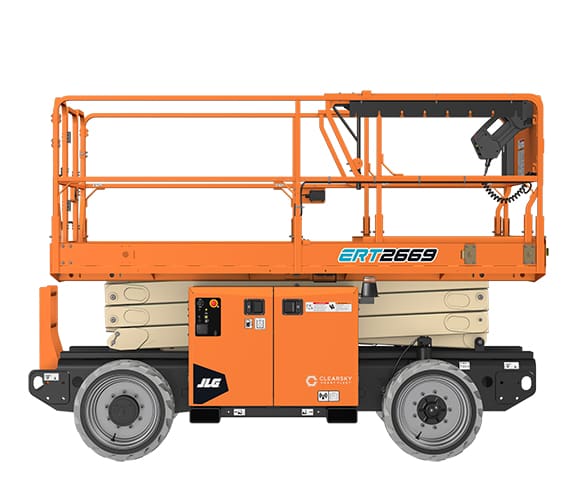

ERT2669_Stowed_Side_RF

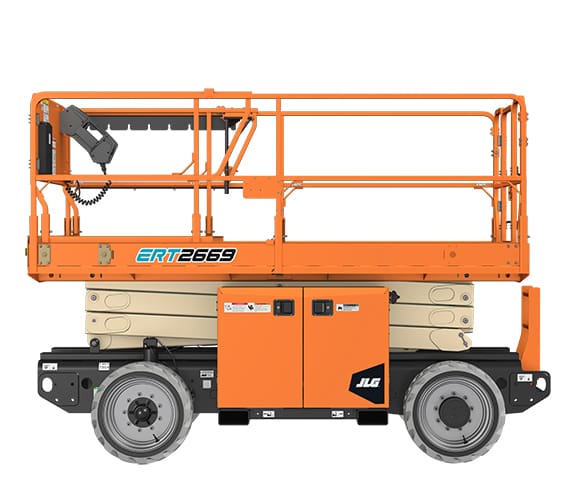

ERT2669_Stowed_Side_LF

JLG ERT2669 Electric Rough Terrain Scissor Lift

  • 26 ft. Platform Height
  • 1,500 lbs. Platform Capacity
  • Drive-at-height capability
  • 2WD AC drive with 40% gradeability
  • Four-person indoor and outdoor occupancy
Request a Quote

Documents

Product Documents

The JLG ERT2669 is an electric powered rough terrain scissor lift built for crews that need capacity, platform space, and drive-at-height capability on demanding jobsites. It provides a 26-ft 2-in platform height, 1,500-lb platform capacity, and four-person occupancy for both indoor and outdoor applications.

A large platform, 42-in roll-out deck extension, 40% gradeability, and full-time traction control help operators move tools and materials into position efficiently. With LCD platform controls, LiftSense technology, ClearSky Smart Fleet hardware, and a maintenance-free 2WD AC drive system, the ERT2669 combines rough terrain capability with electric-drive service advantages.

Model Number: ERT2669

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Lift Height

26 – 40ft
MEWP Capacity

1,001 – 2,000 lbs
  • Electric powered rough terrain design supports jobsite work without engine-driven operation.
  • Drive-at-height capability helps limit unnecessary trips up and down during elevated work.
  • 1,500-lb platform capacity and four-person occupancy support crews, tools, and materials.
  • Large 63-in by 130.5-in platform provides room for operators and jobsite materials.
  • 40% gradeability, foam-filled tires, and full-time traction control support rough terrain use.
  • LCD platform control box with LiftSense technology provides real-time productivity and service communication to the operator.
  • 2WD AC drive system with full-time traction control.
  • 42-in roll-out deck extension with 300-lb extension capacity.
  • LCD display with LiftSense system and platform control box with LCD display.
  • 110V AC receptacle in platform, USB charger, and phone holster.
  • ClearSky Smart Fleet hardware and telematics-ready harness.
  • Pin-less fold down rail system and self-closing gate.
  • 26-in by 12-in foam-filled non-marking tires.
  • Pin-based load sensing system, proportional lift and drive, and manual descent pull cable.
  • JLG CleanGuard Leak Containment System.
  • Hydraulic leveling jacks with auto level.
  • Generator set and range-extending genset.
  • SkySense Enhanced Detection System.
  • Heavy duty pipe racks.
  • Operator access control platform worklights.
  • Optional foam-filled lug tread or turf tires.
  • Large platform allows more operators and tools to be brought to the work area.
  • 42-in roll-out deck extension helps operators reach work areas from the platform.
  • Moveable, removable platform console box supports flexible operator positioning.
  • LCD platform controls with LiftSense technology provide operator-facing productivity and service communication.
  • USB charger, phone holster, and 110V AC platform receptacle add convenience during elevated work.
  • Pin-based load sensing system is included as standard equipment.
  • All motion alarm, descent alarm, horn, and LED motion/amber beacon support jobsite awareness.
  • Self-closing gate and tie down lugs are standard.
  • Manual descent pull cable and scissor maintenance prop are included.
  • Optional SkySense Enhanced Detection System is available.
  • 26-ft 2-in platform height for both indoor and outdoor use.
  • 1,500-lb platform capacity with 300-lb extension capacity.
  • Four-person occupancy for indoor and outdoor applications.
  • 3.5 mph lowered drive speed and 0.5 mph raised drive speed.
  • 40% gradeability with 83-in inside turning radius and 175-in outside turning radius.
  • Drivable at full height indoors and outdoors.
  • Maintenance-free 2WD AC drive system helps simplify service across the rough terrain family.
  • Higher parts commonality across the rough terrain family supports service efficiency.
  • LCD display with LiftSense technology provides service communication to the operator.
  • Lubrication-free scissor arm bushings reduce routine lubrication points.
  • Hourmeter, battery condition indicator, nickel plated pins, and zinc-chromate plated fasteners are standard.
  • Outdoor construction and rough terrain jobsites.
  • Facility and site maintenance requiring electric rough terrain access.
  • Applications that need four-person platform occupancy and high platform capacity.
  • Jobsites where drive-at-height capability can reduce repeated repositioning and elevation cycles.
