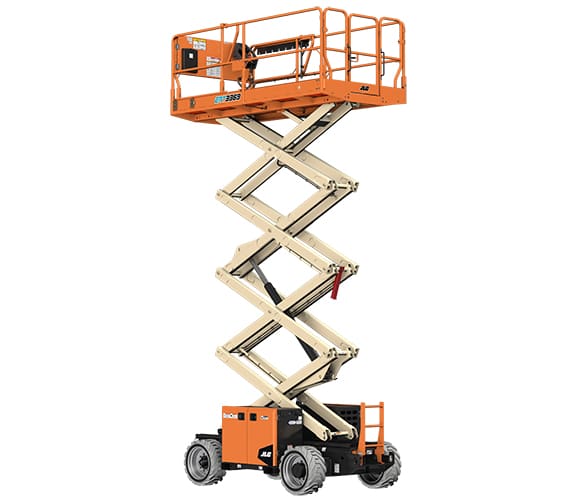

ERT3369 Raised Rear LF

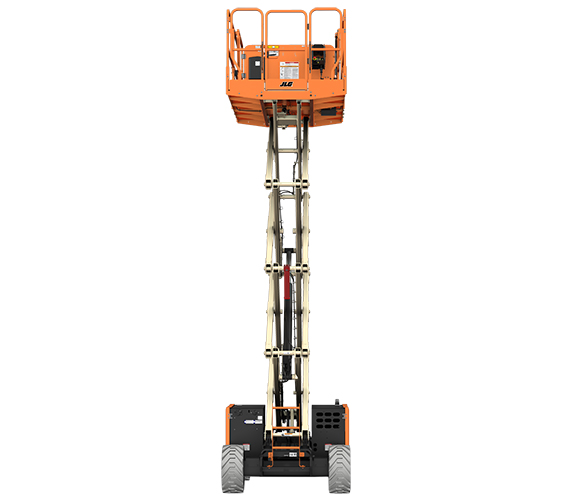

ERT3369 Raised Rear

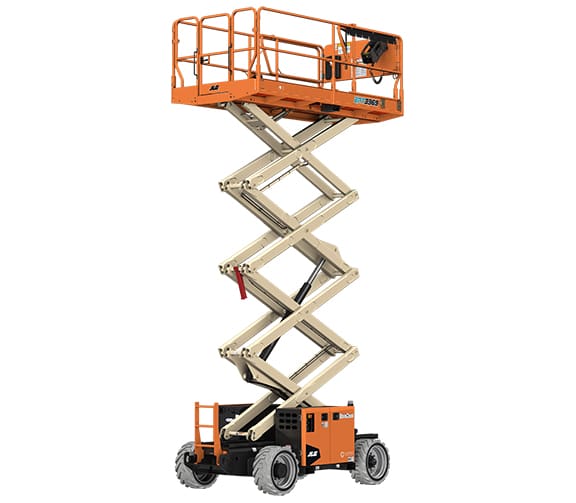

ERT3369 Raised Rear RF
JLG ERT3369 Electric Rough Terrain Scissor Lift - Image 4

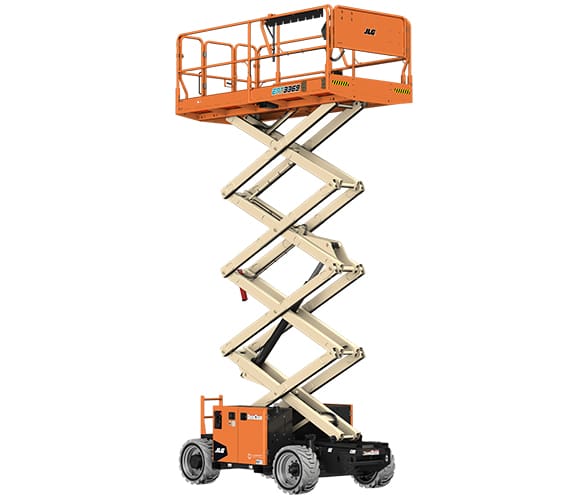

ERT3369 Raised Front RF

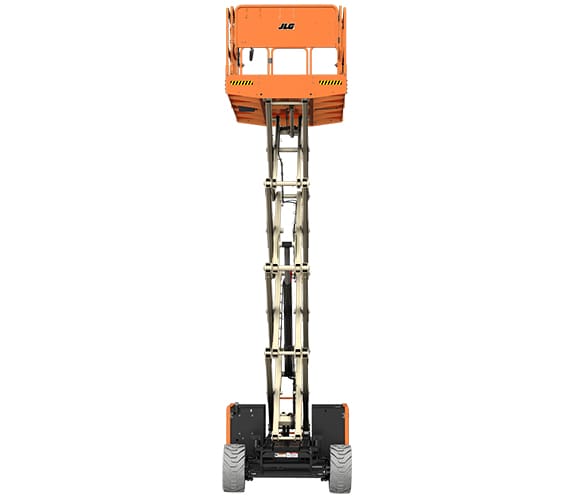

ERT3369 Raised Front

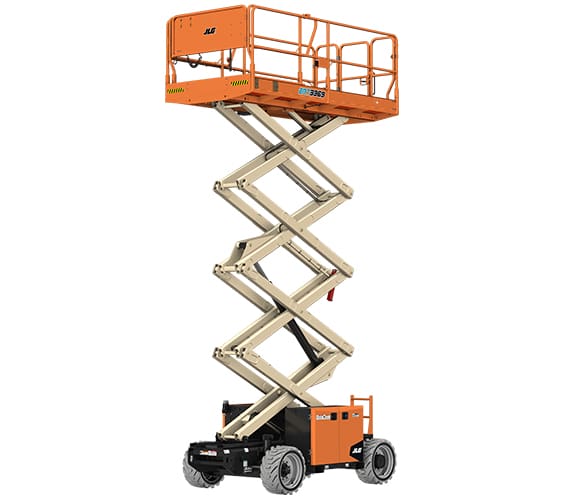

ERT3369 Raised Front LF

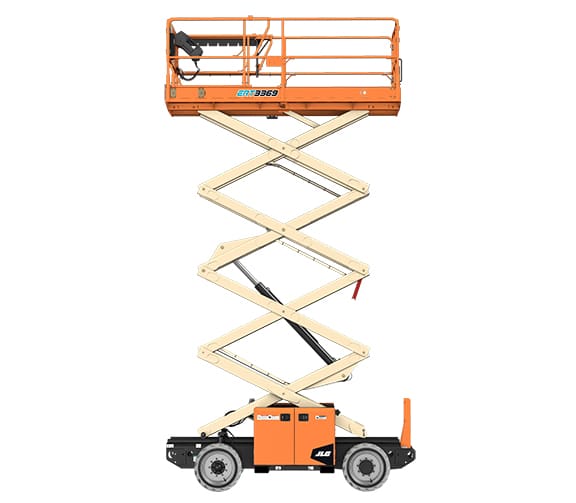

ERT3369 Raised Side LF

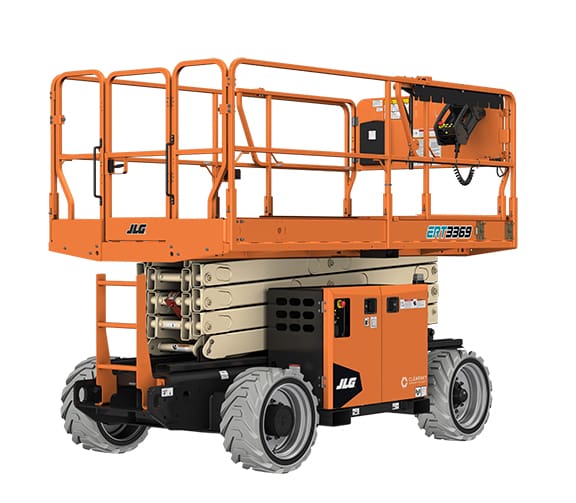

ERT3369 Stowed Rear RF

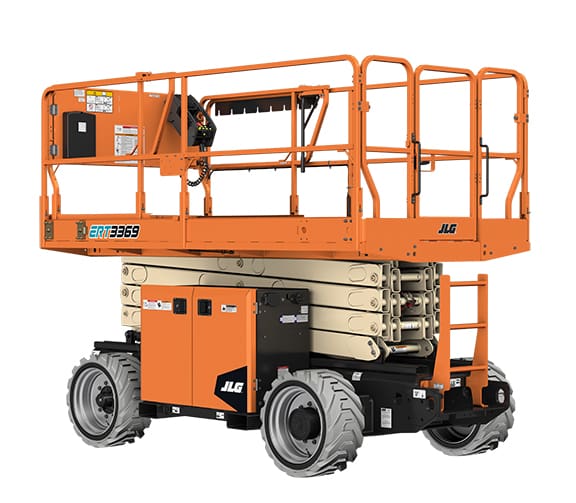

ERT3369 Stowed Rear LF

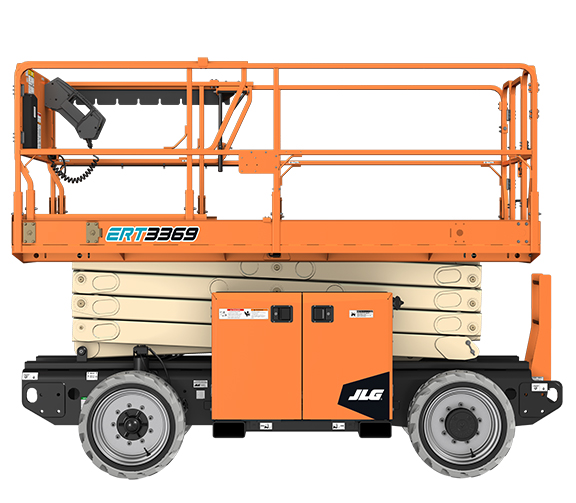

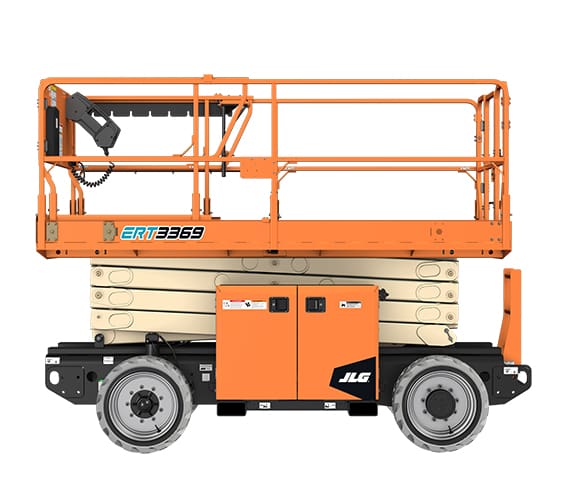

ERT3369 Stowed Side LF

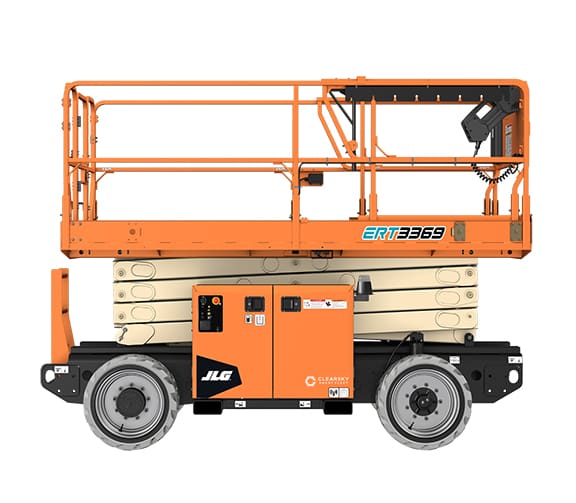

ERT3369 Stowed Side RF

JLG ERT3369 Electric Rough Terrain Scissor Lift

  • 32 ft 8 in platform height
  • 1,000 lbs. platform capacity
  • 42 in roll-out deck extension
  • 2WD AC electric drive system
  • LCD platform control box
Request a Quote

Documents

Product Documents

The JLG ERT3369 is an electric powered rough terrain scissor lift built for jobsites that need outdoor-capable access with a large work platform. It offers a 1,000 lb platform capacity, drive-at-height capability, full-time traction control, and 35% gradeability to help crews stay productive while working at elevation.

The 42 in roll-out deck extension gives operators more reach from the platform, while LCD platform controls with LiftSense technology provide real-time productivity and service communication. Maintenance-focused details such as the 2WD AC drive system, lubrication-free scissor arm bushings, and shared rough terrain family components help simplify ownership and service planning.

Model Number: ERT3369

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Lift Height

26 – 40ft
MEWP Capacity

501 – 1,000 lbs
  • Electric rough terrain scissor lift with drive-at-height capability to help reduce unnecessary trips up and down.
  • 1,000 lb platform capacity supports operators, tools, and materials for productive elevated work.
  • Large platform layout with a 42 in roll-out deck extension provides more usable workspace.
  • Maintenance-free 2WD AC drive system and higher parts commonality help simplify service across the rough terrain family.
  • Full-time traction control, oscillating front axle, and 35% gradeability support movement on uneven jobsite surfaces.
  • 2WD AC drive system
  • 26 x 12 in foam-filled non-marking tires
  • 42 in roll-out deck extension
  • 110V AC receptacle in platform
  • LCD platform control box with LiftSense system, USB charger, and phone holster
  • Proportional lift and drive controls
  • 8 x 6V, 225 amp-hour battery configuration with 23 amp automatic SCR battery charger
  • Telematics-ready harness
  • All motion alarm, descent alarm, horn, and manual descent pull cable
  • Pin-based load sensing system
  • Self-closing gate
  • Scissor maintenance prop
  • ClearSky telematics
  • JLG CleanGuard leak containment system
  • 26 x 12 in foam-filled lug tread tires
  • 8 x 6V, 310 amp-hour battery configuration
  • Hydraulic leveling jacks with auto level
  • Heavy-duty pipe racks
  • Flashing amber beacon or dual flashing amber beacons
  • White noise backup alarm
  • Generator set, special hydraulic fluids, and special paint
  • LCD platform controls provide real-time productivity and service communication to the operator.
  • USB charging and phone holster are built into the platform control box.
  • Moveable, removable platform console box supports flexible control placement.
  • Roll-out deck extension helps operators reach work areas without repositioning as often.
  • Pin-based load sensing system supports load monitoring during operation.
  • Self-closing gate helps maintain platform access control.
  • All motion alarm and descent alarm alert nearby workers during machine movement.
  • Manual descent pull cable provides a controlled lowering method when needed.
  • Horn, tie-down lugs, and scissor maintenance prop are included as standard equipment.
  • Meets or exceeds applicable ANSI and CSA requirements based on original machine configuration for intended applications.
  • Platform capacity: 1,000 lb
  • Capacity on platform extension: 300 lb
  • Platform height: 32 ft 8 in
  • Maximum drive height: fully elevated
  • Drive speed lowered: 3.5 mph
  • Drive speed raised: 0.5 mph
  • Lift/lower time: 44/40 seconds
  • Gradeability: 35%
  • Inside turning radius: 83 in
  • Machine width: 69.3 in
  • Maintenance-free 2WD AC drive system helps reduce routine service demands.
  • Lubrication-free scissor arm bushings support simpler upkeep.
  • Nickel-plated pins and yellow zinc-chromate plated fasteners are standard.
  • LCD display with LiftSense system provides service communication to the operator.
  • Telematics-ready harness supports fleet connectivity when paired with compatible systems.
