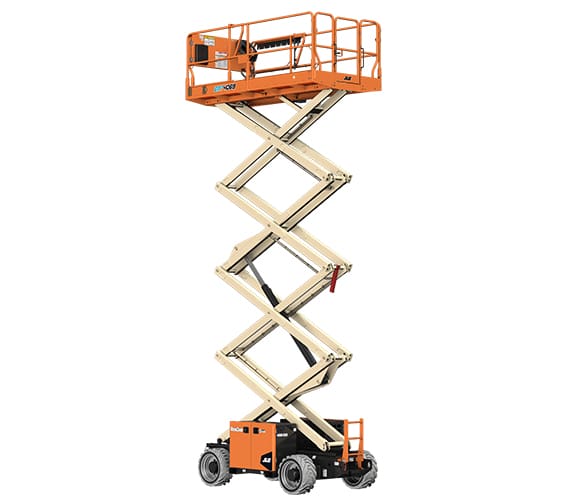

ERT4069_Raised_Rear_LF
ERT4069_Raised_Rear

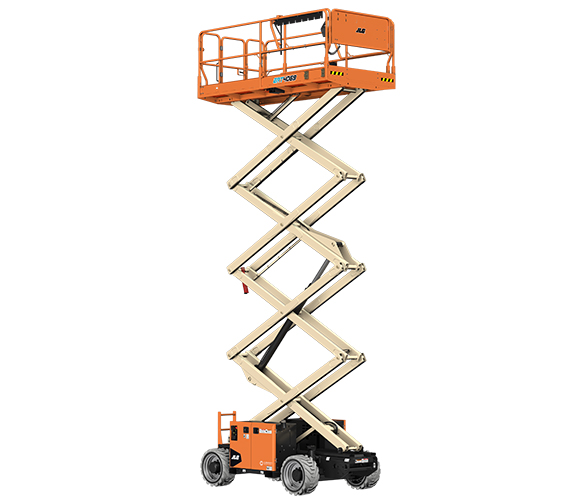

ERT4069_Raised_Front_RF

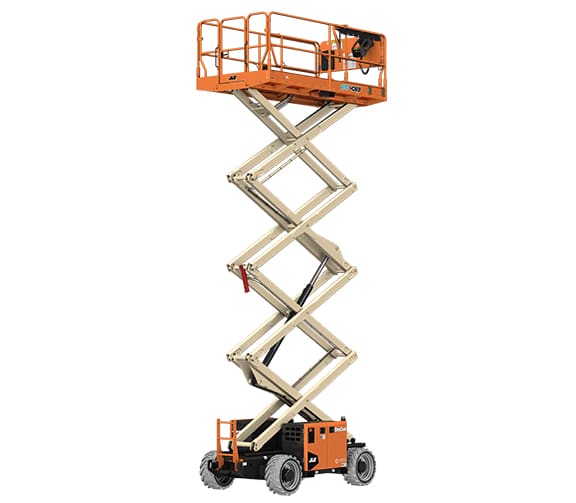

ERT4069_Raised_Rear_RF

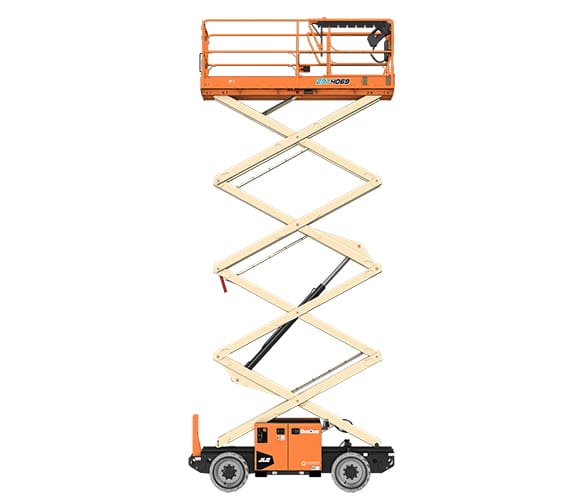

ERT4069_Raised_Side_RF

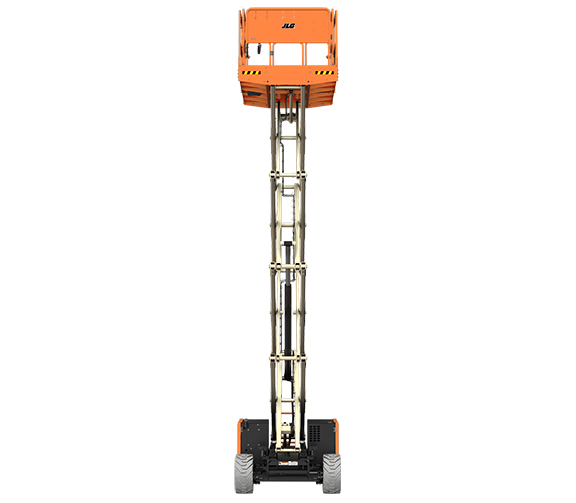

ERT4069_Raised_Front

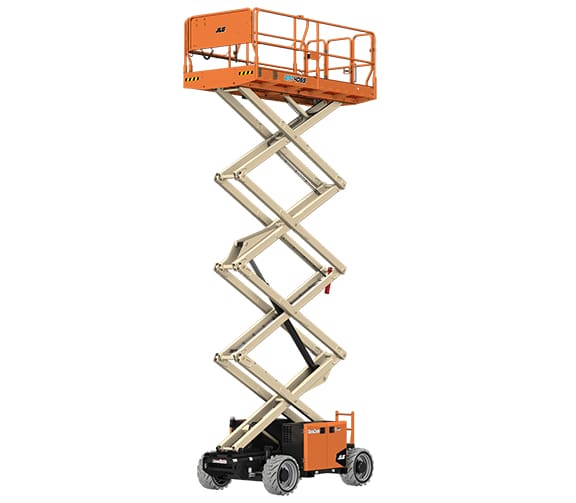

ERT4069_Raised_Front_LF

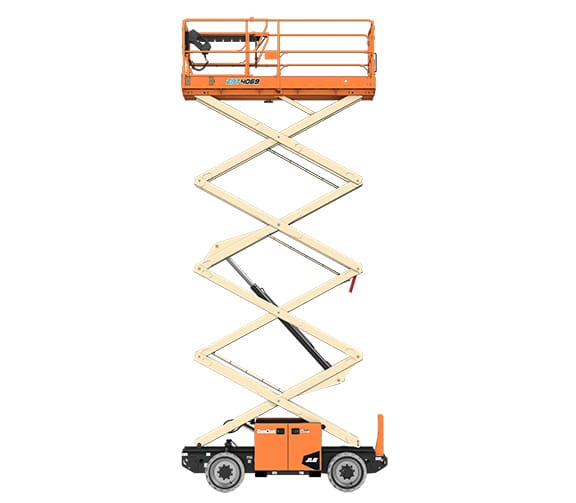

ERT4069_Raised_Side-LF

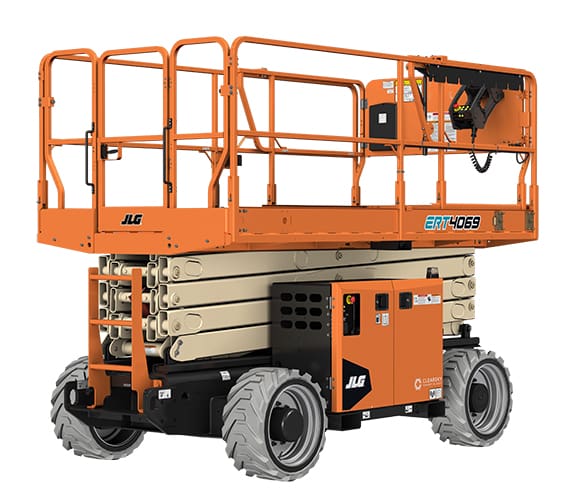

ERT4069_Stowed_Rear_RF
ERT4069_Stowed_Rear_LF

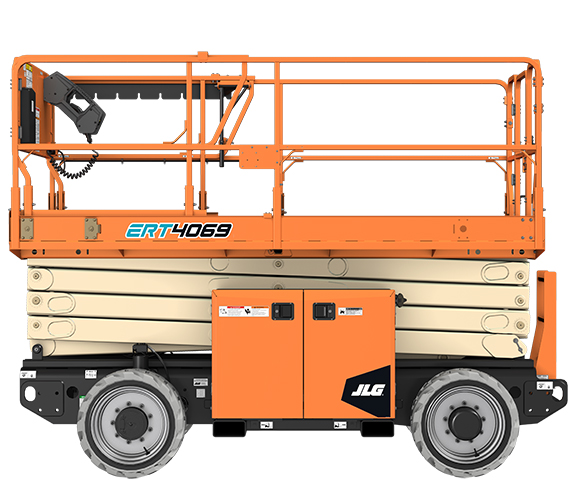

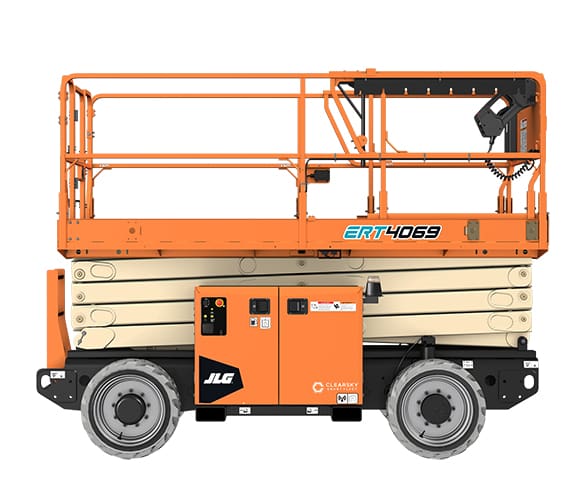

ERT4069_Stowed_Side_RF

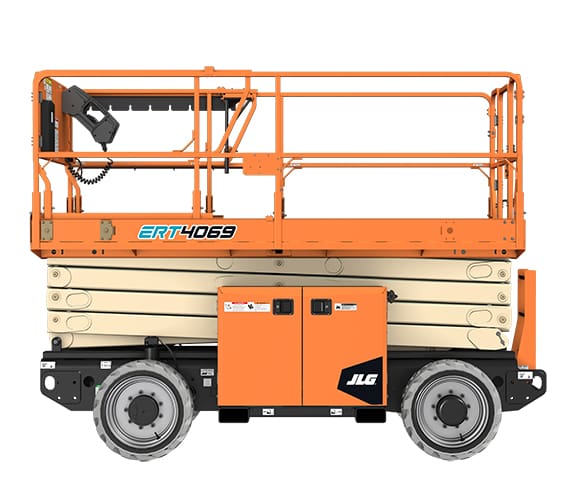

ERT4069_Stowed_Side_LF

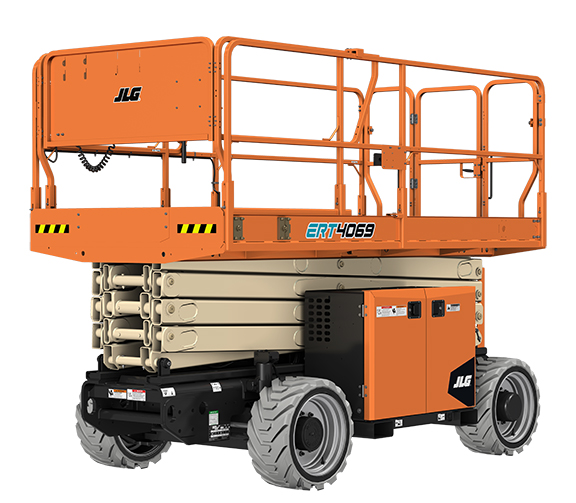

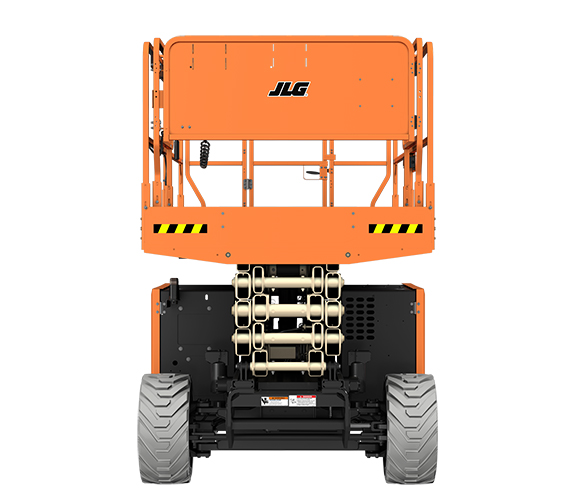

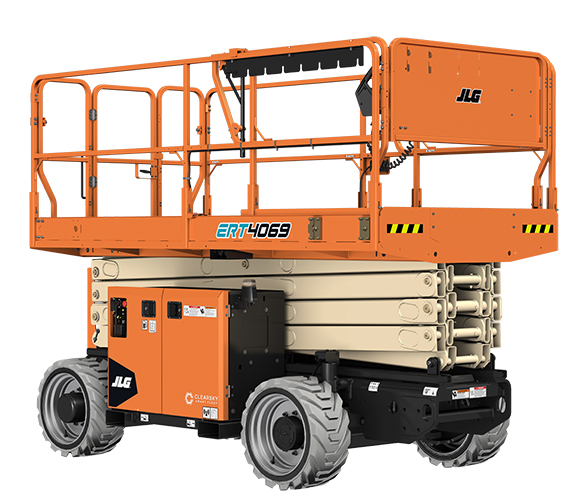

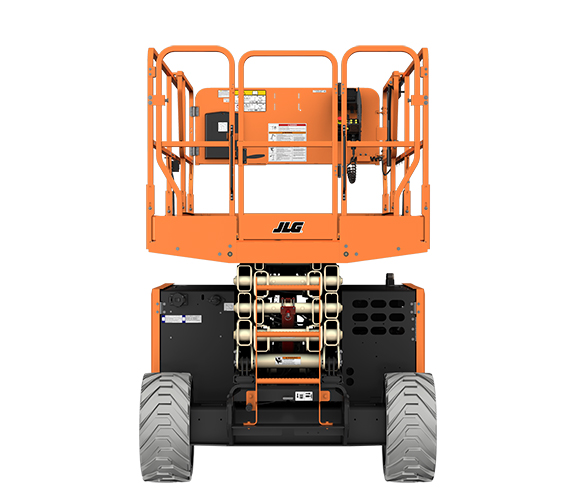

JLG ERT4069 Electric Rough Terrain Scissor Lift

  • 40 ft 3 in platform height
  • 800 lb platform capacity
  • 42 in roll-out deck extension
  • 2WD AC electric drive system
  • LCD platform control box
Request a Quote

Documents

Product Documents

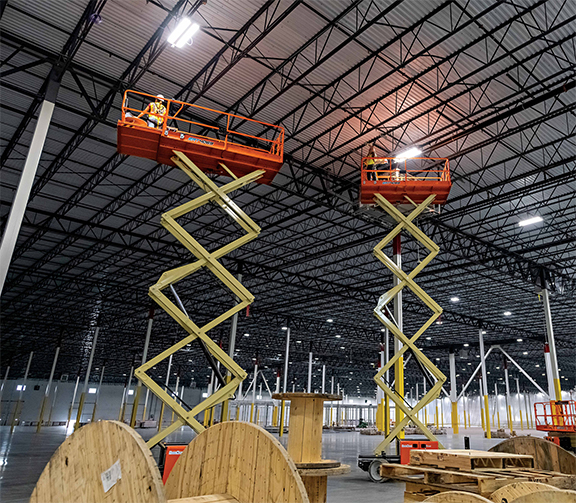

The JLG ERT4069 is an electric powered rough terrain scissor lift designed for elevated jobsite work where crews need higher reach, rough terrain capability, and a large platform. It delivers a 40 ft 3 in platform height, 800 lb platform capacity, and drive-at-height capability to help operators stay productive once positioned.

The 42 in roll-out deck extension expands usable reach from the platform, while full-time traction control, an oscillating front axle, and 35% gradeability support movement across uneven surfaces. Maintenance-focused details such as the 2WD AC drive system, lubrication-free scissor arm bushings, LiftSense technology, and shared rough terrain family components help simplify service planning.

Model Number: ERT4069

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Lift Height

26 – 40ft
MEWP Capacity

501 – 1,000 lbs
  • Electric rough terrain scissor lift with drive-at-height capability to help reduce unnecessary trips up and down.
  • 40 ft 3 in platform height gives crews more elevated reach than the ERT3369 while keeping the same 69.3 in machine width.
  • 800 lb platform capacity supports operators, tools, and materials for elevated jobsite work.
  • Large platform layout with a 42 in roll-out deck extension provides additional workspace and reach from the platform.
  • Maintenance-free 2WD AC drive system and higher parts commonality help simplify service across the rough terrain family.
  • Full-time traction control, oscillating front axle, and 35% gradeability support movement on uneven jobsite surfaces.
  • 2WD AC drive system
  • 8 x 6V, 310 Ah battery configuration
  • 26 x 12 in foam-filled non-marking tires
  • 42 in roll-out deck extension
  • 110V AC receptacle in platform
  • LCD platform control box with LiftSense system
  • USB charger and phone holster
  • Proportional lift and drive controls
  • 23 amp automatic SCR battery charger
  • ClearSky Smart Fleet hardware
  • Telematics-ready harness
  • LED motion/amber beacon
  • JLG CleanGuard leak containment system
  • Hydraulic leveling jacks with auto level
  • SkySense enhanced detection system
  • Heavy-duty pipe racks
  • Platform worklights
  • Operator access control
  • Second flashing amber beacon
  • White noise backup alarm
  • Generator set or range-extending genset
  • Special hydraulic fluids and special paint
  • LCD platform controls provide real-time productivity and service communication to the operator.
  • USB charging and phone holster are built into the platform control area.
  • Moveable, removable platform console box supports flexible control placement.
  • 42 in roll-out deck extension helps operators reach work areas without repositioning as often.
  • Pin-less fold-down rail system supports transport and access needs where reduced stowed height is useful.
  • Pin-based load sensing system supports load monitoring during operation.
  • Self-closing gate helps maintain controlled platform access.
  • All motion alarm and descent alarm alert nearby workers during machine movement.
  • Manual descent pull cable provides a controlled lowering method when needed.
  • Horn, tie-down lugs, and scissor maintenance prop are included as standard equipment.
  • Meets or exceeds applicable ANSI and CSA requirements based on original machine configuration for intended applications.
  • Platform height: 40 ft 3 in
  • Platform capacity: 800 lb
  • Capacity on platform extension: 300 lb
  • Maximum drive height: fully elevated
  • Drive speed lowered: 3.5 mph
  • Drive speed raised: 0.3 mph
  • Lift/lower time: 50/48 seconds
  • Gradeability: 35%
  • Inside turning radius: 83 in
  • Machine width: 69.3 in
  • Maintenance-free 2WD AC drive system helps reduce routine service demands.
  • Lubrication-free scissor arm bushings support simpler upkeep.
  • Nickel-plated pins and yellow zinc-chromate plated fasteners are standard.
  • LCD display with LiftSense system provides service communication to the operator.
  • ClearSky Smart Fleet hardware and a telematics-ready harness support fleet connectivity.
