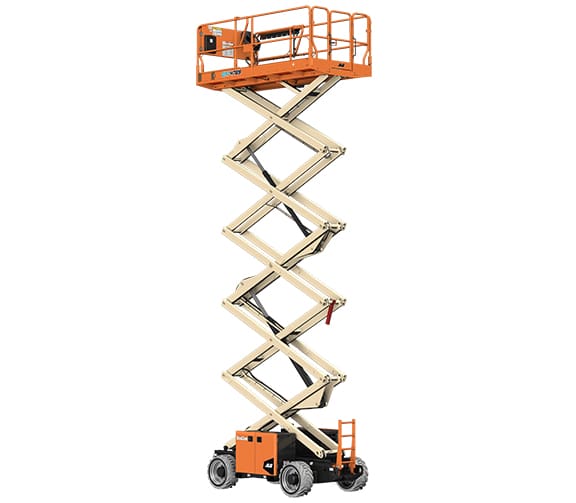

ERT4769_Raised_Rear_LF
ERT4769_Raised_Rear

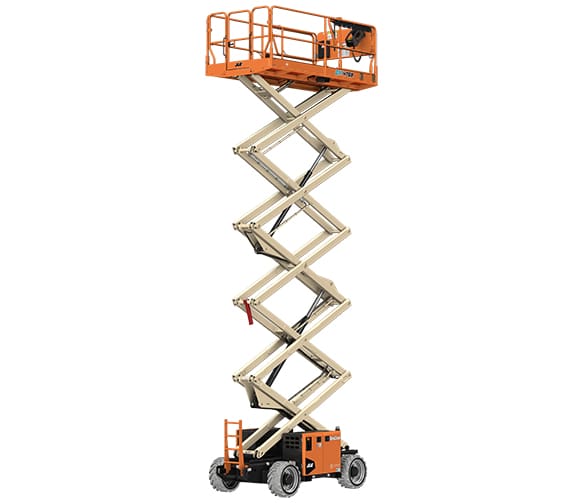

ERT4769_Raised_Rear_RF

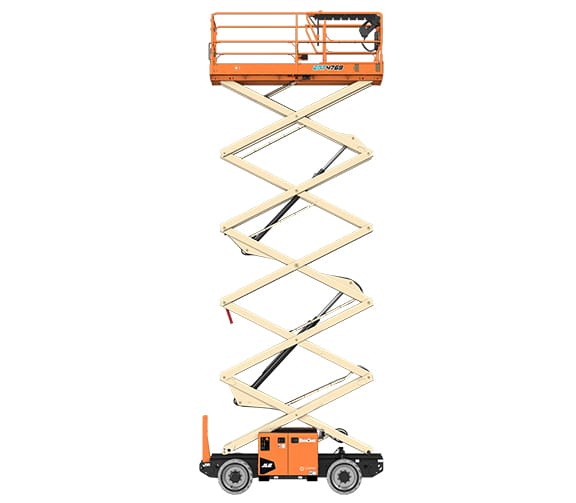

ERT4769_Raised_Side_RF

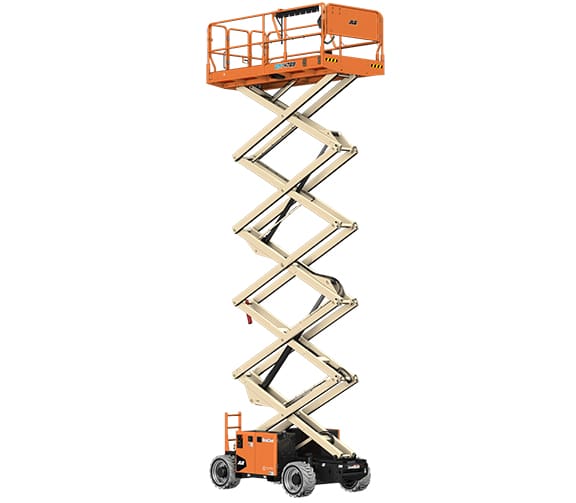

ERT4769_Raised_Front_RF
ERT4769_Raised_Front

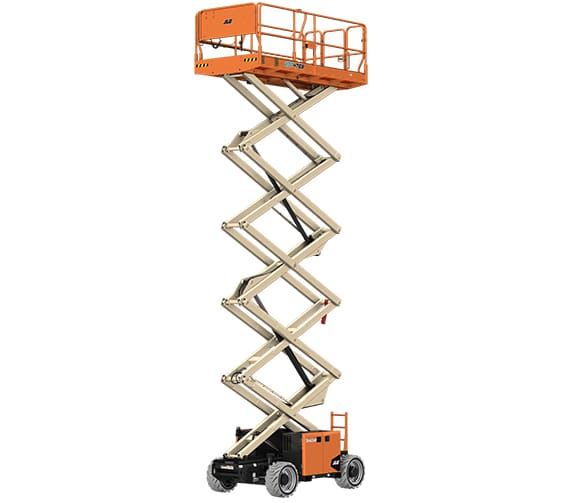

ERT4769_Raised_Front_LF

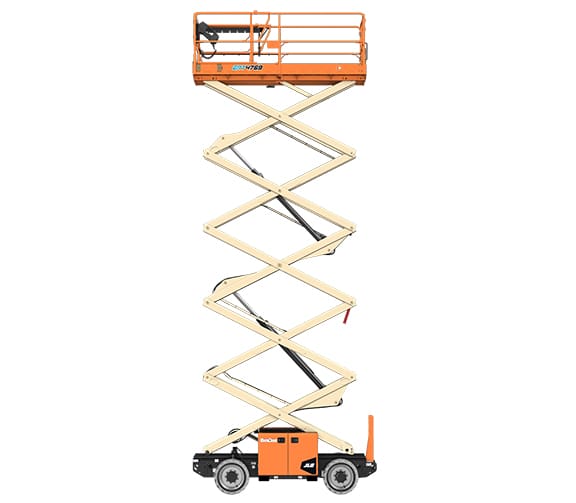

ERT4769_Raised_Side_LF

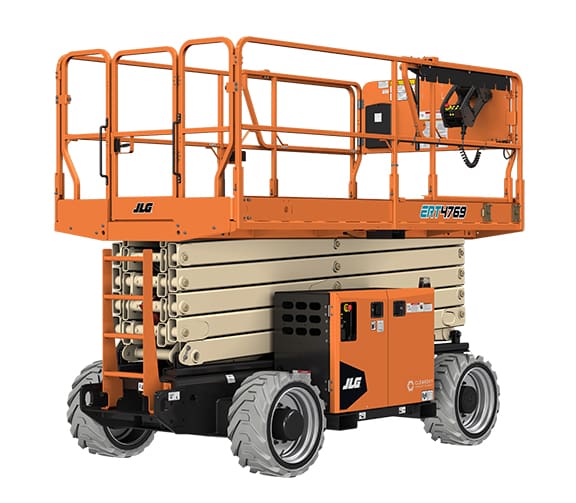

ERT4769_Stowed_Rear_RF

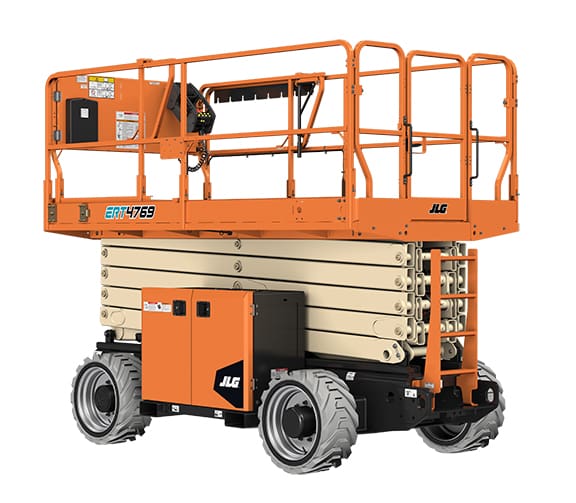

ERT4769_Stowed_Rear_LF

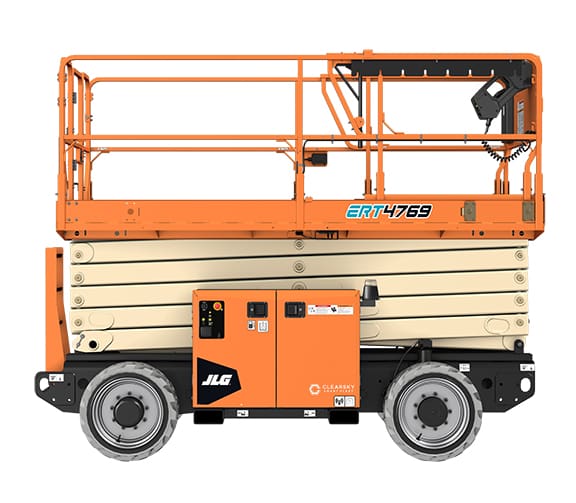

ERT4769_Stowed_Side_RF

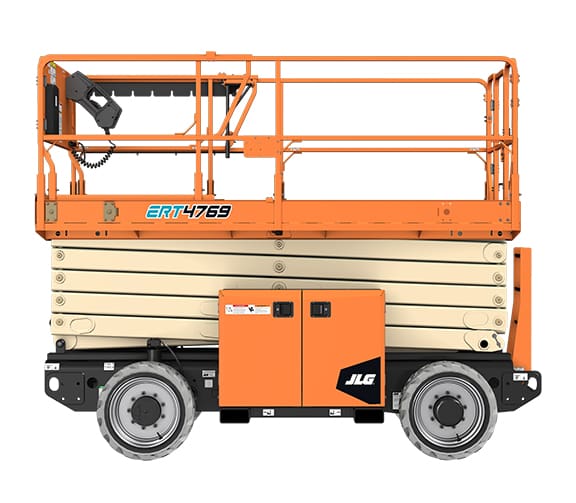

ERT4769_Stowed_Side_LF

JLG ERT4769 Electric Rough Terrain Scissor Lift

  • 47 ft. Platform Height
  • 800 lbs. Platform Capacity
  • 42 in roll-out deck extension
  • 2WD AC electric drive system
  • LCD platform control box with LiftSense system
Request a Quote

Documents

Product Documents

The JLG ERT4769 is an electric powered rough terrain scissor lift built for jobsites that need five-story access with the efficiency of drive-at-height capability. It provides a 47 ft platform height, 800 lb platform capacity, and a 42 in roll-out deck extension to support operators, tools, and elevated work positioning.

Full-time traction control, an oscillating front axle, and 35% gradeability help the machine move across uneven jobsite surfaces. Maintenance-focused details such as the 2WD AC drive system, lubrication-free scissor arm bushings, LiftSense technology, and shared rough terrain family components help simplify service planning.

Model Number: ERT4769

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Lift Height

41 – 60ft
MEWP Capacity

501 – 1,000 lbs
  • Electric rough terrain scissor lift with drive-at-height capability to help reduce unnecessary trips up and down.
  • 47 ft platform height provides access to five-story work areas.
  • 800 lb platform capacity supports operators, tools, and materials for elevated jobsite work.
  • Large platform layout with a 42 in roll-out deck extension provides additional workspace and reach from the platform.
  • Maintenance-free 2WD AC drive system and higher parts commonality help simplify service across the rough terrain family.
  • Full-time traction control, oscillating front axle, and 35% gradeability support movement on uneven jobsite surfaces.
  • 2WD AC drive system
  • 26 x 12 in foam-filled non-marking tires
  • 42 in roll-out deck extension
  • 110V AC receptacle in platform
  • LCD platform control box with LiftSense system, USB charger, and phone holster
  • Proportional lift and drive controls
  • 8 x 6V, 225 amp-hour battery configuration
  • 23 amp automatic SCR battery charger
  • Telematics-ready harness
  • Pin-less fold-down rail system
  • Full-time traction control
  • Oscillating front axle
  • ClearSky telematics
  • JLG CleanGuard leak containment system
  • 26 x 12 in foam-filled lug tread tires
  • 8 x 6V, 310 amp-hour battery configuration
  • Hydraulic leveling jacks with auto level
  • Heavy-duty pipe racks
  • Flashing amber beacon or dual flashing amber beacons
  • White noise backup alarm
  • Operator access control
  • Generator set, special hydraulic fluids, and special paint
  • LCD platform controls provide real-time productivity and service communication to the operator.
  • USB charging and phone holster are built into the platform control box.
  • Moveable, removable platform console box supports flexible control placement.
  • 42 in roll-out deck extension helps operators reach work areas without repositioning as often.
  • Large platform dimensions support operators and tools while working at elevation.
  • Pin-based load sensing system supports load monitoring during operation.
  • Self-closing gate helps maintain controlled platform access.
  • All motion alarm and descent alarm alert nearby workers during machine movement.
  • Manual descent pull cable provides a controlled lowering method when needed.
  • Horn, tie-down lugs, and scissor maintenance prop are included as standard equipment.
  • Meets or exceeds applicable ANSI and CSA requirements based on original machine configuration for intended applications.
  • Platform height: 47 ft
  • Platform capacity: 800 lb
  • Capacity on platform extension: 300 lb
  • Maximum drive height: fully elevated
  • Drive speed lowered: 3.5 mph
  • Drive speed raised: 0.3 mph
  • Lift/lower time: 76/60 seconds
  • Gradeability: 35%
  • Inside turning radius: 83 in
  • Machine width: 69.3 in
  • Maintenance-free 2WD AC drive system helps reduce routine service demands.
  • Lubrication-free scissor arm bushings support simpler upkeep.
  • Nickel-plated pins and yellow zinc-chromate plated fasteners are standard.
  • LCD display with LiftSense system provides service communication to the operator.
  • Higher parts commonality across the rough terrain family helps simplify service planning.
  • Telematics-ready harness supports fleet connectivity when paired with compatible systems.
