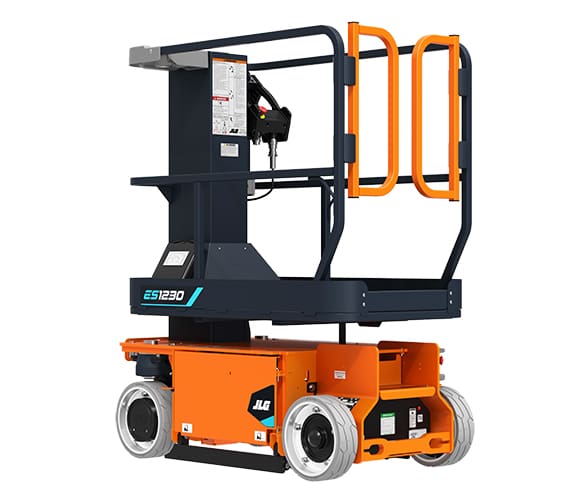

ES1230_Stowed_Front_RF

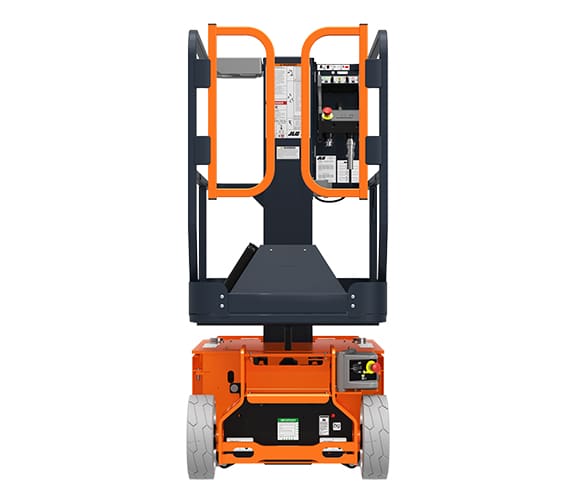

ES1230_Stowed_Front

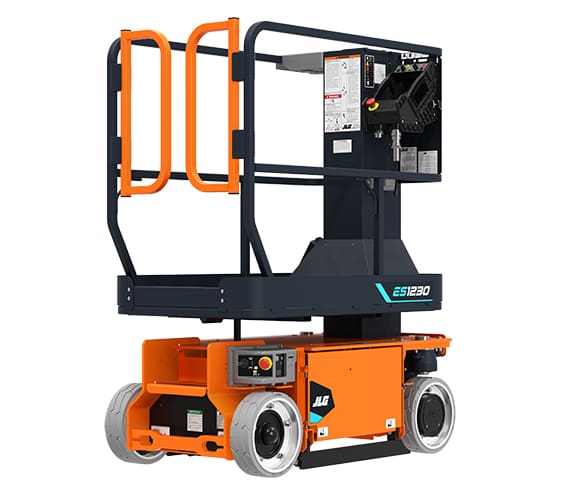

ES1230_Stowed_Front_LF

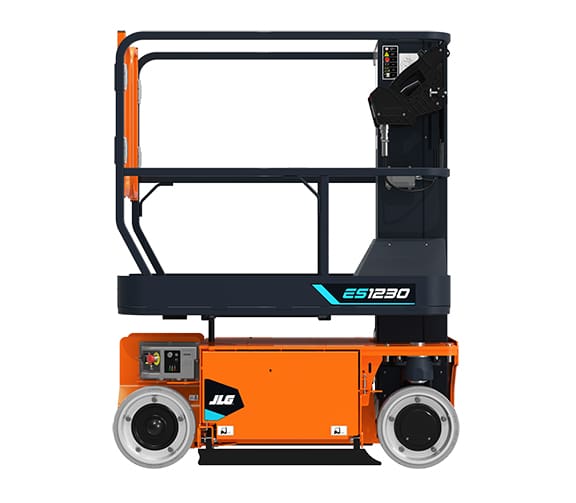

ES1230_Stowed_Side_LF

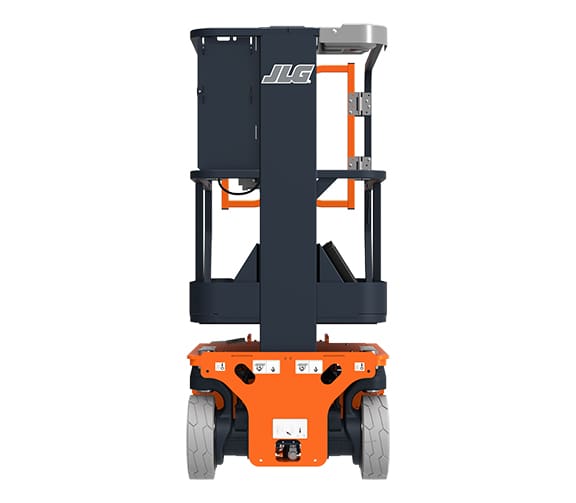

ES1230_Stowed_Rear

JLG ES1230 Mast Lift

  • 12-ft platform height for indoor vertical access.
  • 500-lb platform capacity.
  • Full-height drive capability.
  • Ultra-compact 2-ft 6-in width and 4-ft 6-in length.
  • 1,775-lb lightweight design for freight elevators and sensitive flooring.
Request a Quote

Documents

Product Documents

The JLG ES1230 is a driveable vertical mast lift built for indoor maintenance and access tasks where ladders or scaffolding slow the job down. It provides a 12-ft platform height, 500-lb platform capacity, and full-height drive capability, allowing operators to work and reposition efficiently in tight spaces.

Its compact 2-ft 6-in width, 4-ft 6-in length, and lightweight 1,775-lb design make it well suited for freight elevators and sensitive flooring. Electric drive, non-marking tires, proportional joystick controls, and swing-out battery doors help make the ES1230 a practical choice for facility teams that need clean, maneuverable vertical access.

Model Number: 1230ES

Additional Information

Brand

JLG
Condition

New
MEWP Type

Vertical Mast Lifts
Power

Electric
MEWP Lift Height

Up to 25ft
MEWP Capacity

Up to 500 lbs
  • 12-ft platform height with 500-lb platform capacity for indoor maintenance and access work.
  • Driveable at full platform height, helping operators reposition without lowering the mast between tasks.
  • Ultra-compact 2-ft 6-in machine width and 4-ft 6-in machine length for tight indoor spaces.
  • Lightweight 1,775-lb design supports transport in freight elevators and use on sensitive flooring.
  • Electric drive provides low-maintenance, energy-efficient operation.
  • 24V electric drive with four 6V 220 amp-hour batteries.
  • 20 amp automatic charger compatible with 120V/240V, 50/60 Hz power.
  • All-steel platform deck and rails with saloon-style entry gate.
  • Joystick with fully proportional lift and drive controls.
  • Standard 110V AC wiring to the platform.
  • Battery condition indicator, hourmeter, horn, and corner tool tray.
  • Integrated lifting and tie-down points, plus fork lifting access from either side.
  • Non-marking solid tires and powder paint coating.
  • 213 amp-hour AGM batteries.
  • 900W AC inverter/charger.
  • Flashing amber beacon.
  • Ambient adjusting alarm or white noise alarm.
  • Anti-vandalism package with control box cover assembly.
  • Platform control extended length.
  • Programmable security lock.
  • 1-ft 10-in ground entry height helps operators access the platform.
  • Fully proportional joystick controls support smooth lift and drive operation.
  • Compact footprint and 4.4-in inside turning radius help operators maneuver in confined indoor areas.
  • Corner tool tray keeps commonly used items within reach while working from the platform.
  • Mechanical pothole protection system.
  • Tilt alarm and light.
  • All motion alarm and horn.
  • Lanyard attachment points.
  • Automatic traction control.
  • Electric friction brakes on the drive wheels.
  • 12-ft elevated platform height for indoor vertical access work.
  • 500-lb platform capacity.
  • 3 mph drive speed when lowered and 0.5 mph drive speed when elevated.
  • 15-second lift time and 21-second lower time with no load.
  • 17-second lift time and 25-second lower time at rated load.
  • 25% gradeability.
  • Steel swing-out battery doors with heavy-duty hinges provide access to the battery area.
  • Controls and electrical system are common with JLG ES Series scissor lifts.
  • Battery condition indicator and hourmeter support routine fleet checks.
  • Low-maintenance electric drive reduces service demands compared with fuel-powered access equipment.
  • Indoor facility maintenance.
  • Building operations where ladders and scaffolding are less practical.
  • Applications requiring compact access equipment for freight elevators, tight spaces, or sensitive flooring.
