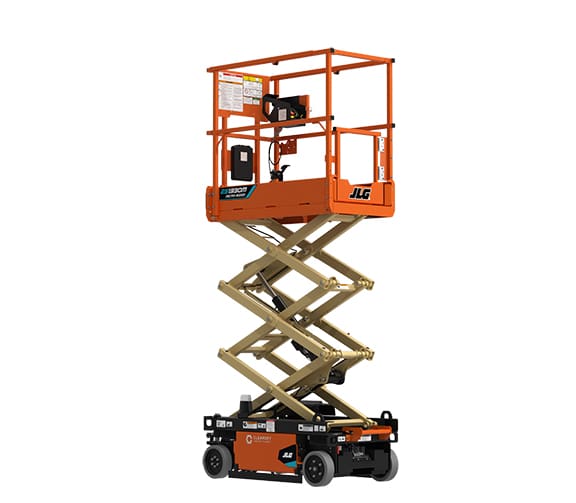

ES1330M Raised Rear LF

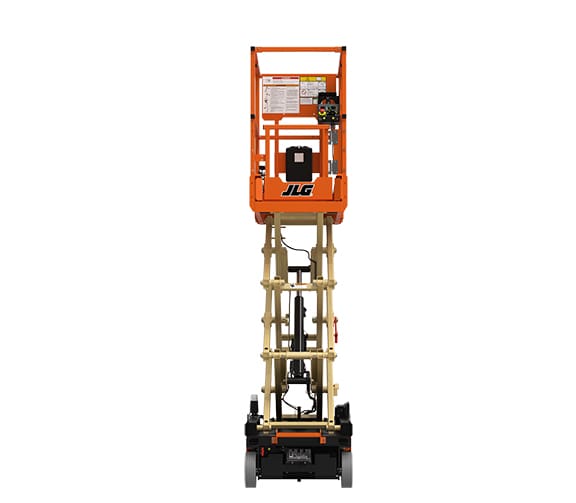

ES1330M Raised Rear

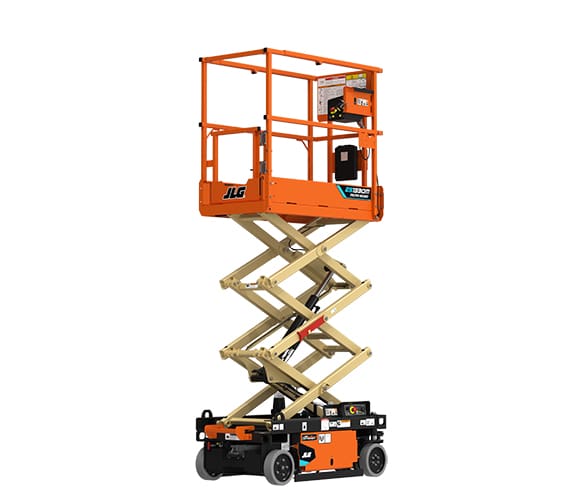

ES1330M Raised Rear RF

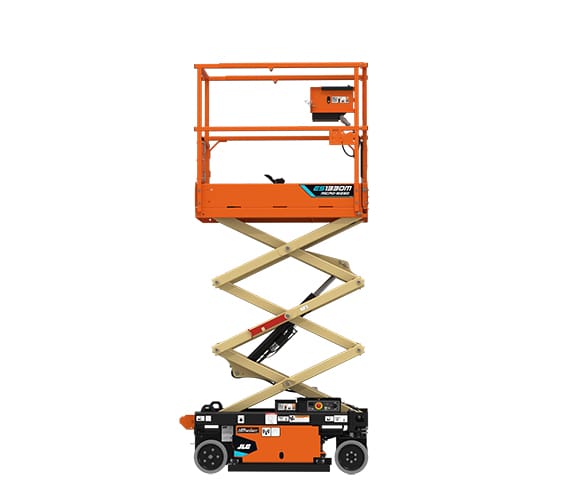

ES1330M Raised Side RF

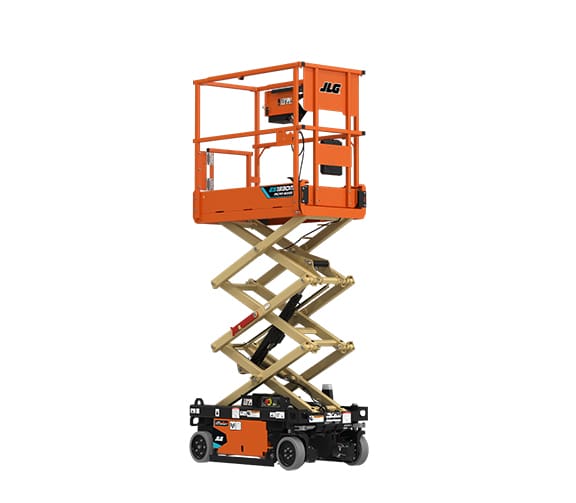

ES1330M Raised Front RF
ES1330M Raised Front

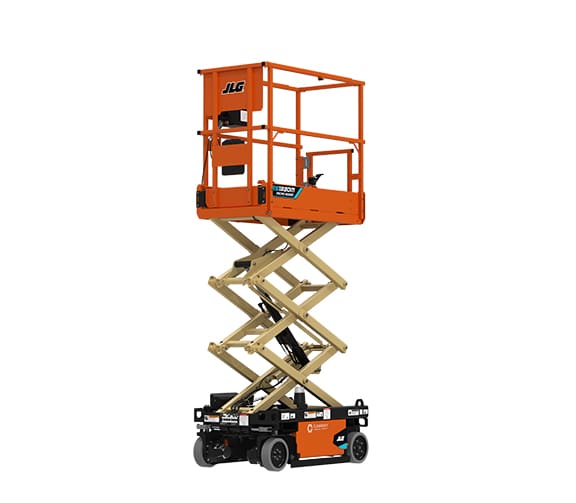

ES1330M Raised Front LF

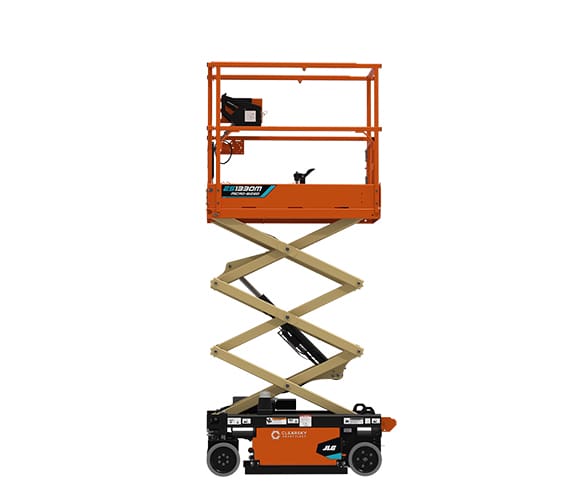

ES1330M Raised Side LF

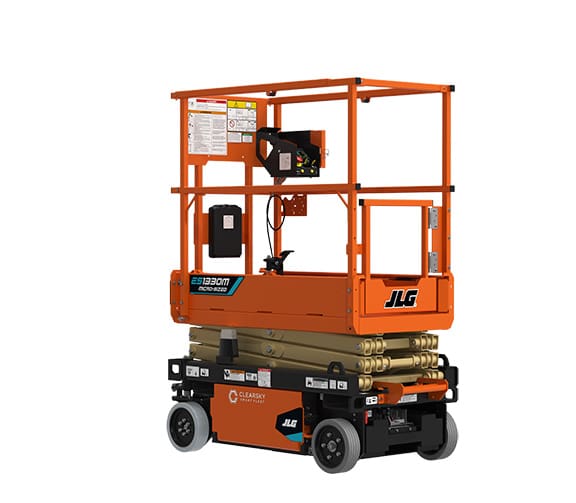

ES1330M Stowed Rear LF

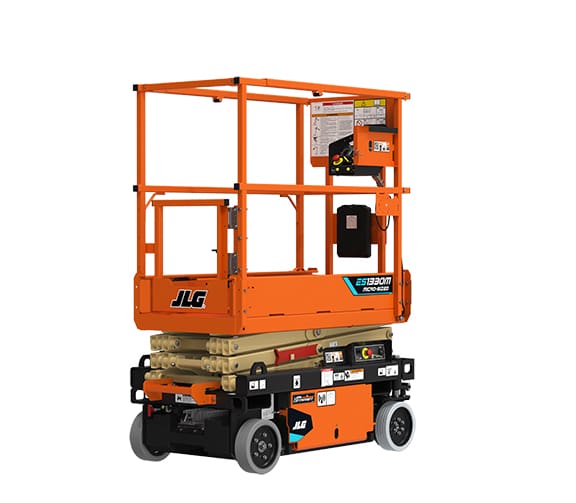

ES1330M Stowed Rear RF

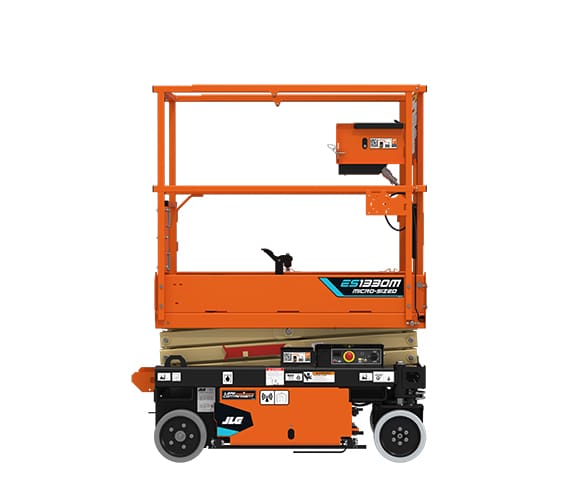

ES1330M Stowed Side RF

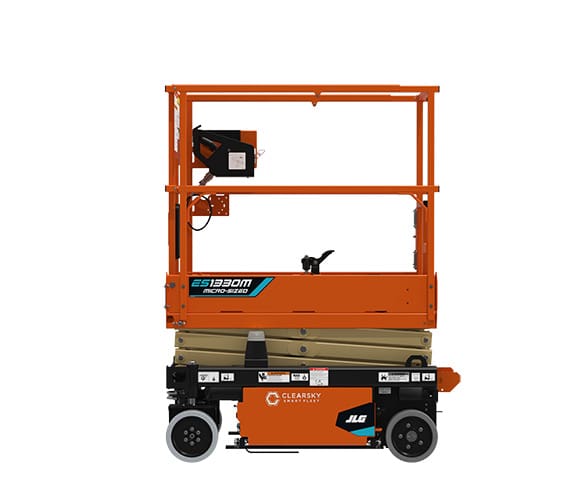

ES1330M Stowed Side LF

JLG ES1330M Micro Electric Scissor Lift

  • 13 ft. Platform Height
  • 500 lbs. Platform Capacity
  • Zero Inside Turning Radius
  • 1,984 lbs. Machine Weight
  • Standard leak containment, electric drive, and reduced hydraulic connections
Request a Quote

Documents

Product Documents

The JLG ES1330M is a micro-sized electric scissor lift built for low-level access work in tight, sensitive environments. Its 30-in width, short 56.2-in machine length, zero inside turning radius, and low machine weight help crews maneuver through compact indoor spaces and use freight elevators where larger lifts may be impractical. The lift provides a 13-ft platform height, 500-lb platform capacity, 21.6-in deck extension, and fully elevated drive capability for efficient maintenance and installation tasks.

Standard leak containment, electric drive, reduced hydraulic connections, and lubrication-free wear points help support cleaner operation and lower routine service demands. With indoor and outdoor ratings, the ES1330M gives facilities and job sites a compact access solution with practical platform convenience and safety-focused standard equipment.

Model Number: ES1330M

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Lift Height

Up to 25ft
MEWP Capacity

Up to 500 lbs
  • Compact 30-in machine width and 56.2-in machine length help the ES1330M work in tight indoor areas.
  • Industry-exclusive zero inside turning radius supports efficient positioning in confined spaces.
  • Low 1,984-lb machine weight and 119 psi ground bearing pressure help support use on sensitive flooring and in freight elevators.
  • Rated for indoor and outdoor applications, with two occupants allowed indoors and one occupant outdoors.
  • Standard leak containment helps protect the machine and the job site.
  • 13-ft platform height with 500-lb platform capacity.
  • 21.6-in foot-actuated deck extension with 250-lb extension capacity.
  • Electric drive with 24V electric system, two 12V 105 amp-hour batteries, and 650W Delta-Q charger.
  • Proportional controls, movable/removable platform control, horn, hourmeter, and battery condition indicator.
  • AC receptacle, USB charger, and phone cradle in the platform.
  • Fork lift pockets, lifting and tie-down points, and removable ladder.
  • ClearSky Smart Fleet hardware and LED motion/amber beacon.
  • Anti-vandalism package.
  • Coiled platform control box cable.
  • Inverter.
  • 24V 90Ah lithium-ion battery.
  • Second flashing amber LED beacon.
  • SkySense Enhanced Detection System.
  • Compact stowed height of 71.7 in with fixed rails supports access through space-constrained work areas.
  • Proportional controls help operators make controlled drive and lift movements.
  • Phone cradle and USB charger provide practical convenience for operators working from the platform.
  • Self-closing gate and removable ladder support routine platform access.
  • Active pothole protection system supports elevated operation.
  • Load sensing system, tilt alarm and light, and visual variable tilt indicator help operators monitor machine conditions.
  • All motion alarm, horn, LED motion/amber beacon, and lanyard attach points are included as standard features.
  • Manual descent cable and scissor maintenance prop support controlled lowering and service procedures.
  • 13-ft platform height and fully elevated drive capability support productive low-level access work.
  • 500-lb platform capacity and 250-lb platform extension capacity support tools and materials for common maintenance tasks.
  • 2.4 mph lowered drive speed and 0.5 mph raised drive speed.
  • 17-second lift and 17-second lower time with no load; 20-second lift and 16-second lower time at rated load.
  • 25% gradeability supports movement around the job site when stowed.
  • Electric drive and integrated components reduce the number of hydraulic hoses and fittings on the machine.
  • Greaseless kingpin joints, lubrication-free scissor arm bushings, and nickel-plated pins help reduce routine maintenance needs.
  • Analyzer port for diagnostics supports troubleshooting.
  • Steel swing-out doors provide access to service areas.
  • Leak containment system helps reduce cleanup risk and protect work environments.
  • Indoor facility maintenance.
  • Data centers and other sensitive-flooring environments.
  • Commercial buildings and institutional facilities.
  • Retail, warehousing, and light construction applications requiring compact elevated access.
