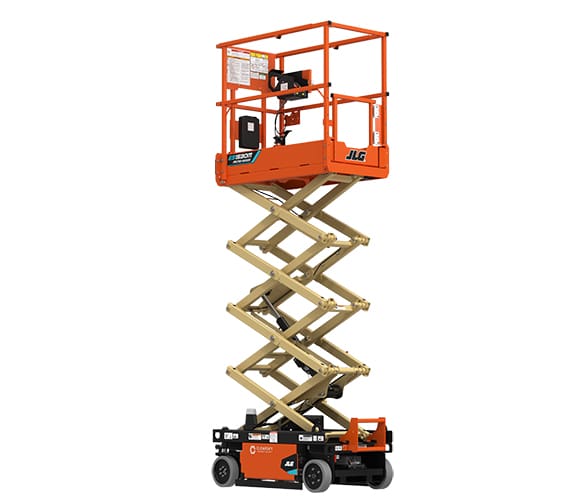

ES1530M Raised Rear LF

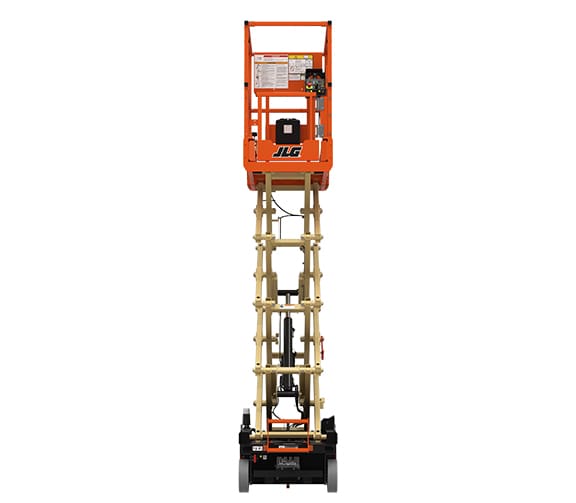

ES1530M Raised Rear

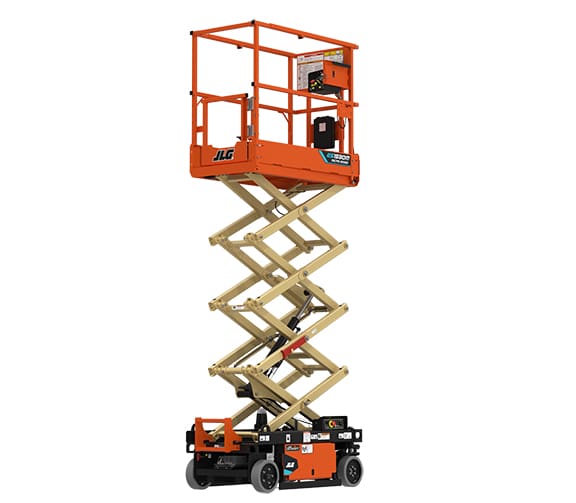

ES1530M Raised Rear RF

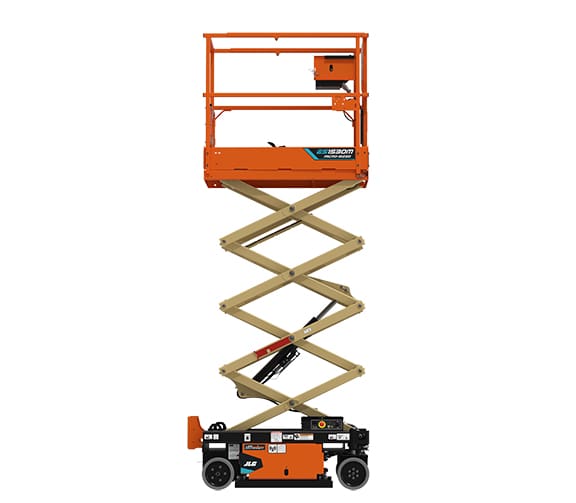

ES1530M Raised Side RF

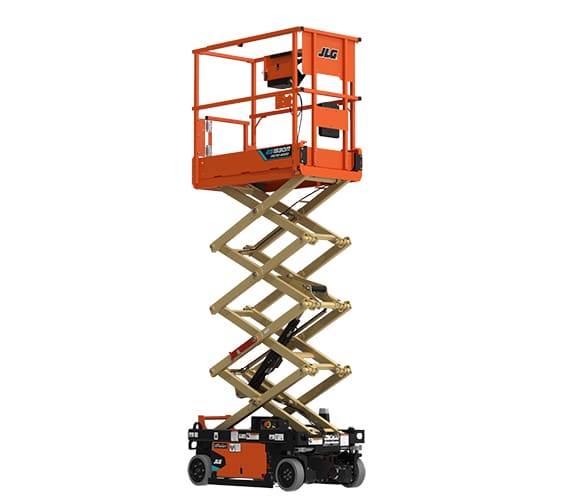

ES1530M Raised Front RF

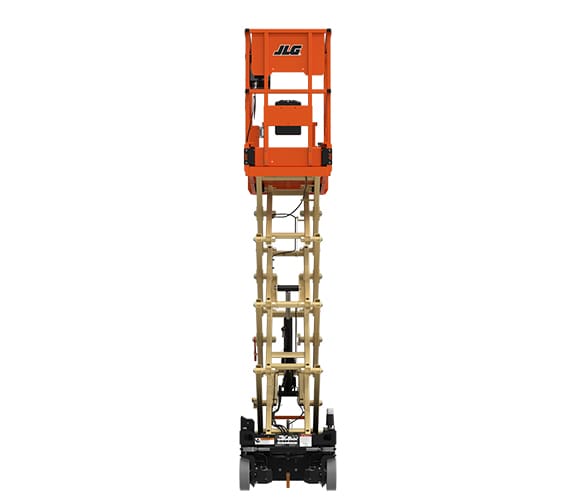

ES1530M Raised Front

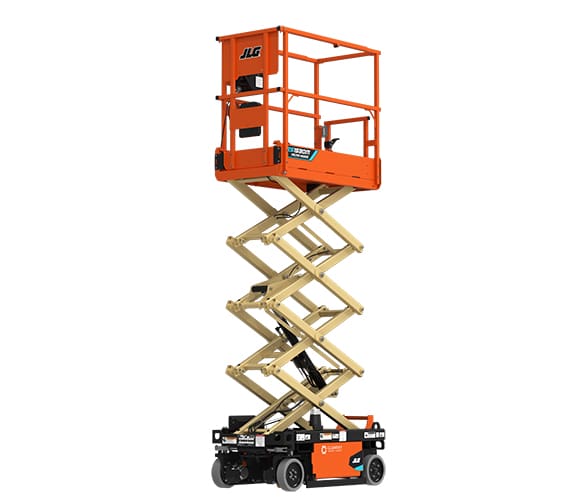

ES1530M Raised Front LF

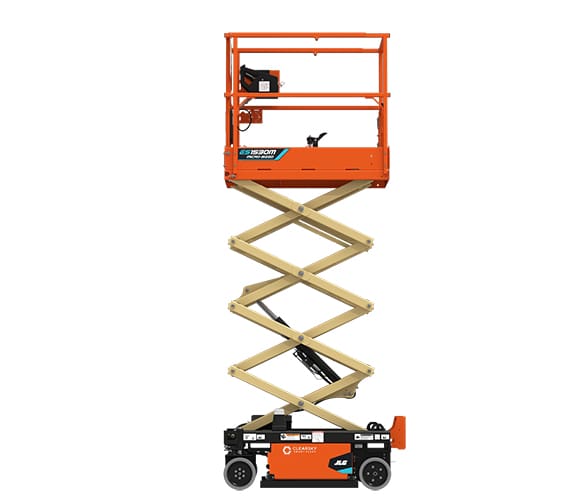

ES1530M Raised Side LF

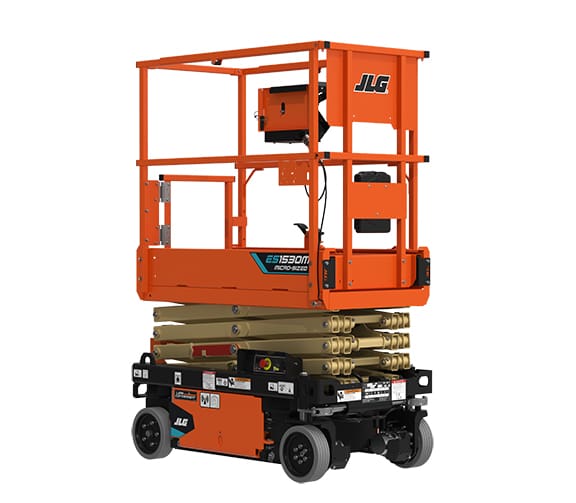

ES1530M Stowed Front RF

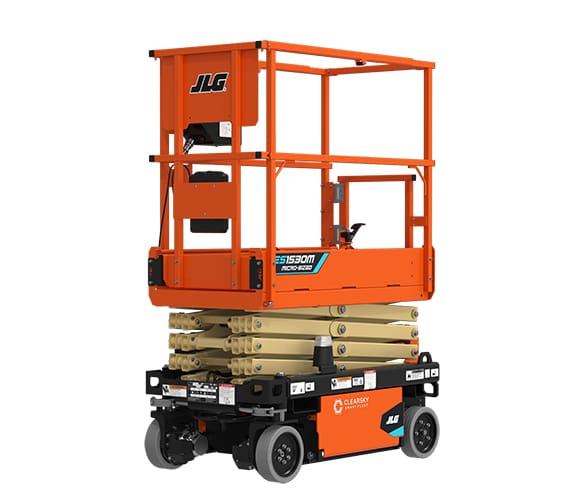

ES1530M Stowed Front LF

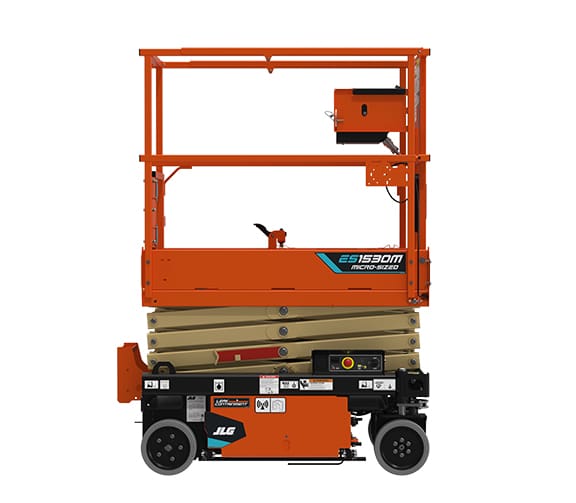

ES1530M Stowed Side RF

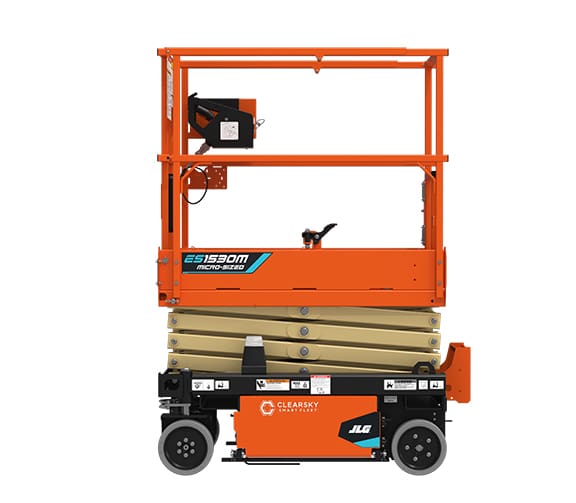

ES1530M Stowed Side LF

JLG ES1530M Micro Electric Scissor Lift

  • 15 ft. Platform Height
  • 500 lbs. Platform Capacity
  • 56.2-in machine length
  • Zero inside turning radius
  • Electric drive with reduced hydraulic hoses and standard leak containment
Request a Quote

Documents

Product Documents

The JLG ES1530M is a micro-sized electric scissor lift built for tight indoor spaces, sensitive flooring, and select outdoor applications. It provides a 15-ft indoor platform height, 10-ft outdoor platform height, and 500-lb platform capacity in a compact 30-in wide machine. Its zero inside turning radius, low machine weight, and freight-elevator-friendly footprint make it well suited for facilities where maneuverability and floor protection matter.

Standard leak containment, electric drive, reduced hydraulic connections, and service-friendly components help support uptime while reducing the risk of leaks and service calls.

Model Number: ES1530M

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Lift Height

Up to 25ft
MEWP Capacity

Up to 500 lbs
  • Compact 30-in machine width and 56.2-in machine length help the ES1530M work in tight indoor areas.
  • Industry-exclusive zero inside turning radius supports close maneuvering in confined spaces.
  • Lightweight 1,940-lb design with low ground bearing pressure helps support use on sensitive flooring.
  • Standard leak containment helps protect the machine and the job site.
  • Electric drive and reduced hydraulic hoses and fittings are designed to reduce leaks, service calls, and operating costs.
  • Fits in a freight elevator for easier movement around multi-level job sites.
  • 22-in foot-actuated deck extension with 250-lb extension capacity.
  • AC receptacle in platform, USB charger, and phone cradle.
  • Active pothole protection system.
  • ClearSky Smart Fleet hardware.
  • Drive motor covers and leak containment system.
  • Movable, removable platform control with proportional controls.
  • Forklift pockets, lifting and tie-down points, and removable ladder.
  • Lithium-ion battery, 24V 90Ah.
  • SkySense Enhanced Detection System.
  • Inverter.
  • Anti-vandalism package.
  • Coiled platform control box cable.
  • Second LED flashing amber beacon.
  • MDI ground display.
  • Fixed rails provide a stowed height of 74.8 in while keeping the machine compact.
  • Proportional controls support smooth platform operation.
  • Movable, removable platform control helps operators position controls where needed.
  • USB charger, phone cradle, and AC platform receptacle add convenience during elevated work.
  • 21.6-in platform extension increases usable reach from the platform.
  • Active pothole protection system is included as standard equipment.
  • Load sensing system, tilt alarm and light, and visual variable tilt indicator are standard.
  • All motion alarm, horn, lanyard attach points, and self-closing gate support operator awareness and platform access control.
  • LED motion/amber beacon is included as standard equipment.
  • Optional SkySense Enhanced Detection System is available.
  • 15-ft indoor platform height and 10-ft outdoor platform height.
  • 500-lb platform capacity for both indoor and outdoor use.
  • Drivable at full height indoors and outdoors.
  • 2.4 mph lowered drive speed and 0.5 mph raised drive speed.
  • 25% gradeability with zero inside turning radius and 55-in outside turning radius.
  • Lift/lower time is 19/19 seconds with no load and 22/17 seconds at rated load.
  • Electric drive and integrated components reduce hydraulic hoses and fittings across the machine.
  • Analyzer port for diagnostics, hourmeter, and battery condition indicator are standard.
  • Greaseless kingpin joints and lubrication-free scissor arm bushings reduce routine lubrication points.
  • Scissor maintenance prop and manual descent cable are included as standard equipment.
  • Steel swing-out doors improve access to internal components.
  • Data centers and other indoor environments with sensitive flooring.
  • Facility maintenance work where compact dimensions and low ground bearing pressure matter.
  • Indoor and outdoor applications requiring a micro-sized electric scissor lift.
  • Multi-level job sites where freight elevator access helps move equipment between floors.
