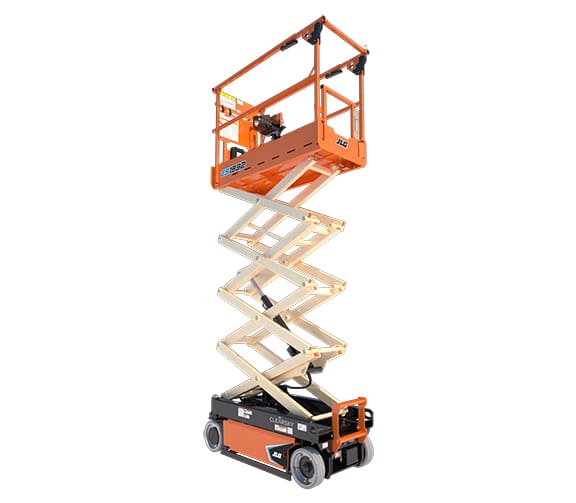

ES1932_Raised_LR34

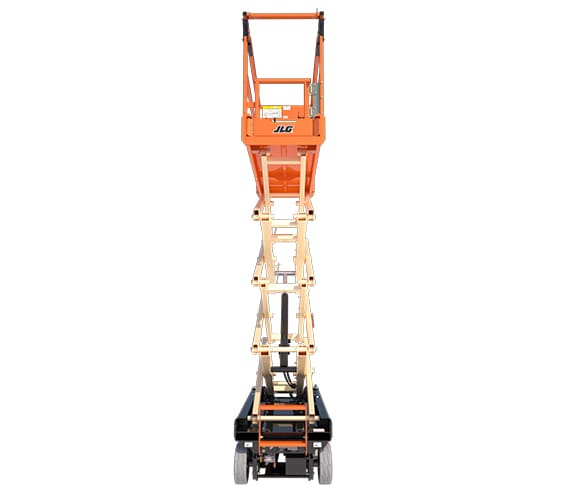

ES1932 Extended Rear

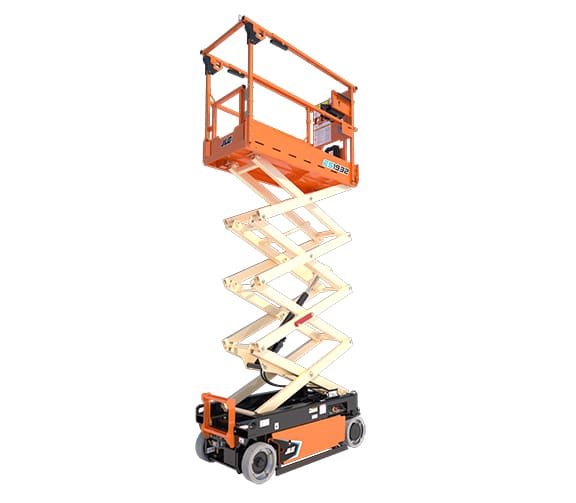

ES1932 Extended Rear RF 34

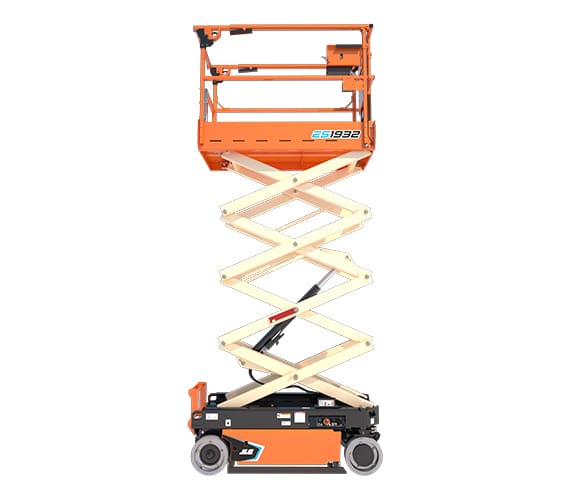

ES1932 Extended Side RF (2)

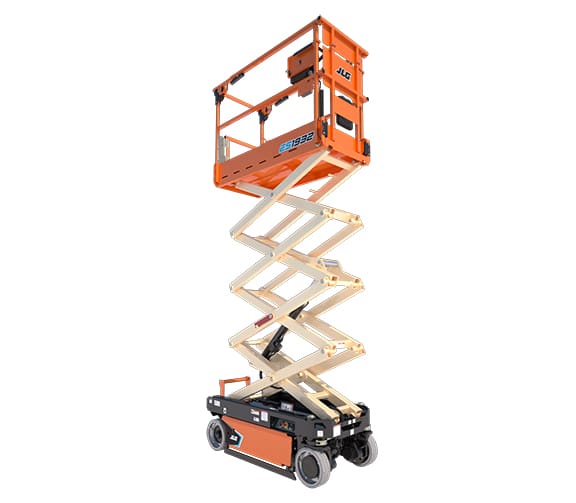

ES1932 Extended Front RF 34

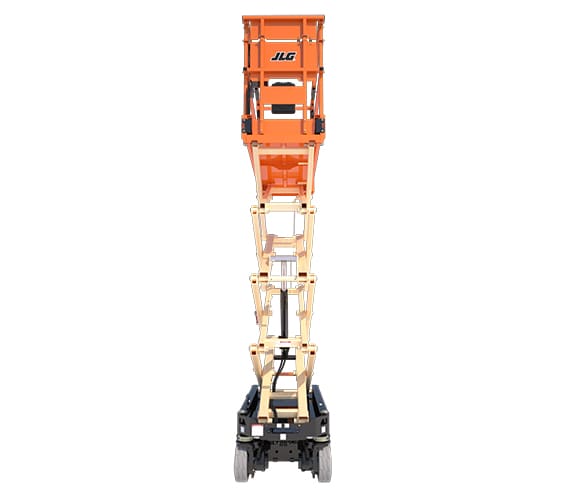

ES1932 Extended Front

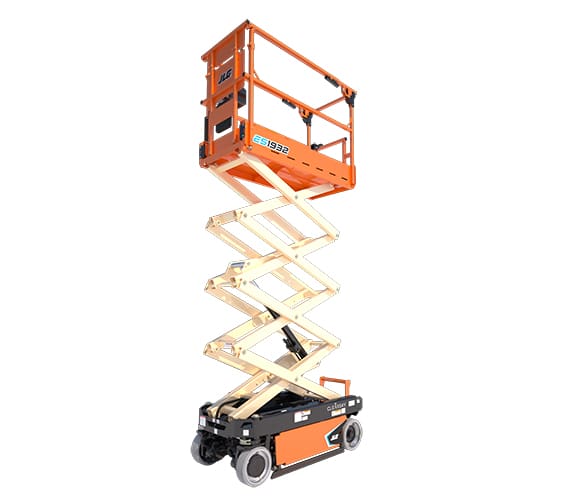

ES1932 Extended Front LF 34

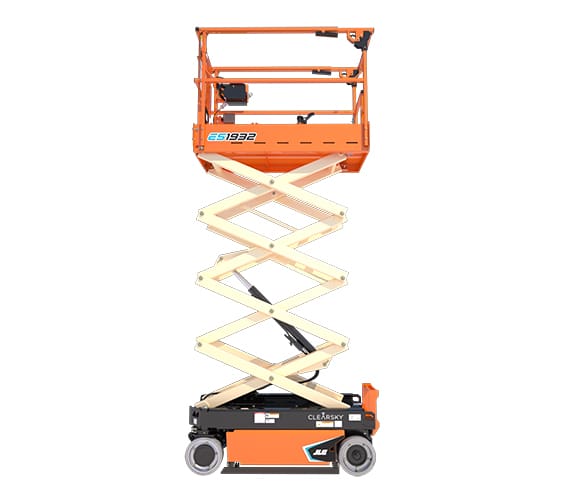

ES1932 Extended Side LF

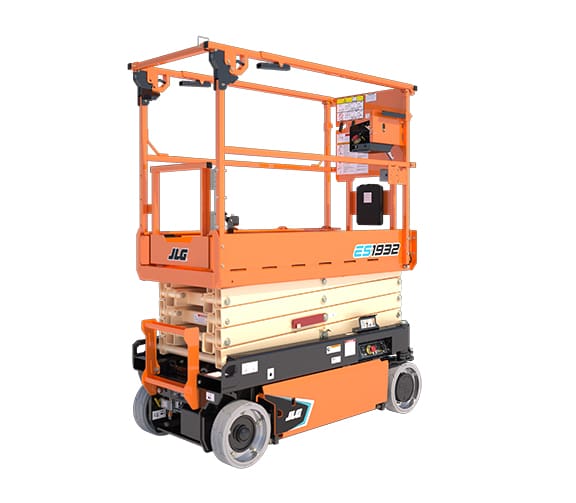

ES1932 Stowed Rear RF

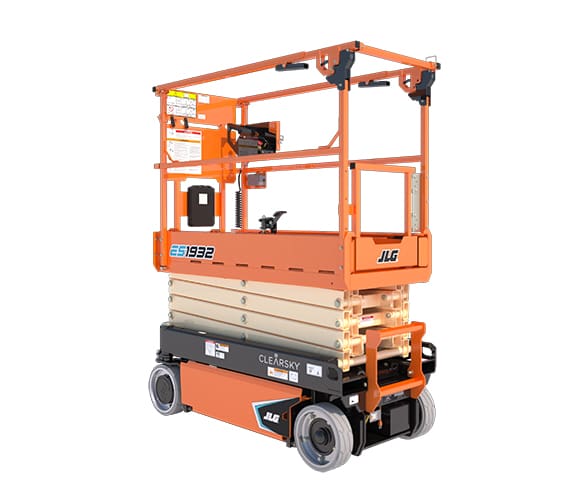

ES1932 Stowed Rear LF 34

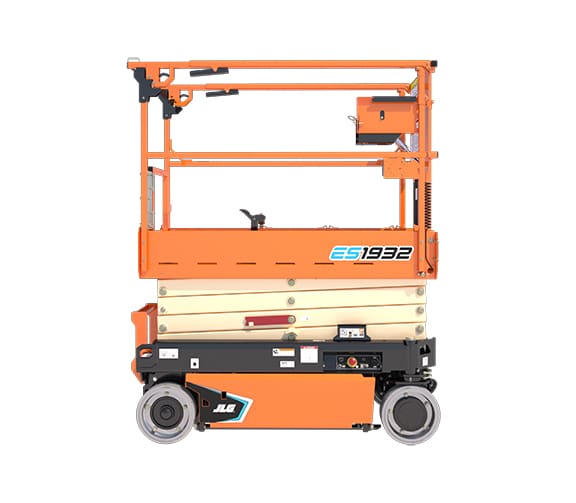

ES1932 Stowed Side RF

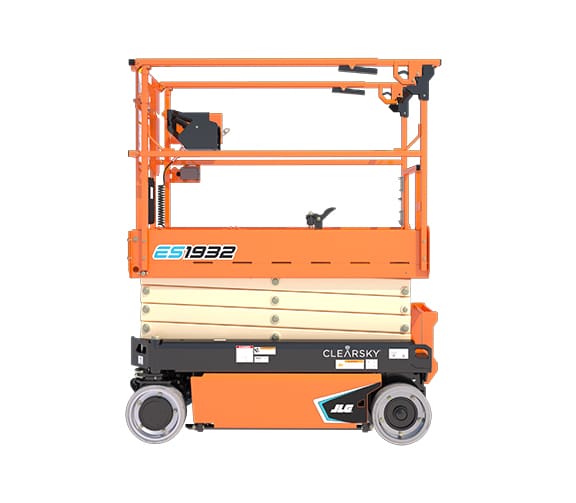

ES1932 Stowed Side LF

JLG ES1932 Electric Scissor Lift

  • 19 ft. Platform Height
  • 507 lbs. Platform Capacity
  • Electric drive
  • QuikFold Rails
  • Zero inside turning radius
Request a Quote

Documents

Product Documents

The JLG ES1932 is an electric scissor lift designed for operations teams that need compact maneuverability, efficient electric drive, and a practical 19-ft platform height. It provides a 507-lb platform capacity, zero inside turning radius, and a 32-in machine width for working through tighter areas on indoor and outdoor jobsites.

The refreshed design includes QuikFold Rails, a standard USB charger and phone holder, and strong commonality with other JLG scissors to help simplify service. With options such as CleanGuard leak containment, SkySense, pipe racks, and the QuikAccess Platform, the ES1932 can be configured for a range of maintenance and facility tasks.

Model Number: ES1932

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Capacity

501 – 1,000 lbs
MEWP Lift Height

Up to 25ft
  • Electric drive helps deliver up to double the battery life of a standard scissor lift.
  • 19-ft platform height supports indoor and outdoor elevated work.
  • 32-in machine width and zero inside turning radius help operators maneuver in tight work areas.
  • QuikFold rail system allows operators to fold the rails in a fraction of the time of a standard machine.
  • Standard USB charger and phone holder improve operator convenience in the platform.
  • High commonality with other JLG scissors helps simplify service.
  • Foot-actuated deck extension with 265-lb extension capacity.
  • AC receptacle in platform, USB charger, and phone holder.
  • Active pothole protection system.
  • ClearSky Smart Fleet hardware.
  • Electric drive with dynamic braking.
  • Movable, removable platform control with proportional controls.
  • QuikFold Rails, forklift pockets, lifting and tie-down points, and removable ladder.
  • Variable Tilt Visual Zone Indicator.
  • CleanGuard Leak Containment System.
  • SkySense Enhanced Detection System.
  • QuikAccess Platform.
  • Panel carrier and pipe racks.
  • 900W inverter.
  • Lithium battery or Lithium+ batteries.
  • Anti-vandalism package and coiled platform control box cable.
  • 36-in platform extension helps operators reach work areas from the platform.
  • QuikFold Rails reduce the time needed to lower rails for jobsite travel.
  • Movable, removable platform control supports flexible operator positioning.
  • Proportional controls support smooth operation.
  • USB charger, phone holder, and AC platform receptacle add convenience during work.
  • Active pothole protection system is included as standard equipment.
  • Load sensing system, tilt alarm and light, and Variable Tilt Visual Zone Indicator are standard.
  • All motion alarm, horn, lanyard attach points, and self-closing gate support operator awareness and platform access control.
  • LED motion/amber beacon is included as standard equipment.
  • Manual descent cable and scissor maintenance prop are standard.
  • 19-ft platform height for both indoor and outdoor use.
  • 507-lb platform capacity with 265-lb extension capacity.
  • Two-person indoor occupancy and one-person outdoor occupancy.
  • 3.0 mph lowered drive speed and 0.5 mph raised drive speed.
  • 25% gradeability with zero inside turning radius and 66-in outside turning radius.
  • Drivable at full height indoors and outdoors.
  • High commonality with other JLG scissors helps simplify service.
  • Analyzer port for diagnostics, hourmeter, and battery condition indicator are standard.
  • Greaseless kingpin joints and lubrication-free scissor arm bushings reduce lubrication points.
  • Steel swing-out doors improve access to internal components.
  • CAN-enabled charger, nickel plated pins, manual descent cable, and scissor maintenance prop are standard.
  • Facility maintenance in indoor and outdoor work areas.
  • Jobsites where compact access, tight turning, and fold-down rails are important.
  • Applications requiring a 19-ft platform height and 507-lb platform capacity.
  • Maintenance work where accessories such as panel carriers, pipe racks, or QuikAccess Platform may support the task.
