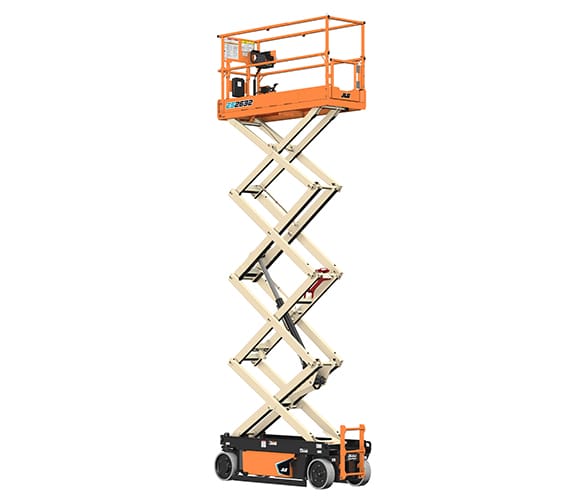

ES2632 Raised Rear LF 34

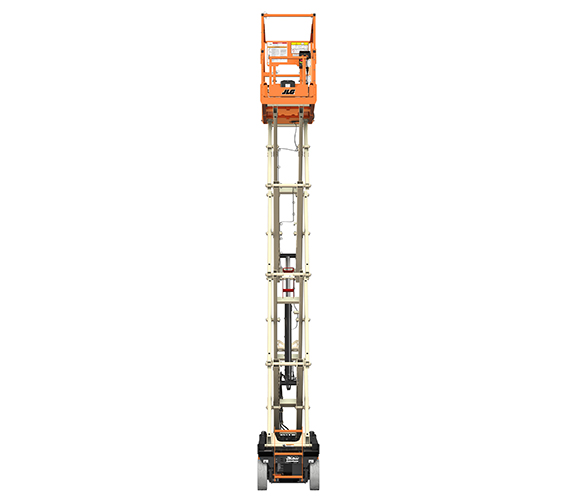

ES2632 Raised Rear

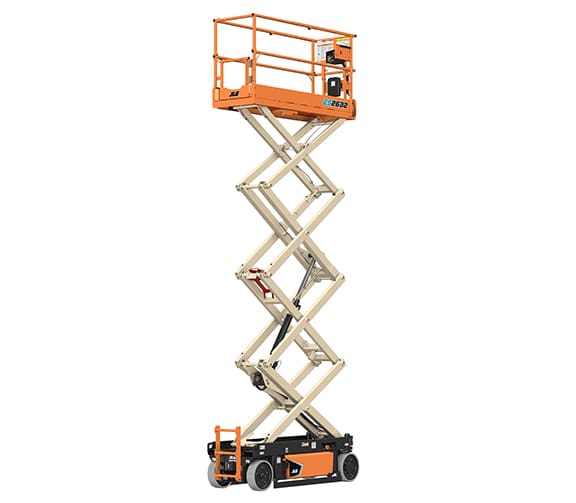

ES2632 Raised Rear RF 34

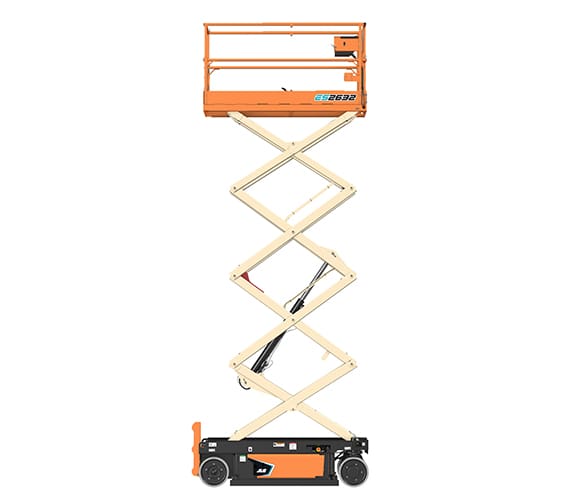

ES2632 Raised Side RF

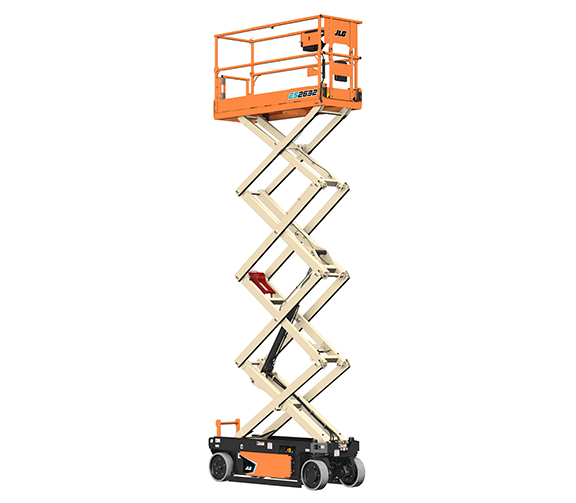

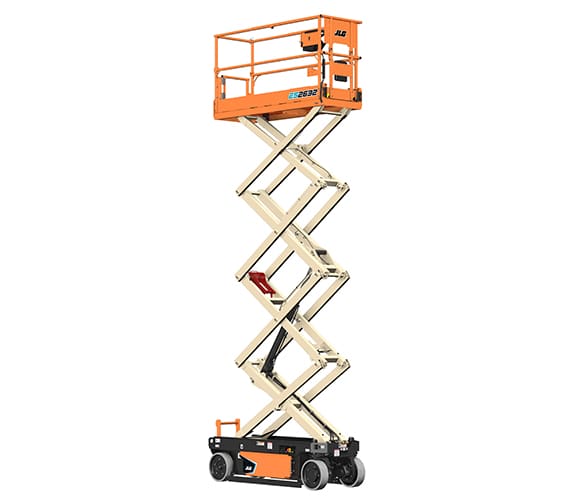

ES2632 Raised Front RF 34

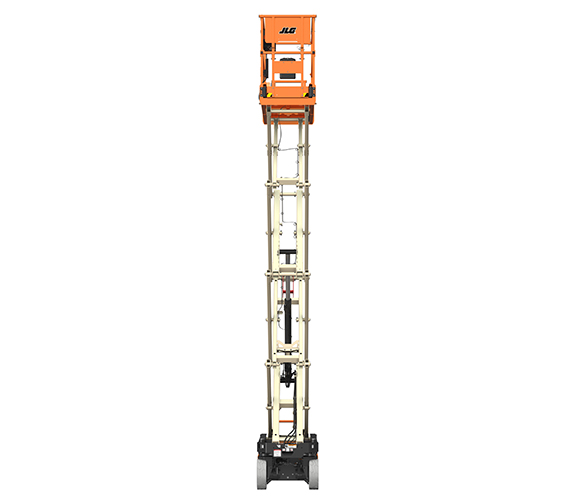

ES2632 Raised Front

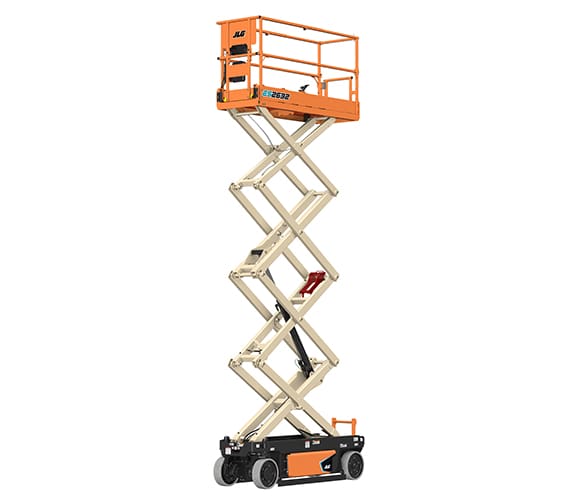

ES2632 Raised Front LF 34

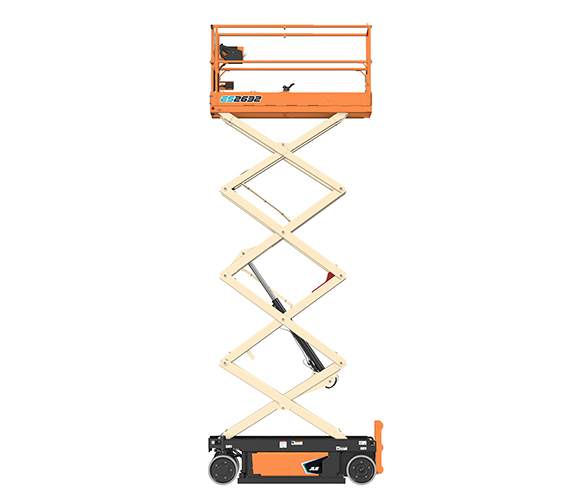

ES2632 Raised Side LF

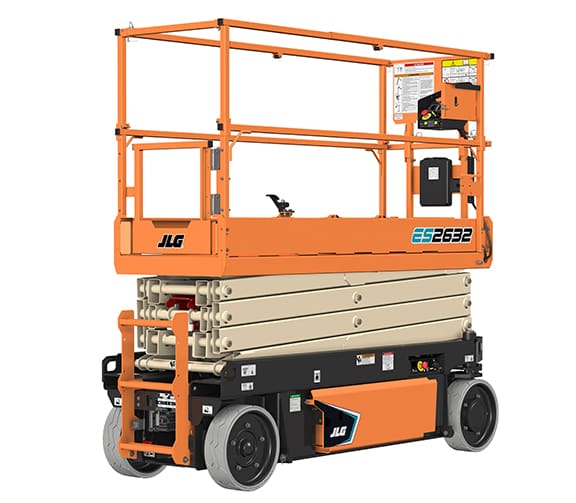

ES2632 Stowed Rear RF 34

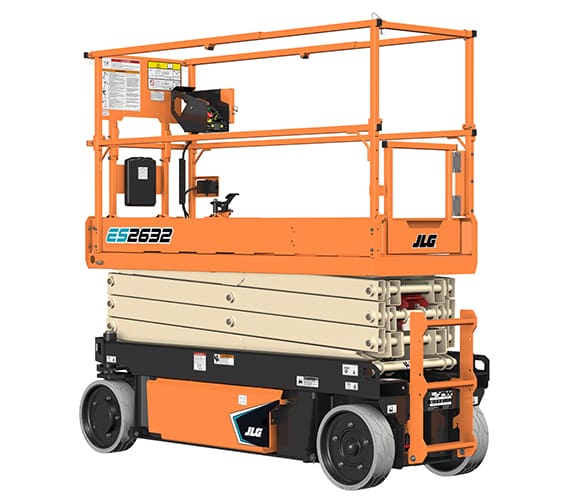

ES2632 Stowed Rear LF 34

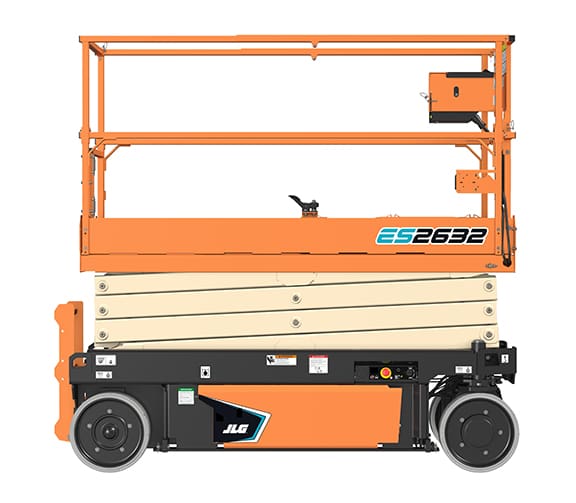

ES2632 Stowed Side RF

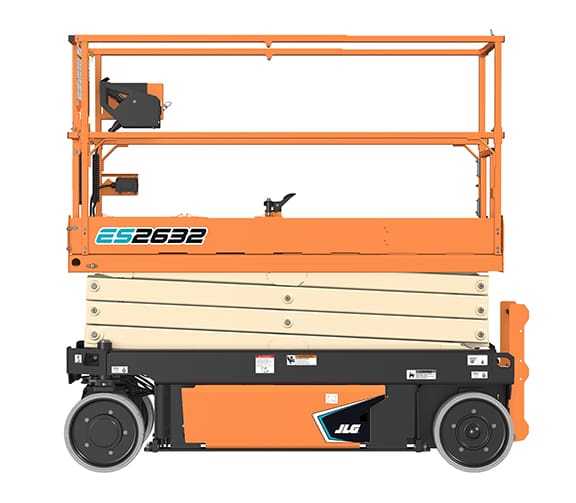

ES2632 Stowed Side LF

JLG ES2632 Electric Scissor Lift

  • 25-ft 5-in indoor platform height
  • 507-lb indoor platform capacity
  • 32-in machine width
  • Electric drive with reduced hydraulic connections
  • Zero inside turning radius
Request a Quote

Documents

Product Documents

The JLG ES2632 is an electric scissor lift built for crews that need a narrow machine with practical reach for indoor and outdoor work. It provides a 25-ft 5-in indoor platform height, 21-ft outdoor platform height, and up to 507-lb indoor platform capacity in a 32-in wide chassis.

Electric drive, reduced hydraulic connections, and extended battery performance help support longer work cycles with fewer leak and service concerns. With zero inside turning radius, a 34-in platform extension, and available options like CleanGuard, SkySense, pipe racks, and lithium batteries, the ES2632 can be configured for a wide range of facility and jobsite tasks.

Model Number: ES2632

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Lift Height

Up to 25ft
MEWP Capacity

501 – 1,000 lbs
  • 25-ft 5-in indoor platform height and 21-ft outdoor platform height support elevated maintenance and installation work.
  • 32-in machine width helps the ES2632 fit through most standard doorways and tight aisles.
  • Zero inside turning radius supports maneuverability in confined work areas.
  • Electric drive and integrated components reduce hydraulic hoses and fittings across the machine.
  • Designed to run longer on a single charge, with double the battery life noted in JLG source material.
  • Available CleanGuard leak containment system supports work on sensitive flooring.
  • Foot-actuated deck extension with 265-lb extension capacity.
  • AC receptacle in platform, USB charger, and phone holder.
  • Active pothole protection system.
  • ClearSky Smart Fleet hardware.
  • Electric drive with dynamic braking.
  • Movable, removable platform control with proportional controls.
  • Forklift pockets, lifting and tie-down points, and removable ladder.
  • Variable Tilt Visual Zone Indicator.
  • CleanGuard Leak Containment System.
  • SkySense Enhanced Detection System.
  • Panel carrier and pipe racks.
  • 900W inverter.
  • Lithium battery or Lithium+ batteries.
  • Drive motor covers.
  • Anti-vandalism package, coiled platform control box cable, and white noise alarm.

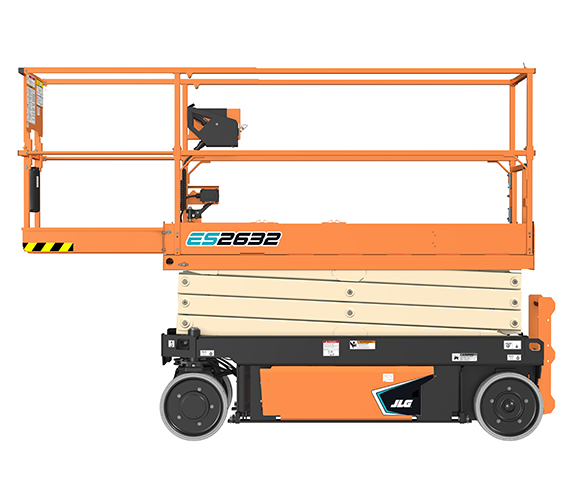

  • 34-in platform extension helps operators reach work areas from the platform.
  • Movable, removable platform control supports flexible operator positioning.
  • Proportional controls support smooth operation.
  • USB charger, phone holder, and AC platform receptacle add convenience during elevated work.
  • Narrow 32-in width helps crews move through standard doorways and tight aisles.
  • Active pothole protection system is included as standard equipment.
  • Load sensing system, tilt alarm and light, and Variable Tilt Visual Zone Indicator are standard.
  • All motion alarm, horn, lanyard attach points, and self-closing gate support operator awareness and platform access control.
  • LED motion/amber beacon is included as standard equipment.
  • Manual descent cable and scissor maintenance prop are standard.
  • 25-ft 5-in indoor platform height and 21-ft outdoor platform height.
  • 507-lb indoor platform capacity and 275-lb outdoor platform capacity.
  • Two-person indoor occupancy and one-person outdoor occupancy.
  • 2.75 mph lowered drive speed and 0.5 mph raised drive speed.
  • 25% gradeability with zero inside turning radius and 88.2-in outside turning radius.
  • Maximum drive height is 25-ft 5-in indoors and 21-ft outdoors.
  • Electric drive and integrated components reduce hydraulic hoses and fittings across the machine.
  • Analyzer port for diagnostics, hourmeter, and battery condition indicator are standard.
  • Greaseless kingpin joints and lubrication-free scissor arm bushings reduce lubrication points.
  • Steel swing-out doors improve access to internal components.
  • CAN-enabled charger, nickel plated pins, manual descent cable, and scissor maintenance prop are standard.
  • Facility maintenance in indoor and outdoor work areas.
  • Jobsites where narrow doorway access and tight-aisle maneuverability are important.
  • Applications involving sensitive flooring when equipped with CleanGuard leak containment.
  • Maintenance and installation work requiring up to 25-ft 5-in indoor platform height.
