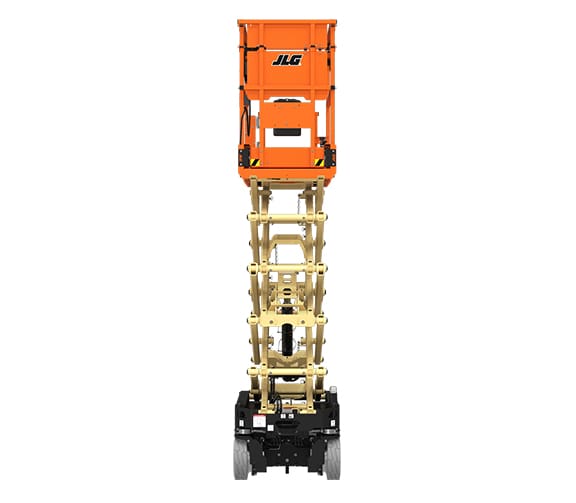

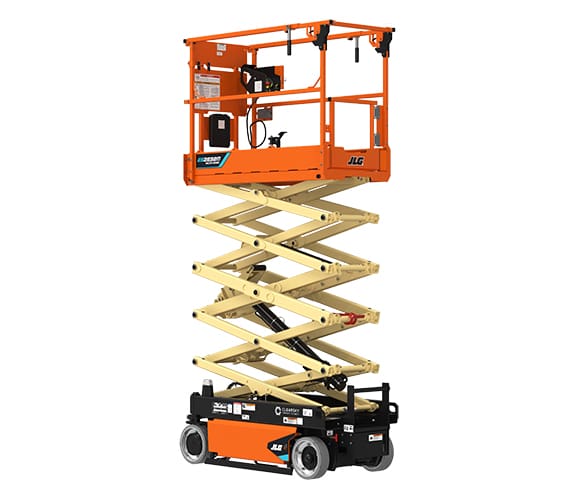

ES2632M Raised Front

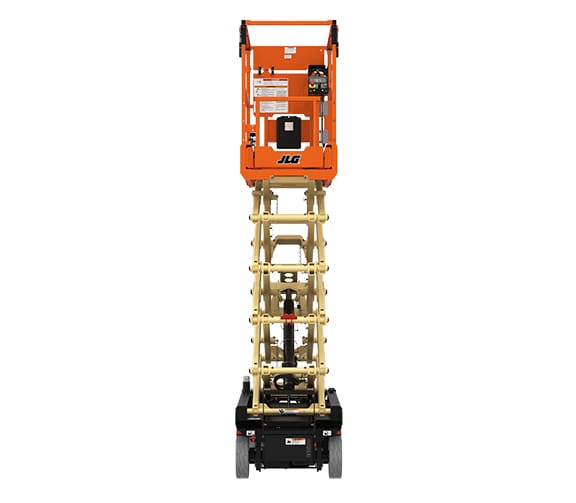

ES2632M Raised Rear

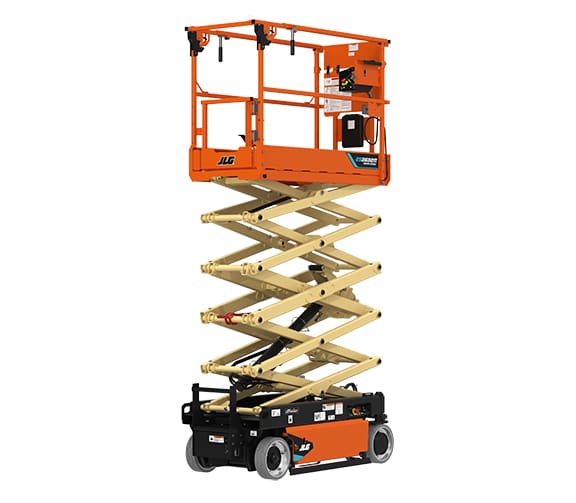

ES2632M Raised Rear RF

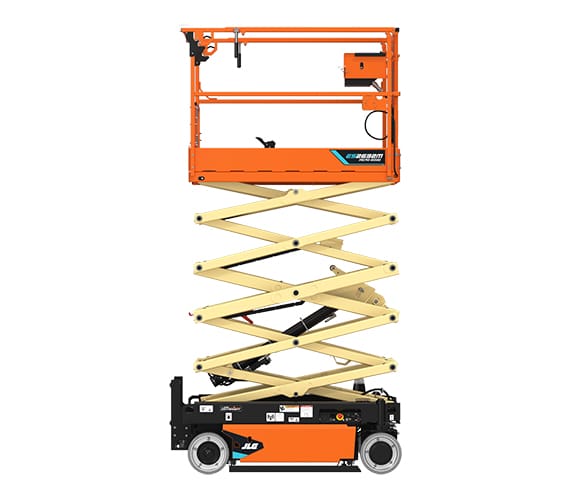

ES2632M Raised Side RF

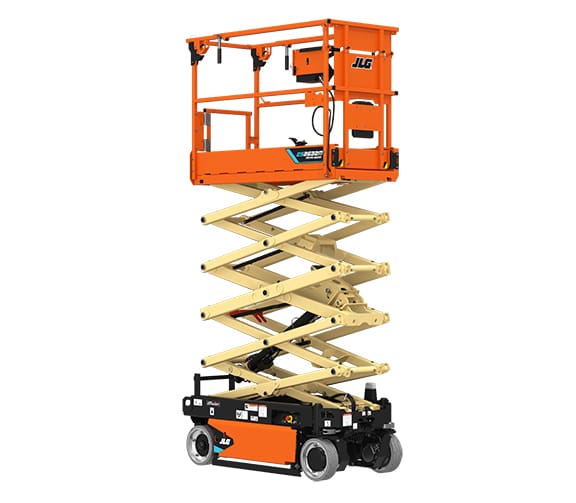

ES2632M Raised Front RF
ES2632M Raised Front

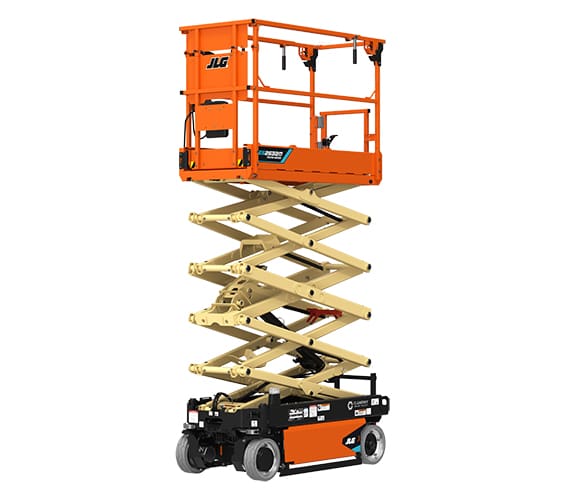

ES2632M Raised Front LF

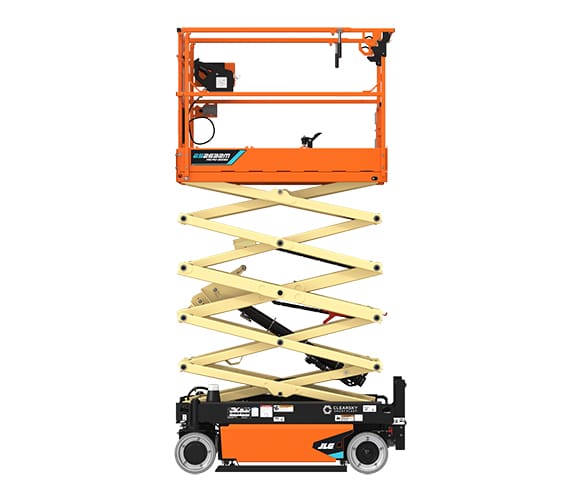

ES2632M Raised Side LF
ES2632M Stowed Rear RF

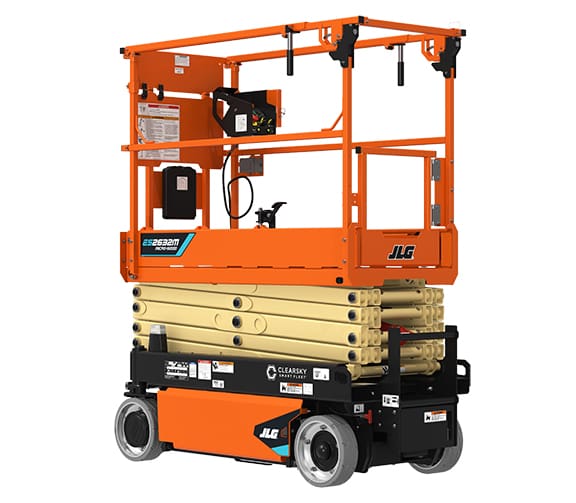

ES2632M Stowed Rear LF

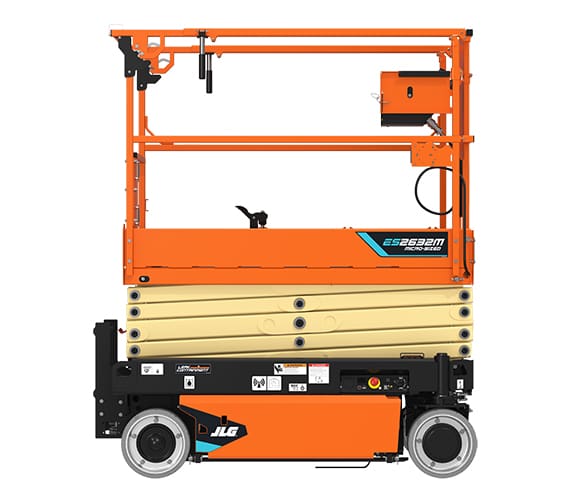

ES2632M Stowed Side RF
ES2632M Stowed Side LF

JLG ES2632M Micro Electric Scissor Lift

  • 25-ft 6-in indoor platform height
  • 600 lbs. Platform Capacity
  • 32-in machine width
  • Zero inside turning radius
  • Progressive Elevated Drive with Quick Fold Rails
Request a Quote

Documents

Product Documents

The JLG ES2632M is a micro-sized electric scissor lift built for congested work areas where access, platform height, and maneuverability all matter. It delivers a 25-ft 6-in indoor platform height, 18-ft outdoor platform height, and 600-lb platform capacity in a compact 32-in wide machine.

Zero inside turning radius, Progressive Elevated Drive, Quick Fold Rails, and standard leak containment help crews move efficiently while protecting sensitive work surfaces. With ClearSky Smart Fleet hardware, Variable Tilt technology, and service-friendly access features, the ES2632M gives operations teams a compact lift with higher reach and capacity.

Model Number: ES2632M

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Lift Height

26 – 40ft
MEWP Capacity

501 – 1,000 lbs
  • 25-ft 6-in indoor platform height and 18-ft outdoor platform height support a wider range of elevated work.
  • 600-lb platform capacity provides more capacity than smaller micro-sized models in the series.
  • 32-in machine width, compact footprint, and zero inside turning radius help operators work in congested areas.
  • Standard leak containment uses custom-fit trays to help protect delicate work surfaces.
  • Progressive Elevated Drive, Variable Tilt, and ClearSky Smart Fleet hardware are included as onboard JLG technologies.
  • Quick Fold Rails fold down for easier movement around the job site.
  • Foot-actuated deck extension with 265-lb extension capacity.
  • 110V AC receptacle in platform, USB charger, and phone holder.
  • Active pothole protection system.
  • ClearSky Smart Fleet hardware.
  • Electric drive with Progressive Elevated Drive.
  • Leak containment system and drive motor covers.
  • Movable, removable platform control box with proportional controls.
  • Quick Fold Rails, forklift pockets, lifting and tie-down points, and removable ladder.
  • Integrated mid-rail deck adds 19.5 in of platform height.
  • Lithium-ion batteries.
  • 900W inverter.
  • Anti-vandalism package.
  • Hostile environment package.
  • Special hydraulic fluids.
  • White noise alarm and additional single amber beacon.
  • 33.7-in platform extension helps operators reach work areas from the platform.
  • Optional integrated mid-rail deck adds 19.5 in of platform height for select tasks.
  • Movable, removable platform control box supports flexible operator positioning.
  • Proportional controls support smooth machine operation.
  • USB charger, phone holder, and 110V AC receptacle add platform convenience.
  • Active pothole protection system is included as standard equipment.
  • Load sensing system, tilt alarm and light, and Variable Tilt Visual Zone Indicator are standard.
  • All motion alarm, horn, lanyard attach points, and self-closing gate support operator awareness and platform access control.
  • LED motion/amber beacon is included as standard equipment.
  • Manual descent cable and scissor maintenance prop are standard.
  • 25-ft 6-in indoor platform height and 18-ft outdoor platform height.
  • 600-lb platform capacity for indoor and outdoor use.
  • Two-person indoor occupancy and one-person outdoor occupancy.
  • 3.0 mph lowered drive speed and 0.5 mph raised drive speed.
  • 24% gradeability with zero inside turning radius and 66-in outside turning radius.
  • Drivable at full height indoors and outdoors.
  • Analyzer port for diagnostics, hourmeter, and battery condition indicator are standard.
  • Greaseless kingpin joints and lubrication-free scissor arm bushings reduce lubrication points.
  • Steel swing-out doors improve access to internal components.
  • CAN-enabled charger and 27 amp multi-function universal charger are included.
  • Nickel plated pins, manual descent cable, and scissor maintenance prop are standard.
  • Facility maintenance in congested indoor work environments.
  • Jobsites where compact access, elevated reach, and maneuverability are priorities.
  • Applications involving delicate work surfaces where leak containment is valuable.
  • Indoor and outdoor maintenance work requiring up to 25-ft 6-in indoor platform height.
