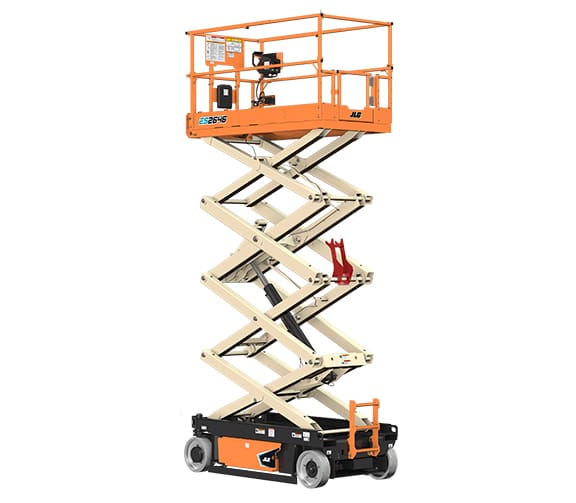

ES2646_Raised_Rear_LF

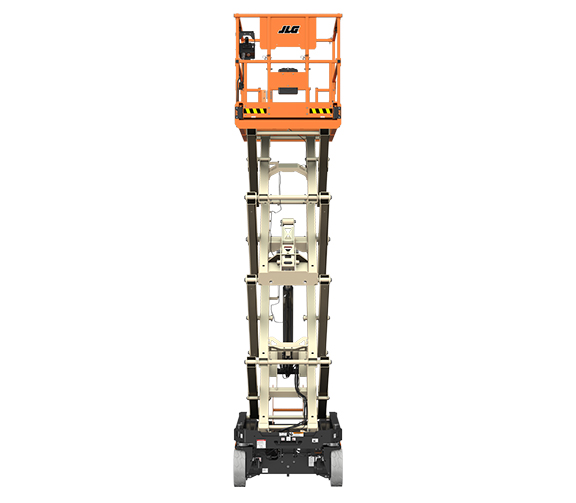

ES2646_Raised_Front

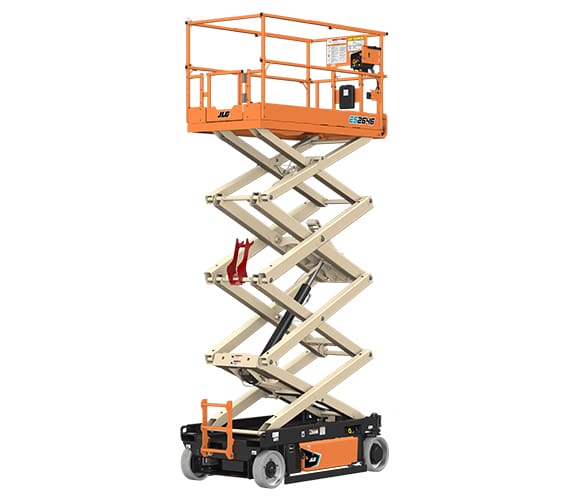

ES2646_Raised_Rear_RF

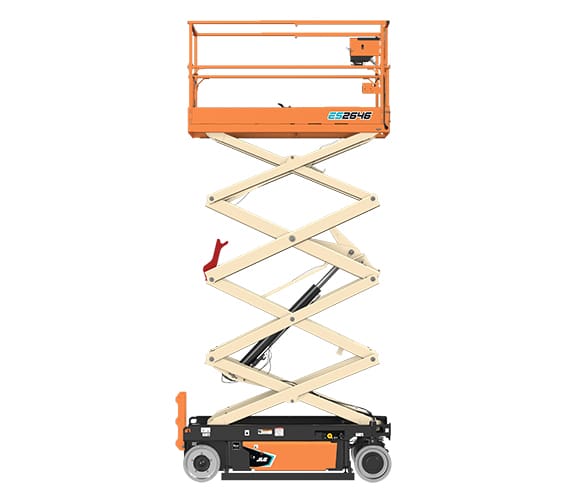

ES2646_Raised_Side_RF

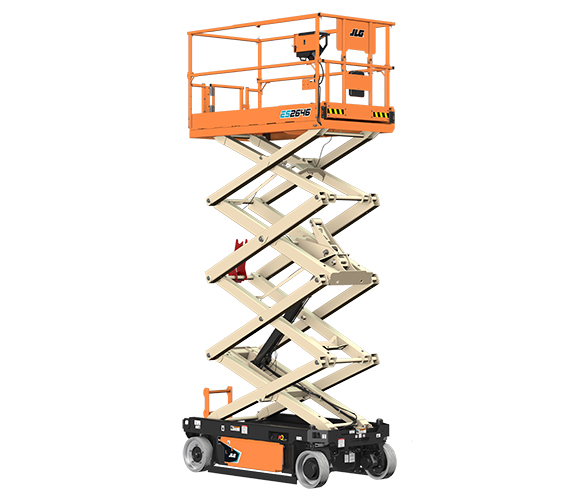

ES2646_Raised_Front_RF

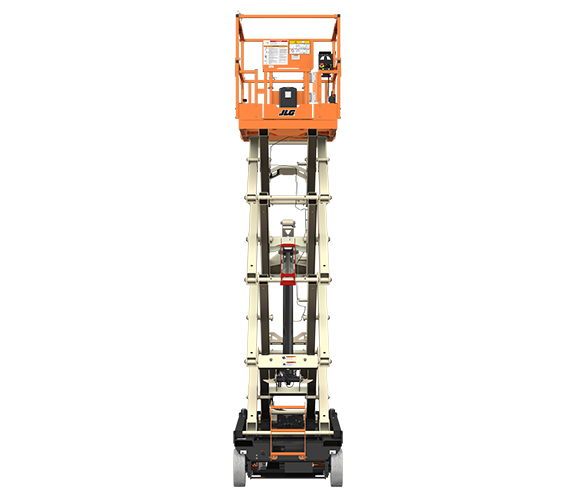

ES2646_Raised_Rear

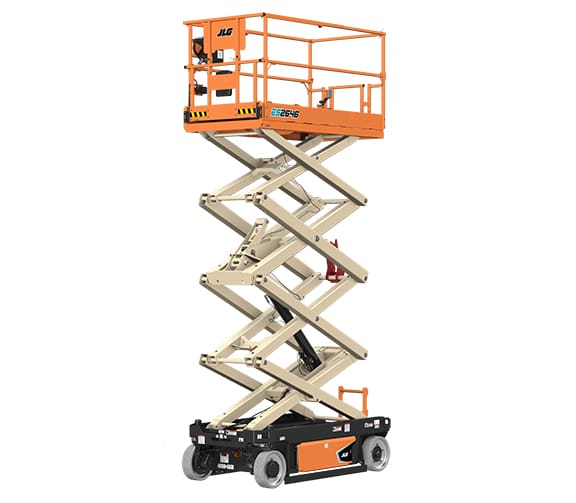

ES2646_Raised_Front_LF

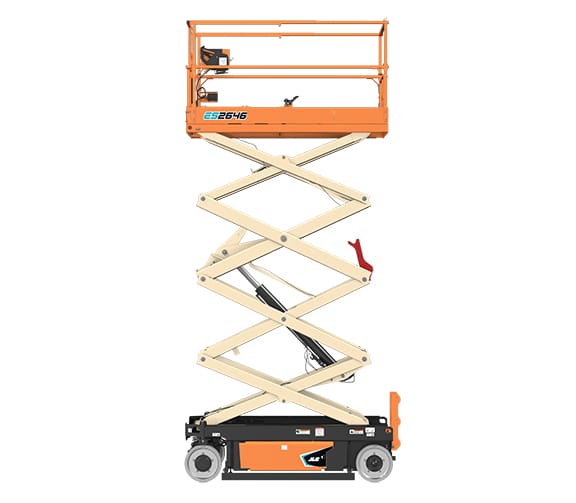

ES2646_Raised_Side_LF

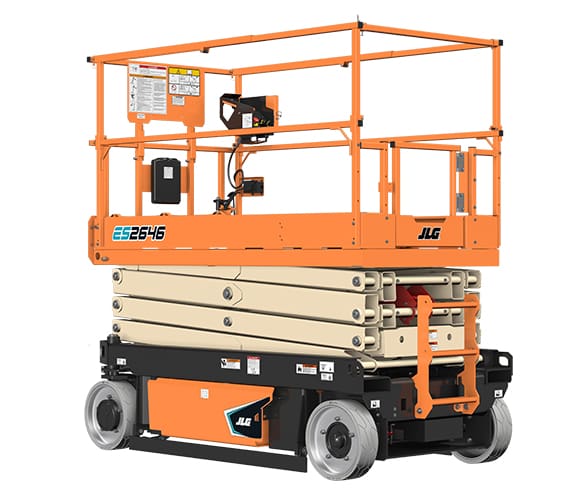

ES2646_Stowed_Rear_LF

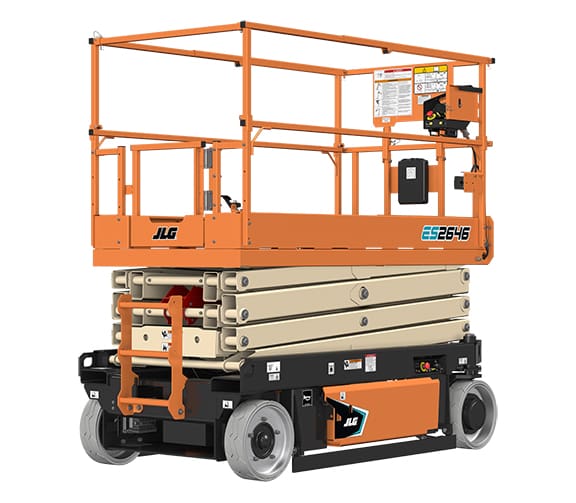

ES2646_Stowed_Rear_RF

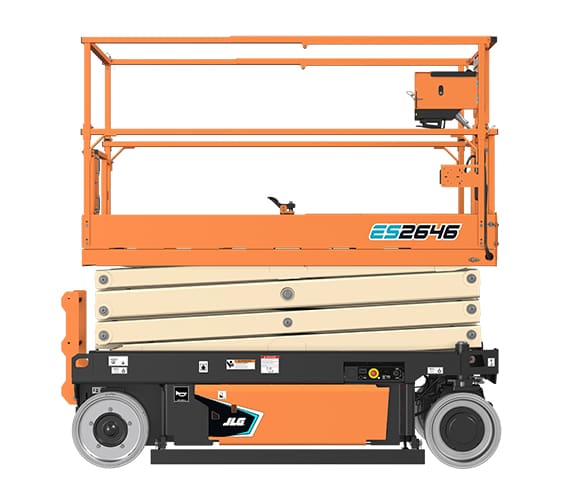

ES2646_Stowed_Side_RF

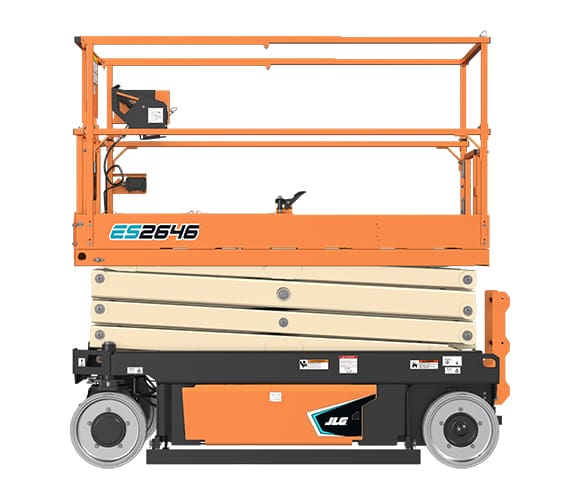

ES2646_Stowed_Side_LF

JLG ES2646 Electric Scissor Lift

  • 26 ft. Platform Height
  • 1,200 lbs. Platform Capacity
  • Electric drive
  • Zero inside turning radius
  • QuikFold Rails and 36-in platform extension
Request a Quote

Documents

Product Documents

The JLG ES2646 is an electric scissor lift built for jobs that need more platform capacity without giving up efficient electric operation. It provides a 26-ft platform height and 1,200-lb platform capacity for both indoor and outdoor work.

Electric drive supports longer run time on a single charge, while zero inside turning radius, QuikFold Rails, and a 36-in platform extension help crews move and work efficiently. With standard operator conveniences and options such as CleanGuard leak containment, SkySense, pipe racks, and lithium batteries, the ES2646 can be configured for a wide range of facility and jobsite applications.

Model Number: ES2646

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Lift Height

26 – 40ft
MEWP Capacity

1,001 – 2,000 lbs
  • 1,200-lb platform capacity supports both indoor and outdoor work.
  • 26-ft platform height provides consistent indoor and outdoor reach.
  • Electric drive helps deliver up to double the battery life of a standard scissor lift.
  • Zero inside turning radius supports maneuverability in tighter jobsite areas.
  • Optional CleanGuard leak containment system supports work on sensitive flooring.
  • Standard USB charger and phone holder improve operator convenience in the platform.
  • Foot-actuated deck extension with 265-lb extension capacity.
  • AC receptacle in platform, USB charger, and phone holder.
  • Active pothole protection system.
  • ClearSky Smart Fleet hardware.
  • Electric drive with dynamic braking.
  • Movable, removable platform control with proportional controls.
  • QuikFold Rails, forklift pockets, lifting and tie-down points, and removable ladder.
  • Variable Tilt Visual Zone Indicator.
  • CleanGuard Leak Containment System.
  • SkySense Enhanced Detection System.
  • Panel carrier and pipe racks.
  • 900W inverter.
  • Lithium battery or Lithium+ batteries.
  • Drive motor covers.
  • Anti-vandalism package, coiled platform control box cable, and white noise alarm.
  • 36-in platform extension helps operators reach work areas from the platform.
  • QuikFold Rails support faster rail folding when moving around the jobsite.
  • Movable, removable platform control supports flexible operator positioning.
  • Proportional controls support smooth machine operation.
  • USB charger, phone holder, and AC platform receptacle add practical convenience during elevated work.
  • Active pothole protection system is included as standard equipment.
  • Load sensing system, tilt alarm and light, and Variable Tilt Visual Zone Indicator are standard.
  • All motion alarm, horn, lanyard attach points, and self-closing gate support operator awareness and platform access control.
  • LED motion/amber beacon is included as standard equipment.
  • Manual descent cable and scissor maintenance prop are standard.
  • 26-ft platform height for both indoor and outdoor use.
  • 1,200-lb platform capacity with 265-lb extension capacity.
  • Two-person indoor occupancy and one-person outdoor occupancy.
  • 3 mph lowered drive speed and 0.5 mph raised drive speed.
  • 25% gradeability with zero inside turning radius and 88-in outside turning radius.
  • Drivable at full height indoors and outdoors.
  • High commonality with other JLG scissors helps simplify service.
  • Analyzer port for diagnostics, hourmeter, and battery condition indicator are standard.
  • Greaseless kingpin joints and lubrication-free scissor arm bushings reduce lubrication points.
  • Steel swing-out doors improve access to internal components.
  • CAN-enabled charger, nickel plated pins, manual descent cable, and scissor maintenance prop are standard.
  • Facility maintenance in indoor and outdoor work areas.
  • Jobsites that need higher platform capacity for tools, materials, or multiple indoor occupants.
  • Applications involving sensitive flooring when equipped with CleanGuard leak containment.
  • Maintenance and installation work requiring a 26-ft platform height and 1,200-lb capacity.
