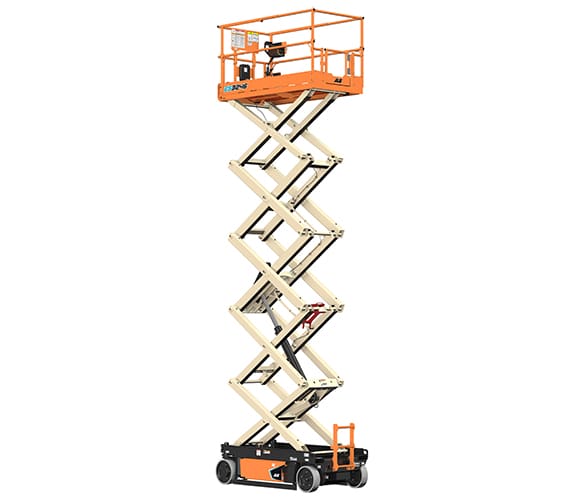

ES3246 Raised Rear LF 34

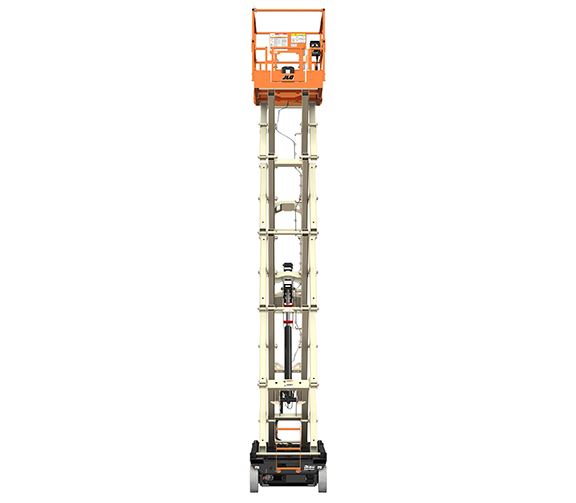

ES3246 Raised Rear

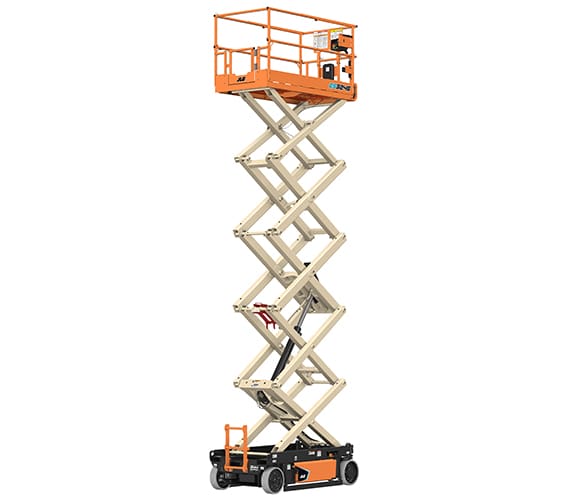

ES3246 Raised Rear RF 34

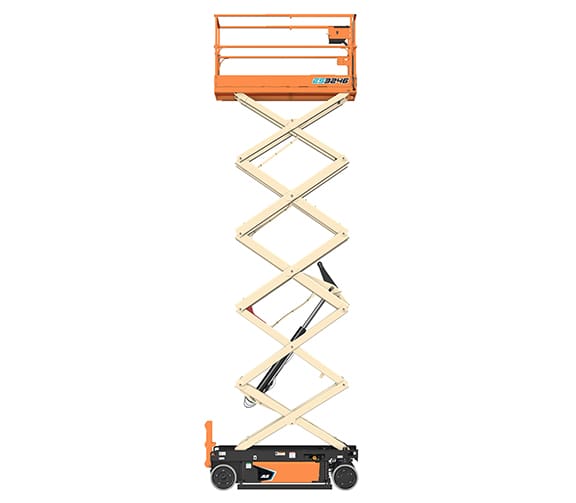

ES3246 Raised Side RF

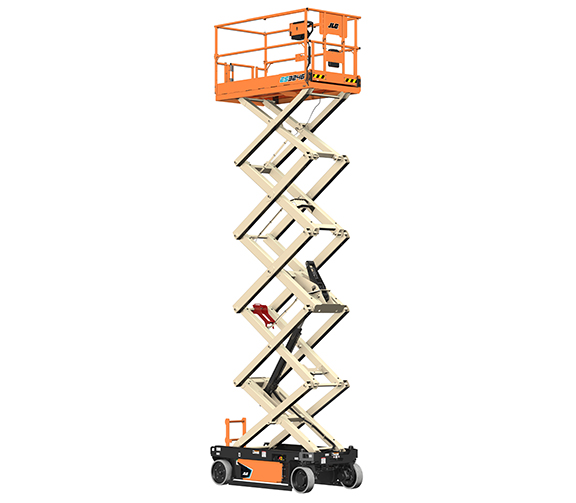

ES3246 Raised Front RF 34

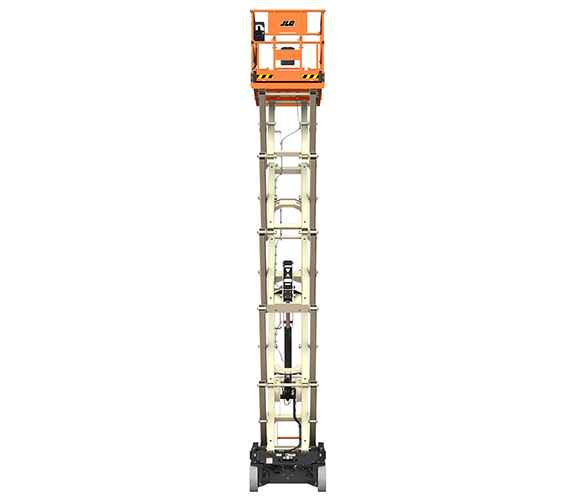

ES3246 Raised Front

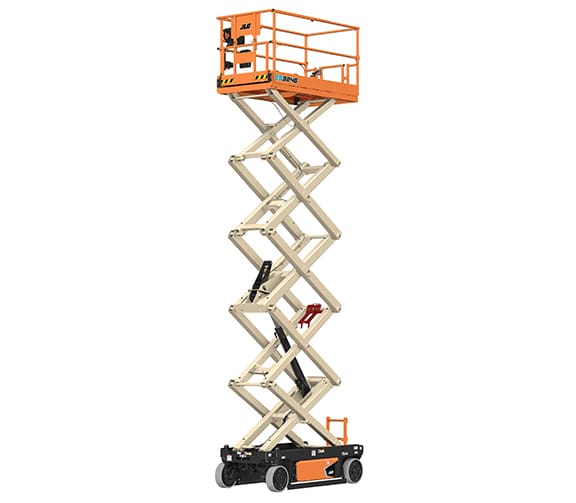

ES3246 Raised Front LF 34

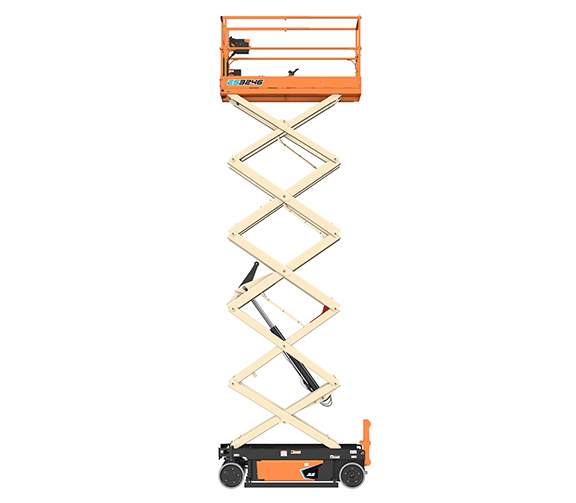

ES3246 Raised Side LF

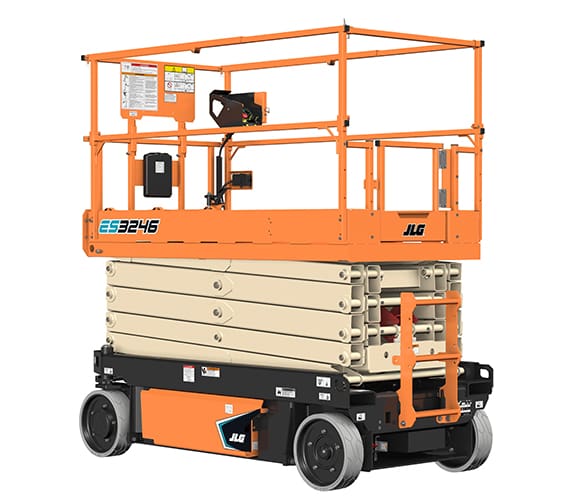

ES3246 Stowed Rear LF 34

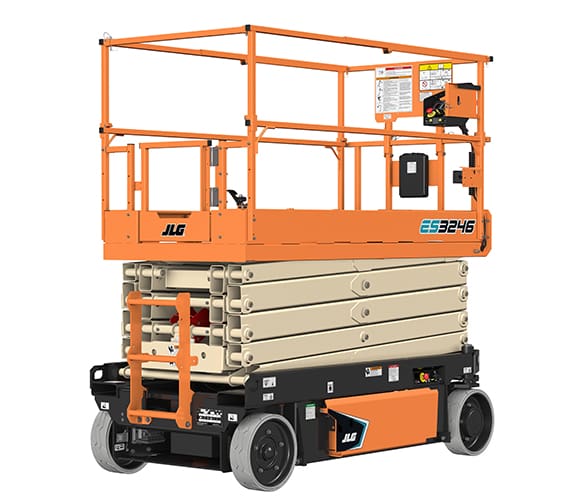

ES3246 Stowed Rear RF 34

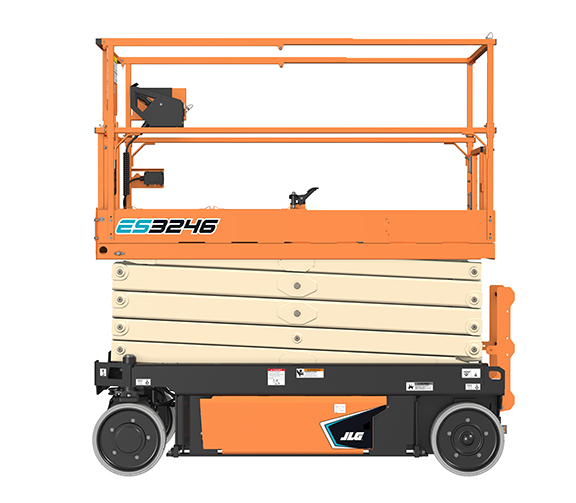

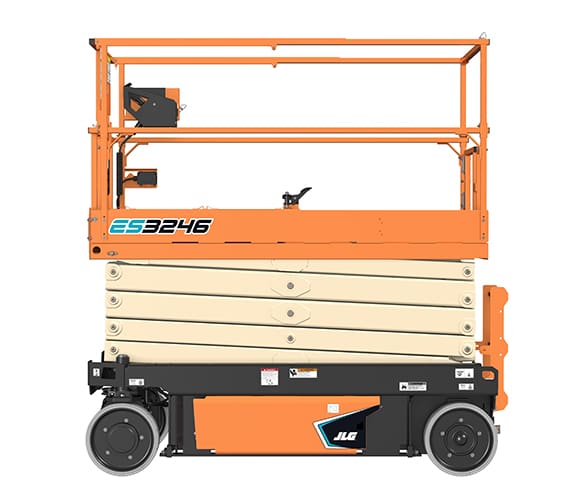

ES3246 Stowed Side LF

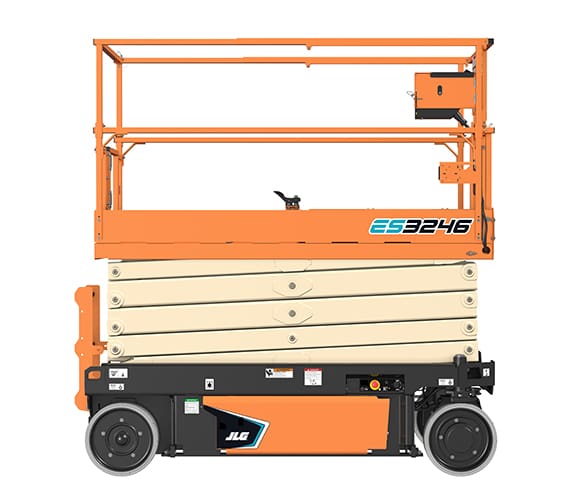

ES3246 Stowed Side RF

JLG ES3246 Electric Scissor Lift

  • 32 ft. platform height
  • 705-lb indoor platform capacity
  • electric drive
  • zero inside turning radius
  • QuikFold Rails and 36-in platform extension
Request a Quote

Documents

Product Documents

The JLG ES3246 is an electric scissor lift built for crews that need 32-ft platform height with efficient electric operation. It offers 705-lb indoor platform capacity, 507-lb outdoor platform capacity, and full-height drive capability for both indoor and outdoor work.

Electric drive, reduced hydraulic connections, and extended battery performance help support longer work cycles with fewer leak and service concerns. With zero inside turning radius, QuikFold Rails, a 36-in platform extension, and options such as CleanGuard, SkySense, pipe racks, and lithium batteries, the ES3246 is a practical fit for facility maintenance and elevated jobsite tasks.

Model Number: ES3246

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Electric
MEWP Lift Height

26 – 40ft
MEWP Capacity

501 – 1,000 lbs
  • 32-ft platform height supports higher indoor and outdoor work.
  • 705-lb indoor platform capacity and 507-lb outdoor platform capacity provide useful capacity for tools and materials.
  • Electric drive helps deliver up to double the battery life of a standard scissor lift.
  • Reduced hydraulic hoses and fittings help support increased uptime, fewer leaks, and fewer service calls.
  • Zero inside turning radius supports maneuverability in tighter jobsite areas.
  • Available CleanGuard leak containment system supports work on sensitive flooring.
  • Foot-actuated deck extension with 265-lb extension capacity.
  • AC receptacle in platform, USB charger, and phone holder.
  • Active pothole protection system.
  • ClearSky Smart Fleet hardware.
  • Electric drive with dynamic braking.
  • Movable, removable platform control with proportional controls.
  • QuikFold Rails, forklift pockets, lifting and tie-down points, and removable ladder.
  • Variable Tilt Visual Zone Indicator.
  • CleanGuard Leak Containment System.
  • SkySense Enhanced Detection System.
  • Panel carrier and pipe racks.
  • 900W inverter.
  • Lithium battery or Lithium+ batteries.
  • Drive motor covers.
  • Anti-vandalism package, coiled platform control box cable, and white noise alarm.

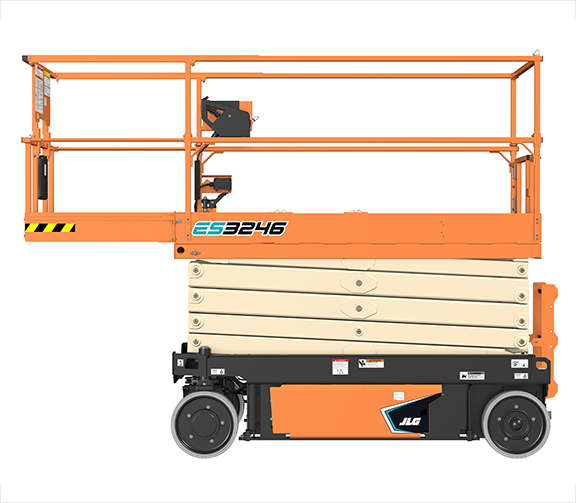

  • 36-in platform extension helps operators reach work areas from the platform.
  • QuikFold Rails support faster rail folding when moving around the jobsite.
  • Movable, removable platform control supports flexible operator positioning.
  • Proportional controls support smooth machine operation.
  • USB charger, phone holder, and AC platform receptacle add practical convenience during elevated work.
  • Active pothole protection system is included as standard equipment.
  • Load sensing system, tilt alarm and light, and Variable Tilt Visual Zone Indicator are standard.
  • All motion alarm, horn, lanyard attach points, and self-closing gate support operator awareness and platform access control.
  • LED motion/amber beacon is included as standard equipment.
  • Manual descent cable and scissor maintenance prop are standard.
  • 32-ft platform height for both indoor and outdoor use.
  • 705-lb indoor platform capacity and 507-lb outdoor platform capacity.
  • Two-person indoor occupancy and one-person outdoor occupancy.
  • 3 mph lowered drive speed and 0.5 mph raised drive speed.
  • 25% gradeability with zero inside turning radius and 88-in outside turning radius.
  • Drivable at full height indoors and outdoors.
  • Reduced hydraulic hoses and fittings help reduce leak points and service calls.
  • High commonality with other JLG scissors helps simplify service.
  • Analyzer port for diagnostics, hourmeter, and battery condition indicator are standard.
  • Greaseless kingpin joints and lubrication-free scissor arm bushings reduce lubrication points.
  • Steel swing-out doors improve access to internal components.
  • Facility maintenance in indoor and outdoor work areas.
  • Jobsites requiring higher platform height with electric scissor lift operation.
  • Applications involving sensitive flooring when equipped with CleanGuard leak containment.
  • Maintenance and installation work requiring up to 32-ft platform height.
