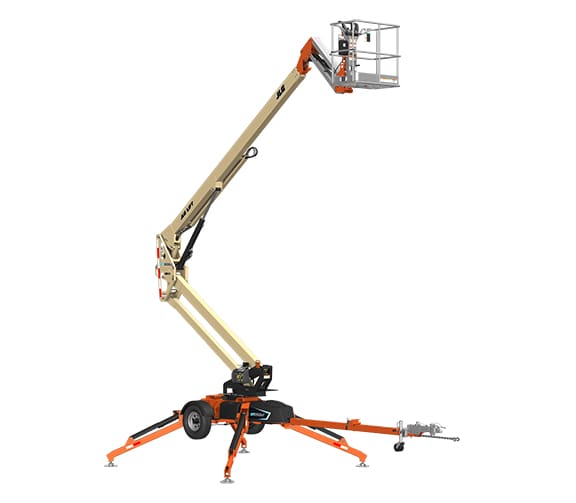

ET500J_Extended_Front_RF
ET500J_Extended_Front

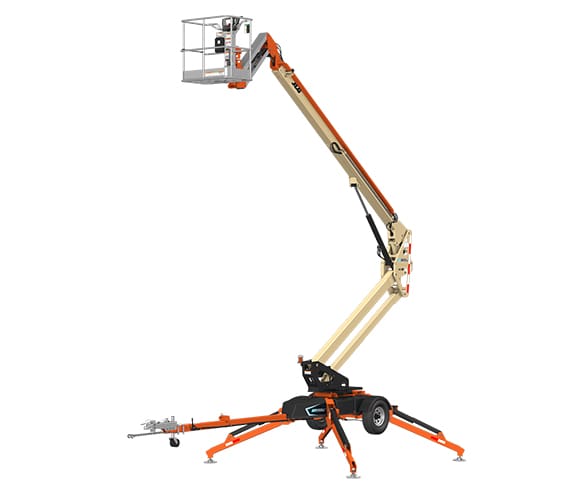

ET500J_Extended_Front_LF

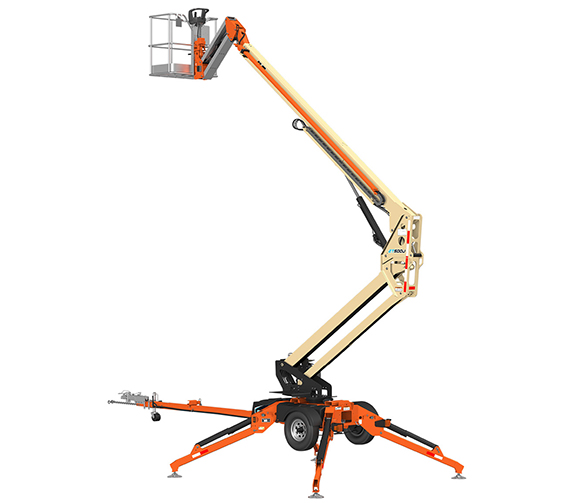

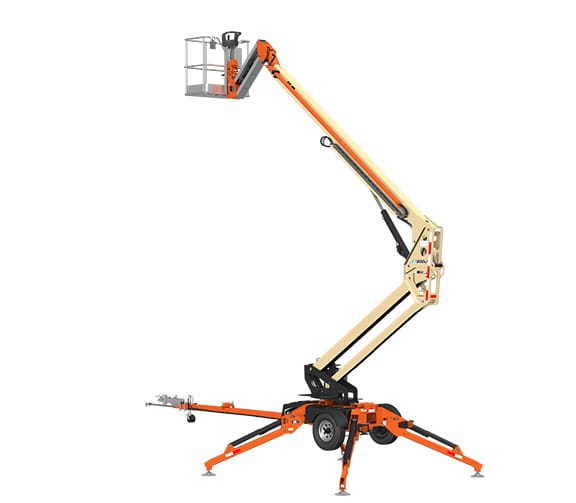

ET500J_Extended_Rear_LF

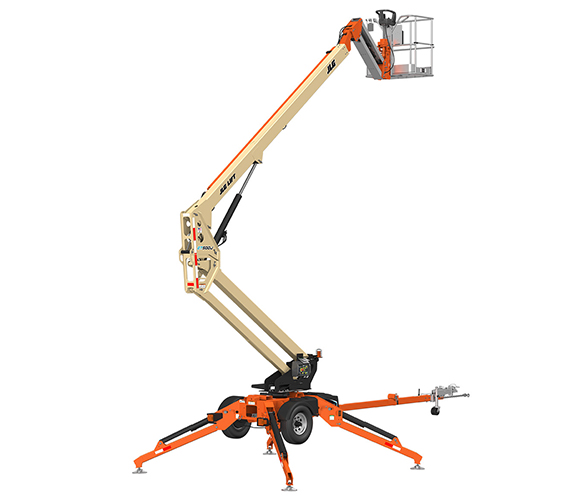

ET500J_Extended_Rear

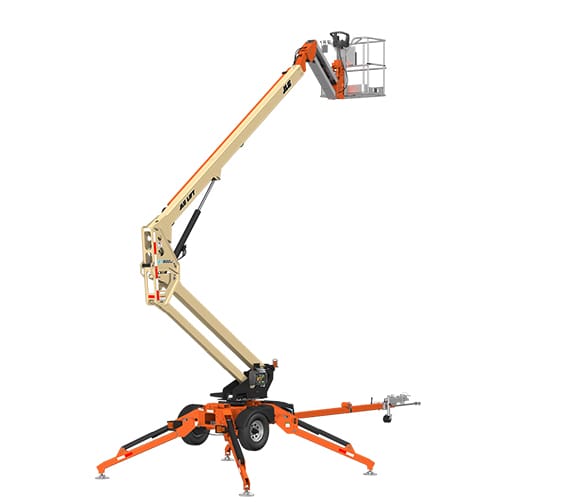

ET500J_Extended_Rear_RF

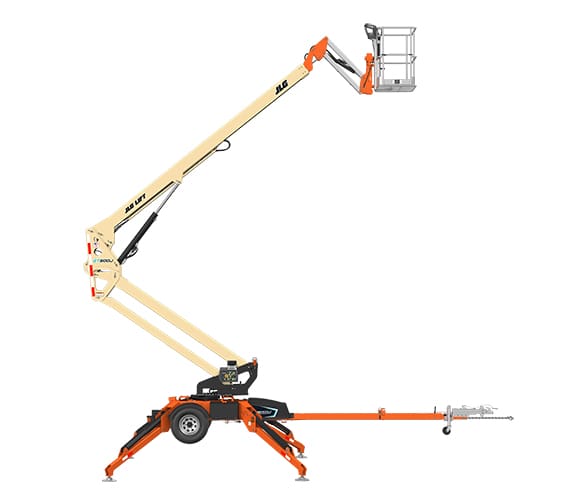

ET500J_Extended_Side_RF
ET500J_Top
ET500J_Retracted_Front
ET500J_Retracted_Rear

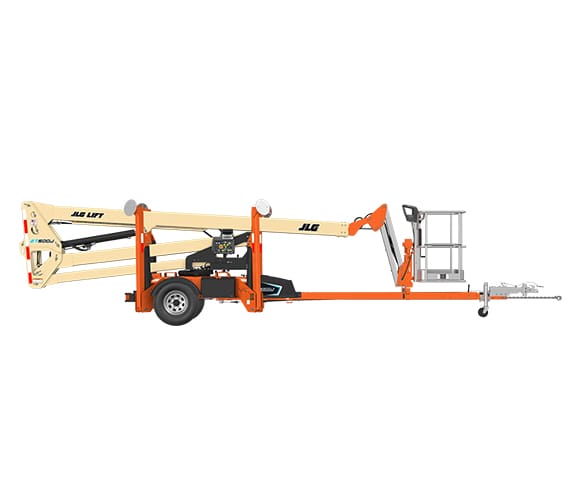

ET500J_Retracted_Side_RF

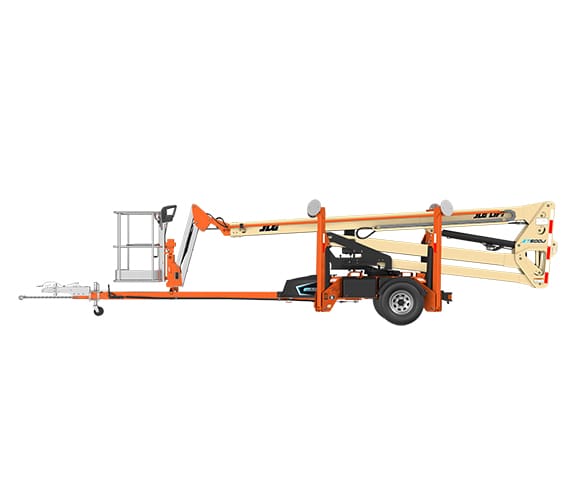

ET500J_Retracted_SIde_LF

JLG ET500J Tow-Pro Boom Lift

  • 50 ft. 5 in. platform height
  • 500 lbs. platform capacity
  • 29-ft 6-in horizontal outreach
  • 24V DC power
  • 65 mph towing speed
Request a Quote

Documents

Product Documents

The JLG ET500J Tow-Pro boom lift gives crews 50-ft 0.5-in of platform height, 29-ft 6-in of horizontal outreach, and a 500-lb platform capacity in a towable package. Its 24V DC battery power, hydraulic auto-leveling outriggers, and detachable platform controls help operators set up efficiently and position the boom with practical control at the work area.

Standard air and water lines, a 110V AC platform receptacle, dual USB port, smart charger, and lockable covers add useful jobsite convenience. With a 65 mph towing speed rating, hydraulic surge brakes, LED taillights, and a 2-in adjustable-height coupler, the ET500J is built for crews that need reach without a flatbed trailer.

Model Number: ET500J

Additional Information

Condition

New
Brand

JLG
MEWP Type

Boom Lift, Trailer-Mounted
Power

Electric
MEWP Lift Height

41 – 60ft
MEWP Capacity

Up to 500 lbs
  • 50-ft 0.5-in platform height and 29-ft 6-in horizontal outreach help crews access elevated work areas from a towable unit.
  • 500-lb platform capacity supports two-person work and tools within the rated limit.
  • 65 mph towing speed rating helps move the lift between jobs without requiring a flatbed trailer.
  • 24V DC power with four 6V 220 amp-hour batteries provides quiet, efficient operation.
  • Hydraulic auto-leveling outriggers help simplify setup before work begins.
  • 110V AC receptacle in the platform.
  • Standard air and water lines to the platform.
  • Detachable platform controls for one-hand operation of boom functions.
  • Dual USB port in the platform.
  • Telescopic upper boom and 4-ft jib with 130 degrees of vertical motion.
  • 2-in hitch with adjustable-height coupler.
  • Smart charger, hourmeter, lockable battery covers, and lockable hoods.
  • 30 x 48-in side-entry platform.
  • 3000W Honda generator, available aftermarket only.
  • Full-size spare tire.
  • Heavy-duty jack, listed as coming mid-2026.
  • Lifting lugs.
  • 500-lb capacity material hook.
  • Platform rotator with 440-lb platform capacity when equipped.
  • Detachable platform controls support efficient boom positioning from the work area.
  • One-hand control of boom functions helps operators make positioning adjustments while working.
  • Side-entry 30 x 48-in platform provides a defined work area for operators and tools.
  • Platform USB ports and 110V AC receptacle keep common jobsite power access close to the operator.
  • ANSI A92.2 compliant configuration listed in the standard features.
  • Hydraulic surge brakes and LED taillights support towing visibility and control.
  • Amber beacon, motion alarm, and tilt alarm/indicator light help alert operators and nearby personnel.
  • Parking brake audible indicator provides an additional operator alert.
  • Auto-leveling hydraulic outriggers support stable setup within the lift’s rated leveling capability.
  • Platform height: 50-ft 0.5-in.
  • Horizontal outreach: 29-ft 6-in.
  • Platform capacity: 500 lb.
  • Swing: 410 degrees non-continuous.
  • Leveling capability: 11 degrees.
  • Maximum gradability: 20%.
  • Machine weight: 5,200 lb, with certain options or country standards increasing weight.
  • Towing speed rating: 65 mph.
