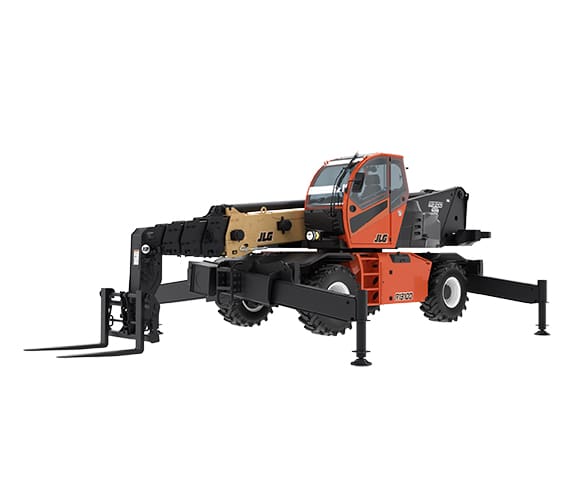

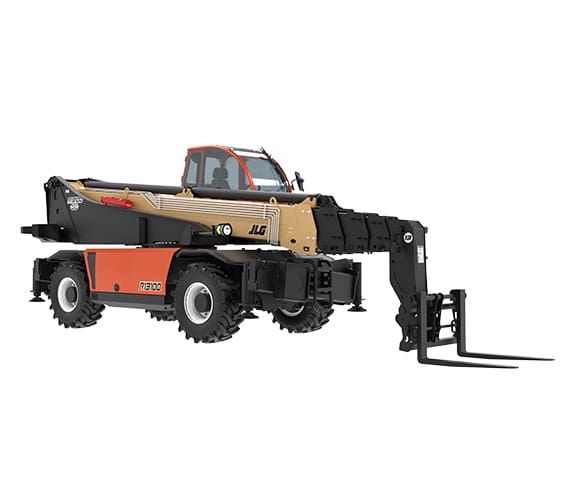

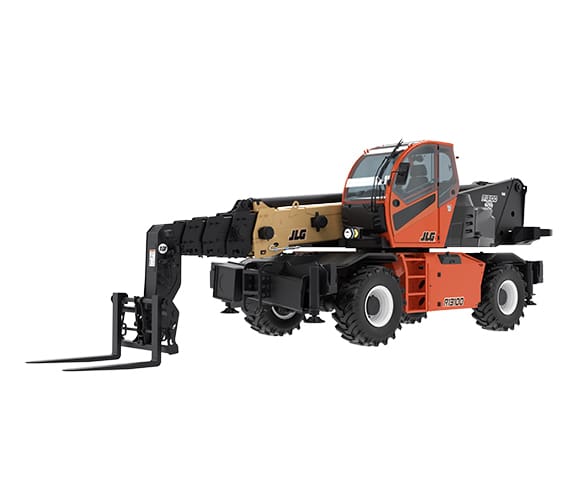

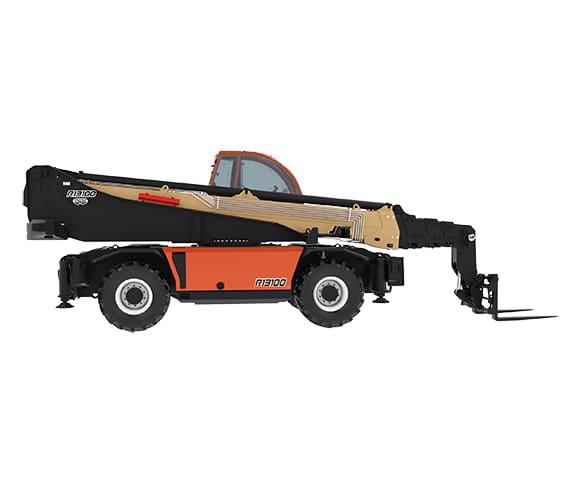

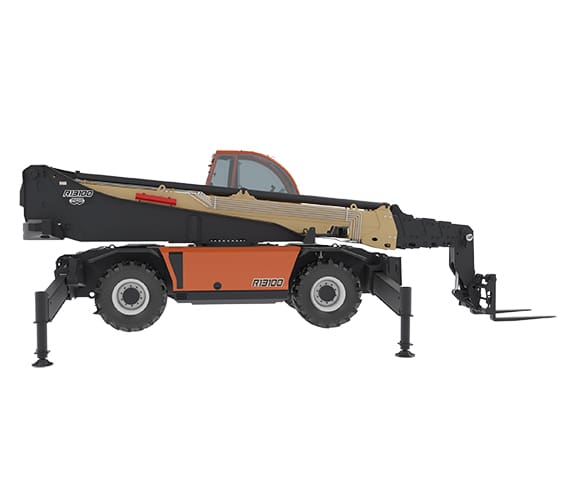

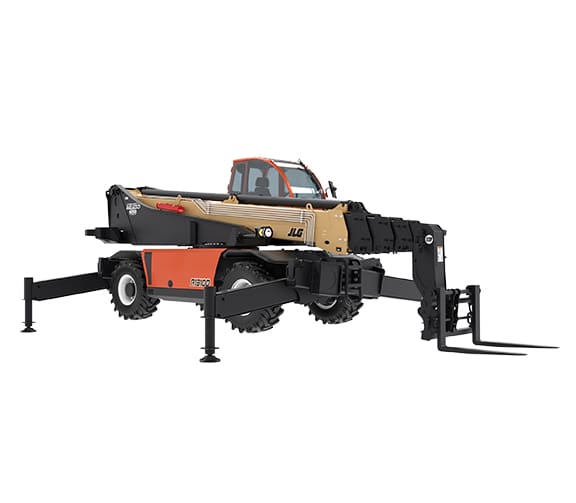

JLG R13100 Rotating Model Telehandler

13,200-lb rated capacity
97-ft maximum lift height
86-ft maximum forward reach
360-degree continuous rotation
3-in-1 telehandler, mobile elevating work platform, and rough-terrain crane capability

Documents

Product Documents

Videos

Tour Our Highly Versatile JLG Rotating Telehandlers

The JLG R13100 is a rotating telehandler built for jobsites that need the highest reach in JLG’s rotating telehandler lineup. It offers a 13,200-lb rated capacity, 97-ft maximum lift height, and 86-ft maximum forward reach, with 360-degree continuous rotation for flexible horizontal and vertical lifting.

Automatic attachment recognition, Load Management Information System, and Load Stability Indicator help operators make more informed decisions during high-reach lifting work. Standard features such as an enclosed cab with heat and air conditioning, dual joystick controls, boom-mounted camera system, reversing camera, LED worklights, and ClearSky Smart Fleet hardware support visibility, comfort, and fleet awareness.

Model Number: R13100

Additional Information

Condition	New
Brand	JLG
MEWP Type	Telehandler
Power	Engine
MEWP Capacity	Over 2,000 lbs
MEWP Lift Height	61 – 100ft

3-in-1 capability allows the machine to function as a telehandler, mobile elevating work platform, and rough-terrain crane.
13,200-lb rated capacity with 97-ft maximum lift height supports extreme high-reach material handling.
86-ft maximum forward reach helps operators place loads farther into the work area.
360-degree continuous upper-frame rotation supports horizontal and vertical lifting without repositioning the machine as often.
Automatic attachment recognition, Load Management Information System, and Load Stability Indicator support more informed operation.

13,200-lb rated capacity with 5,500-lb capacity at maximum lift height.
FPT F4HGE413K*V012 4-cylinder diesel engine with 168 hp and 524 lb-ft of torque.
Hydrostatic 2-speed transmission.
Operator-selectable 4-wheel circle, 4-wheel crab, and 2-wheel front steering modes.
48-in standard carriage and forks.
Outrigger pads, LED worklight package, boom-mounted camera system, and reversing camera.
Enclosed cab with heat and air conditioning, adjustable seat, retractable sunscreen, dual joystick controls, and tilt and auxiliary hydraulics on joystick.
Certified ROPS/FOPS structure, 3-in seatbelt, horn, road lights, and LED Motion/Amber Beacon with ClearSky Smart Fleet hardware.

General purpose bucket, mixing bucket, and hydraulic opening ladle.
Fork positioning carriage and 360-degree rotating carriage.
Work platform and extendable trilateral work platform options.
Coupler-mounted winch and coupler-mounted hook.
8-ft truss boom, 9-ft truss boom with winch, and 16-ft truss boom with winch.
Brick guard, boom brushes, dual auxiliary hydraulics, hydraulic coupler, white noise back-up alarm, and Woodcracker-ready configuration.
Foam-filled lug tread tires and air tire options with turf or lug tread.

Enclosed cab with heat and air conditioning supports operator comfort in changing conditions.
Adjustable seat and retractable sunscreen help operators stay comfortable during daily work.
Dual joystick controls help operators manage machine and attachment functions from the cab.
Boom-mounted camera system and reversing camera support visibility around the machine and attachment area.
Tilt and auxiliary hydraulics on joystick help keep attachment functions within easy reach.

Certified ROPS/FOPS structure.
Load Management Information System and Load Stability Indicator support more informed load handling.
Automatic attachment recognition helps the machine identify compatible attachment setups.
Boom-mounted camera system and reversing camera support operator awareness.
Service brakes are inboard wet disc brakes on the front and rear axles and include inching.
Parking brakes are wet disc, spring-applied, hydraulic release brakes on the front axle.

13,200-lb rated capacity for extreme high-reach material handling.
5,500-lb capacity at maximum lift height and 440-lb capacity at maximum reach.
97-ft maximum lift height and 86-ft maximum forward reach.
360-degree continuous rotation supports load placement around the machine.
Top travel speed is 12.4 mph with foam-filled tires or 24.5 mph with air tires.
22,500-lb drawbar pull and 14-ft 5-in outside turning radius.
21.1 gpm maximum auxiliary flow to the boom head.

Hourmeter, voltmeter, fuel gauge, DEF gauge, engine oil pressure gauge, and temperature gauge help operators monitor machine status.
Load sense piston pump supports hydraulic system performance.
Auxiliary hydraulics support attachments equipped with cylinders or other hydraulic components.
Warranty coverage includes one full year on the machine, two years or 2,000 hours on the drivetrain, and five years on specified major structural components.

Construction jobsites that need telehandler, work platform, and rough-terrain crane capability in one machine.
High-reach material placement applications that benefit from 97-ft lift height and 86-ft forward reach.
Framing and steel or wood building work supported by truss boom attachments.
Jobsite cleanup and material spreading supported by the general purpose bucket.
Work-at-height applications supported by work platform options.
