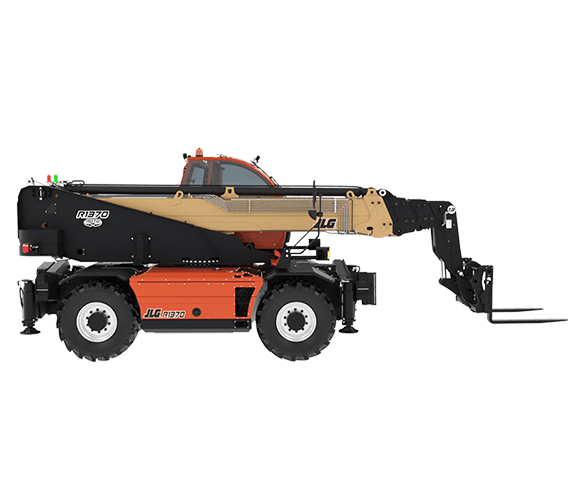

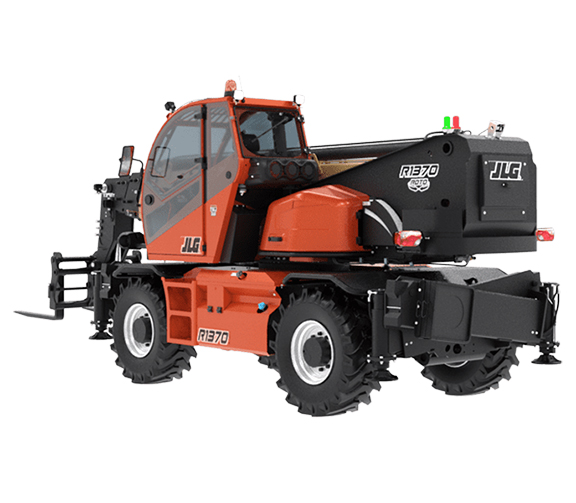

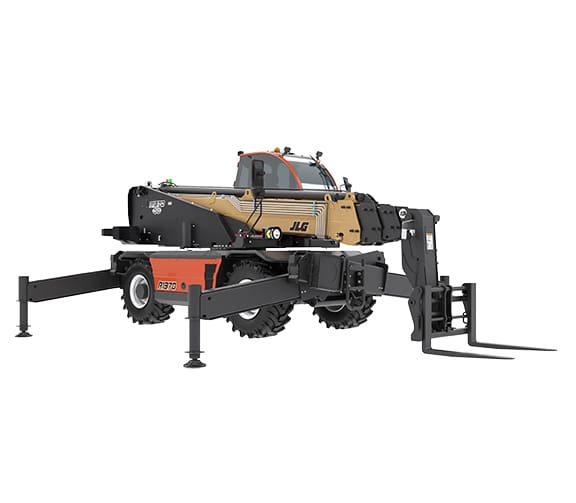

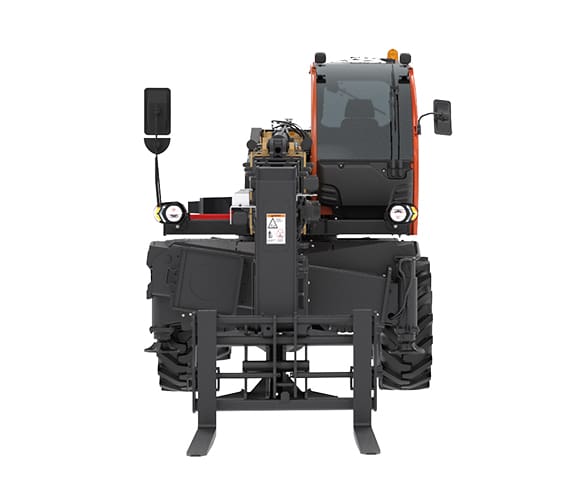

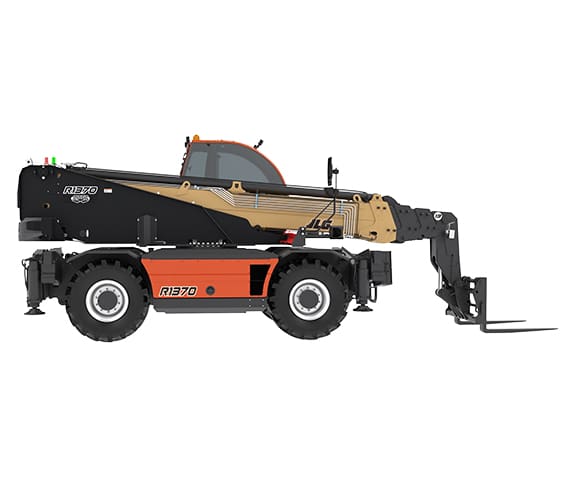

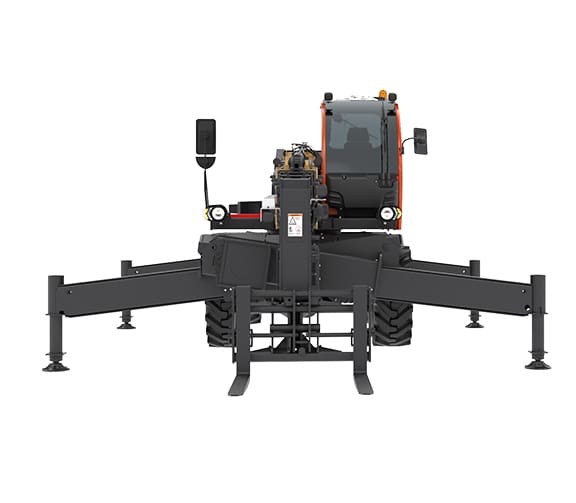

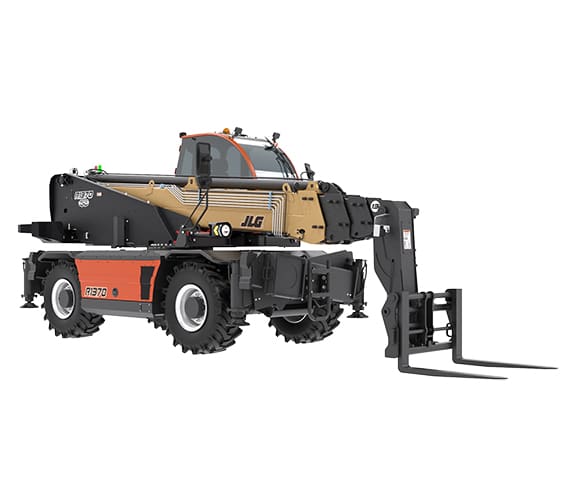

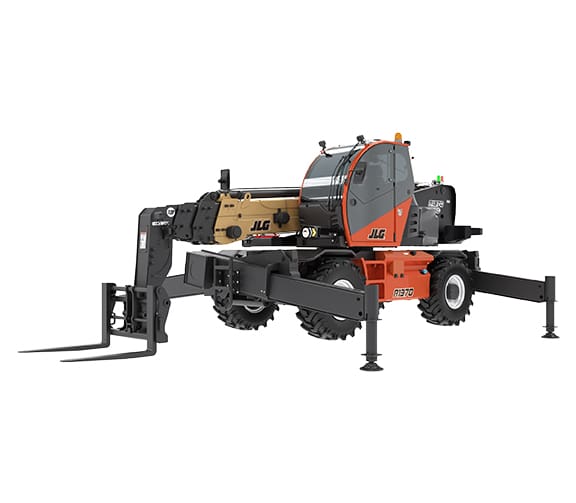

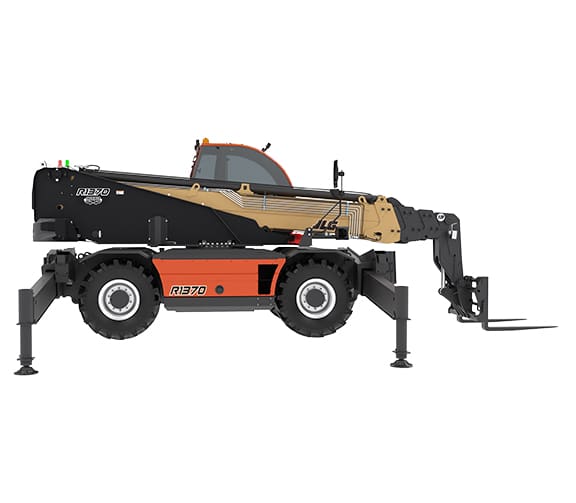

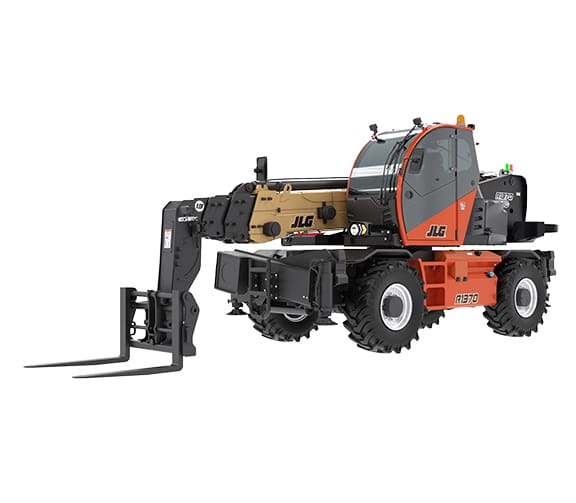

JLG R1370 Rotating Model Telehandler

13,200-lb rated capacity
67-ft maximum lift height
59-ft 6-in maximum forward reach
360-degree continuous upper-frame rotation
3-in-1 capability for material handling, work platform use, and rough-terrain crane applications

Documents

Product Documents

Videos

Tour Our Highly Versatile JLG Rotating Telehandlers

The JLG R1370 rotating telehandler is built for jobsites that need high-capacity lifting, long forward reach, and flexible load placement from a single machine. Its 13,200-lb rated capacity, 67-ft maximum lift height, 59-ft 6-in maximum reach, and continuous 360-degree rotation help crews position materials efficiently without constant machine repositioning.

The R1370 also supports a broad range of attachments, allowing it to take on material handling, work platform, rough-terrain crane, bucket, hook, and winch applications. Standard cameras, outrigger pads, selectable steering modes, and load management technology give operators the visibility and information they need to work with greater confidence.

Model Number: R1370

Additional Information

Condition	New
Brand	JLG
MEWP Type	Telehandler
MEWP Lift Height	61 – 100ft
MEWP Capacity	Over 2,000 lbs

12,000-lb rated capacity with 53-ft 2-in maximum lift height for demanding high-reach material handling.
38-ft 10-in maximum forward reach helps operators place materials farther into the work area.
5,000-lb capacity at maximum lift height and 3,500-lb capacity at maximum reach, with outriggers down.
Full-time planetary 4-wheel drive and Stabil-Trak system support jobsite traction and stability.
Standard ClearSky Smart Fleet hardware supports fleet connectivity.

12,000-lb rated capacity with 53-ft 2-in maximum lift height.
Cummins F3.8L diesel engine with 110 hp and 348 lb-ft of torque.
Powershift transmission with 4 forward speeds and 3 reverse speeds.
Full-time planetary 4-wheel drive with oscillating rear axle and Stabil-Trak system.
Operator-selectable 4-wheel circle, 4-wheel crab, and 2-wheel front steering modes.
10 degrees of frame leveling.
Adjustable suspension seat with retractable 3-in seat belt, integrated armrest, rear view mirrors, and single joystick controls.
Certified ROPS/FOPS structure.
ClearSky Smart Fleet hardware and LED Motion/Amber Beacon.
LCD diagnostic screen, DEF gauge, engine oil pressure gauge, fuel gauge, hourmeter, tachometer, temperature gauge, and voltmeter.

74 hp engine option.
Enclosed cab, air conditioning, Arctic Package, fenders, and boom prop.
Load Stability Indication and Seatbelt Engagement and Operator Presence systems.
Multi-reverse camera system and reverse sensing system.
Road lights, work lights, white noise back-up alarm, and air shut-off valve.
Foam-filled, non-marking, 17.5 x 25, and 360/85-28 solid tire options.

Adjustable suspension seat supports operator comfort during daily use.
Integrated armrest and single joystick controls keep key machine functions within easy reach.
Rear view mirrors and available multi-reverse camera system support visibility around the machine.
LCD diagnostic screen keeps key machine information visible to the operator.
Available enclosed cab and air conditioning support operator comfort in changing jobsite conditions.

Certified ROPS/FOPS structure.
Stabil-Trak system supports machine stability during operation.
Retractable 3-in seat belt is included with the adjustable suspension seat.
Available Load Stability Indication helps operators monitor load stability conditions.
Available Seatbelt Engagement and Operator Presence system supports proper operator positioning before machine operation.
Hydraulically actuated inboard wet disc brakes support stopping performance.
Load holding valves are included on frame level, stabilizers, attachment tilt, extend, and lift cylinders.

12,000-lb rated capacity for heavy jobsite material handling.
5,000-lb capacity at maximum lift height and 3,500-lb capacity at maximum reach, with outriggers down.
53-ft 2-in maximum lift height and 38-ft 10-in maximum forward reach.
18.2 mph top travel speed.
166-in outside turning radius.
30,000-lb drawbar pull.
19.6 gpm maximum auxiliary flow to the boom head.

LCD diagnostic screen helps operators and service teams monitor machine status.
DEF gauge, engine oil pressure gauge, fuel gauge, hourmeter, tachometer, temperature gauge, and voltmeter are included.
Piston pump and load-sensitive hydraulic system support implement operation.
Auxiliary hydraulics support attachments equipped with cylinders or other hydraulic components.
Warranty coverage includes one full year on the machine, two years or 2,000 hours on the drivetrain, and five years on specified major structural components.

General construction jobsites that need high reach, capacity, and forward placement.
Framing, truss setting, and post-frame building applications supported by truss boom and fork-mounted extendable truss attachments.
Masonry and block handling supported by cubing forks and pallet fork options.
Pipe handling applications supported by the available 72-in pipe grapple.
General material handling applications using carriages, forks, buckets, work platforms, and lifting hooks.
