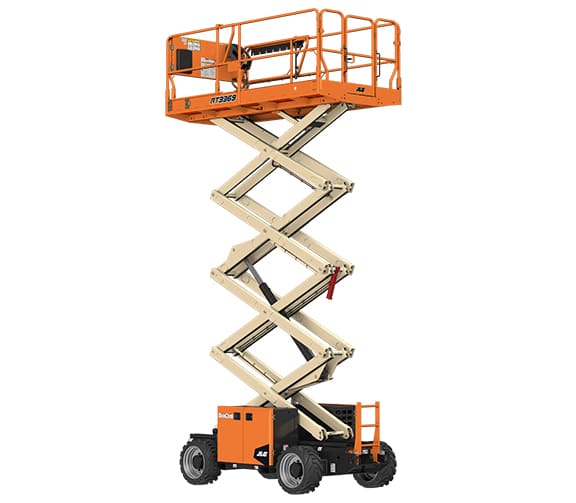

RT3369 Raised Rear LF

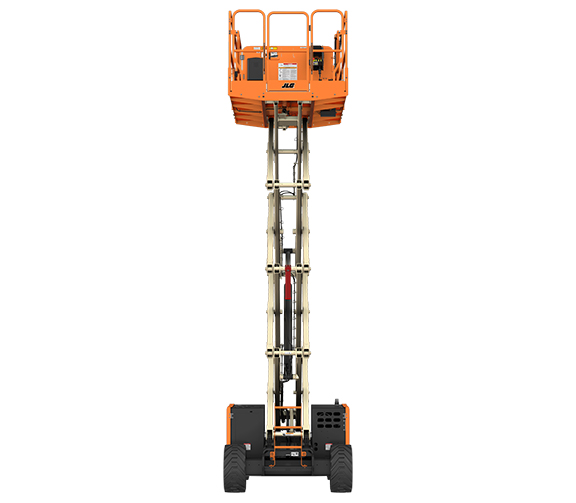

RT3369 Raised Rear

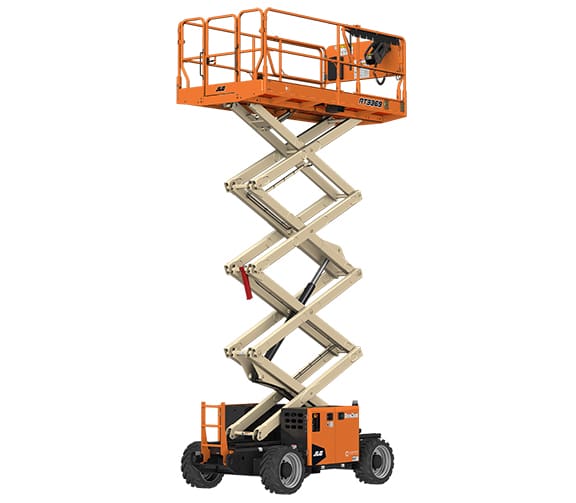

RT3369 Raised Rear RF

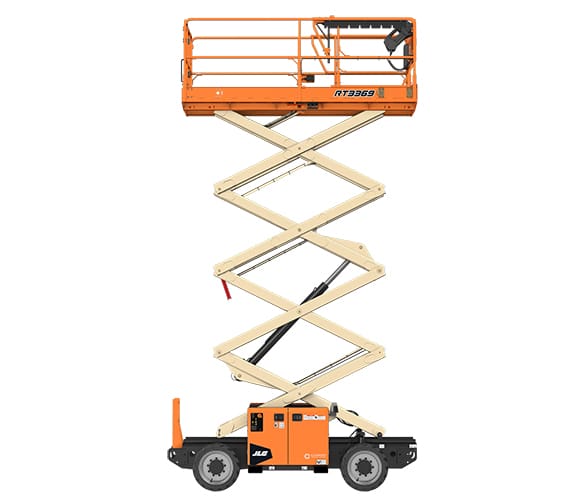

RT3369 Raised Side RF

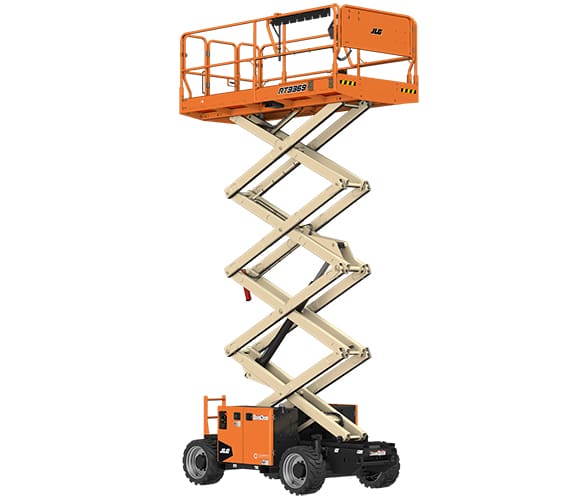

RT3369 Raised Front RF

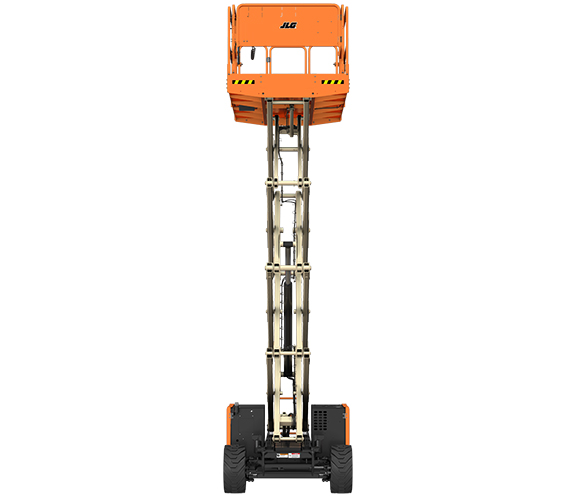

RT3369 Raised Front

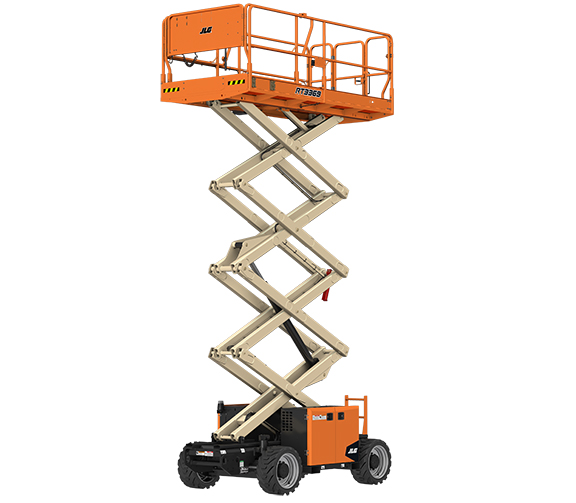

RT3369 Raised Front LF

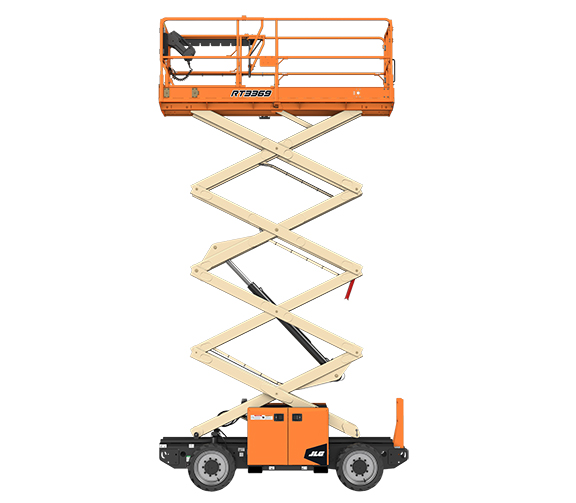

RT3369 Raised Side LF

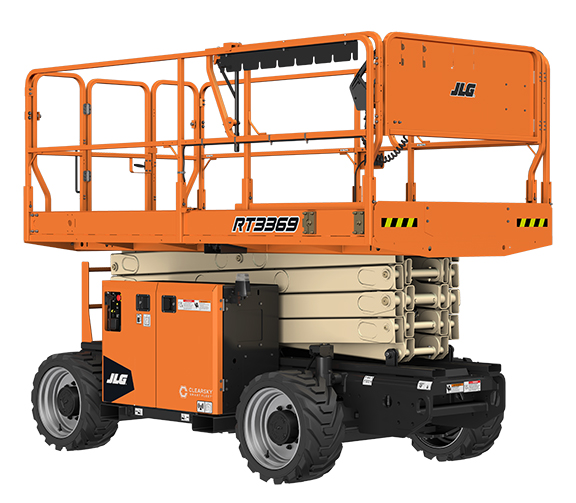

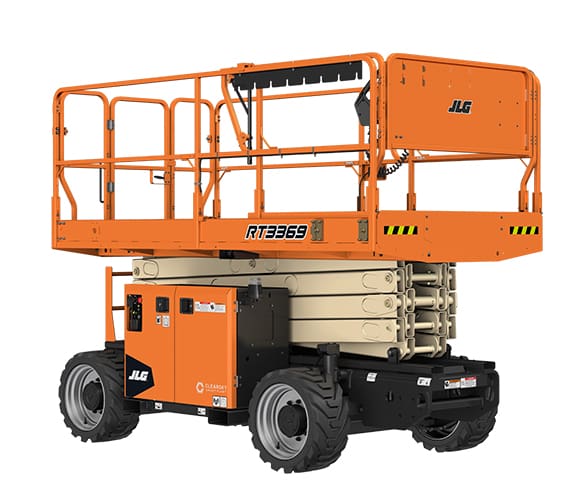

RT3369 Stowed Front RF

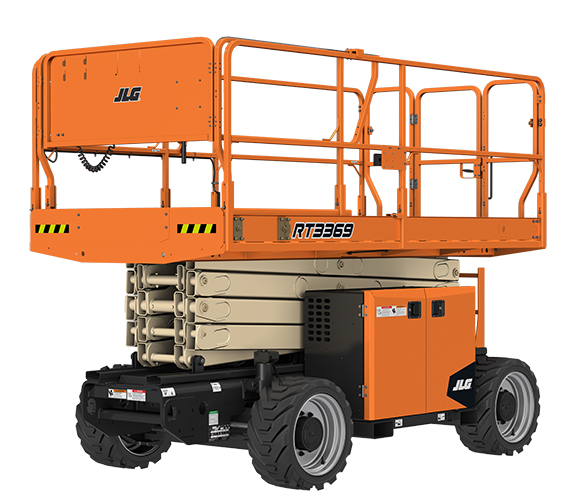

RT3369 Stowed Front LF

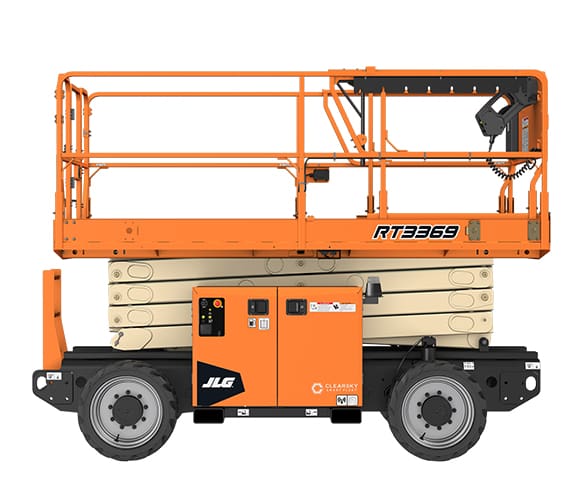

RT3369 Stowed Side RF

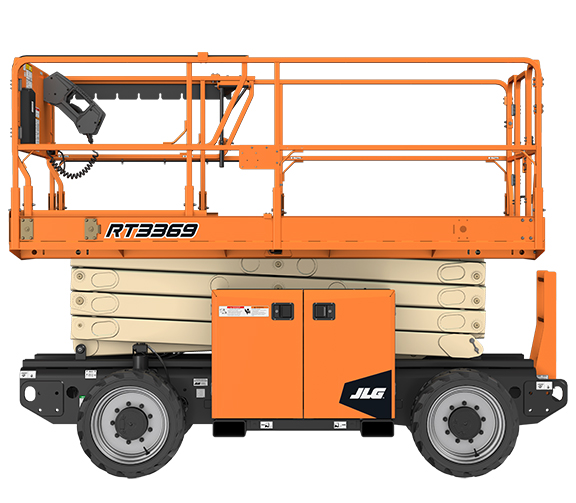

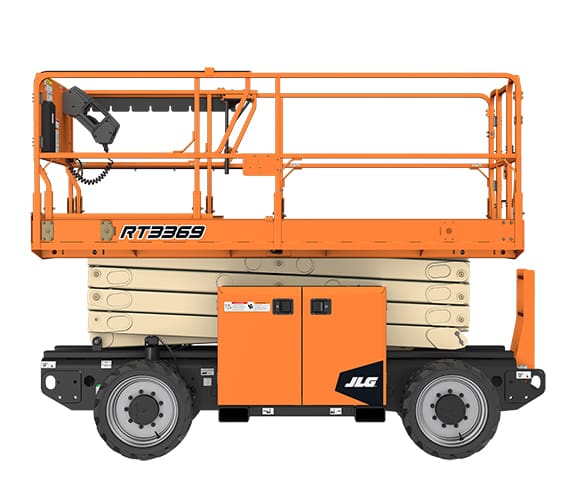

RT3369 Stowed Side LF

RT3369 Rough Terrain Scissor Lift

  • 32 ft. Platform Height
  • 1,000 lbs. Platform Capacity
  • Standard 4WD
  • 42 in roll-out deck extension
  • Full-time traction control
Request a Quote

Documents

Product Documents

The JLG RT3369 is an engine powered rough terrain scissor lift built for outdoor jobsites that need mid-range height, strong platform capacity, and drive-at-height capability. It provides a 32 ft 8 in platform height, 1,000 lb platform capacity, and a 42 in roll-out deck extension to support operators, tools, and materials at elevation.

Standard 4WD, full-time traction control, an oscillating front axle, and 35% gradeability help the machine move across uneven jobsite surfaces. The LCD platform control box with LiftSense technology, ClearSky Smart Fleet hardware, and service-focused features such as lubrication-free scissor arm bushings and a remote engine oil filter package help support productivity and maintenance planning.

Model Number: RT3369

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Bi-Energy, Engine
MEWP Lift Height

26 – 40ft
MEWP Capacity

501 – 1,000 lbs
  • Engine powered rough terrain scissor lift with drive-at-height capability to help reduce unnecessary trips up and down.
  • 32 ft 8 in platform height supports elevated outdoor work while maintaining a 69.3 in machine width.
  • 1,000 lb platform capacity supports operators, tools, and materials for jobsite tasks.
  • Large platform layout with a 42 in roll-out deck extension provides additional workspace and reach from the platform.
  • Standard 4WD with optional 2WD lets buyers match the machine configuration to application needs.
  • Full-time traction control, oscillating front axle, and 35% gradeability support movement on uneven jobsite surfaces.
  • Optional QuikLevel Advanced helps operators level on side slopes and position closer to the work area while elevated.
  • Standard 4WD configuration
  • 42 in roll-out deck extension
  • 110V AC receptacle in platform
  • LCD platform control box with LiftSense system, USB charger, and phone holster
  • Proportional lift and drive controls
  • ClearSky Smart Fleet hardware
  • LED motion/amber beacon
  • ECU-controlled engine speed
  • Fold-down rails and pin-less fold-down rail system
  • Full-time traction control
  • Oscillating front axle
  • Remote engine oil filter package
  • Telematics-ready harness
  • 2WD configuration
  • QuikLevel Advanced
  • Hydraulic leveling jacks with auto level
  • 2500W belt-driven generator, 60 Hz/110V
  • SkySense enhanced detection system
  • Heavy-duty pipe racks
  • Platform worklights
  • Operator access control
  • Second flashing amber beacon
  • White noise backup alarm
  • Hydraulic oil cooler
  • Dual LP tanks and dual LP tank brackets for dual fuel engines
  • LCD platform controls provide real-time productivity and service communication to the operator.
  • USB charging and phone holster are built into the platform control box.
  • 42 in roll-out deck extension helps operators reach work areas without repositioning as often.
  • Fold-down rails and pin-less fold-down rail system support transport and access needs where reduced stowed height is useful.
  • Optional QuikLevel Advanced helps operators position closer to the work while elevated.
  • Pin-based load sensing system supports load monitoring during operation.
  • Self-closing gate helps maintain controlled platform access.
  • All motion alarm alerts nearby workers during machine movement.
  • Manual descent pull cable provides a controlled lowering method when needed.
  • Horn, tie-down lugs, and scissor maintenance prop are included as standard equipment.
  • Meets or exceeds applicable ANSI and CSA requirements based on original machine configuration for intended applications.
  • Platform height: 32 ft 8 in
  • Platform capacity: 1,000 lb
  • Capacity on platform extension: 300 lb
  • Maximum drive height: fully elevated
  • Drive speed lowered: 3.5 mph
  • Drive speed raised: 0.5 mph
  • Lift/lower time: 40/40 seconds
  • Gradeability: 35%
  • Inside turning radius: 83 in
  • Machine width: 69.3 in
  • Higher parts commonality across the rough terrain family helps simplify service planning.
  • Lubrication-free scissor arm bushings support simpler upkeep.
  • Remote engine oil filter package provides easier access for engine maintenance.
  • Nickel-plated pins and yellow zinc-chromate plated fasteners are standard.
  • LCD display with LiftSense system provides service communication to the operator.
  • Telematics-ready harness and ClearSky Smart Fleet hardware support fleet connectivity.
