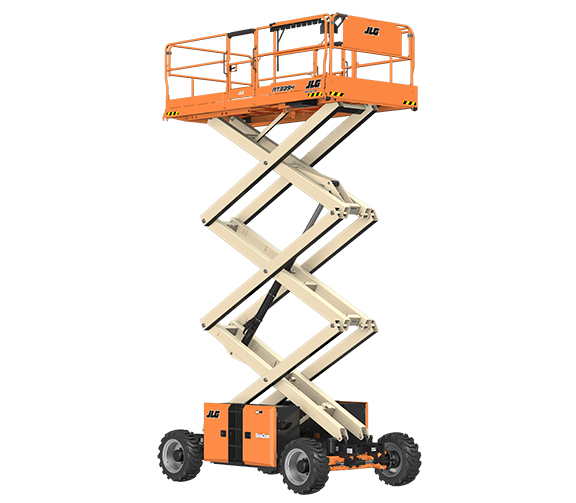

RT3394 Raised Front RF

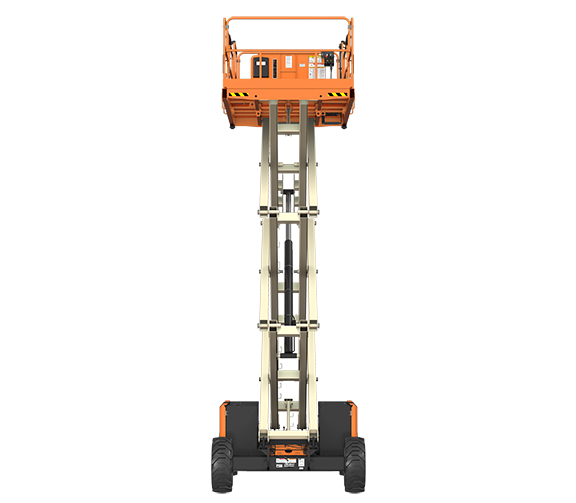

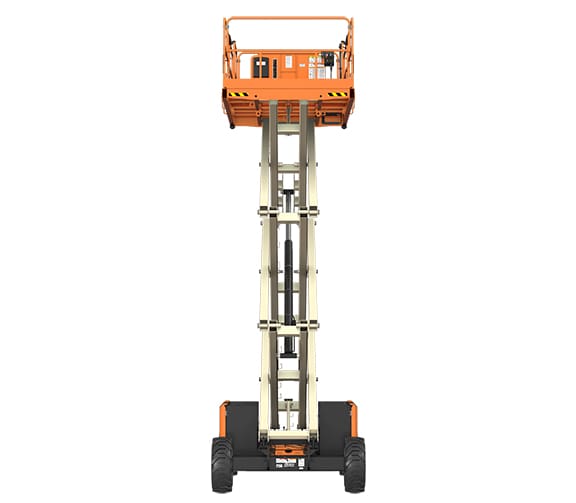

RT3394 Raised Rear

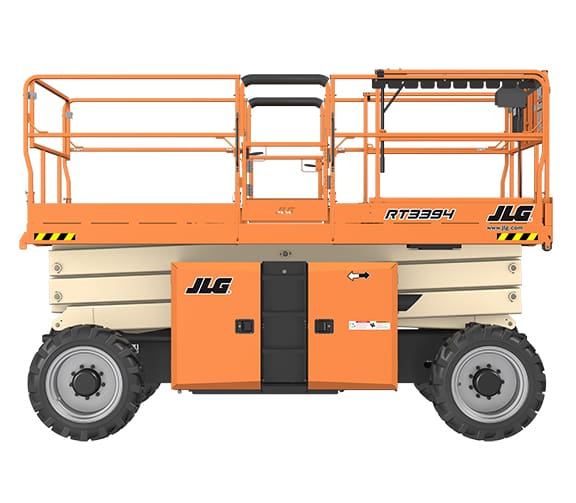

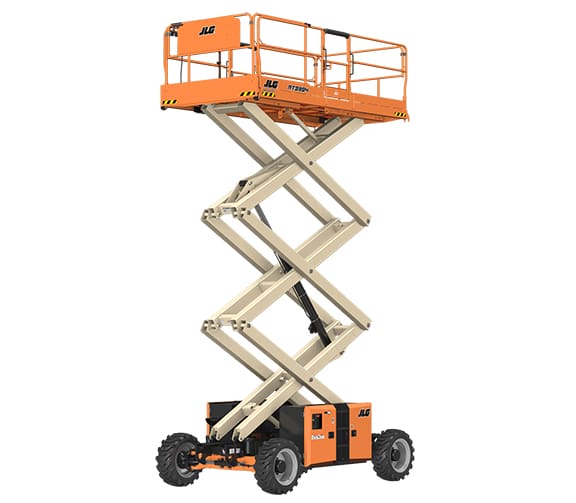

RT3394 Stowed Side RF

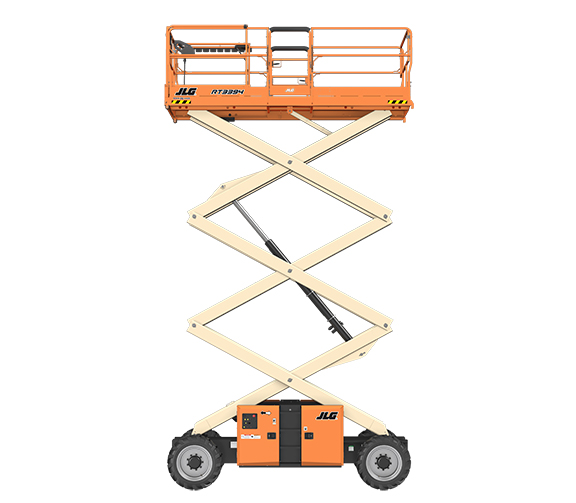

RT3394 Raised Side LF

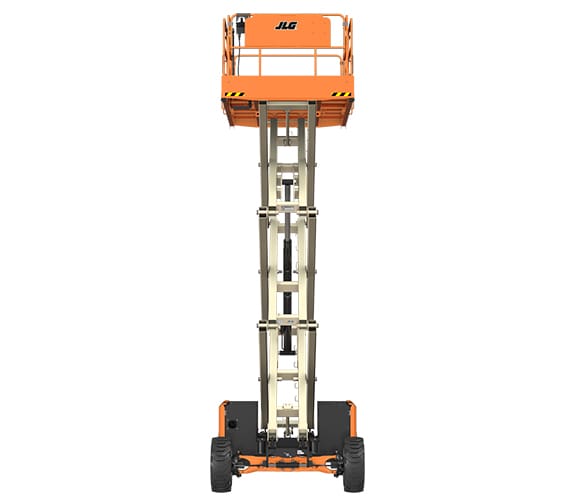

RT3394 Raised Front

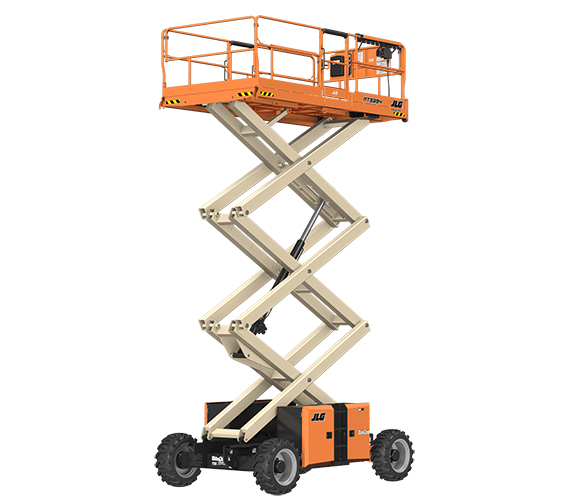

RT3394 Raised Rear RF

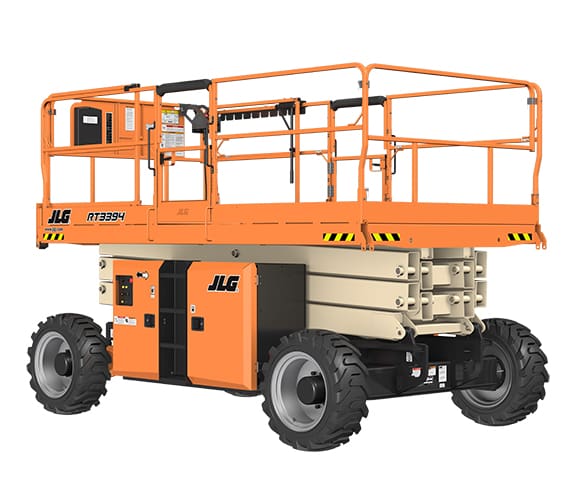

RT3394 Stowed Rear LF

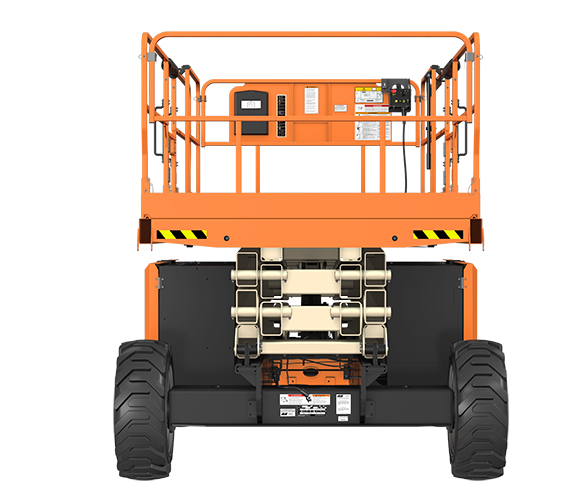

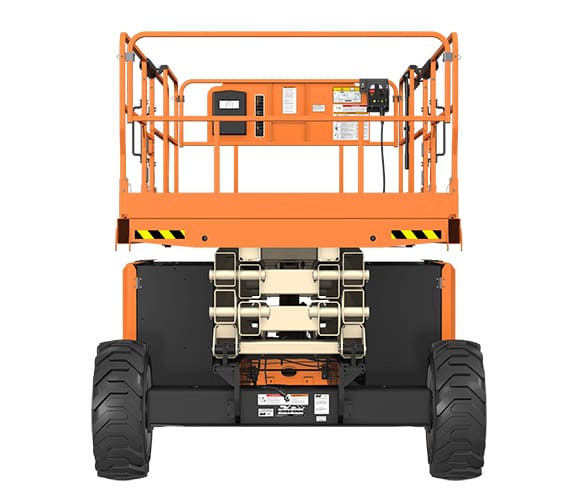

RT3394 Stowed Rear

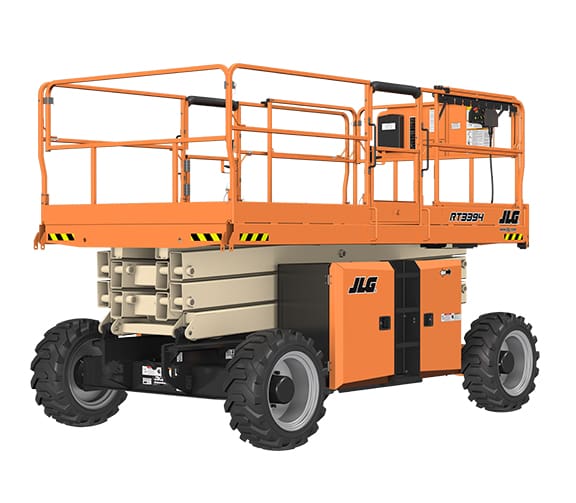

RT3394 Stowed Rear RF
RT3394 Stowed Side RF

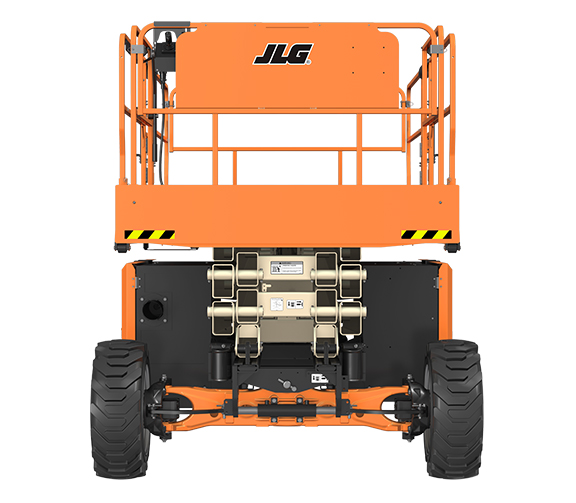

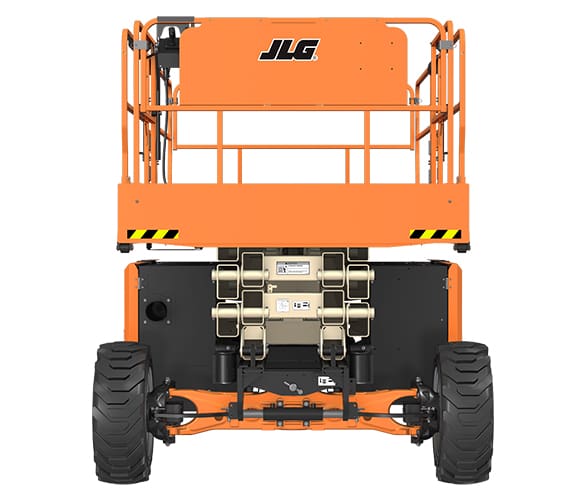

RT3394 Stowed Front

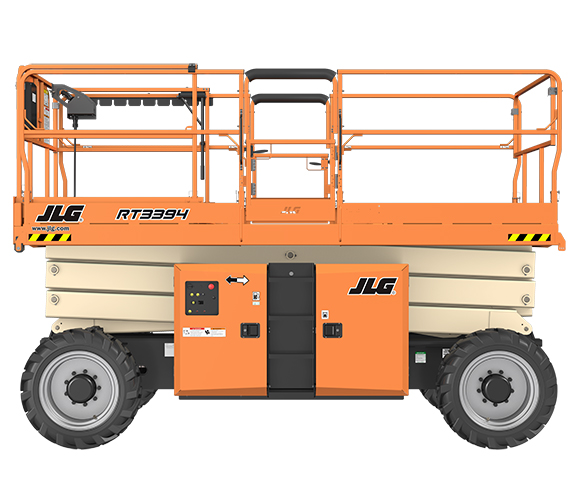

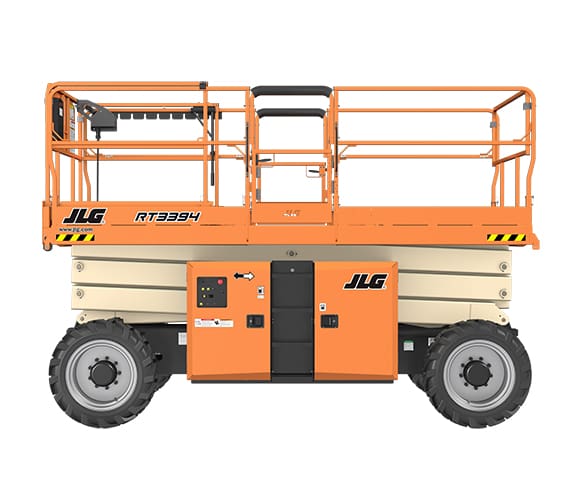

RT3394 Stowed Side LF

RT3394 Rough Terrain Scissor Lift

  • 33 ft. platform height
  • 2,250 lbs. platform capacity
  • 4 ft manual deck extension
  • 4-wheel drive
  • 45% gradeability
Request a Quote

Documents

Product Documents

The JLG RT3394 is an engine powered rough terrain scissor lift built for jobsites that need high platform capacity, stable terrain handling, and straightforward service access. It provides a 33 ft platform height, 2,250 lb platform capacity, and a 4 ft manual deck extension to support larger crews, tools, and materials at elevation.

Standard 4-wheel drive, an oscillating axle, foam-filled tires, and 45% gradeability help the machine handle uneven outdoor surfaces. The platform is designed to shed debris for smoother extension deployment, while fully accessible hydraulic and engine compartments help simplify service work.

Model Number: RT3394

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Bi-Energy, Engine
MEWP Lift Height

26 – 40ft
MEWP Capacity

Over 2,000 lbs
  • Engine powered rough terrain scissor lift built for stability, serviceability, and outdoor jobsite mobility.
  • 2,250 lb platform capacity supports larger crews, tools, and materials at elevation.
  • Standard oscillating axle provides better traction and grade climbing ability on uneven surfaces.
  • 4-wheel drive, 45% gradeability, and foam-filled tires support rough terrain movement.
  • Platform is designed to shed debris and allow smoother extension deployment.
  • Fully accessible hydraulic and engine compartments support easier service access.
  • 4-wheel drive
  • 12 x 16.5 in foam-filled tires
  • 4 ft manual deck extension
  • 70.5 x 149.8 in all-steel platform with aluminum deck
  • 110V AC receptacle in platform
  • Adjustable, removable platform control station
  • Automatic transmission
  • ClearSky Smart Fleet hardware
  • LED motion/amber beacon
  • Oscillating axle
  • Proportional drive, lift up, and lift down controls
  • Three-speed drive select
  • Dual extension deck
  • Large material rack
  • Pipe rack accessory
  • Leveling jacks
  • Platform worklights
  • SkyPower package
  • Workstation
  • Additional flashing amber beacon
  • Cold weather start kit
  • 43.5 lb propane tank
  • Platform design helps shed debris for cleaner deck extension operation.
  • 4 ft manual deck extension provides more room for people and materials.
  • Adjustable, removable platform control station supports flexible control placement.
  • Fold-down handrails support transport and access needs where reduced stowed height is useful.
  • Optional material racks support applications such as general construction, HVAC, plumbing, fire suppression, electrical work, gutters, and spouting.
  • Self-closing gate helps maintain controlled platform access.
  • All motion alarm alerts nearby workers during machine movement.
  • Tilt light and alarm support operator awareness on slopes.
  • Horn is included as standard equipment.
  • Four-wheel spring-applied brakes are standard.
  • Meets or exceeds applicable ANSI and CSA requirements based on original machine configuration for intended applications.
  • Platform height: 33 ft
  • Platform capacity: 2,250 lb
  • Capacity on platform extension: 500 lb
  • Maximum drive height: fully elevated
  • Drive speed lowered: 3.5 mph
  • Drive speed elevated: 0.5 mph
  • Lift/lower time: 35/39 seconds
  • Gradeability: 45%
  • Inside turning radius: 8 ft 10.5 in
  • Machine width: 7 ft 7 in
  • Fully accessible hydraulic and engine compartments support easier maintenance access.
  • Standard oscillating axle supports traction and grade climbing on uneven surfaces.
  • ClearSky Smart Fleet hardware supports fleet connectivity.
  • Platform is designed to shed debris, helping reduce buildup during jobsite use.
  • Dual fuel and diesel engine choices support different fleet and application requirements.
