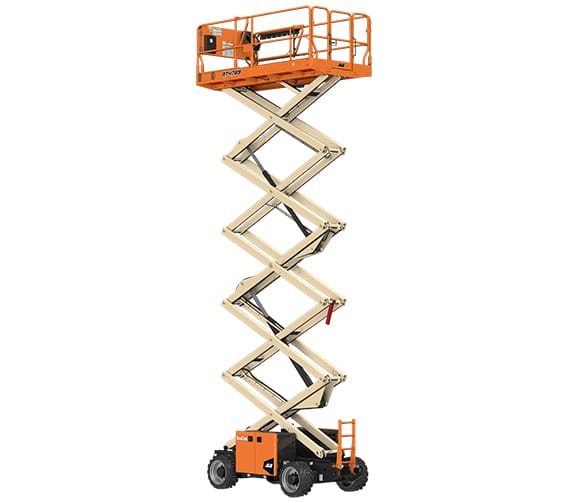

RT4769_Raised_Rear_LF

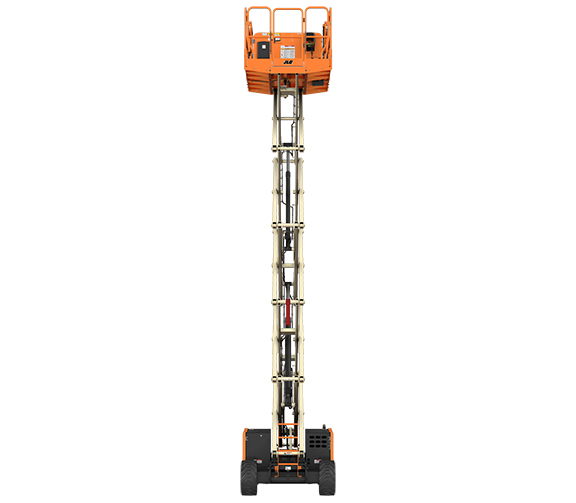

RT4769_Raised_Rear

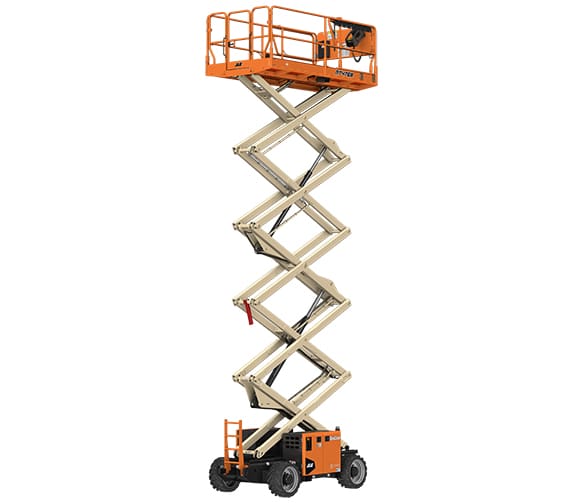

RT4769_Raised_Rear_RF

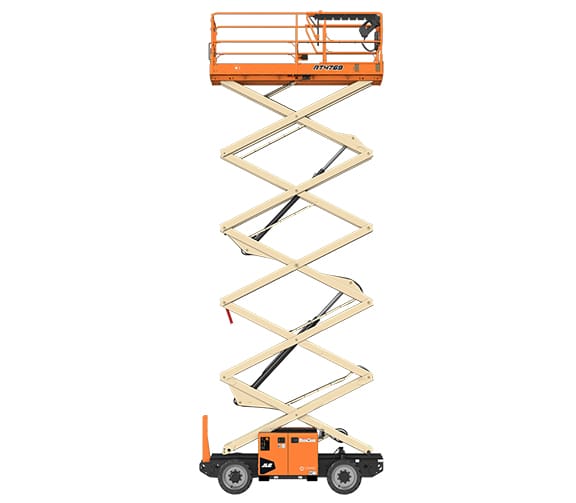

RT4769_Raised_Side_RF

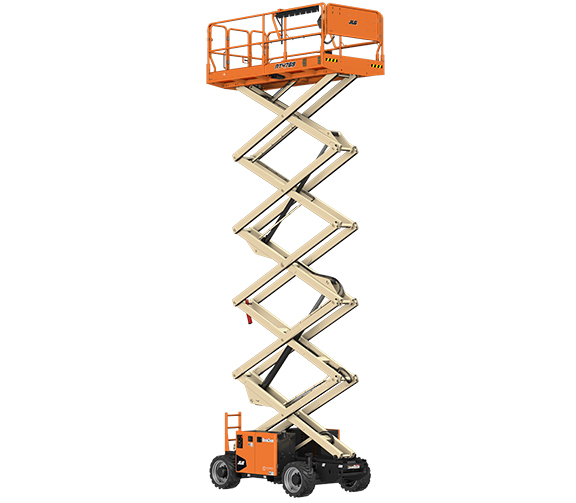

RT4769_Raised_Front_RF

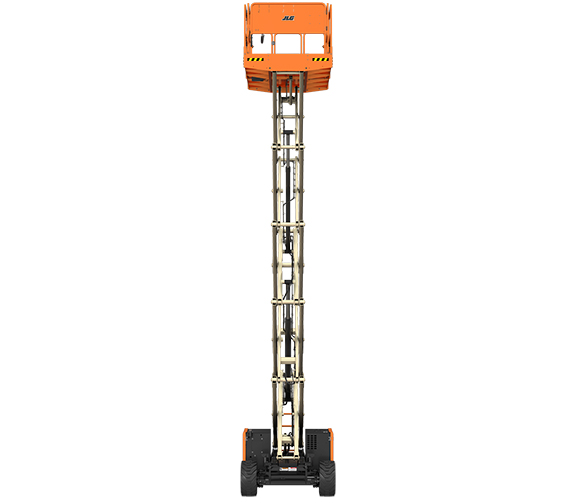

RT4769_Raised_Front

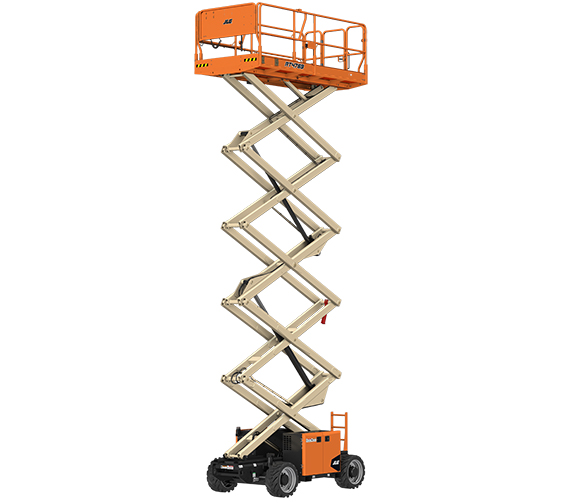

RT4769_Raised_Front_LF

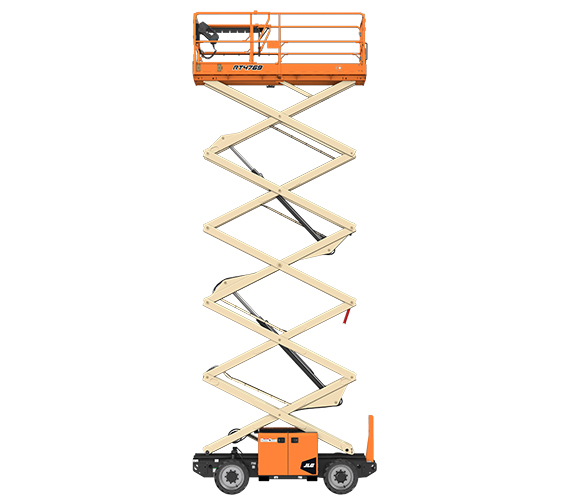

RT4769_Raised_Side_LF

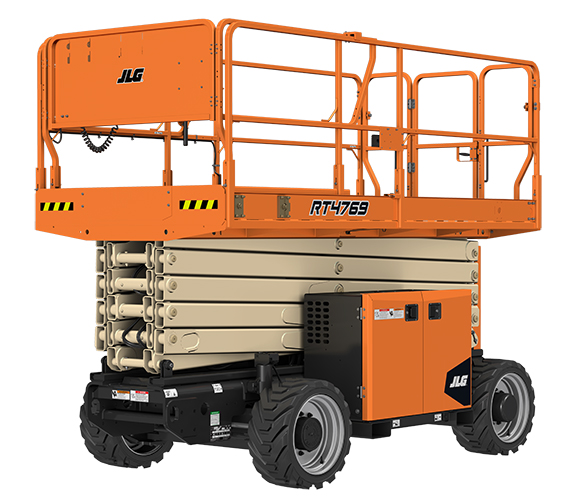

RT4769_Stowed_Front_LF

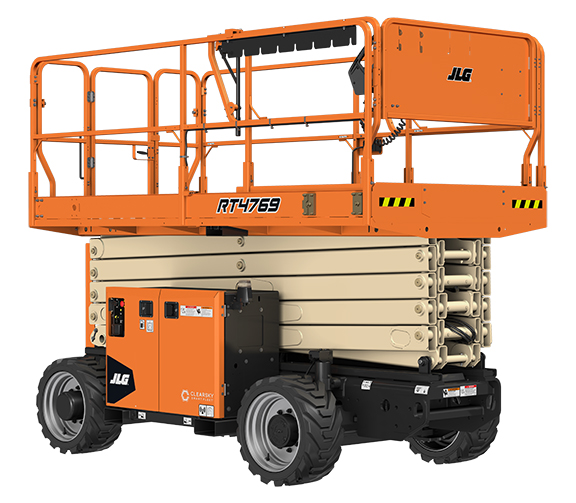

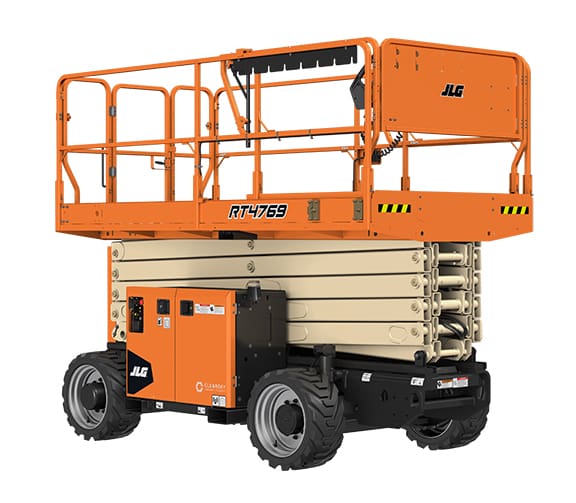

RT4769_Stowed_Front_RF

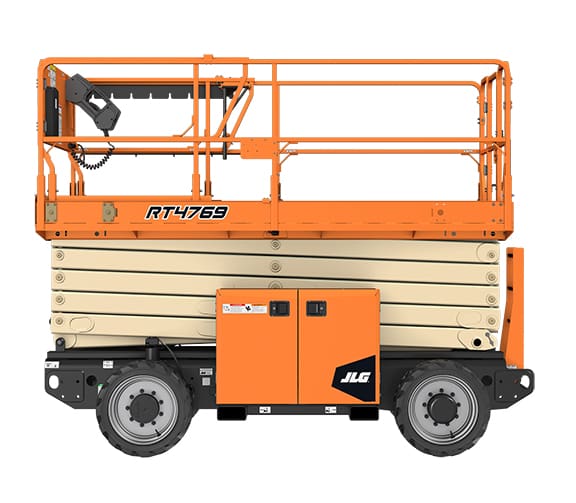

RT4769_Stowed_Side-LF
JLG RT4769 Rough Terrain Scissor Lift - Image 12

JLG RT4769 Rough Terrain Scissor Lift

  • 47 ft. Platform Height
  • 800 lbs. Platform Capacity
  • Standard 4WD with optional 2WD configuration
  • 42 in roll-out deck extension
  • Full-time traction control
Request a Quote

Documents

Product Documents

The JLG RT4769 is an engine powered rough terrain scissor lift designed for jobsites that need five-story access, outdoor mobility, and drive-at-height capability. It provides a 47 ft platform height, 800 lb platform capacity, and a 42 in roll-out deck extension to support operators, tools, and materials at elevation.

Standard 4WD, full-time traction control, an oscillating front axle, and 35% gradeability help the machine move across uneven jobsite surfaces. The LCD platform control box with LiftSense technology, ClearSky Smart Fleet hardware, and service-focused features such as lubrication-free scissor arm bushings and a remote engine oil filter package help support productivity and maintenance planning.

Model Number: RT4769

Additional Information

Condition

New
Brand

JLG
MEWP Type

Scissor Lift
Power

Bi-Energy, Engine
MEWP Lift Height

41 – 60ft
MEWP Capacity

501 – 1,000 lbs
  • Engine powered rough terrain scissor lift with drive-at-height capability to help reduce unnecessary trips up and down.
  • 47 ft platform height provides access to five-story work areas.
  • 800 lb platform capacity supports operators, tools, and materials for elevated jobsite work.
  • Large platform layout with a 42 in roll-out deck extension provides additional workspace and reach from the platform.
  • Standard 4WD with optional 2WD lets buyers match the machine configuration to application needs.
  • Full-time traction control, oscillating front axle, and 35% gradeability support movement on uneven jobsite surfaces.
  • Optional QuikLevel Advanced helps operators level on side slopes and position closer to the work area while elevated.
  • Standard 4WD configuration
  • 42 in roll-out deck extension
  • 110V AC receptacle in platform
  • LCD platform control box with LiftSense system
  • USB charger and phone holster
  • Proportional lift and drive controls
  • ClearSky Smart Fleet hardware
  • LED motion/amber beacon
  • ECU-controlled engine speed
  • Fold-down rails and pin-less fold-down rail system
  • Full-time traction control
  • Oscillating front axle
  • Remote engine oil filter package
  • Telematics-ready harness
  • 2WD configuration
  • QuikLevel Advanced
  • Hydraulic leveling jacks with auto level
  • 2500W belt-driven generator, 60 Hz/110V
  • SkySense enhanced detection system
  • Heavy-duty pipe racks
  • Platform worklights
  • Operator access control
  • Second flashing amber beacon
  • White noise backup alarm
  • Hydraulic oil cooler
  • Special hydraulic fluids and special paint
  • LCD platform controls provide real-time productivity and service communication to the operator.
  • USB charging and phone holster are built into the platform control area.
  • 42 in roll-out deck extension helps operators reach work areas without repositioning as often.
  • Fold-down rails and pin-less fold-down rail system support transport and access needs where reduced stowed height is useful.
  • Optional QuikLevel Advanced helps operators position closer to the work while elevated.
  • Pin-based load sensing system supports load monitoring during operation.
  • Self-closing gate helps maintain controlled platform access.
  • All motion alarm alerts nearby workers during machine movement.
  • Manual descent pull cable provides a controlled lowering method when needed.
  • Horn, tie-down lugs, and scissor maintenance prop are included as standard equipment.
  • Meets or exceeds applicable ANSI and CSA requirements based on original machine configuration for intended applications.
  • Platform height: 47 ft
  • Platform capacity: 800 lb
  • Capacity on platform extension: 300 lb
  • Maximum drive height: fully elevated
  • Drive speed lowered: 3 mph
  • Drive speed raised: 0.3 mph
  • Lift/lower time: 81/55 seconds
  • Gradeability: 35%
  • Inside turning radius: 83 in
  • Machine width: 69.3 in
  • Higher parts commonality across the rough terrain family helps simplify service planning.
  • Lubrication-free scissor arm bushings support simpler upkeep.
  • Remote engine oil filter package provides easier access for engine maintenance.
  • Nickel-plated pins and yellow zinc-chromate plated fasteners are standard.
  • LCD display with LiftSense system provides service communication to the operator.
  • Telematics-ready harness and ClearSky Smart Fleet hardware support fleet connectivity.
