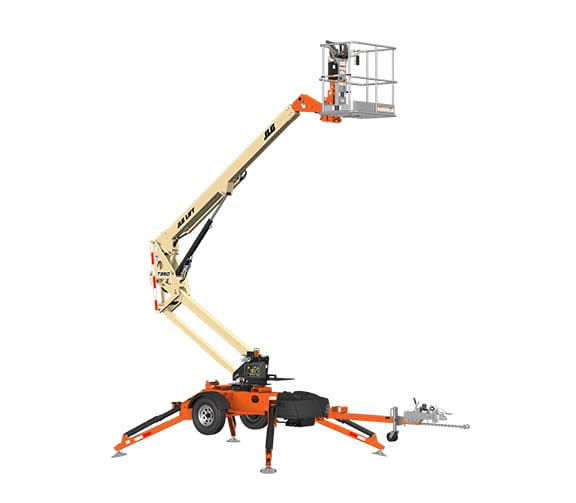

T350_Extended_Front_RF
T350_Extended_Front

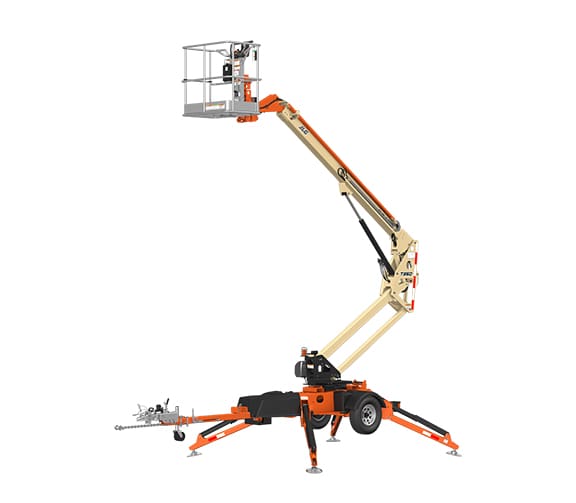

T350_Extended_Front_LF

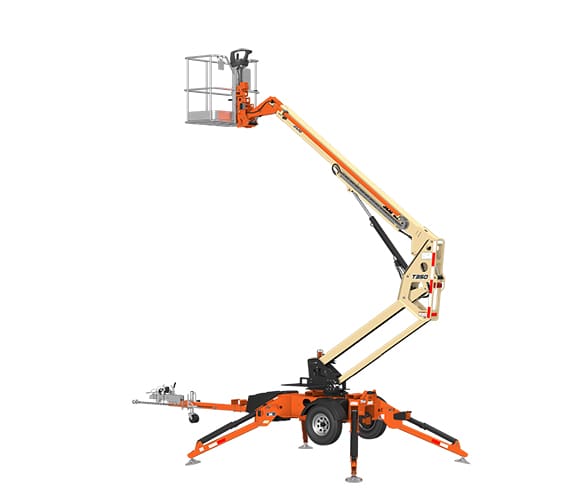

T350_Extended_Rear_LF
ET350_Extended_Rear

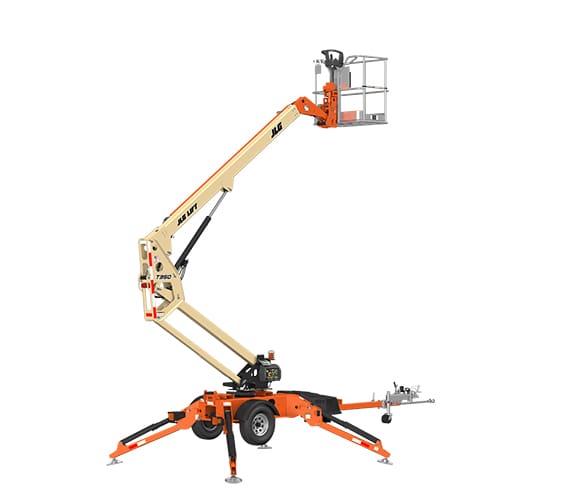

T350_Extended_Rear_RF

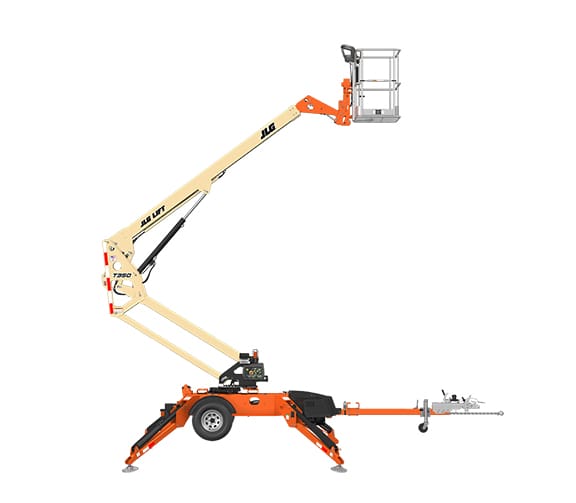

T350_Extended_Side_RF

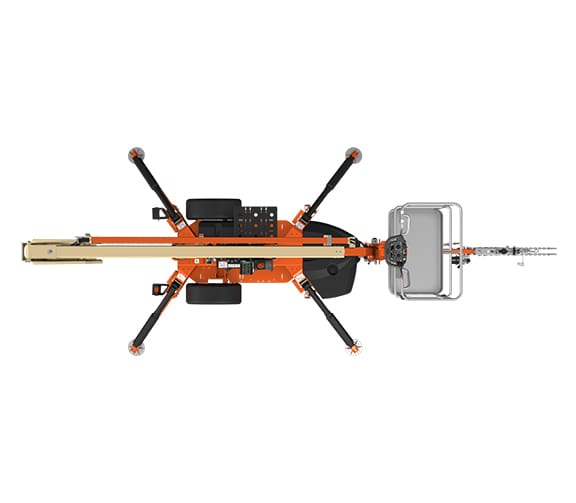

T350_Top
T350_Retracted_Front
ET350_Retracted_Rear

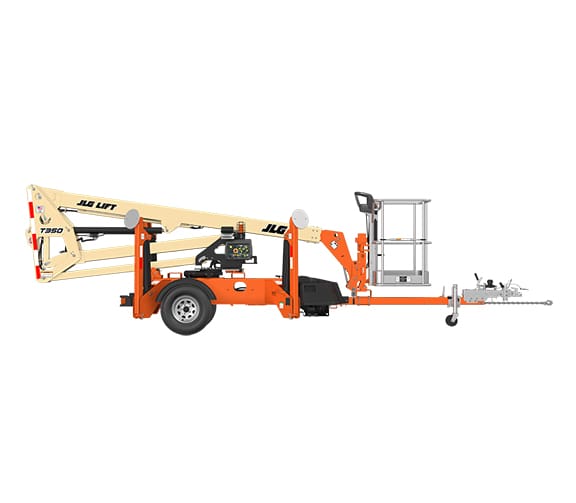

T350_Retracted_Side_RF

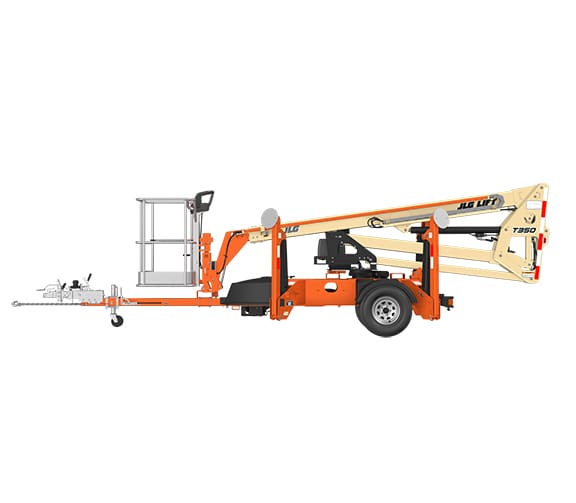

T350_Retracted_Side_LF

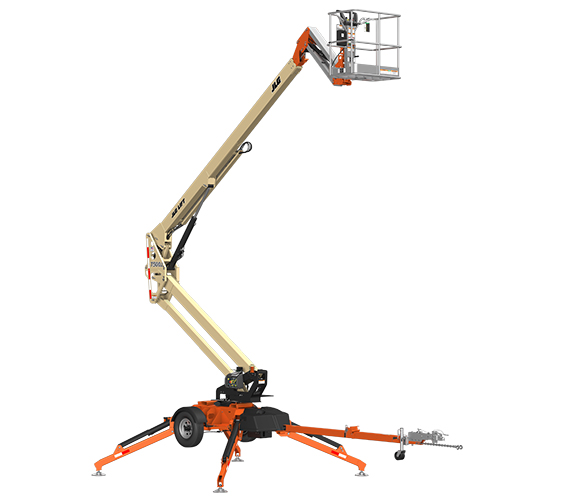

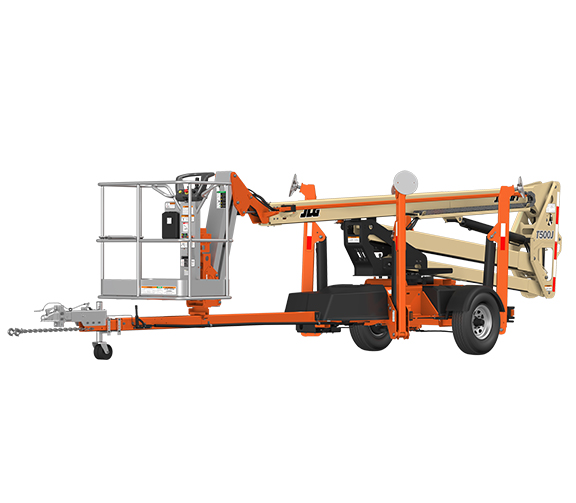

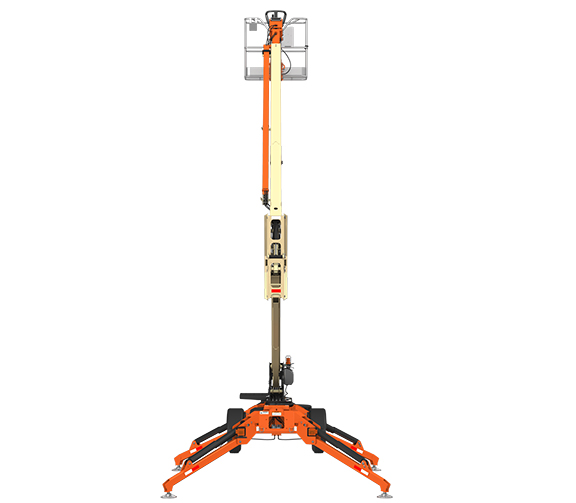

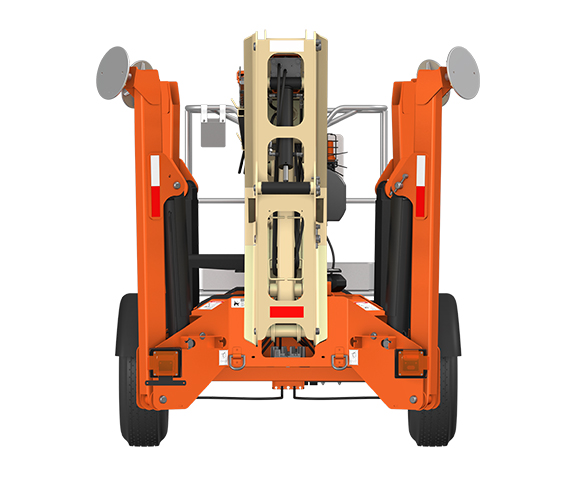

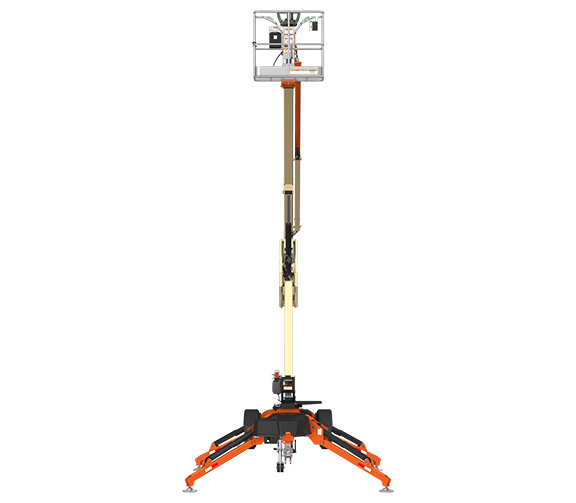

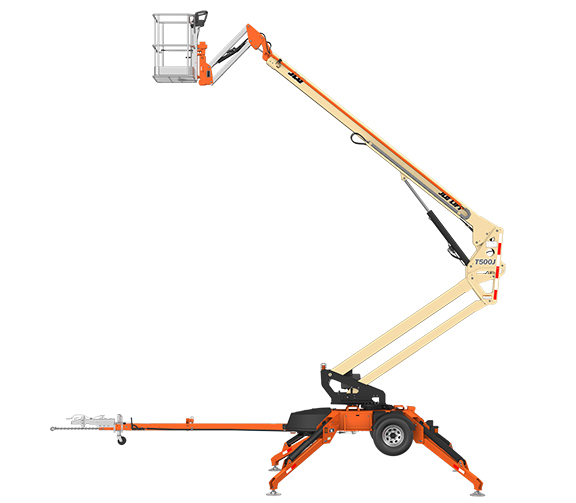

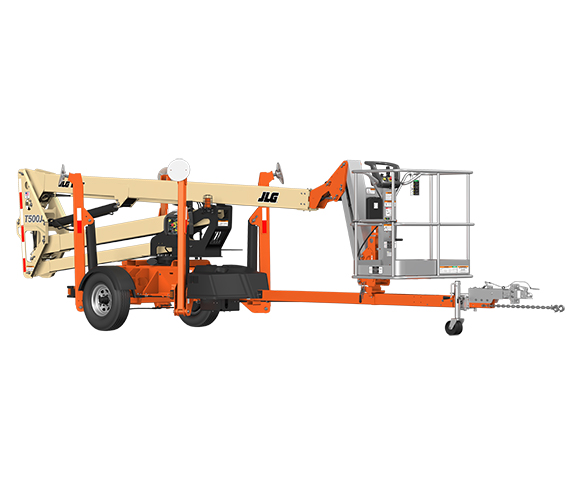

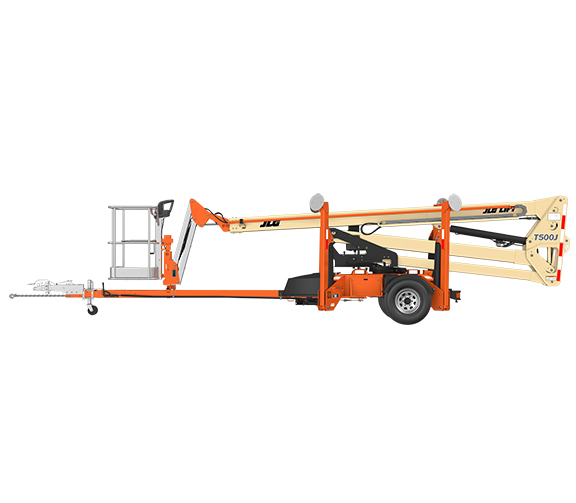

JLG T500J Tow-Pro Boom Lift

  • 50 ft. Platform Height
  • 500 lbs. Platform Capacity
  • 29 ft. 6 in, Horizontal Reach
  • 65 mph Towing Speed Rating
  • Hydraulic auto-leveling outriggers
Request a Quote

Documents

Product Documents

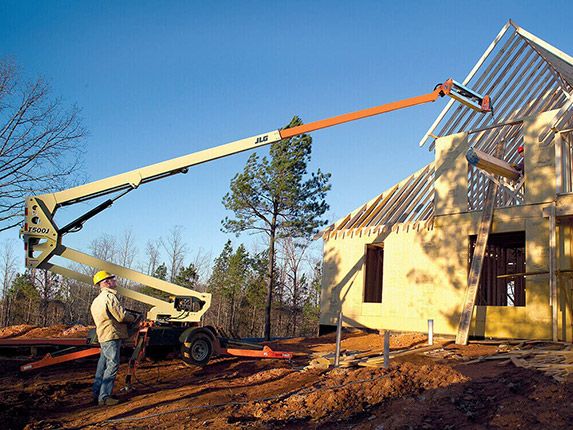

The JLG T500J Tow-Pro boom lift is built for crews that need more reach in a towable package. It provides a 50-ft 0.5-in platform height, 29-ft 6-in horizontal outreach, and 500-lb platform capacity for workers and tools. Hydraulic auto-leveling outriggers help simplify setup, while detachable platform controls allow one-hand operation of all boom functions.

With a 65 mph towing speed rating, Honda GX390 gasoline engine, standard air and water lines, smart charger, LED taillights, and lockable hoods, the T500J gives jobsite and maintenance teams a practical towable lift for elevated work.

Model Number: T500J

Additional Information

Brand

JLG
Condition

New
MEWP Type

Boom Lift, Trailer-Mounted
Power

Engine
MEWP Lift Height

41 – 60ft
MEWP Capacity

Up to 500 lbs
  • 50-ft 0.5-in platform height and 29-ft 6-in horizontal outreach support elevated work from a towable boom platform.
  • 500-lb platform capacity supports workers and tools.
  • 65 mph towing speed rating helps crews move the lift between jobs without a flatbed trailer.
  • 11.7 hp Honda GX390 gasoline engine supports productive operation on the jobsite.
  • Hydraulic auto-leveling outriggers help operators set up efficiently and get to work faster.
  • Detachable platform controls support efficient boom positioning with one-hand operation of all boom functions.
  • 110V AC receptacle in the platform.
  • 2-in hitch with adjustable-height coupler.
  • Amber beacon.
  • ANSI A92.2 compliant.
  • Auto-leveling hydraulic outriggers.
  • Dual USB port in platform.
  • Hourmeter.
  • Hydraulic surge brakes.
  • LED taillights and mounting bracket.
  • Lockable hoods.
  • Motion alarm.
  • Parking brake audible indicator.
  • 30 x 48-in side-entry platform.
  • Proportional controls.
  • Quick start guide common among all JLG towable boom models.
  • Smart charger.
  • Standard air and water lines to platform.
  • Telescopic upper boom.
  • Tilt alarm and indicator light.
  • 3000W Honda generator.
  • Full-size spare tire.
  • Heavy-duty jack.
  • Lifting lugs.
  • 500-lb capacity material hook.
  • Manual 90-degree platform rotator.
  • Detachable platform controls allow one-hand operation of all boom functions.
  • Proportional controls help operators position the boom with controlled movement.
  • 30 x 48-in side-entry platform supports straightforward access to the work area.
  • Dual USB port in platform supports device charging during work.
  • Auto-leveling hydraulic outriggers help establish the machine before elevated work begins.
  • Tilt alarm and indicator light help alert operators to machine positioning conditions.
  • Motion alarm and amber beacon help improve awareness around the machine.
  • Hydraulic surge brakes support towing control.
  • Parking brake audible indicator helps alert operators when the parking brake needs attention.
  • 50-ft 0.5-in platform height.
  • 29-ft 6-in horizontal outreach.
  • 500-lb platform capacity.
  • 410-degree non-continuous swing.
  • 4-ft jib length.
  • 130-degree jib vertical motion.
  • 90-degree manual platform rotator.
  • 500-lb material hook capacity.
  • 11-degree leveling capability.
  • 65 mph towing speed rating.
  • Smart charger comes standard.
  • Hourmeter supports routine usage tracking.
  • Lockable hoods help protect service areas.
  • Quick start guide is common among JLG towable boom models.
  • 6.0-gal hydraulic reservoir capacity.
