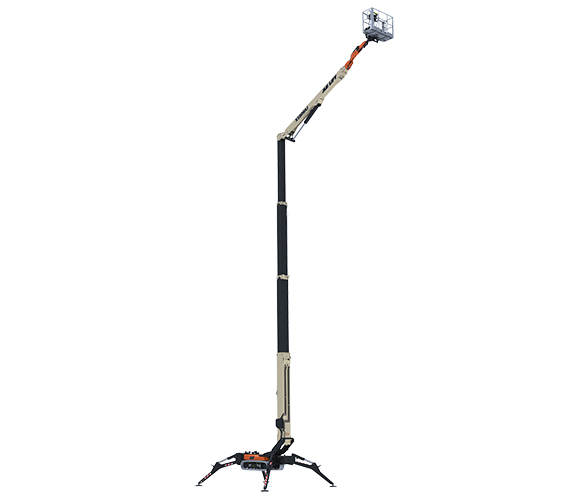

X1000AJ_Extended_Front_RF

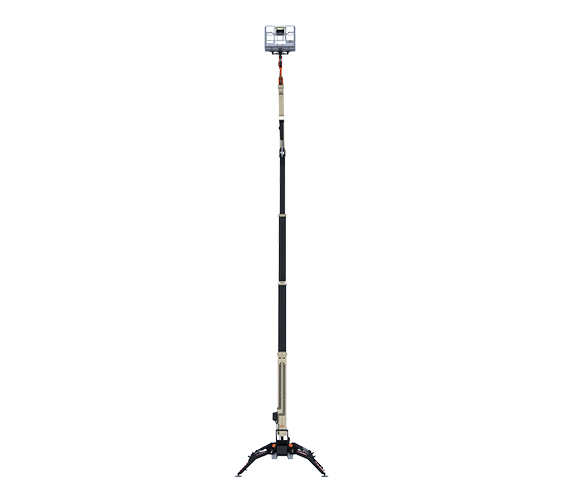

X1000AJ_Extended_Front

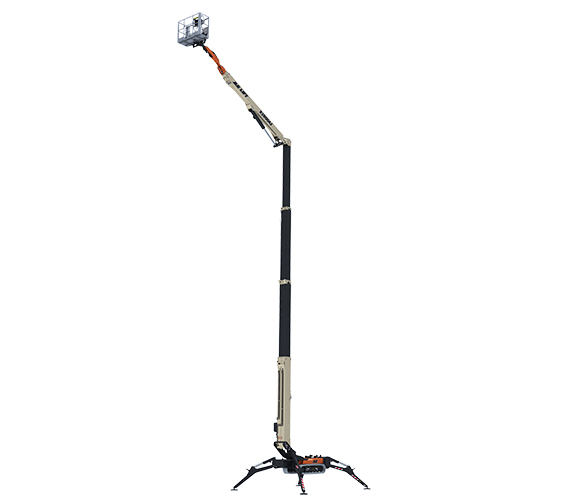

X1000AJ_Extended_Front_LF
X1000AJ_Extended_Rear_LF

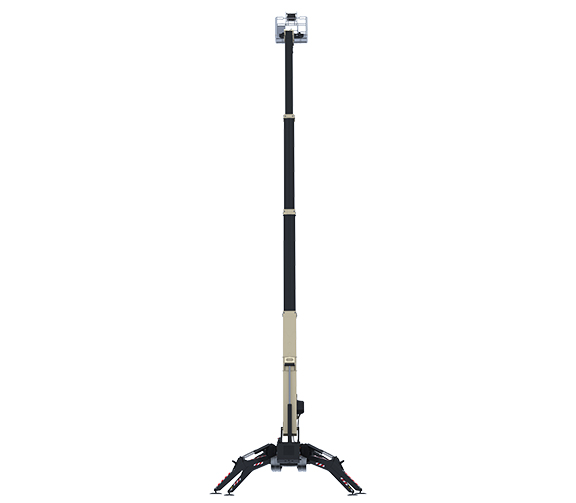

X1000AJ_Extended_Rear
X1000AJ_Extended_Rear_RF
X1000AJ_Extended_Side_RF

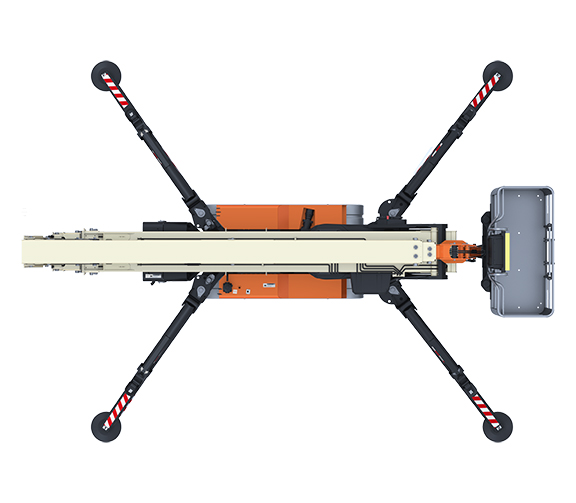

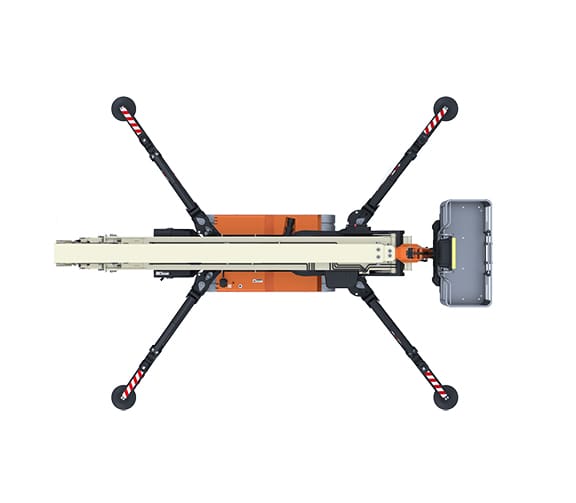

X1000AJ_Top

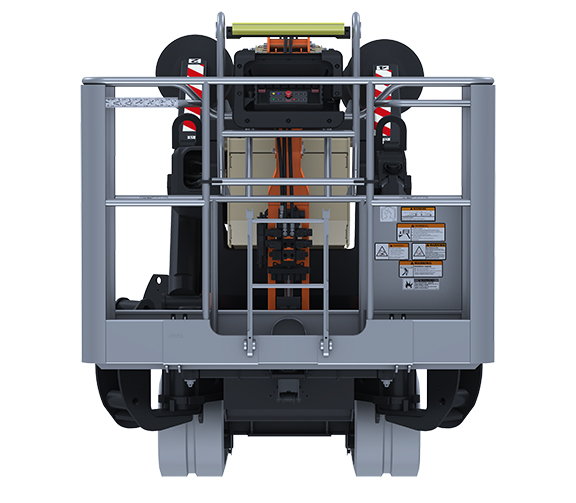

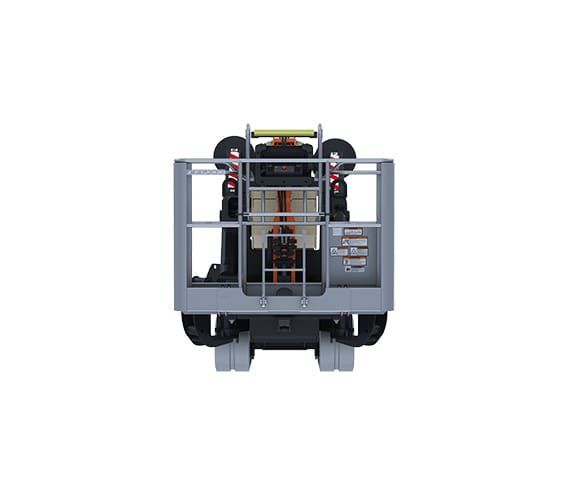

X1000AJ_Retracted_Front

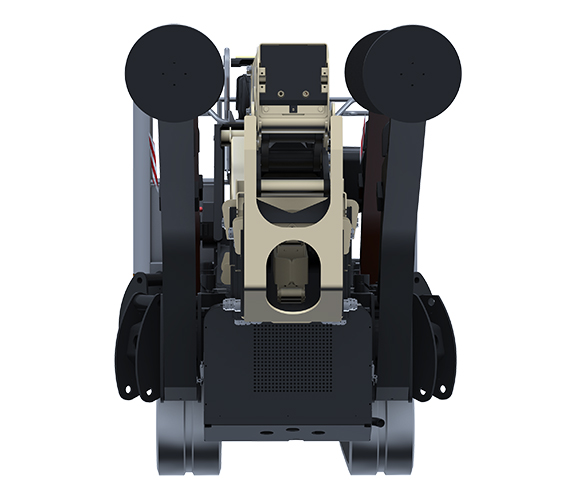

X1000AJ_Retracted_Rear

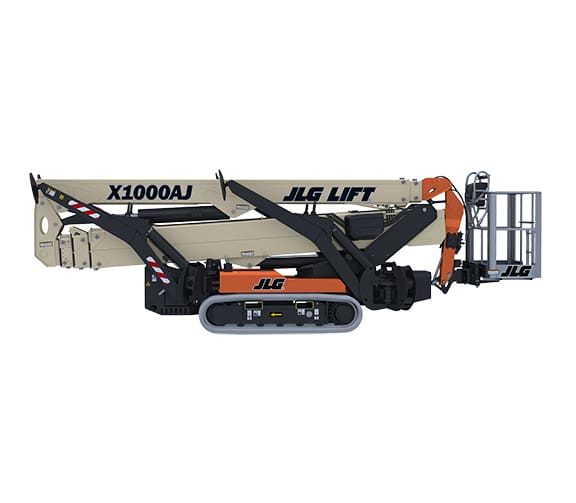

X1000AJ_Retracted_Side_RF

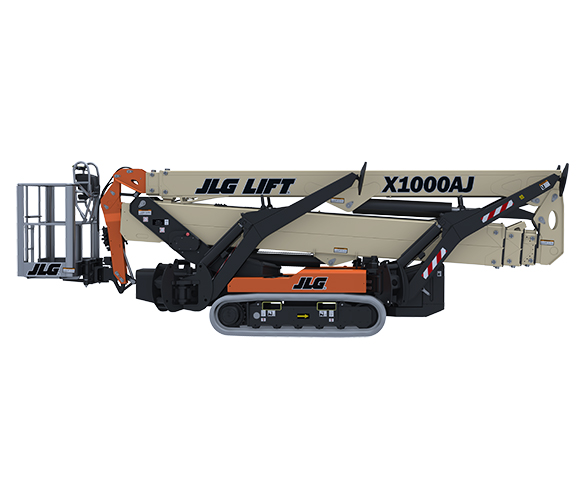

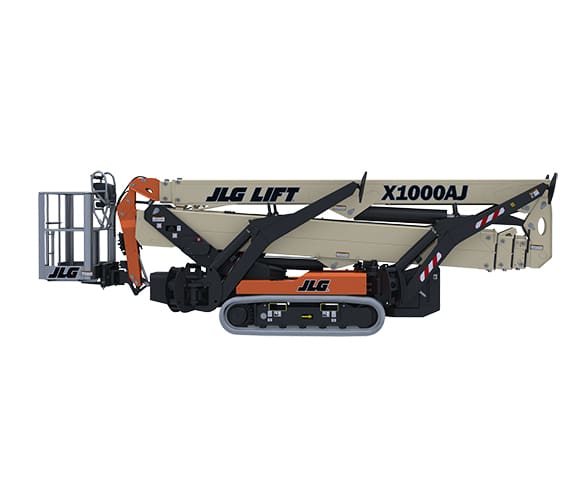

X1000AJ_Retracted_Side_LF

JLG X1000AJ Compact Crawler Boom Lift

  • 106 ft. Working Height
  • 100 ft. Platform Height
  • 54 ft. 2 in. Horizontal Reach
  • 56 ft. 5 in. Up and Over Reach
  • 500-lb unrestricted and 660-lb restricted capacities
  • Diesel, lithium-ion, or bi-energy power configurations
Request a Quote

Documents

Product Documents

The JLG X1000AJ compact crawler boom lift is designed for high-reach work where crews still need compact access and flexible setup. It provides a 100-ft platform height, 106-ft working height, 54-ft 2-in horizontal outreach, and 56-ft 5-in up-and-over height for reaching elevated work areas and obstacles. The platform supports 500 lb unrestricted or 660 lb restricted, with two occupants allowed in either capacity range.

With one-touch, self-leveling, multi-position outriggers, standard SkyGuard SkyLine, forklift pockets, lifting hooks, and diesel, lithium-ion, or bi-energy power configurations, the X1000AJ gives operations teams a high-reach crawler option for demanding access work.

Model Number: X1000AJ

Additional Information

Brand

JLG
Condition

New
MEWP Type

Boom Lift, Articulated, Boom Lift, Crawler
Power

Electric, Engine
MEWP Lift Height

61 – 100ft
MEWP Capacity

Up to 500 lbs
  • 100-ft platform height and 106-ft working height support high-reach access from a compact crawler lift.
  • 56-ft 5-in up-and-over height and 54-ft 2-in horizontal outreach help operators reach around obstacles and into difficult work areas.
  • 500-lb unrestricted and 660-lb restricted platform capacities support two occupants, depending on the work envelope.
  • 47-in machine width helps the X1000AJ fit through standard double-door access points.
  • One-touch, self-leveling, multi-position outriggers support efficient setup on varied jobsites.
  • Diesel, lithium-ion, and bi-energy power configurations give crews options for outdoor, indoor, or mixed-use work.
  • 110V AC receptacle in platform.
  • Below grade capability.
  • Color remote and ground panel with onboard diagnostics.
  • Flashing amber beacon.
  • Fork pockets and lifting hooks.
  • Fully synthetic biodegradable hydraulic fluid.
  • Large Teflon outrigger pads.
  • Multi-position outriggers.
  • One-touch outrigger leveling.
  • Patented quick-disconnect platform.
  • SkyGuard SkyLine.
  • Standard air/water line.
  • Lithium-ion battery power configuration.
  • Bi-energy power option with diesel engine and lithium-ion battery.
  • Black deep-tread tracks.
  • Non-marking tracks.
  • One-touch outrigger leveling helps reduce setup steps for operators.
  • Color remote and ground panel provide onboard diagnostics for easier machine feedback.
  • Patented quick-disconnect platform supports transport and setup flexibility.
  • SkyGuard SkyLine operator protection system comes standard.
  • Flashing amber beacon helps improve machine visibility on the jobsite.
  • Large Teflon outrigger pads help support machine setup at stabilization points.
  • One-touch, self-leveling outriggers help establish the machine before elevated work begins.
  • 100-ft platform height.
  • 106-ft working height.
  • 54-ft 2-in maximum working horizontal outreach.
  • 56-ft 5-in up-and-over height.
  • 500-lb unrestricted platform capacity.
  • 660-lb restricted platform capacity.
  • 360-degree non-continuous swing.
  • 180-degree jib range of articulation.
  • 13-degree maximum stabilization slope.
  • 28% gradeability.
  • Color remote and ground panel provide onboard diagnostics.
  • Fully synthetic biodegradable hydraulic fluid comes standard.
  • 21-gal hydraulic system capacity.
