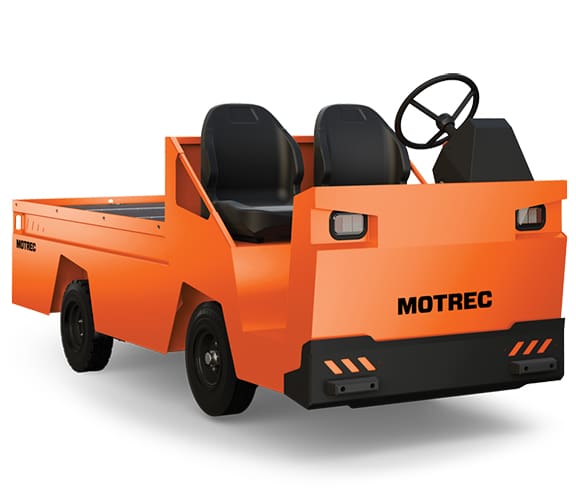

MC-480_front-angle

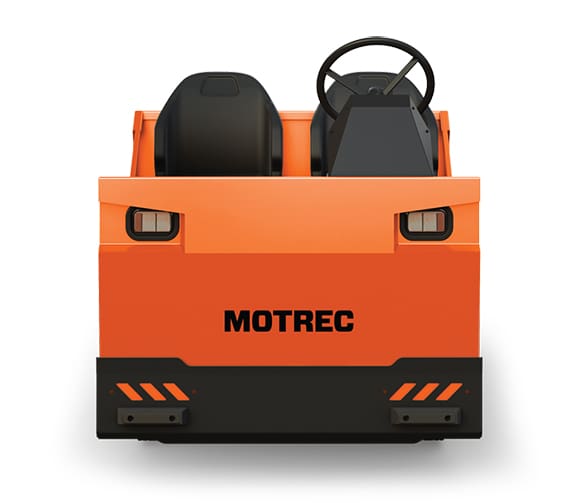

MC-480_front

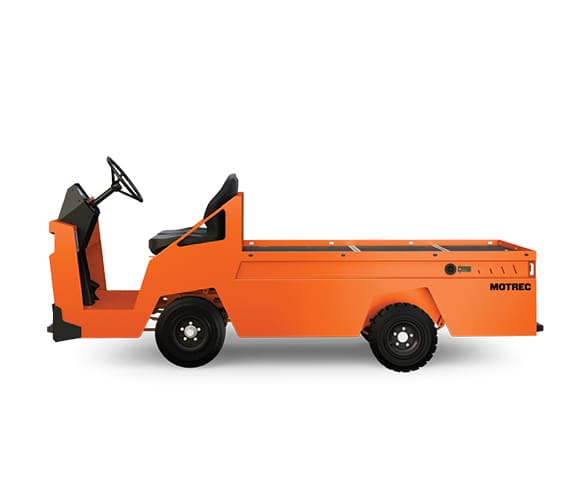

MC-480_side

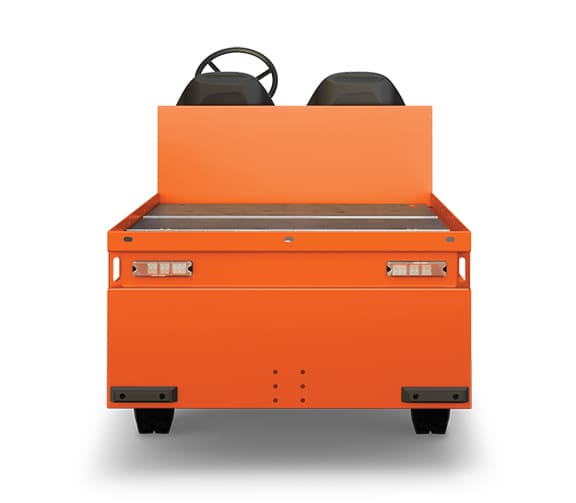

MC-480_back

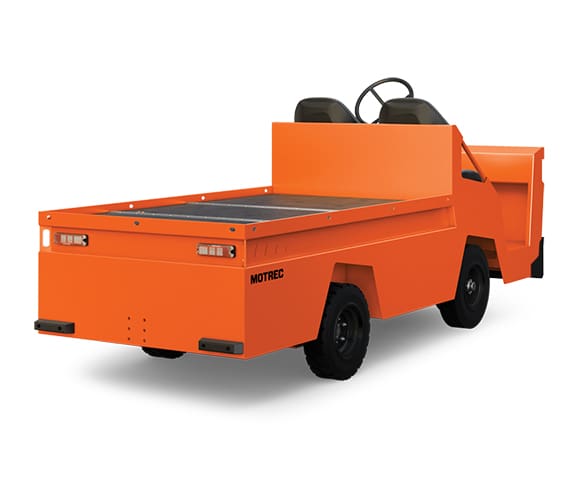

MC-480_back-angle

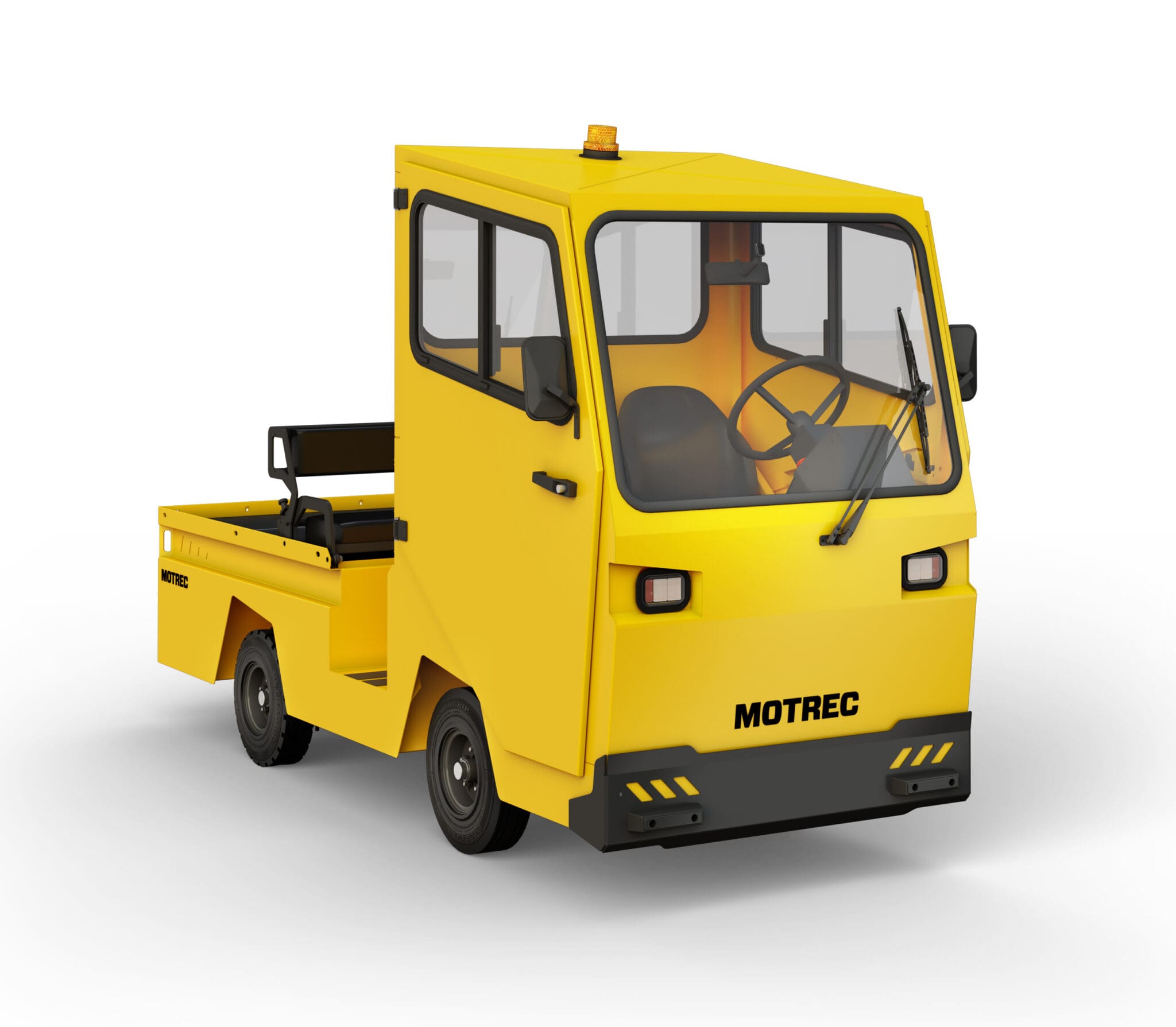

MC-480_CAB_front-angle

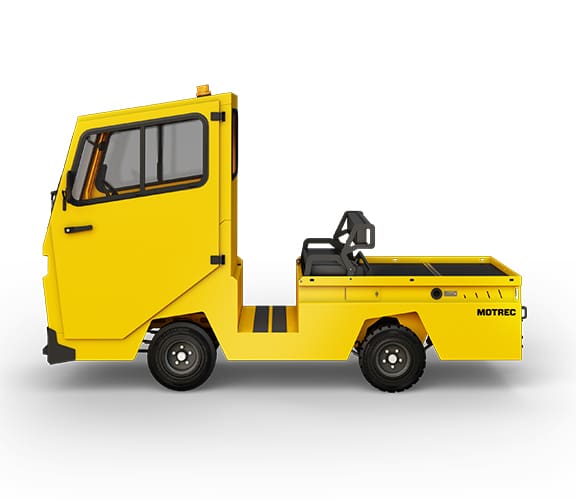

MC-480_CAB_side

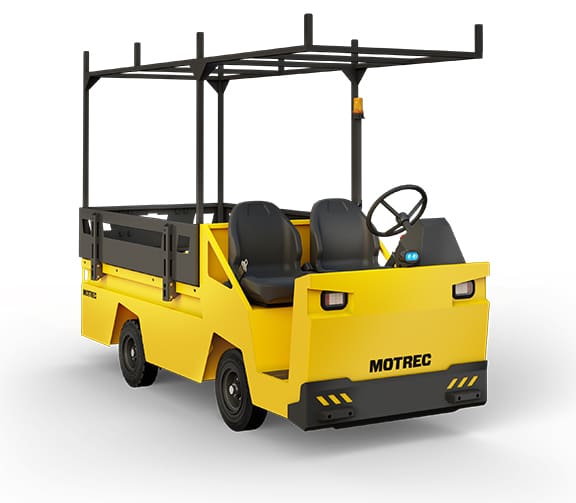

MC-480_OPTIONS-front-anlge

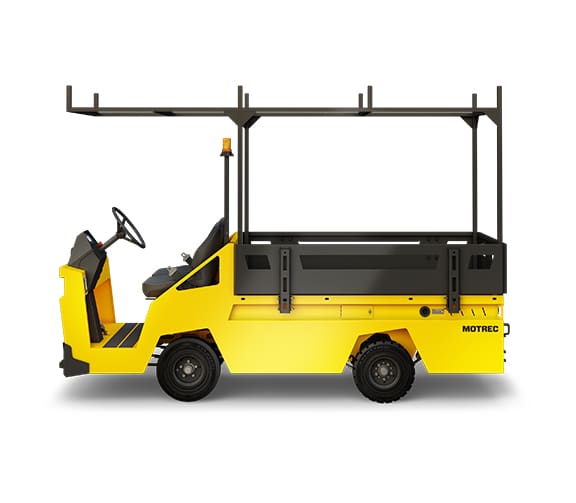

MC-480_OPTIONS-side

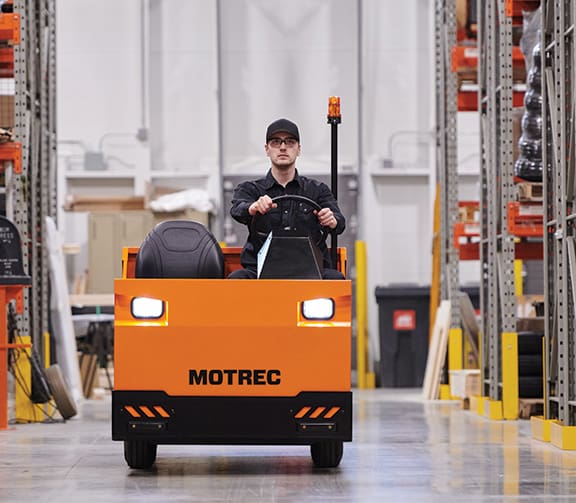

Motrec-Action_MC480

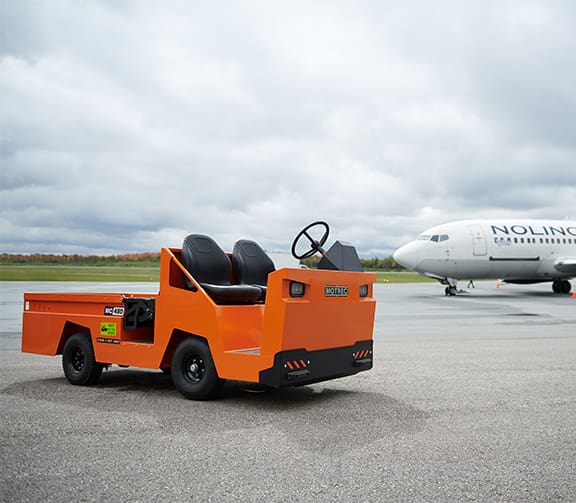

motrec_aeroport_129

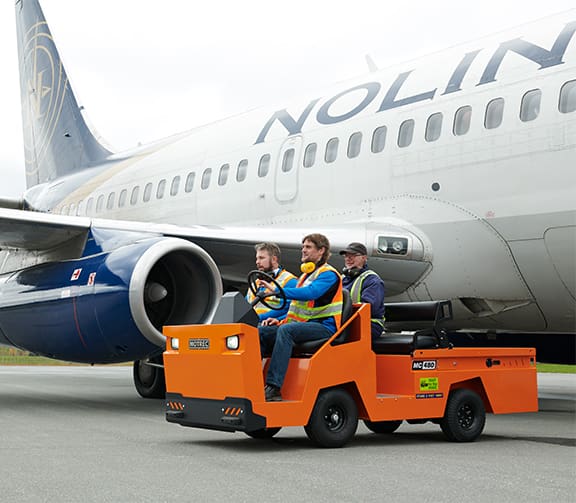

Motrec_aeroport

Motrec High Capacity Burden Carrier

  • Up to 5,000 lb load capacity
  • Up to 10,000 lb towing capacity
  • Travel speeds up to 20 mph
  • Seating for up to four passengers
  • 15 hp brushless AC direct-drive powertrain with available lithium configurations
Request a Quote

Documents

Product Documents

Videos

The Motrec MC-480 is a configurable electric burden carrier designed to move people, cargo and trailers throughout demanding facilities. Its five 48V configurations provide load capacities up to 5,000 lb, towing capacities up to 10,000 lb and travel speeds up to 20 mph.

An all-steel unibody, brushless AC direct-drive powertrain and dual leaf-spring suspension create a durable foundation for daily material transport. Ergonomic controls, premium adjustable seats, available lithium power and a broad selection of cargo, seating and cab options help operations teams configure the MC-480 around the work at hand.

Model Number: MC 480

Additional Information

Brand

Motrec
Condition

New
Fuel Type

Electric/Battery, 48 Volt
Capacity

10,000 lbs.
  • Transports up to four passengers while handling cargo loads up to 5,000 lb.
  • Tows up to 10,000 lb for moving trailers and materials between work areas.
  • Five 48V configurations provide a choice of load capacity, towing performance, speed and battery technology.
  • Available lithium configurations support operations seeking an alternative to conventional lead-acid batteries.
  • Configurable cargo, seating and cab options allow the vehicle to serve a wide range of material-handling duties.
  • 15 hp brushless asynchronous AC motor with direct-drive transmission.
  • All-steel unibody construction with a durable powder-coated finish.
  • Dual leaf-spring suspension at the front and rear.
  • Automotive-style steering wheel with a tilted steering column.
  • Two premium seats mounted on slide adjusters.
  • Dual LED headlights, tail and brake lights, and dual back-up lights.
  • Multifunction display with speedometer, battery state of charge, hour meter, odometer and fault warnings.
  • Password-protected vehicle parameters and monitoring capabilities.
  • Folding rear seat for increasing passenger capacity or preserving cargo space as needed.
  • All-steel cab available with or without doors.
  • Fold-down side panels for flexible cargo handling.
  • Ladder rack for carrying long materials and equipment.
  • Strobe and blue safety lights for greater vehicle visibility.
  • Retractable seat belts for additional occupant protection.
  • Hitches, quick hitch releases and compatible trailers for expanded towing applications.
  • Tilted steering column supports a more natural driving position during long shifts.
  • Steering-column-mounted console keeps frequently used controls and vehicle information within easy view and reach.
  • Premium seats with slide adjustment accommodate different operators.
  • Available cabs can be equipped with comfort features including sliding windows, a heater and air conditioning.
  • Deadman seat switch, reverse alarm and horn are included as standard safety equipment.
  • Regenerative braking helps provide controlled deceleration across the MC-480 lineup.
  • Electromagnetic parking brakes are included on selected configurations and apply automatically when the vehicle stops or is shut off.
  • LED headlights, brake lights and back-up lights improve vehicle visibility around active facilities.
  • Available strobe lights, blue safety lights, cabs and retractable seat belts support application-specific safety requirements.
  • Load capacities range from 2,000 to 5,000 lb, depending on configuration.
  • Towing capacities range from 6,000 to 10,000 lb.
  • Travel speeds range from 10 to 20 mph.
  • Standard and lithium configurations are available with 48V electrical systems.
  • Direct drive and a helical-gear differential transfer power without a conventional multispeed transmission.
  • Vehicle width is 45 inches, with model-dependent turning radii of 113 or 126 inches.
  • Brushless AC motor eliminates routine brush maintenance.
  • Roll-out battery compartment helps simplify and accelerate battery changes.
  • Multifunction display provides fault warnings and operating information for vehicle monitoring.
  • Replaceable bolt-on bumpers help protect vehicle components and simplify repair after impact damage.
  • Industrial manufacturing
  • Hospitals and pharmaceutical operations
  • Government and municipal facilities
  • Airlines and airports
