JLG SkyTrak 10042 Telehandler

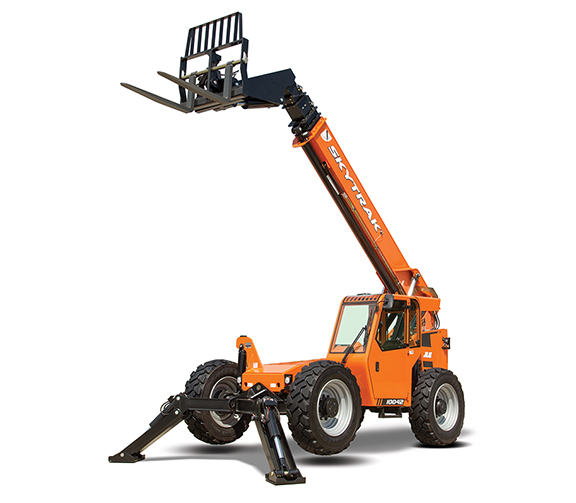

SkyTrak10042

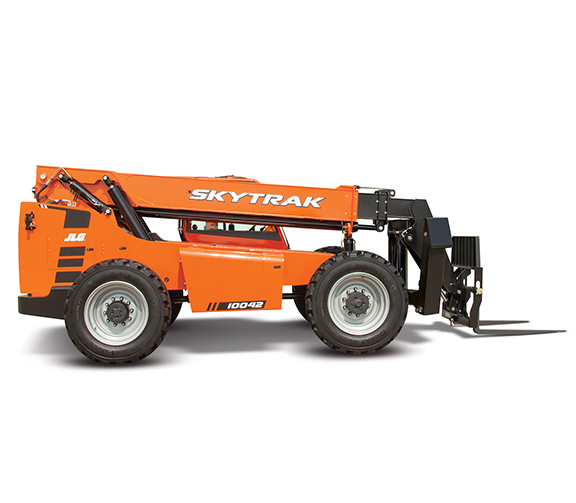

10042-engine-side-gallery

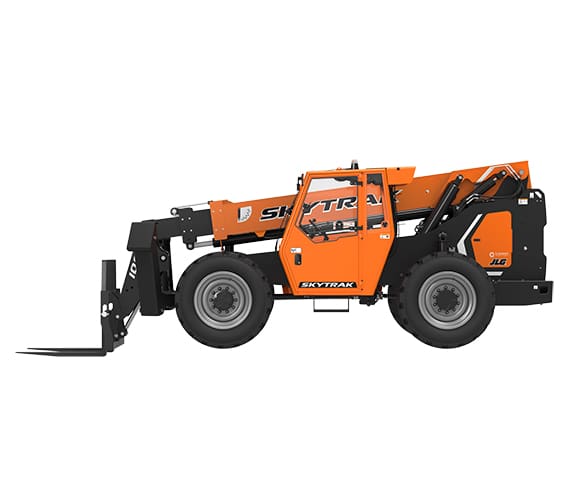

10042_Retracted_Side_LF

JLG SkyTrak 10042 Telehandler

  • 10,000-lb rated capacity
  • 42-ft 1-in maximum lift height
  • 26-ft 9-in maximum forward reach
  • 6,000-lb capacity at maximum reach with outriggers down
  • Cummins F3.8 110 hp diesel engine
Request a Quote

Documents

Product Documents

The SkyTrak 10042 is a high-capacity telehandler built for jobsites that need strong lift performance, reach, and operator-friendly controls. It offers a 10,000-lb rated capacity, 42-ft 1-in maximum lift height, and 26-ft 9-in maximum forward reach, with 6,000 lb of capacity at maximum height and maximum reach when the outriggers are down.

A Cummins F3.8 diesel engine, powershift transmission, full-time 4-wheel drive, selectable steering modes, and Stabil-Trak system help support demanding jobsite work. The multifunction electric-over-hydraulic joystick, SmartShift technology, updated gauge display, and standard ClearSky Smart Fleet hardware help operators work with better control and machine feedback.

Model Number: 10042

Additional Information

Condition

New
Brand

JLG
MEWP Type

Telehandler
Power

Engine
MEWP Lift Height

41 – 60ft
MEWP Capacity

Over 2,000 lbs
  • 10,000-lb rated capacity with 42-ft 1-in maximum lift height for demanding jobsite material handling.
  • 6,000-lb capacity at maximum lift height and maximum reach, with outriggers down.
  • Multifunction electric-over-hydraulic joystick includes auxiliary hydraulic functions and attachment tilt to support productivity.
  • Advanced control system supports more options and improved diagnostics.
  • SmartShift technology helps reduce manual shifting and optimize transmission performance.
  • Standard ClearSky Smart Fleet hardware supports fleet connectivity.
  • 10,000-lb rated capacity with 42-ft 1-in maximum lift height.
  • Cummins F3.8 diesel engine with 110 hp and 348 lb-ft of torque.
  • Powershift transmission with 4 forward speeds and 3 reverse speeds.
  • Full-time planetary 4-wheel drive with oscillating rear axle and Stabil-Trak system.
  • Operator-selectable 4-wheel circle, 4-wheel crab, and 2-wheel front steering modes.
  • 10 degrees of frame leveling.
  • Adjustable suspension seat with retractable 3-in seat belt, integrated armrest, rear view mirrors, and single joystick controls.
  • Certified ROPS/FOPS structure.
  • ClearSky Smart Fleet hardware and LED Motion/Amber Beacon.
  • LCD diagnostic screen, DEF gauge, engine oil pressure gauge, fuel gauge, hourmeter, tachometer, temperature gauge, and voltmeter.
  • 74 hp engine option that does not require Diesel Exhaust Fluid.
  • Enclosed cab, air conditioning, Arctic Package, fenders, and boom prop.
  • Load Stability Indication and Seatbelt Engagement and Operator Presence systems.
  • Multi-reverse camera system and reverse sensing system.
  • Road lights, work lights, white noise back-up alarm, and air shut-off valve.
  • Non-outrigger configuration option.
  • Foam-filled, non-marking, 17.5 x 25, and 360/85-28 solid tire options.
  • Updated gauge display helps keep key machine information visible to the operator.
  • Integrated armrest and single joystick controls keep key machine functions within easy reach.
  • Electric-over-hydraulic joystick supports auxiliary hydraulic function and attachment tilt control.
  • Rear view mirrors and available multi-reverse camera system support visibility around the machine.
  • Available enclosed cab and air conditioning support operator comfort in changing jobsite conditions.
  • Certified ROPS/FOPS structure.
  • Stabil-Trak system supports machine stability during operation.
  • Retractable 3-in seat belt is included with the adjustable suspension seat.
  • Available Load Stability Indication helps operators monitor load stability conditions.
  • Available Seatbelt Engagement and Operator Presence system supports proper operator positioning before machine operation.
  • Hydraulically actuated inboard wet disc brakes support stopping performance.
  • Load holding valves are included on frame level, stabilizers, attachment tilt, extend, and lift cylinders.
  • 10,000-lb rated capacity for heavy jobsite material handling.
  • 6,000-lb capacity at maximum lift height and 6,000-lb capacity at maximum reach, with outriggers down.
  • 42-ft 1-in maximum lift height and 26-ft 9-in maximum forward reach.
  • 19.6 mph top travel speed.
  • 13-ft 10-in outside turning radius.
  • 25,507-lb drawbar pull.
  • 19.6 gpm maximum auxiliary flow to the boom head.
  • Advanced control system and LCD diagnostic screen provide improved diagnostics.
  • DEF gauge, engine oil pressure gauge, fuel gauge, hourmeter, tachometer, temperature gauge, and voltmeter help operators monitor machine status.
  • Piston pump and load-sensitive hydraulic system support implement operation.
  • Auxiliary hydraulics support attachments equipped with cylinders or other hydraulic components.
  • Warranty coverage includes one full year on the machine, two years or 2,000 hours on the drivetrain, and five years on specified major structural components.
  • General construction jobsites that need high capacity, reach, and lift height.
  • Framing, truss setting, and post-frame building applications supported by truss boom and fork-mounted extendable truss attachments.
  • Masonry and block handling supported by cubing forks and pallet fork options.
  • Pipe handling applications supported by the available 72-in pipe grapple.
  • General material handling applications using carriages, forks, buckets, work platforms, and lifting hooks.
