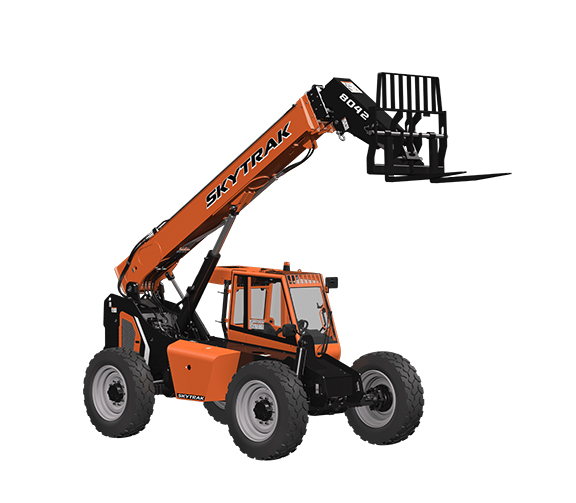

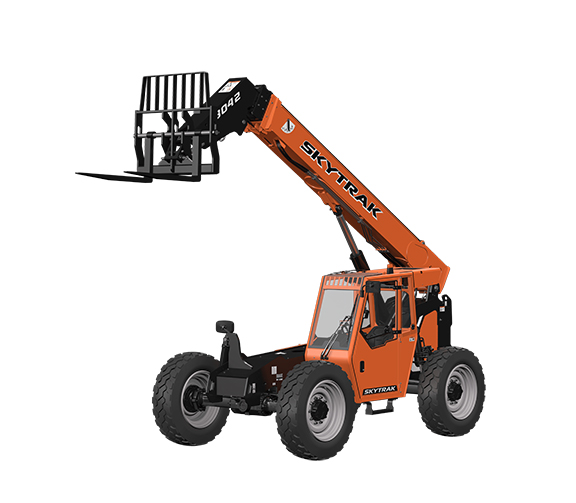

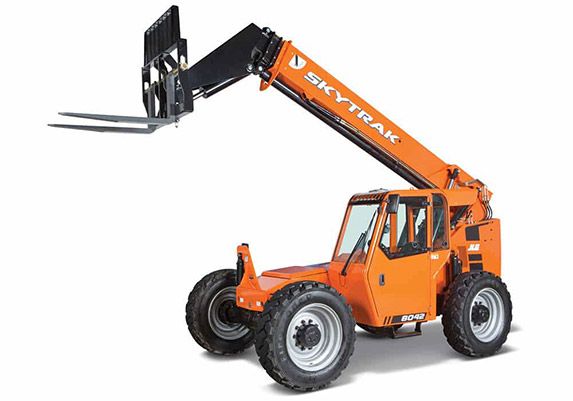

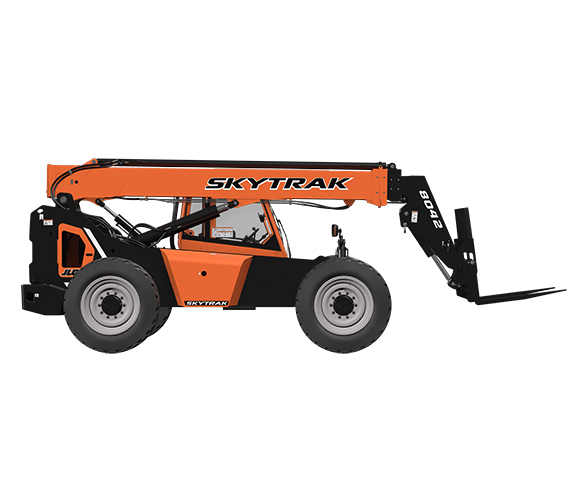

JLG SkyTrak 8042 Telehandler

  • 8,000-lb rated capacity
  • 42-ft 4-in maximum lift height
  • 29-ft 6-in maximum forward reach
  • 6,000-lb capacity at maximum lift height
  • Deutz TCD2.9 L4 74 hp diesel engine
Request a Quote

Documents

Product Documents

The SkyTrak 8042 is an operator-friendly telehandler built for jobsites that need more capacity while maintaining strong reach and lift height. It offers an 8,000-lb rated capacity, 42-ft 4-in maximum lift height, and 29-ft 6-in maximum forward reach, with 6,000 lb of capacity available at maximum lift height.

A Deutz diesel engine, hydrostatic transmission, full-time 4-wheel drive, selectable steering modes, and Stabil-Trak system help support productive work across changing jobsite conditions. Its advanced control system, electric-over-hydraulic joystick, diagnostic display, and standard ClearSky Smart Fleet hardware give operators useful control and machine feedback during daily material handling.

Model Number: 8042

Additional Information

Condition

New
Brand

JLG
MEWP Type

Telehandler
Power

Engine
MEWP Lift Height

41 – 60ft
MEWP Capacity

Over 2,000 lbs
  • 8,000-lb rated capacity with 42-ft 4-in maximum lift height for jobsite material handling.
  • 29-ft 6-in maximum forward reach helps operators place materials farther into the work area.
  • Hydrostatic transmission supports easier operation.
  • Advanced control system supports more options and improved diagnostics.
  • Electric-over-hydraulic joystick provides greater multifunction capability.
  • Standard ClearSky Smart Fleet hardware supports fleet connectivity.
  • 8,000-lb rated capacity with 6,000-lb capacity at maximum lift height.
  • Deutz TCD2.9 L4 diesel engine with 74 hp and 221 lb-ft of torque.
  • Hydrostatic transmission with 1 forward speed and 1 reverse speed.
  • Full-time planetary 4-wheel drive with oscillating rear axle and Stabil-Trak system.
  • Operator-selectable 4-wheel circle, 4-wheel crab, and 2-wheel front steering modes.
  • 10 degrees of frame leveling.
  • Adjustable suspension seat with retractable seat belt, integrated armrest, rear view mirrors, and single joystick controls.
  • Certified ROPS/FOPS structure and high-visibility seatbelt.
  • ClearSky Smart Fleet hardware and LED Motion/Amber Beacon.
  • Large LCD display for diagnostics, fuel gauge, hourmeter, temperature gauge, speedometer, and tachometer.
  • Enclosed cab, air conditioning, Arctic Package, and fenders.
  • Load Stability Indication and Seatbelt Engagement and Operator Presence systems.
  • Multi-reverse camera system and reverse sensing system.
  • Road lights, work lights, and white noise back-up alarm.
  • Air shut-off valve.
  • Foam-filled, solid, turf, pneumatic non-marking, foam-filled non-marking, and 15.5-25 pneumatic tire options.
  • Adjustable suspension seat supports operator comfort during daily use.
  • Integrated armrest and single joystick controls keep key machine functions within easy reach.
  • Electric-over-hydraulic joystick supports multifunction operation.
  • Rear view mirrors and available multi-reverse camera system support visibility around the machine.
  • Hydrostatic transmission helps simplify machine operation.
  • Certified ROPS/FOPS structure.
  • Stabil-Trak system supports machine stability during operation.
  • High-visibility seatbelt and retractable seat belt are included.
  • Available Load Stability Indication helps operators monitor load stability conditions.
  • Available Seatbelt Engagement and Operator Presence system supports proper operator positioning before machine operation.
  • Hydraulically actuated inboard wet disc brakes include an inching feature.
  • Load holding valves are included on frame level, attachment tilt, extend, and lift cylinders.
  • 8,000-lb rated capacity for jobsite material handling.
  • 6,000-lb capacity at maximum lift height and 1,600-lb capacity at maximum reach.
  • 42-ft 4-in maximum lift height and 29-ft 6-in maximum forward reach.
  • 15 mph top travel speed.
  • 12-ft 10-in outside turning radius.
  • 15,062-lb loaded drawbar pull.
  • 21.1 gpm maximum auxiliary flow to the boom head.
  • Advanced control system and large LCD display provide improved diagnostics.
  • Fuel gauge, hourmeter, temperature gauge, speedometer, and tachometer help operators monitor machine status.
  • Gear pump and load-sensitive hydraulic system support implement operation.
  • Auxiliary hydraulics support attachments equipped with cylinders or other hydraulic components.
  • Warranty coverage includes one full year on the machine, two years or 2,000 hours on the drivetrain, and five years on specified major structural components.
  • General construction jobsites that need lift height, reach, and heavier load capacity.
  • Framing, truss setting, and post-frame building applications supported by truss boom and fork-mounted extendable truss attachments.
  • Masonry and block handling supported by cubing forks and pallet fork options.
  • Jobsite cleanup and material placement supported by material bucket attachments.
  • General material handling applications using carriages, forks, work platforms, and lifting hooks.
