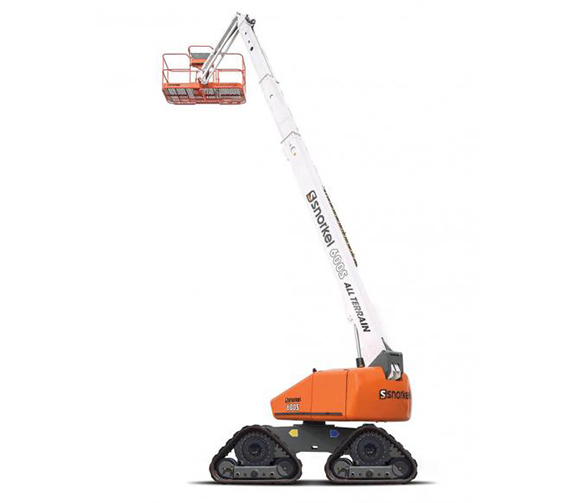

Snorkel 600S Mid-Size Tracked Telescopic Boom Lift

  • 60 ft. 8 in. Platform Height
  • 1,000 lbs. Capacity (SWL) (restricted)
  • 52 ft. 7in. Max Horizontal Reach
  • 28,659 lbs. Machine Weight
Request a Quote

Documents

Product Documents

The Snorkel 600S All-Terrain telescopic boom lift is equipped with four independent rubber tracks, making it ideal for soft and sensitive environments. Its design ensures excellent maneuverability without sinking or damaging the ground. Powered by a high-torque hydraulic pump, this boom lift delivers exceptional gradeability, effortlessly climbing gradients of up to 45%, making it a reliable solution for challenging terrains and demanding jobsites.

Model Number: 600S-ALL-TERRAIN

Additional Information

Brand

Snorkel
Condition

New
Power

Engine
Working Height

60 – 69 ft.
MEWP Type

Boom Lift, Telescopic
  • Rugged tracked telescopic boom lift for rough terrain applications
  • Powerful 4-track drive with independent rubber tracks for superior traction
  • Oscillating axle for enhanced stability on uneven surfaces
  • Dual envelope system for maximum lift capacities
  • Exceptional working envelope for versatile applications
  • Snorkel Guard™ secondary guarding system
  • Hydraulic platform rotation
  • Hydraulic oil cooler for efficient performance
  • Platform overload system
  • Oscillating axle with 8 inches of oscillation
  • 4-track drive for all-terrain capability
  • Swing-out engine tray for easy maintenance
  • Proportional controls for smooth operation
  • Power line to platform
  • 5° tilt alarm with cut-out system
  • Hour meter and on-board diagnostics display
  • DC emergency operation
  • Tri-entry platform for flexible access
  • Flashing amber light for improved visibility
  • 2-year parts & labor, 5-year structural warranty
  • ANSI compliant
  • Special paint colors
  • Airline to platform
  • AC generator 110V/220V 2kW
  • Aircraft and deluxe aircraft packages
  • Cold weather and extreme cold weather packages
  • Extreme environment package
  • Glazier package
  • Light package
  • 7.5kW generator and generator/welder packages
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Tri-entry platform for convenient access
  • Proportional controls for smooth and precise operation
  • Swing-out engine tray for simplified servicing
  • Snorkel Guard™ secondary guarding system for operator protection
  • 5° tilt alarm with cut-out system for added stability
  • Platform overload system for safe operation
  • ANSI compliant for secure use
  • Max working height: 66 ft 8 in
  • Max platform height: 60 ft 8 in
  • Max horizontal reach: 52 ft 7 in
  • Platform capacity (restricted): 1,000 lbs
  • Platform capacity (unrestricted): 600 lbs
  • Gradeability: 45%
  • Max drive speed (stowed): 3.5 mph
  • Max drive speed (elevated): 0.6 mph
  • Raise/lower time: 50/50 seconds
  • Swing-out engine tray for quick and easy maintenance
  • Durable components for reduced service frequency
  • Hour meter and on-board diagnostics display for efficient maintenance tracking
  • Construction
  • Industrial applications
  • Maintenance
  • Utilities
