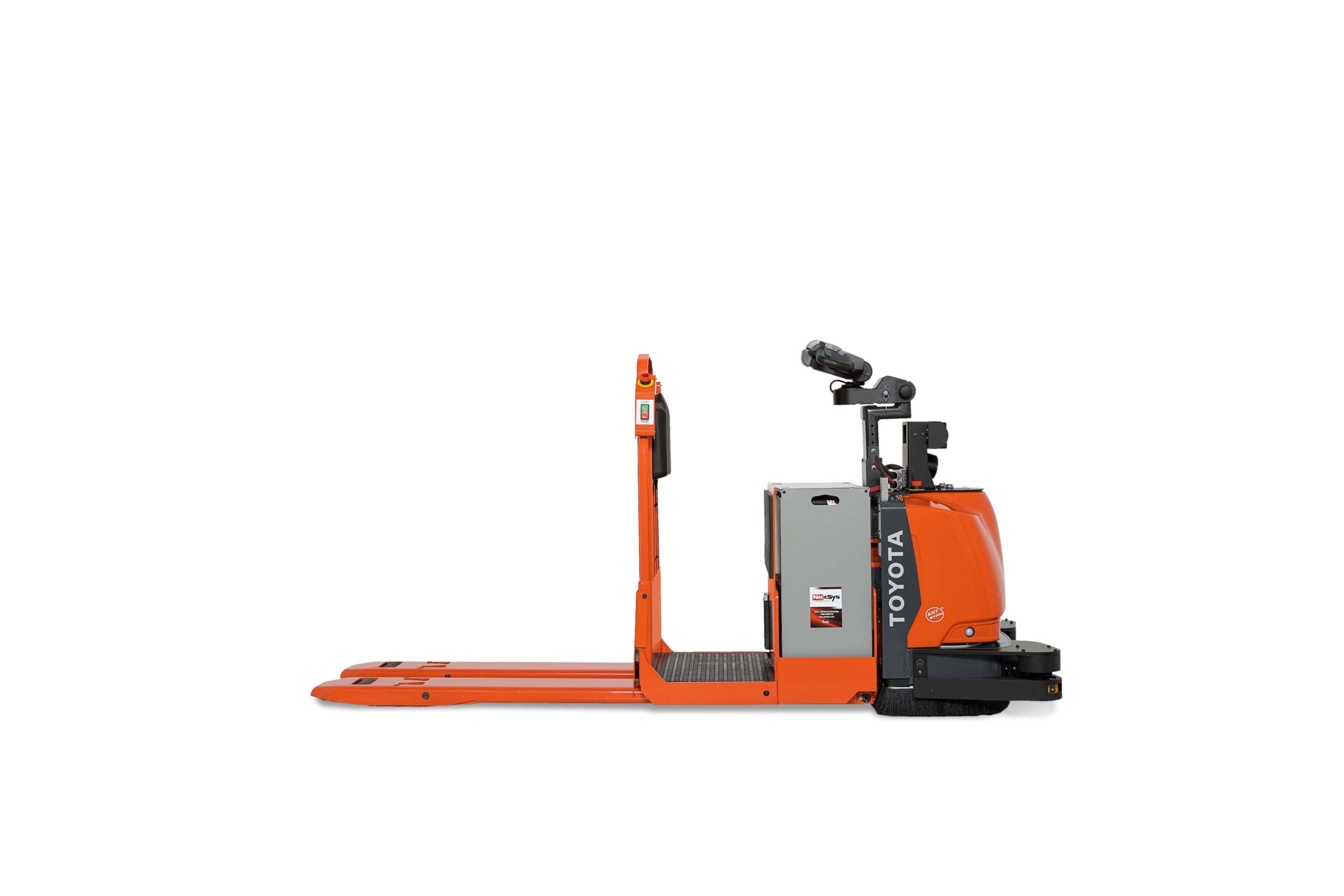

Toyota Center-Controlled Rider Automated Guided Forklift

Center-Controlled-Rider-AGV_Application_1

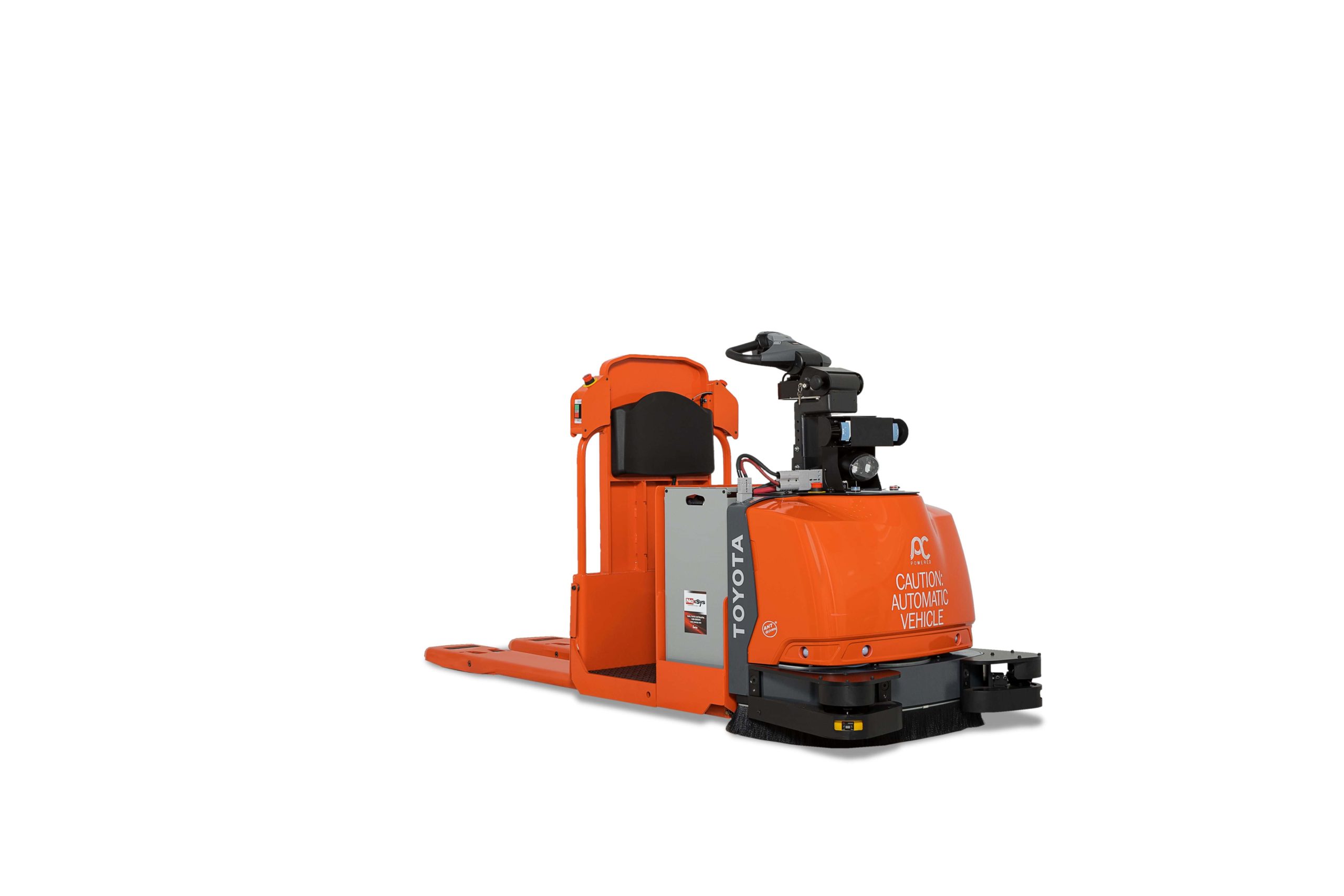

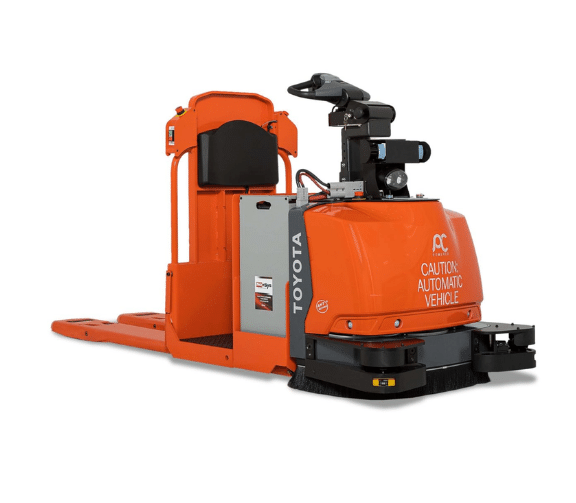

Toyota Center-Controlled Rider Automated Guided Forklift

Natural Features Navigation (LIDAR)
Up to 7,000 lb. Lifting Capacity
Little to No Infrastructure Required
Tight Turning Radius

Documents

Product Documents

Product Videos

Financing Information

Built on a base of the reliable Toyota Center-Controlled Rider Pallet Jack, the innovative Toyota Center-Controlled Rider Automated Forklift uses advanced technology in environmental detection to automate repetitive tasks in your warehouse. Utilizing advanced sensors for cutting-edge, mapped-object detection, it merges the legendary dependability of Toyota warehouse equipment with the latest in automation advancement – to lower your costs and streamline your operation.

Model Numbers: 8HBC40A

Additional Information

Brand	Toyota
Forklift Type	AGV
Condition	New
Forklift Capacity	5,001 – 8,000 lbs
Fuel Type	Electric/Battery, 24 Volt

Natural features navigation
Velocity drive LIDAR safety field
Dual LIDAR scanners
Cantilevered load detection
Complete traffic control
Fork tip sensors
Load detection on forks
LCD system display
BlueBotics controller

Multifunction control handle with ergonomically angled handgrips & wrap-around hand guard
Dual thumbwheels with twist grips for directional control & travel speed
Intuitively positioned lift/lower buttons
Horn button
High-speed interlock button
Bubble-cushioned operator floor mat, padded backrest & knee pad
Walk-through operator compartment
Low platform step height
Low-effort power steering with adjustable height control handle

AC drive motor with thermal protection & current limiting
24-Volt electrical system
Fault code memory with hour
meter reading
Regenerative braking
Programmable performance with adjustable maximum speed and acceleration
On/off key switch
Lift limit switch
Multiple hour meter indicator
Battery discharge indicator
Fused control & power circuits
Hydraulic overload protection valve
Dual 1.25 inch diameter lift cylinders

AC drive motor (no brushes or commutator)
One-piece, lightweight service access cover
Teflon coated Polylube™ lift linkage bushings (maintenance free)
Error indicator with self-diagnostics
Self-adjusting electric disc brake

Control Area Network (CAN-bus) communications
Welded construction with reinforced heavy-duty bumper
Powder coat paint finish
Box rail fork construction
Steel bulkhead wrappers
Forged rectangular steel tension rods
Heavy-duty bushings and pins
Solid rail fork casting
Tapered fork tips with pallet entry slides
Four-point lift linkage
High-strength polymer service cover
Poly drive tire
Polyurethane rear wheels (durometer 95)
Hall-effect switches
Load backrest extension (48 inch)

31.5″-long x 13.44″-wide battery compartment
SB-175 battery connector (gray)
Wrap-around hand guard
Control handle with dual brake levers
Heavy-duty spring-loaded stabilizing casters
Electronic horn
Forward-facing blue light
LED system indicators

General manufacturing
General warehousing
Cold storage
Distribution
Factory
Food storage
