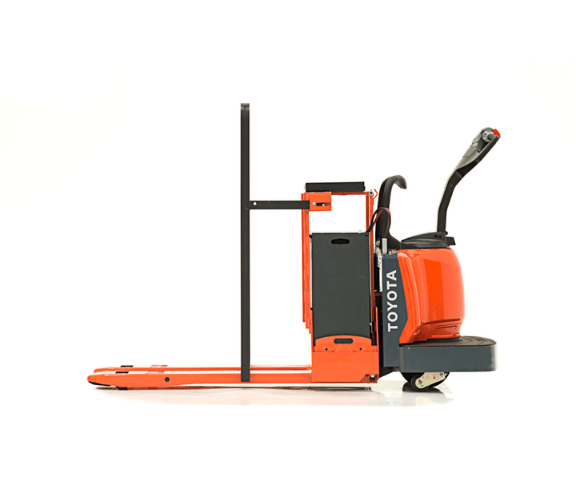

Toyota End-Controlled Rider Pallet Jack Studio 1

Toyota End-Controlled Rider Pallet Jack Studio 2

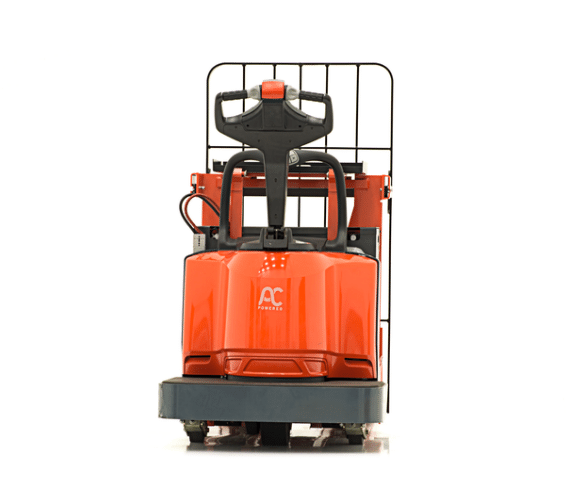

Toyota End-Controlled Rider Pallet Jack Studio 3

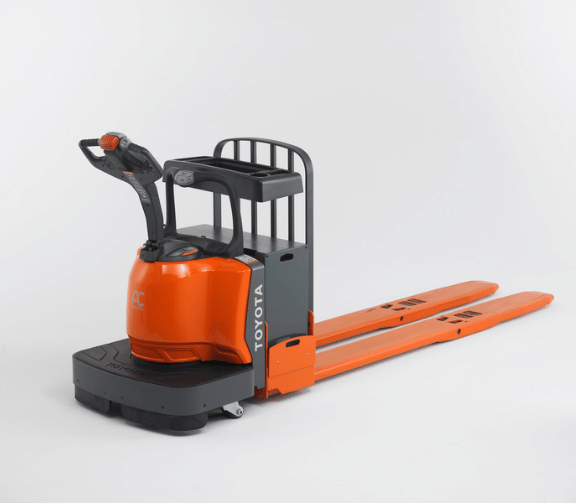

Toyota End-Controlled Rider Pallet Jack Studio 4

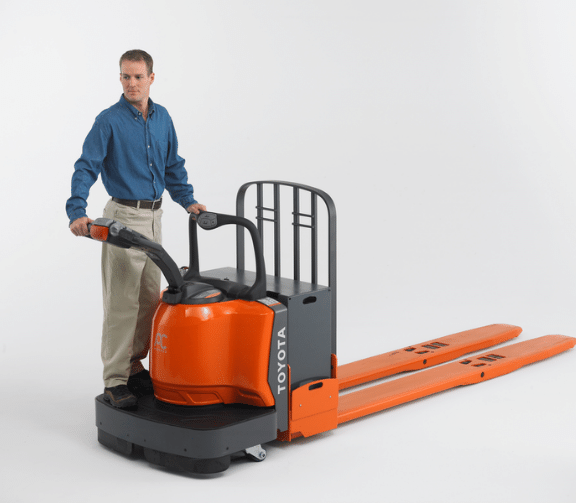

Toyota End-Controlled Rider Pallet Jack Studio 5

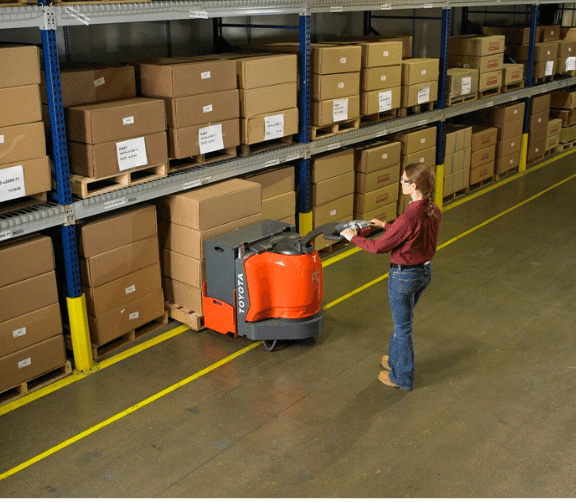

Toyota End-Controlled Rider Pallet Jack Application 3

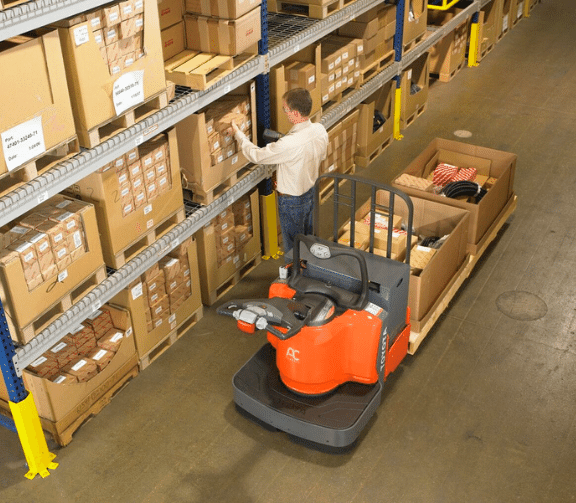

Toyota End-Controlled Rider Pallet Jack Application 4

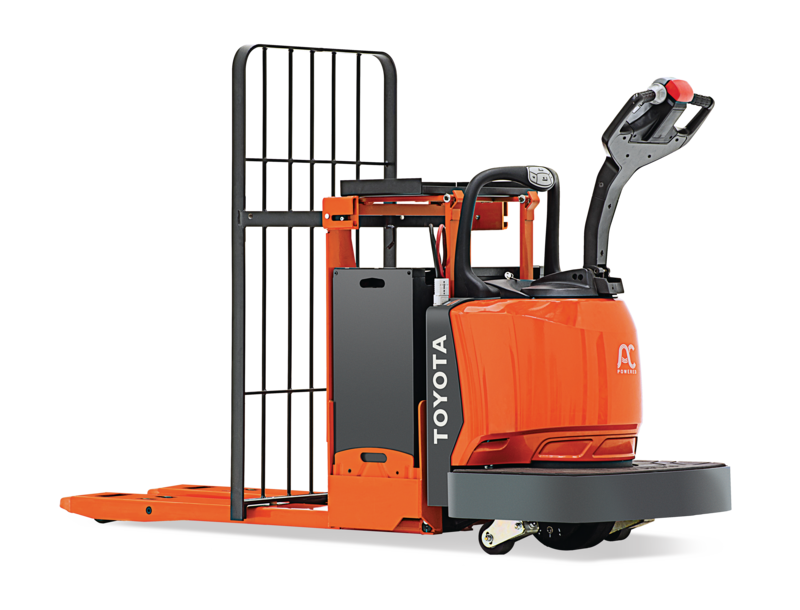

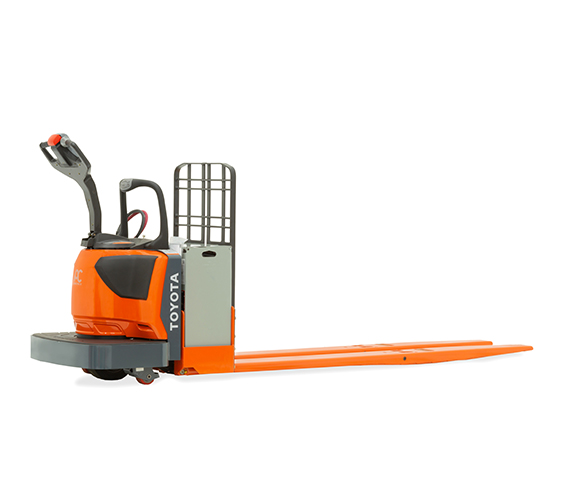

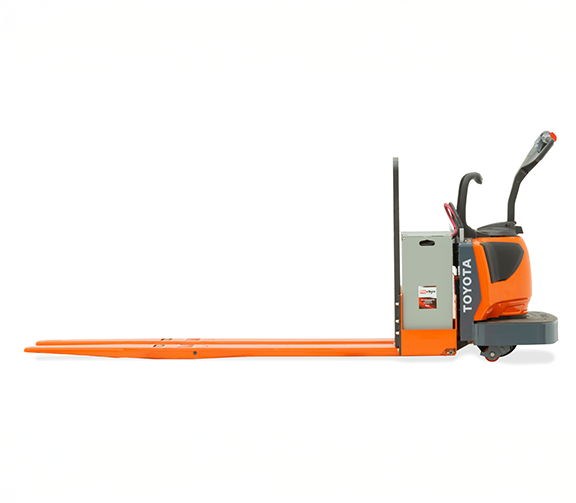

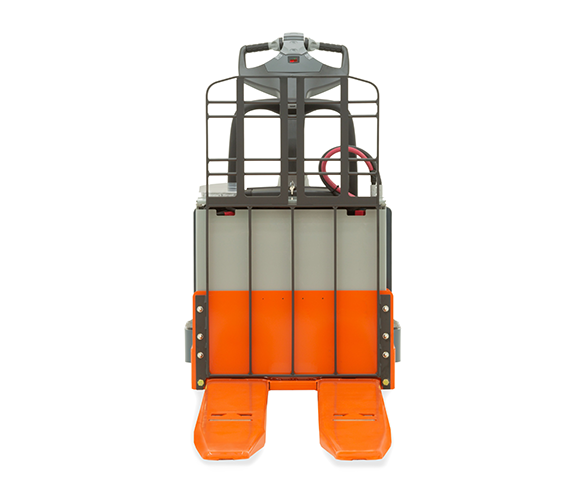

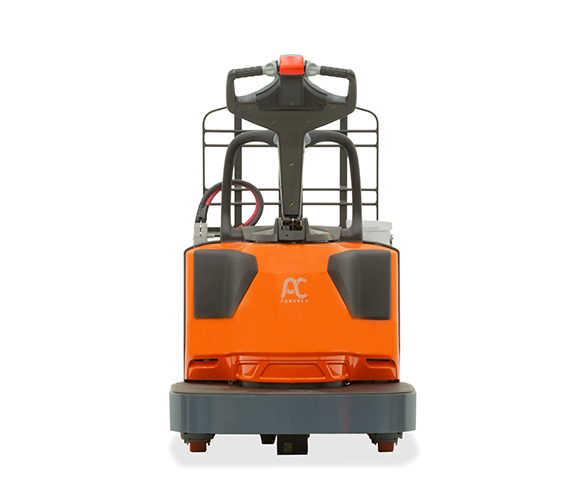

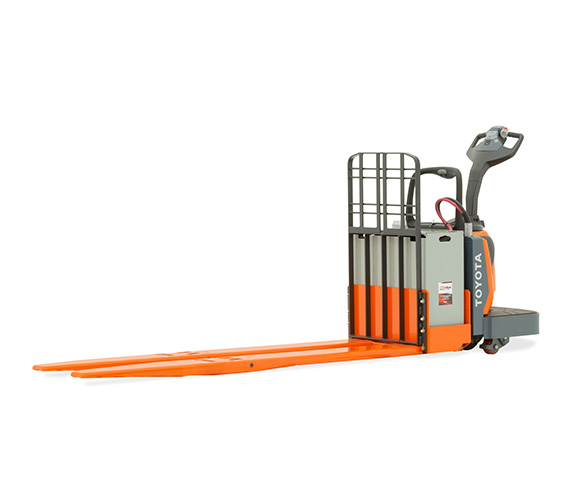

Toyota End-Controlled Rider Pallet Jack

6,000 – 8,000 lb. Capacity
Electronic Coast Control Option
144 in. Fork Option
Cold Conditioning Package Option

Documents

Product Documents

Product Videos

Financing Information

Product Description

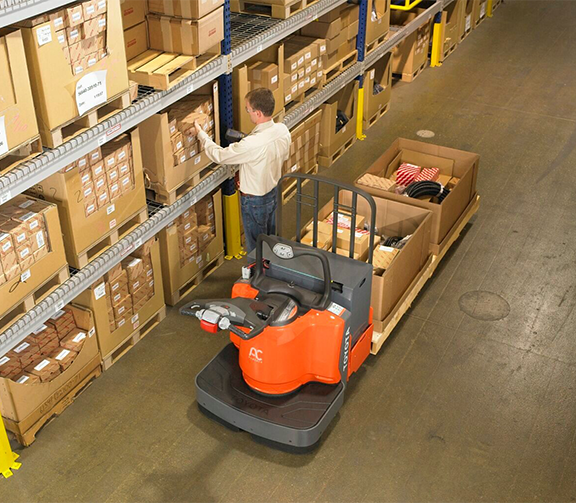

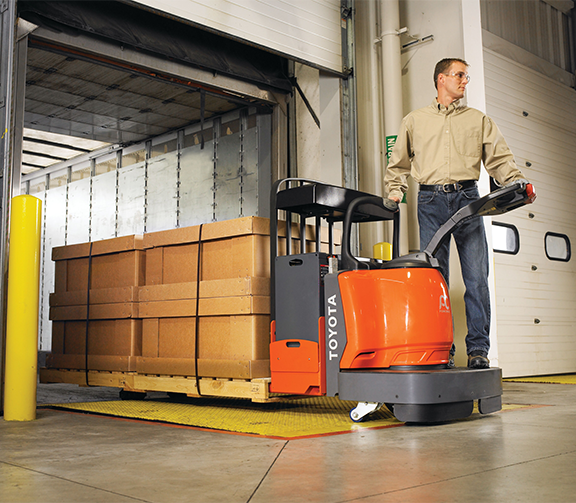

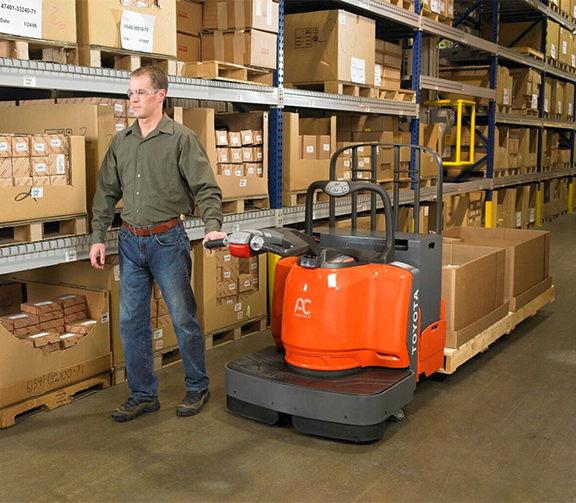

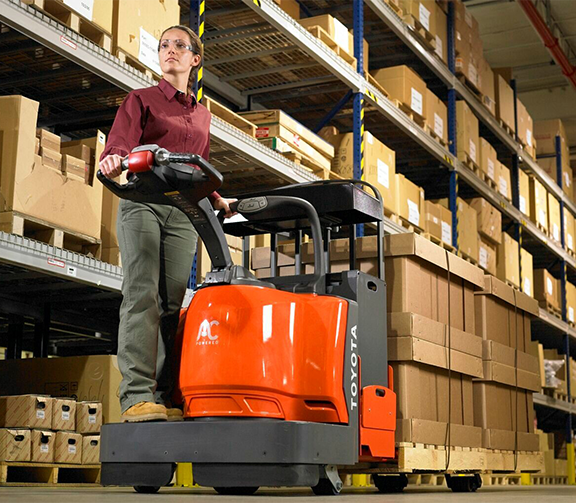

From one end of the warehouse to the other, it delivers. Maneuvering loads easily, making long runs efficiently. The Toyota End-Controlled Rider Pallet Jack also handles multiple stops comfortably. The key? Locating the operator platform at the end of the pallet jack, for easier entry and exit – a benefit that helps the End-Controlled Rider excel as a low-level order picker, too. Good, delivered. Productivity, boosted.

The cushioned stability handrail on Toyota’s rider pallet jack offers convenient control during high-speed travel. While the low step height eases frequent entry and exit during floor-level order picking for reduced operator fatigue. Electronic Coast Control and Cold Conditioning Package options are available with this riding pallet jack.

Model Numbers: 8HBE30

Equipment Details

Forklift Type	Electric Pallet Jacks & Stackers
Brand	Toyota
Capacity	6,000 lbs., 7,000 lbs., 8,000 lbs.
Condition	New
Fuel Type	Electric/Battery, 24 Volt

Multi-function control handle with ergonomically positioned handgrips; dual thumbwheels; and lift, lower and horn buttons for simplified operation of all controls with either hand
High-speed interlock to maintain top travel speed for long-distance transport without continuously pressing a button
Solid steel pull rods add strength throughout the entire length of forks, and are much less likely to bend or flex than push rods, resulting in less maintenance
Dual lift cylinders provide efficient hydraulic power for smooth, effortless lifting to reduce component wear
Self-diagnostics simplify troubleshooting and eliminate the need for an external hand-held analyzer
Glance and go display provides a quick summary of key information
Cushioned stability handrail offers convenient control during high-speed travel
Electronic coast control option augments productivity by eliminating the need for operator to climb on and off during floor-level order picking
Low step height eases frequent entry and exit during floor-level order picking for reduced operator fatigue
Cold conditioning package option includes cold storage-specific oil, greaseable steer bearing and linkage bushings, and stainless steel linkage pins for use in cold storage environments

Multifunction control handle with ergonomically angled handgrips & wrap-around hand guard
Soft-cushioned rider platform
Low platform step height
Dual thumbwheels with twist grips for directional control & travel speed
Intuitively positioned lift/lower buttons
Curvilinear handrail with push buttons for lift, lower, horn & high-speed functions
Low-effort control handle
High-speed interlock button

AC drive motor with thermal protection & current limiting
24-Volt electrical system
6” lift
Fault code memory with hour meter reading
Regenerative braking
Programmable performance
Adjustable maximum speed
Adjustable acceleration
On/off key switch
Lift limit switch
Multiple hour meter indicator
Battery discharge indicator with lift interrupt
Fused control & power circuits
Hydraulic overload protection valve
Dual 1.25”-diameter lift cylinders
Drive-thru freezer curtain feature
Polyurethane torsion block stabilizing casters
Heavy-duty spring-loaded stabilizing casters

Control Area Network (CAN-bus) communications
Welded construction with reinforced heavy-duty bumper
Powder coat paint finish
Box rail fork construction
Steel gussets reinforced rider platform
Steel bulkhead wrappers
Forged rectangular steel torsion rods
Heavy-duty bushings & pins
Solid trail fork casting
Tapered fork tips with pallet entry slides
Four-point lift linkage
High-strength polymer service cover
Rubber drive tire
Hall-effect switches

AC drive motor (no brushes or commutator)
One-piece, lightweight service access cover
Error indicator with self-diagnostics
Self-adjusting electric disc brake
Teflon®-coated Polylube™ lift linkage bushing (maintenance free)

Stability handrail with lift, lower, horn & high-speed functions
Wrap-around hand guard
Spring loaded control handle
Runaway protection
Electronic horn
Directional reverse switch on control handle

Retail
Cold Storage
Beverage
General Warehousing
Food Storage
