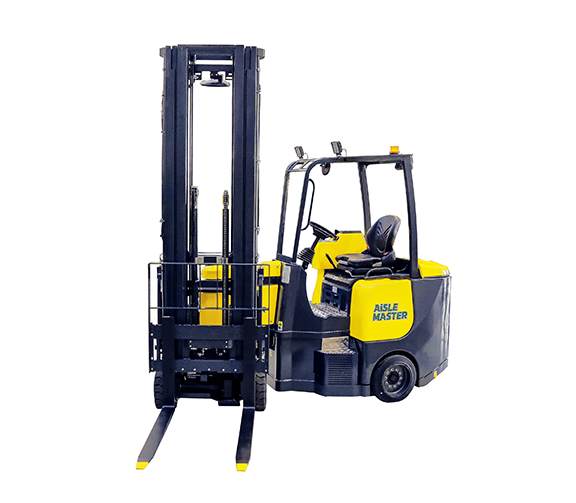

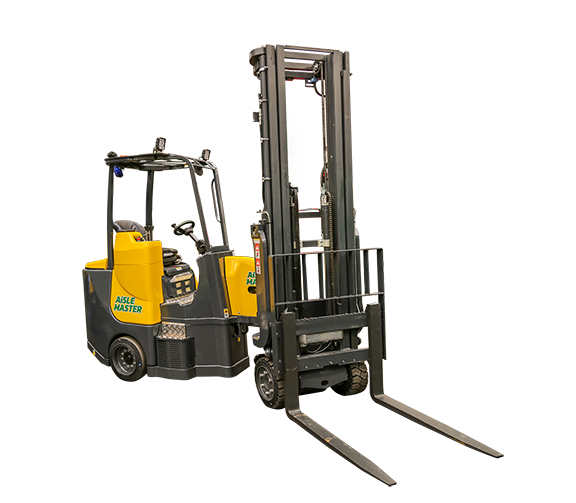

Combilift - Aisle Master - Articulated Narrow Aisle Forklift - Cut Out Image (1)_resize

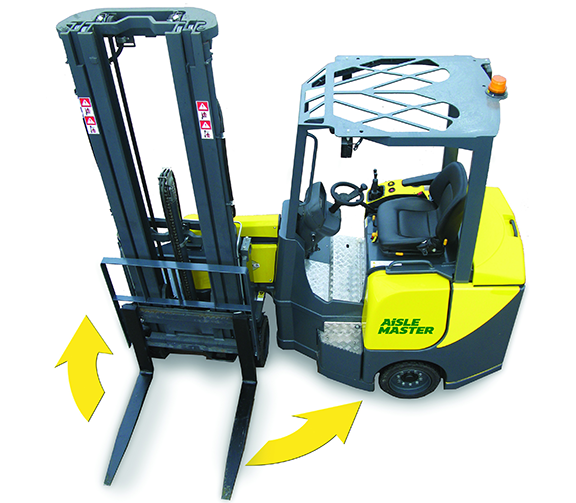

Combilift - Aisle Master - Articulated Narrow Aisle Forklift - Cut Out Image

Combilift - Aisle Master - Articulated Narrow Aisle Forklift

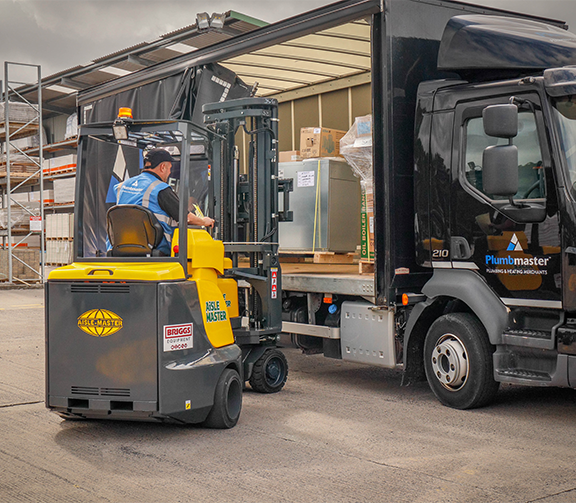

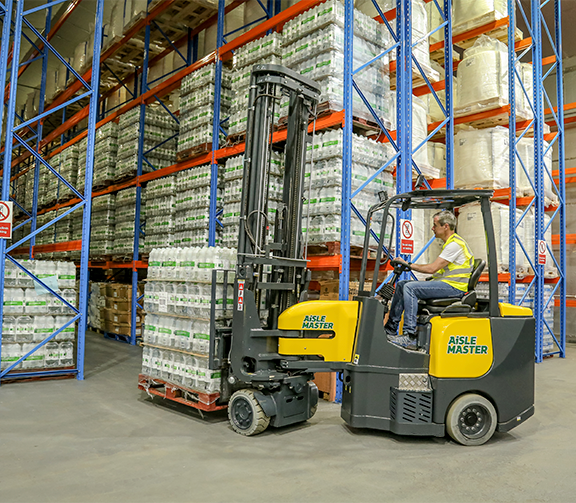

Combilift - Aisle Master - Loading Truck

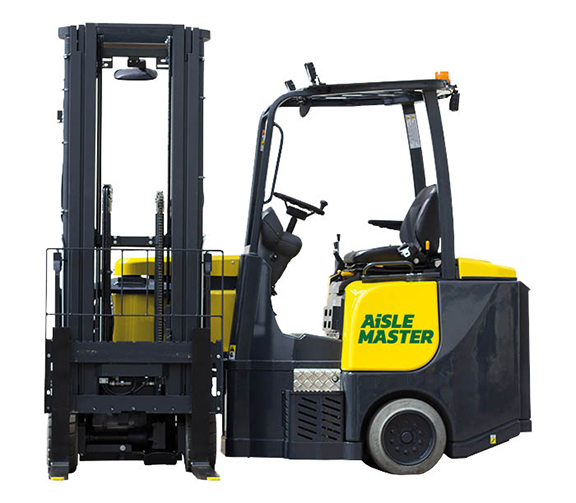

Aisle-Master Forklift

3,300 – 6,600 lb. Lift Capacity
Electric or LPG Power Options
11,350 – 15,650 lbs. Machine Weight
Up to 10 mph Travel Speed
66 in. Minimum Aisle Width

Documents

Product Documents

Videos

Financing Information

Forklift Leasing: The Ultimate Guide

Forklift Information

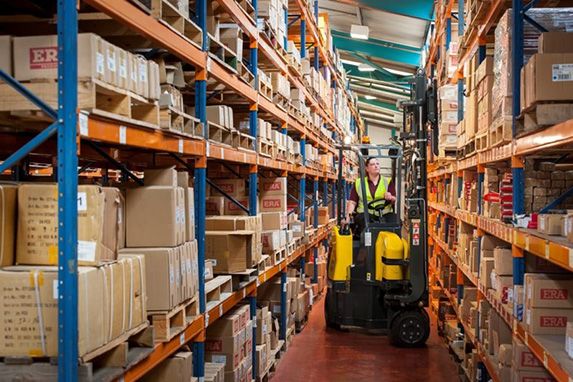

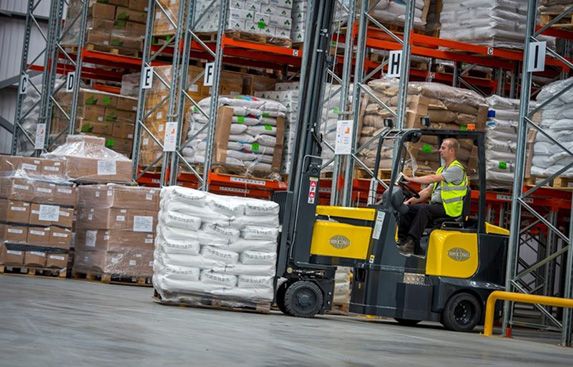

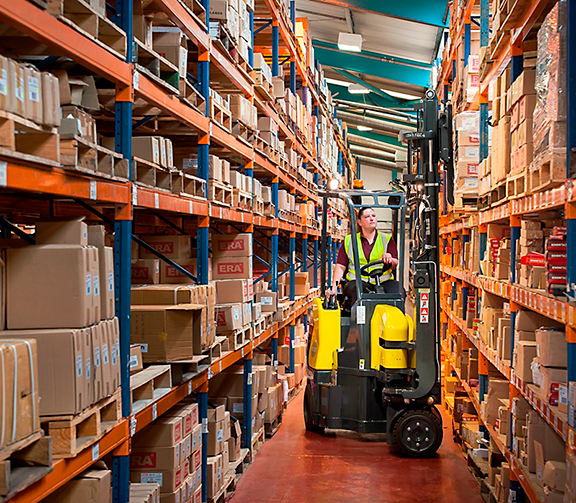

Streamline your warehouse operations with the Aisle Master articulated forklift, a versatile solution designed to navigate aisles as narrow as 5’6″ while lifting up to 49 feet. This all-in-one lift truck replaces both reach and counterbalance models, reducing fleet size and increasing storage capacity by up to 50%.

Whether you choose electric or LPG power, you’ll benefit from smooth operation, ergonomic controls, and dependable performance indoors and out. Its robust design ensures durability in tough environments, while features like AC drive technology, hydraulic fork positioning, and dual-entry access on order picking models improve operator comfort and productivity. Backed by our expert support as your local dealer, the Aisle Master delivers big gains in efficiency without the complexity.

Model Numbers: AC Electric, AME-OP, LPG, Cold Store

Additional Information

Forklift Type	Narrow Aisle Forklifts
Fuel Type	Electric/Battery, LPG

Operates in very narrow aisles down to 5’6″, increasing storage capacity by up to 50%.
Articulated design replaces reach and counterbalance forklifts, reducing fleet size.
Indoor and outdoor use with large rubber tires for smooth travel on rough terrain.
Electric and LPG options available to meet emission and performance needs.
Free warehouse planning service with CAD layouts and density calculations.

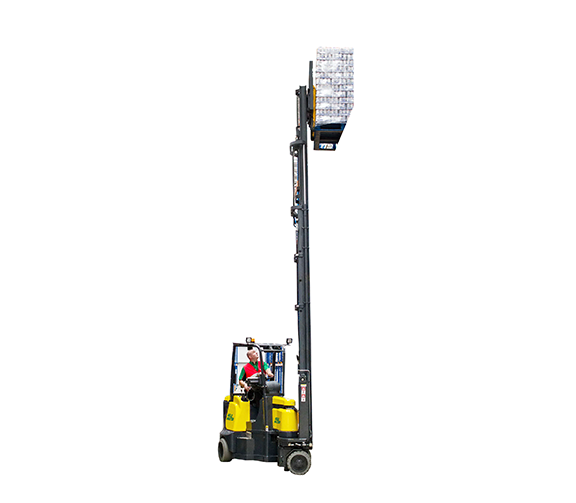

Up to 49 ft lift height available (electric and LPG).
Robust design built for heavy-duty use and long lifespan.
5-year or 5,000-hour parts warranty ensures low total cost of ownership.

AC electric technology standard on all electric models for better acceleration and fewer wear parts.
Closed loop fuel system on LPG models for cleaner emissions and fuel economy.
Joystick mast and traction controls on AME-OP (Order Picker).
Hydraulic steering and spring-applied parking brake (AME-OP).
205° articulation for excellent maneuverability (AME-OP).
Lift speeds: up to 98.5 ft/min unladen and 78.75 ft/min laden.
Battery options: 620, 775, and 930Ah with 48V systems (electric models).

Integral hydraulic fork positioner for easier handling of variable pallet sizes.
Customizable mast heights from 164″ to 591″.
Available in various chassis widths and fork lengths based on user needs.

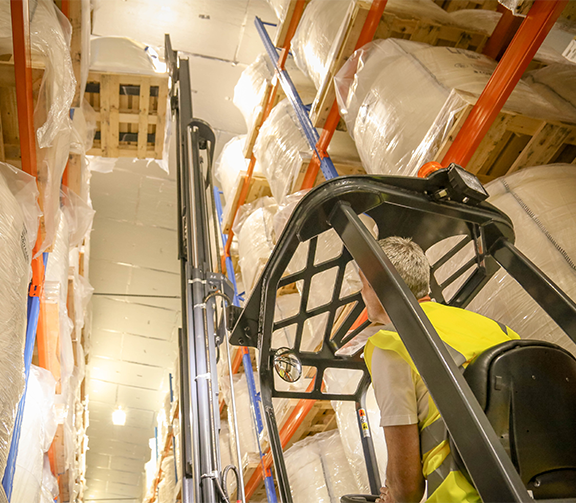

Ergonomically designed cab with enhanced visibility and operator comfort.
Joystick controls reduce driver fatigue and improve ease of use.
Dual-side entry/exit for order picking (AME-OP model).
Standard KAB seat for operator comfort.

Smooth mast operation and superior stability at height.
Fork positioner minimizes need for manual adjustments, reducing strain.
Spring-applied parking brake enhances stopping security.

Electric models reach ground speeds up to 10 mph; LPG up to 7 mph.
High load capacity up to 6,600 lbs (varies by model).
Electric motor (19.5 kW) for powerful acceleration and gradability.
LPG models feature a 3.0L GM water-cooled engine for continuous operation.
Articulated steering allows operation in tight warehouse configurations.

Quick and easy battery removal on electric models.
Engine bay cooling system in LPG model increases reliability and uptime.
Factory-trained service technicians and tailored maintenance packages.
Direct access to Combilift support for technical backup.

Warehousing and distribution centers.
Retail and large-format stores.
Cold storage and refrigerated warehousing (Cold Store model with heated cab and anti-corrosion coatings).
Manufacturing and lean-managed facilities.
General material handling across logistics sectors.
