Cascade 10H Paper Roll Clamp

  • 1,875 – 2,425 lb. Capacity
  • II Mounting Class
  • 8 – 60 in. Roll Range
  • 30 – 36.3 in. Arm Length
Request a Quote

Documents

Product Documents

Videos

Attachment Resources

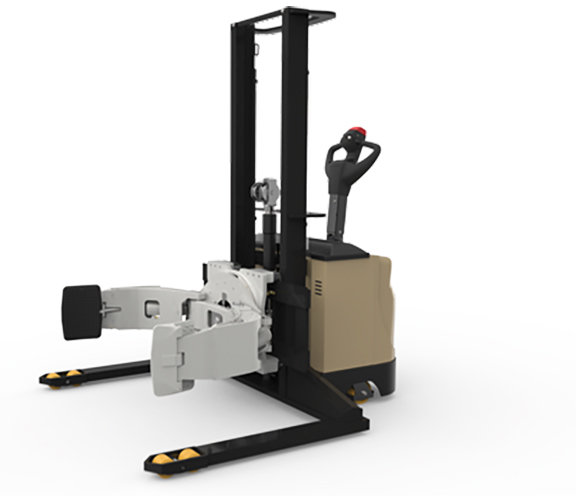

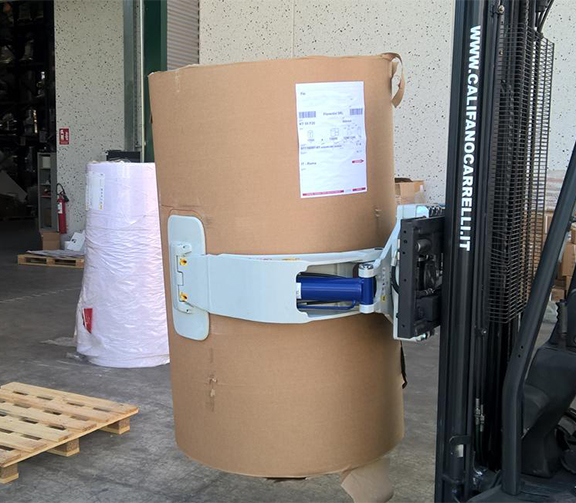

The Cascade 10H Paper Roll Clamp is a lightweight, versatile solution tailored for small printers, fabric converters, and specialty paper applications. With a design that maximizes capacity on walkie and stand-up trucks, this clamp ensures efficient handling in tight spaces. Additionally, it’s ideal for managing tires on small lift trucks used in the aircraft industry.

Model Number: 10H-RCP-A000 | 10H-RCP-A001 | 10H-RCP-A003 | 10H-RCP-A005 | 10H-RCP-A007 | 10H-RCF-A000 | 10H-RCF-A001 | 10H-RCF-A003 | 10H-RCF-A005 | 10H-RCF-A007

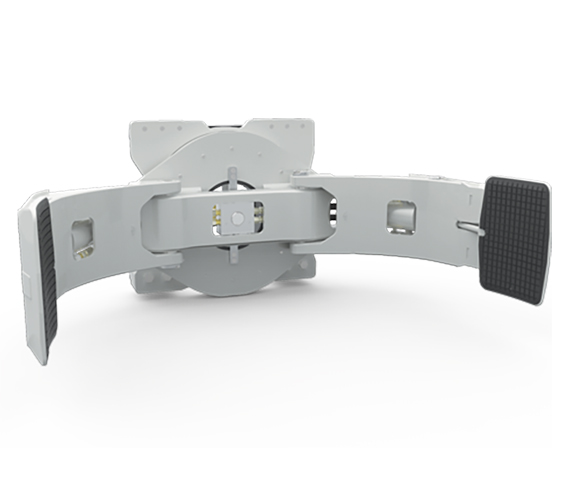

  • Very thin arm profile and smooth-arm contour eases roll breakout and permits close stacking

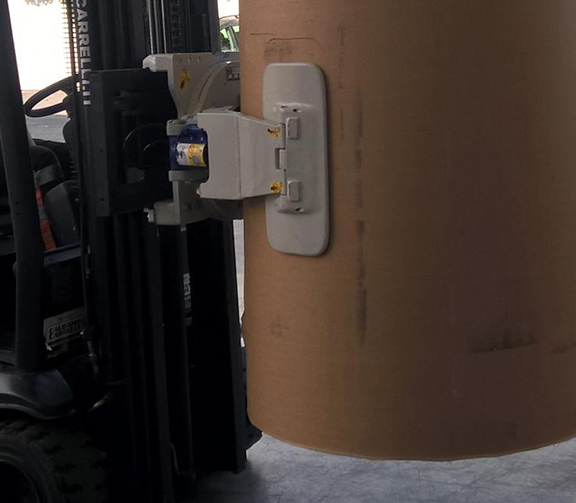

  • Proven contact pad shape and surface holds rolls securely
  • Positioned Short Arm maintains thin-arm profile over a wide range of roll diameters
  • Excellent visibility over and around clamp
  • Handles rolls against the bumper up to 100 mm less than maximum diameter for faster handling
  • Continuous 360° rotation
  • Optimized frame size for small loads and to maximize capacity on small lift trucks
  • Unitized construction provides structural integrity in arms and frame
  • Proven durable rotator drive train
  • Lube-free pivot bushings provide excellent service life
  • Large pivot pins for extended life

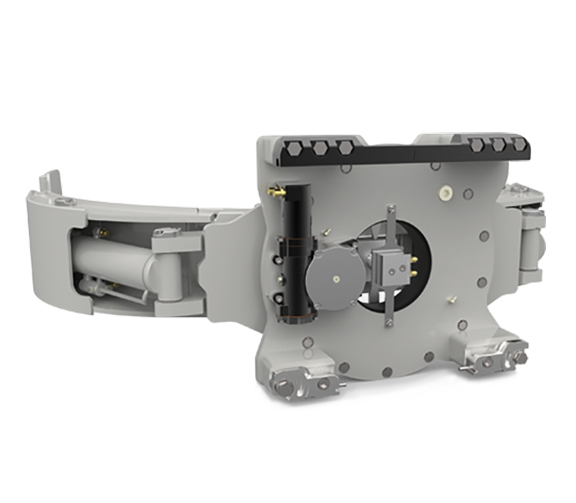

  • Relief valve to protect hydraulics system
  • Ultra compact frame
  • Durable rotator gear train
  • Dependable hydraulics leak resistant system
  • Proven 18 H arm design
  • Wide range of pad options available
  • Various contact pad surfaces and sizes
  • Pad protectors
  • Leg stands
  • Integral mounting
  • Integral sideshifting
  • Independent arm control
  • Various frame heights and pad gaps
  • Printing & Publishing
  • Textiles
  • Packaging

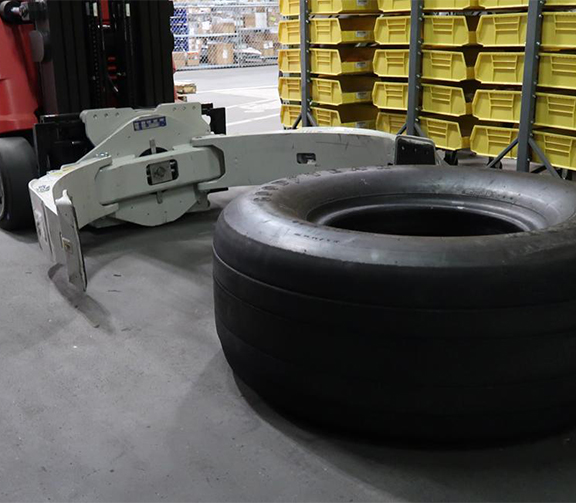

  • Tire Manufacturing & Aircraft Industry
  • Warehousing
