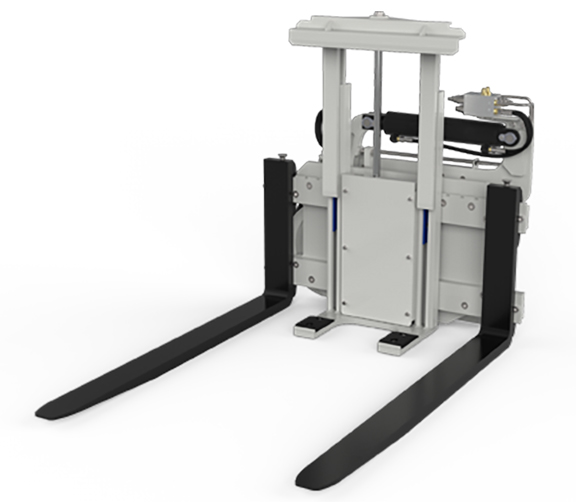

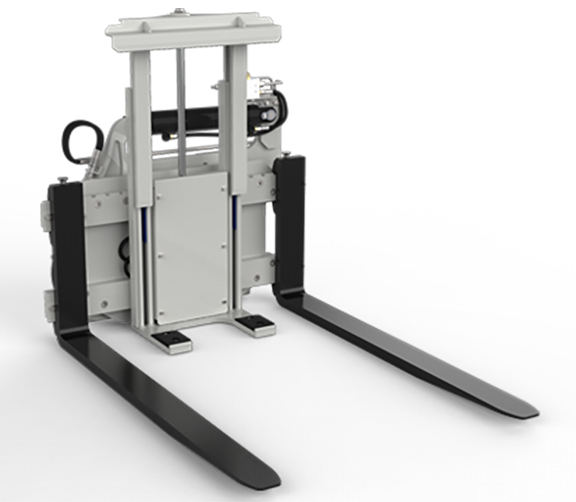

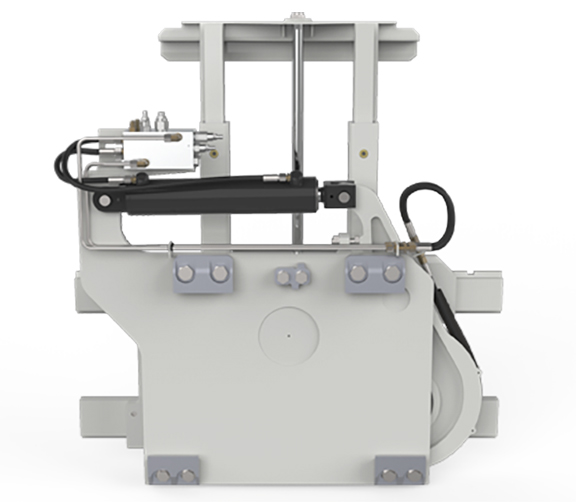

Cascade 20G Agricultural Rotator

  • Up to 3,700 lb. Capacity
  • II Mounting Class
  • 35.5 – 38.7 in. Overall Width
  • 30 – 48 in. Fork Length
Request a Quote

Documents

Product Documents

  • Cascade 20G Ag Rotator with Bin Hold Down Spec Sheet
  • Cascade 20G Installation & Periodic Maintenance Manual

Videos

  • Cascade's 20G Ag Rotator

Attachment Resources

  • Types of Forklift Attachments: A Complete Guide
  • Forklift Attachments and Customization: Enhancing Your Rental
  • Description
  • Advantages
  • Standard Features
  • Ergonomics
  • Industries
  • Safety
  • Performance
  • Ease of Service
  • Industries
  • Sales Terms & Conditions

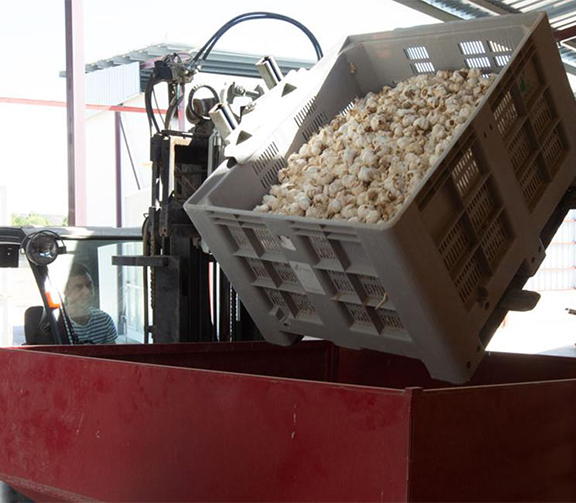

The Cascade 20G Agricultural Rotator is a forklift attachment designed for rotating, inverting, and dumping bins used in agricultural handling operations. With a rated capacity of up to 3,700 lbs., the 20G provides 180° rotation for emptying and repositioning compatible plastic, wooden, and metal bins during harvesting, processing, and material handling.

Designed for seasonal agricultural applications, the 20G features a compact frame, a cylinder-driven rotation mechanism, and a high-torque design that supports controlled load rotation. Available configurations include a hydraulically operated bin hold-down that secures the top of a compatible bin during rotation. Its open construction provides visibility through the attachment, while fork keepers and a center mounting hook support secure attachment positioning.

The 20G is available with or without the hydraulic bin hold-down, along with multiple fork lengths and widths to accommodate different applications. Optional small bin kits, Macro Bin Hold-Down attachments, and custom left-hand rotation configurations provide additional versatility for operations handling different container sizes and designs.

Model Numbers: 20G-RLH-2A | 20G-RRL-2A

  • Provides 180° rotation for efficiently dumping or inverting compatible agricultural bins without requiring a separate dumping station.
  • Designed for seasonal agricultural operations that need to handle and empty containers during harvesting and processing.
  • Available hydraulic bin hold-down helps retain compatible containers during rotation, supporting controlled dumping operations.
  • Accommodates plastic, wooden, and metal bins commonly used in agricultural material handling.
  • Compact construction supports applications where attachment size and weight are important equipment selection considerations.
  • Available fork lengths, fork spreads, and bin-retention options allow the attachment to be configured for different container sizes.
  • Optional Small Bin Kit and Macro Bin Hold-Down accommodate additional container styles without requiring a completely different attachment.
  • Rated capacity of up to 3,700 lbs. at a 24-inch load center with suitable fork configurations.
  • 180° rotation for dumping and inverting loads, with standard catalog models rotating to the right from the operator’s seated position.
  • Unique cylinder-driven rotation mechanism designed for seasonal agricultural applications.
  • High-torque design supporting smooth, positive load rotation.
  • Compact frame construction for handling agricultural bins and containers.
  • Class II mounting configuration.
  • Center mounting hook designed to provide attachment stability.
  • Fork keepers that help maintain secure fork positioning on the attachment.

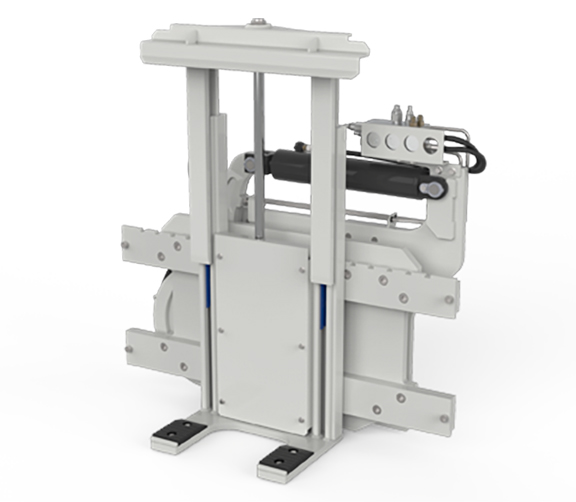

  • Available hydraulic bin hold-down configuration with an upper retainer for securing compatible bins during rotation.
  • Open construction on hydraulic hold-down models that supports visibility through the attachment.
  • Open construction on hydraulic bin hold-down models provides visibility through the attachment during bin engagement and positioning.
  • Hydraulic rotation allows operators to invert compatible bins using the forklift’s auxiliary hydraulic controls.
  • 180° rotation enables operators to dump a load and return the attachment to its pickup position without manually handling the container.
  • Cylinder-driven rotation mechanism provides smooth, controlled movement during dumping operations.
  • Available hydraulic bin hold-down allows operators to engage the bin retainer without manually securing the container.
  • Multiple fork lengths and spreads allow the attachment to be matched to different container dimensions and operating requirements.
  • Agriculture
  • Recycling & Waste Management
  • Manufacturing
  • Food Processing
  • Construction
  • Available hydraulically operated bin retainer helps secure compatible containers during rotation and dumping.
  • Center mounting hook supports stable positioning of the attachment on the forklift carriage.
  • Fork keepers help prevent forks from shifting out of their intended positions during attachment operation.
  • Open construction on hydraulic hold-down models helps operators maintain visibility during bin engagement and placement.
  • Optional Macro Bin Hold-Down provides additional side retention for compatible containers with curved or sloping fork pockets.
  • Available Small Bin Kit allows the bin retainer to be adapted for smaller containers that require additional support.
  • Application-specific configurations allow operators to use fork lengths and bin-retention arrangements suited to the intended container and load.
  • Rated Capacity: Up to 3,700 lbs. (1,700 kg) at a 24-inch load center, depending on the selected fork configuration.
  • Rotation: 180° rotation, with standard catalog models rotating to the right when viewed from the operator’s seated position.
  • Mounting Class: Class II.
  • Fork Lengths: Available 30, 36, 42, and 48-inch configurations, as well as versions supplied without forks.
  • Maximum Fork Spread: Available configurations with 32 or 37-inch outside-to-outside fork spacing.
  • Overall Width: 35.5–38.7 inches, depending on configuration.
  • Attachment Weight: 495–886 lbs., depending on the model, hydraulic bin hold-down, and fork configuration.
  • Hydraulic Bin Hold-Down: Available with a bin hook height adjustment range of 24.4–38.1 inches.
  • Rotator Drive: Cylinder-driven design providing smooth rotation and positive load positioning.
  • Hydraulic Requirements: Rotator circuit specifications include a recommended flow of 5 GPM, with additional hydraulic functionality required for standard hydraulic bin hold-down operation.
  • Available Configurations: Models with or without a hydraulic bin hold-down, plus optional left-hand rotation for custom applications.
  • Cylinder-driven rotation mechanism provides a dedicated hydraulic system for the attachment’s 180° dumping function.
  • Class II mounting supports installation on compatible forklift carriages.
  • Fork keepers provide a means of securing the forks to the attachment during operation.
  • Available configurations with or without the hydraulic bin hold-down allow the attachment to be specified according to operating and hydraulic requirements.
  • Optional hydraulic sequence-valve configuration allows the rotator and hydraulic bin hold-down to operate using a single auxiliary hydraulic function.
  • Cascade provides technical specifications and model-specific replacement parts information to support installation, maintenance, and service.
  • Agriculture: Rotating and dumping bins containing harvested produce and other agricultural materials during collection, sorting, and storage.
  • Food Processing: Emptying compatible containers used to transport produce and raw materials between receiving and processing operations.
  • Recycling & Waste Management: Inverting suitable collection bins to empty materials into designated receiving or processing areas.
  • Manufacturing: Handling and dumping compatible containers containing production materials or process byproducts.
  • Construction: Emptying suitable material collection bins in applications where the attachment and forklift are properly configured for the intended load.
