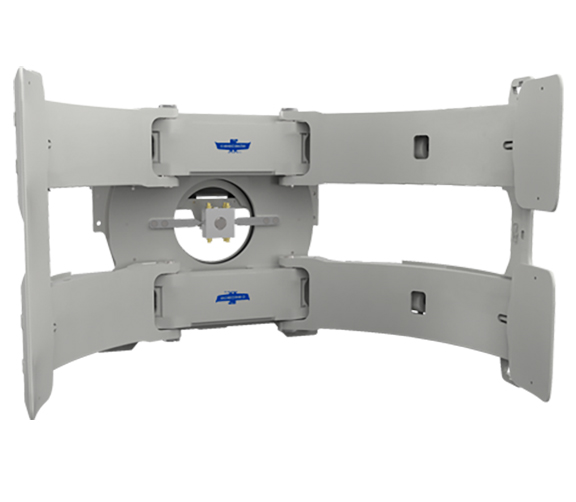

24H_PRC
24H-RCP_visibility
24H-RCP_pivotBushings

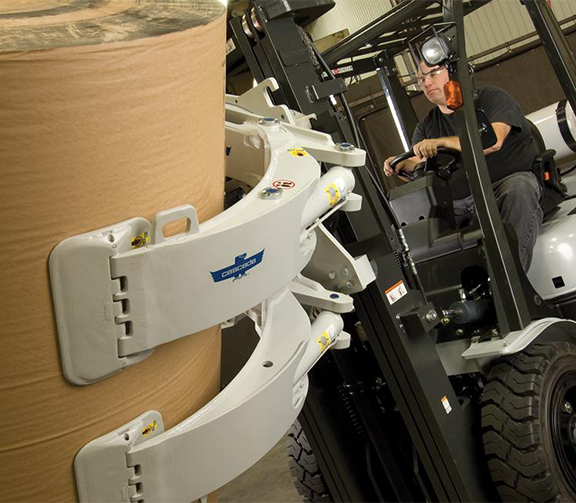

PRC_24H-App1

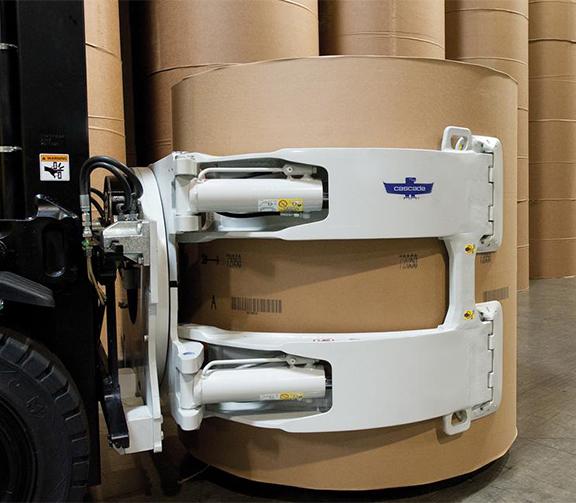

PRC_22H-App1

Cascade 22H & 24H Paper Roll Clamp

  • 3,950 – 5,300 lb. Capacity
  • II – III Mounting Class
  • 8 – 63 in. Roll Range
  • 1,202 – 1,608 lb. Attachment Weight
Request a Quote

Documents

Product Documents

Videos

The Cascade 22H & 24H Paper Roll Clamps are built for demanding operations in mills, warehouses, printers, newspaper publishers, and converters. Engineered to handle kraft, newsprint, and coated paper stocks with precision, these clamps provide exceptional performance and durability.

Ideal for high-cycle environments, the 22H & 24H models are trusted solutions for efficient and reliable paper roll handling.

Model Number: 22H-RCF | 22H-RDF | 22H-RCP | 22H-RDP | 24H-RCF | 24H-RDF | 24H-RCP | 24H-RDP

Reduced Roll Damage

  • Proven contact pad shape and surface holds rolls securely
  • Thin-arm profile and smooth-arm contour eases roll breakout and permits close stacking
  • Positioned Short Arm models maintain thin-arm profile over a wide range of roll diameters

Faster Roll Handling

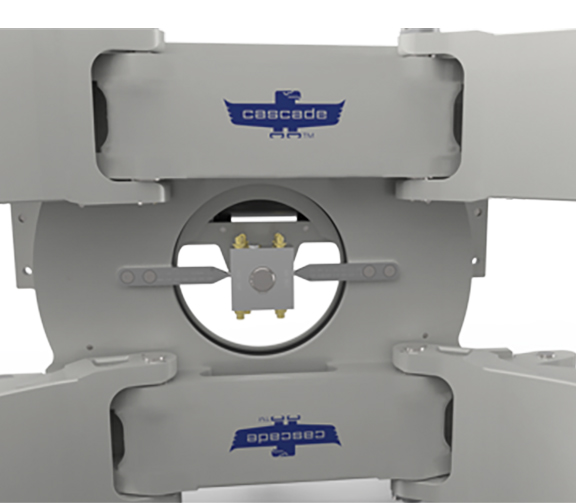

  • Excellent visibility through and around clamp
  • Continuous 360° rotation

Excellent Durability

  • Unitized construction in the arm and frame provide structural integrity and deliver outstanding durability
  • Proven strong rotator drive train

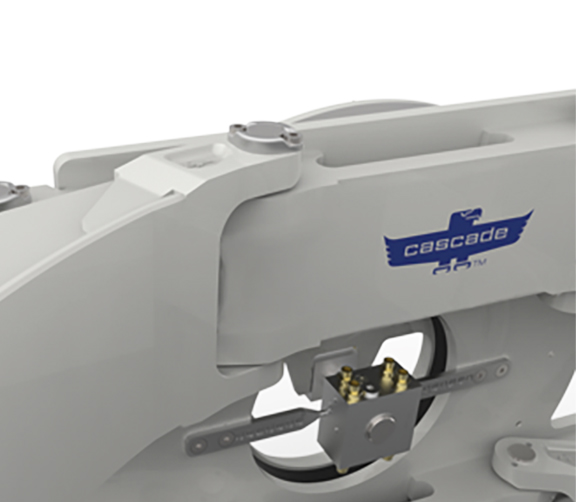

  • Pivot bushings are lube-free and provide superior service life
  • Proven contact pad shape and surface holds rolls securely
  • Excellent visibility around clamp
  • Durable and easily accessible revolving connection
  • Pad protectors guard the pads and clamp when on the ground
  • Thin arm profile for easy knifing in between tightly stacked rolls
  • Fixed Frame/Fixed Short Arm or Fixed Frame/Positioned Short Arm and Swing Frame models available
  • Split Long Arm—Recommended for improved stability when handling two individual rolls
  • AFC (Adaptive Force Control) for automatic control of clamping pressure that changes as roll weight changes
  • HFC (Hydraulic Force Control) a hydraulically controlled automatic clamp force system that changes clamp force proportional to the load weight
  • 180° mechanical stop group
  • Electronic Rotational Control for precise 180° and 90° (bilge) positioning
  • Wide variety of rubber, urethane and other pads available for improved handling of all paper types. Rubber or urethane pads are recommended for handling newsprint
  • Paper Mills
  • Warehousing
  • Printing & Publishing
  • Converters
  • Packaging
