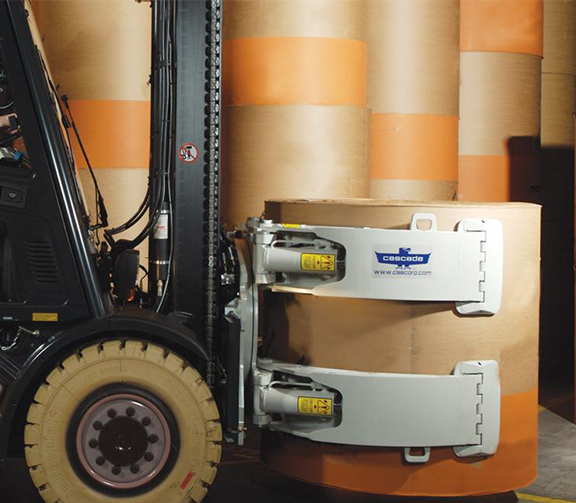

The Cascade 25H, 30H & 33H Paper Roll Clamps are forklift attachments designed for handling rolls of kraft, newsprint, coated paper, linerboard, and other compatible paper stocks. With documented rated capacities from 4,510 to 7,700 lbs., these clamps support demanding material handling operations in paper mills, warehouses, converting facilities, and shipping environments.

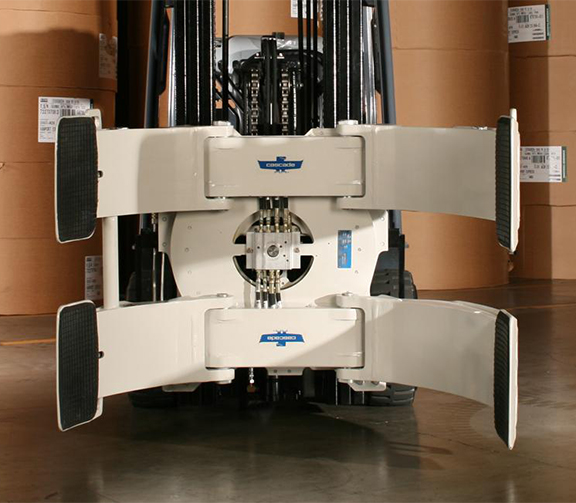

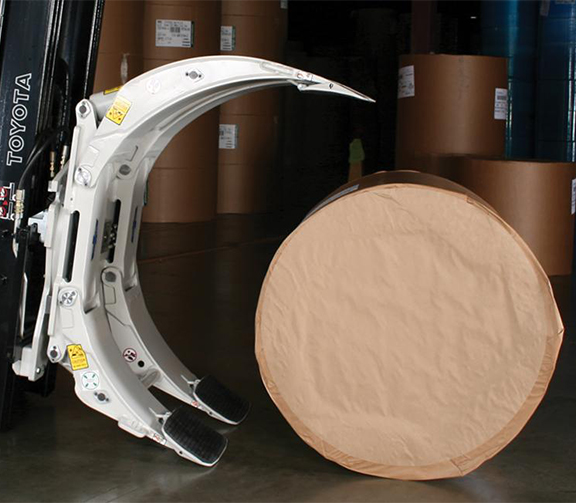

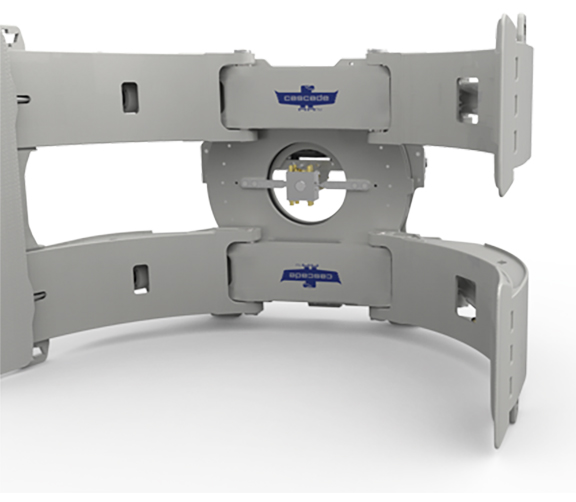

The H-Series features thin, smoothly contoured arms and contact pads that help operators engage closely stacked rolls while reducing unintended contact with adjacent materials. Cascade’s dual-spring pad alignment system helps maintain proper contact pad positioning during roll engagement, while continuous 360° hydraulic rotation allows rolls to be moved between vertical and horizontal orientations. High-visibility construction and integrated pad protectors support repeated handling in trailers, railcars, warehouses, and other confined storage areas.

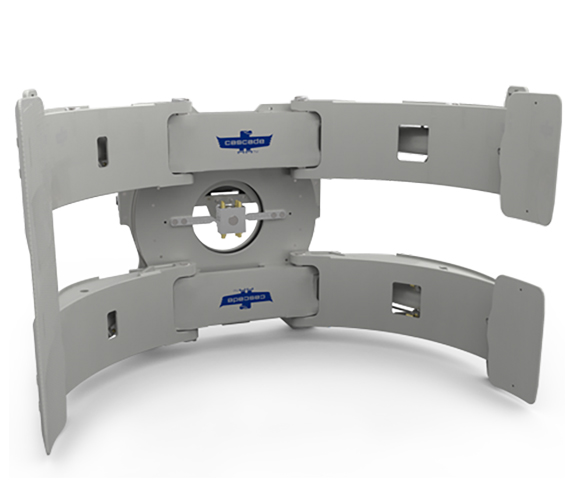

Available configurations include fixed-frame and swing-frame designs with positioned short arms and solid or split long arms. Positioned short arms accommodate different roll diameters, including smaller butt rolls, while split long arms support handling two compatible rolls of varying diameters. Swing-frame configurations provide additional lateral positioning for applications involving closely stacked rolls and restricted handling space.
Additional options include Adaptive Force Control (AFC), Hydraulic Force Control (HFC), alternative contact pad materials, full-height contact pads, and 180° rotational stops. Available Class III and IV mounting configurations allow the attachment to be specified for compatible forklifts and operating requirements.
Model Families: 25H-RCP | 25H-RDP | 25H-RCS | 25H-RDS | 30H-RCP | 30H-RDP | 30H-RCS | 30H-RDS | 33H-RCP | 33H-RDP | 33H-RCS | 33H-RDS
