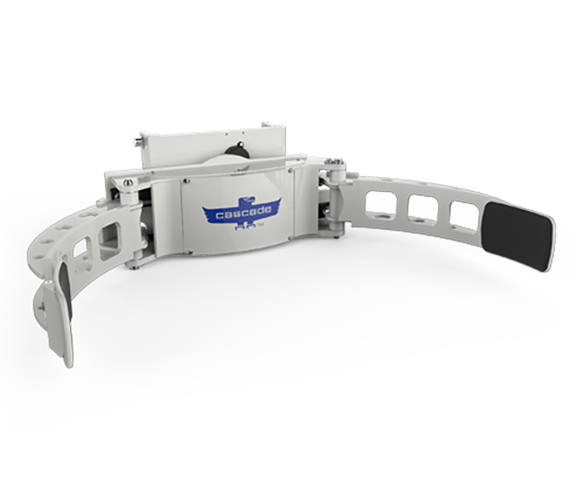

3H-RCE_eagle-noBG

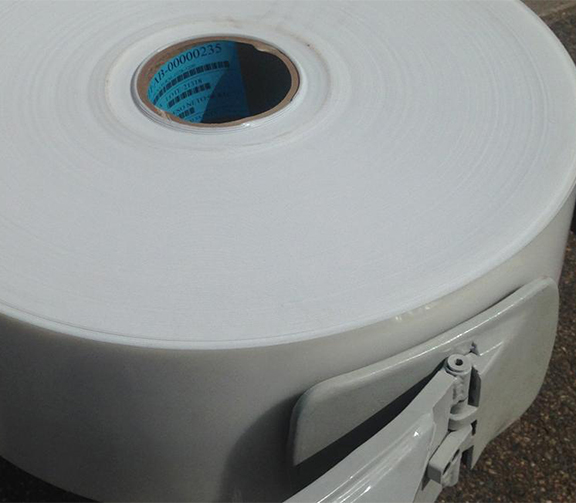

PRC_3H-App1
Cascade 3H Paper Roll Clamp - Image 3

Cascade 3H Paper Roll Clamp

  • 720 lb. Capacity
  • II Mounting Class
  • 6 – 51 in. Roll Range
  • 523 – 543 in. Attachment Weight
Request a Quote

Documents

Product Documents

Videos

Attachment Resources

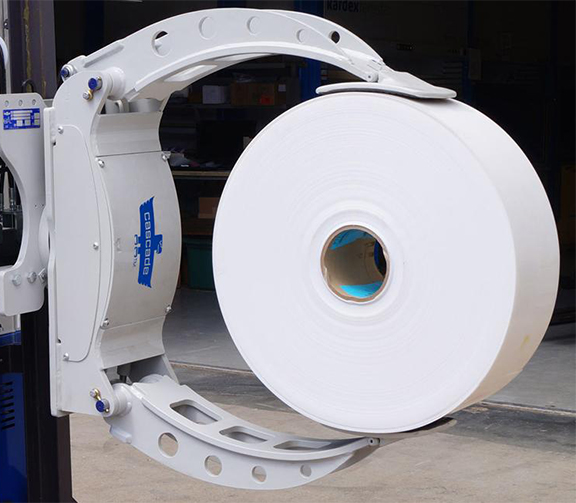

The Cascade 3H Paper Roll Clamp is a compact forklift attachment designed for handling small, lightweight rolls of paper, plastic film, foil, and other packaging materials. With a rated capacity of 720 lbs., the 3H is suited for paper converting, packaging production, and other operations requiring precise handling of narrow or small-diameter rolls.

Its lightweight, equal-arm design features a narrow arm profile, a pad alignment system, and continuous 360° rotation to support roll positioning and close stacking. Self-lubricating arm cylinder bushings eliminate the need for grease at the cylinder pivots, making the attachment particularly useful in food packaging applications where reducing the potential for lubricant contamination is important.

Available in powered and manual configurations, the 3H can be matched to compatible stand-up forklifts, reach trucks, and walkie-style material handling equipment. Integral and Class II mounting configurations are documented, with availability depending on the selected model. Standard V-shaped contact pads feature RXH bonded, non-marking rubber, while optional contoured pads accommodate specific roll handling requirements.

Model Numbers: 3H-RCE-2A-0020 | 3H-RCE-2A-0030 | 3H-RCE-2E-0020 | 3H-RCE-2E-0030 | 3H-RCM-2A-0020 | 3H-RCM-2A-0030 | 3H-RCM-2E-0020 | 3H-RCM-2E-0030

  • Compact, lightweight construction supports handling small and narrow rolls of paper, plastic film, foil, and other packaging materials.
  • Continuous 360° rotation allows rolls to be positioned for production, storage, and loading applications.
  • Narrow arm and contact pad profiles support close stacking and precise positioning in confined storage areas.
  • Self-lubricating arm cylinder bushings eliminate the need for grease at the pivots, helping reduce potential lubricant contamination in packaging operations.
  • Non-marking RXH rubber contact pads provide friction for gripping rolls while helping minimize surface marks and handling damage.
  • Powered and manual configurations provide flexibility for different material handling equipment and operating requirements.
  • Supports transferring suitable rolls from pallets to unwinding equipment without setting them directly on the floor.
  • Equal-arm, fixed-frame construction designed for handling small and lightweight rolls.
  • Self-lubricating arm cylinder bushings that eliminate the need for grease at the cylinder pivots.
  • Internal hydraulic cylinder check valves for added reliability during roll handling.
  • Pad alignment system designed to maintain proper contact pad positioning during roll engagement.
  • V-shaped contact pads with RXH bonded, non-marking black rubber.
  • Continuous 360° rotation, available with powered or manual operation depending on the selected model.
  • Compact arm construction designed to accommodate narrow-width rolls and close stacking applications.
  • Available powered and manual models with documented integral and Class II mounting configurations.
  • Compact arm construction supports operator visibility during roll engagement and positioning.
  • Continuous 360° rotation allows operators to orient rolls for different storage and production requirements.
  • Powered models provide hydraulically controlled rotation for positioning rolls during material handling operations.
  • Manual models feature a hand latch for rotation and a manual operating option for applications without truck-supplied hydraulic power.
  • Pad alignment system helps maintain contact pads in position for the next roll engagement.
  • Available configurations support integration with compatible stand-up forklifts, reach trucks, and walkie-style equipment.
  • Internal cylinder check valves provide added hydraulic reliability during roll handling.
  • Pad alignment system helps maintain proper contact pad positioning when approaching and engaging rolls.
  • RXH bonded, non-marking rubber contact pads provide friction for gripping compatible paper and packaging materials.
  • Narrow arm and pad profiles help operators position the attachment between closely stored rolls while minimizing contact with adjacent materials.
  • Self-lubricating arm cylinder bushings eliminate grease requirements at the pivots, helping reduce the potential for lubricant contamination.
  • Powered and manual rotation configurations allow the attachment to be matched to the operating requirements of compatible material handling equipment.
  • Rated Capacity: 720 lbs. (325 kg), with documented load centers of 23 or 25 inches depending on configuration.
  • Roll Diameter Range: Available configurations accommodate 6–46 inch or 9–51 inch diameter rolls.
  • Attachment Weight: 523–543 lbs., depending on the selected model and mounting configuration.
  • Rotation: Continuous 360° rotation, available in powered and manual configurations.
  • Mounting: Integral and Class II mounting configurations are documented; verify compatibility and availability for the selected model.
  • Arm Configuration: Equal-arm, fixed-frame design with a documented arm length of 28.9 inches.
  • Contact Pads: Standard V-shaped RXH bonded rubber pads, with optional contoured pads for specific roll handling applications.
  • Material Compatibility: Designed for small paper rolls and suitable grades of plastic film, aluminum foil, and related packaging materials.
  • Self-lubricating arm cylinder bushings eliminate the need for routine grease application at the cylinder pivots.
  • Internal cylinder check valves provide added hydraulic reliability during attachment operation.
  • Fixed-frame, equal-arm construction provides a straightforward attachment configuration for handling lightweight rolls.
  • Manual, non-powered configurations offer an operating option without requiring truck-supplied hydraulic power.
  • Cascade provides model-specific technical specifications and documentation to assist with equipment selection and service requirements.
  • Paper Converting: Handling small and narrow rolls of paper during converting, unwinding, and packaging processes.
  • Food & Consumer Packaging: Moving suitable rolls of packaging paper, foil, and flexible film in facilities where reducing lubricant contamination is important.
  • Printing & Publishing: Transporting and positioning lightweight rolls of printing stock and specialty paper.
  • Textiles: Handling compatible lightweight rolls of fabric and related materials during production and storage.
  • Tire Manufacturing & Aerospace: Moving suitable rolls of industrial films and specialty materials used in manufacturing applications.
  • Warehousing & Distribution: Storing, retrieving, and transporting small rolls of paper and packaging materials.
