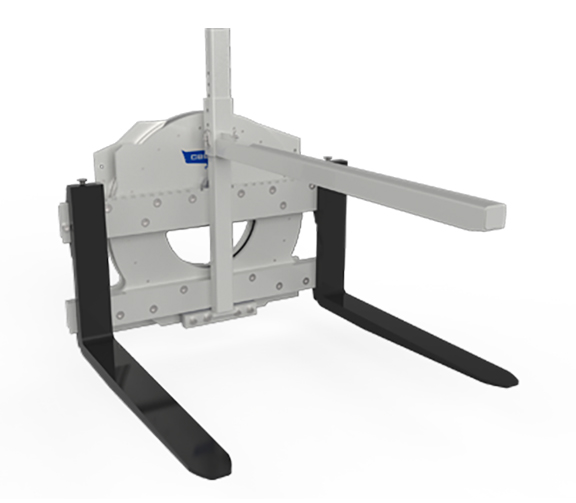

Cascade Bin Retainer

  • 3,000–10,000 lb. capacity at a 24-inch load center
  • Class II–IV mounting
  • 24.2–41.2 in. bin range
  • 18 in. retainer hook width
  • 13–37 in. fork spread



Request a Quote

Documents

Product Documents

Videos

Attachment Resources

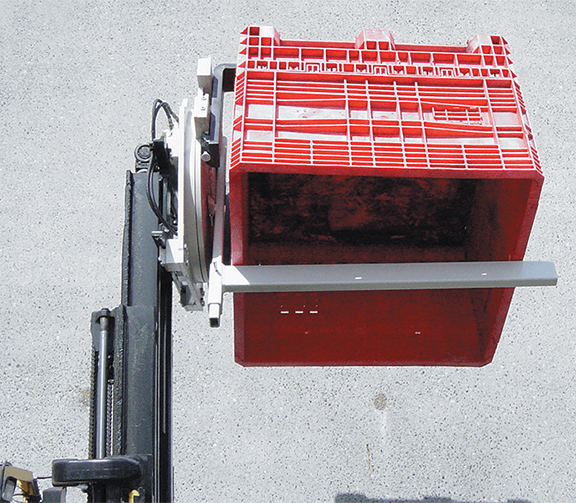

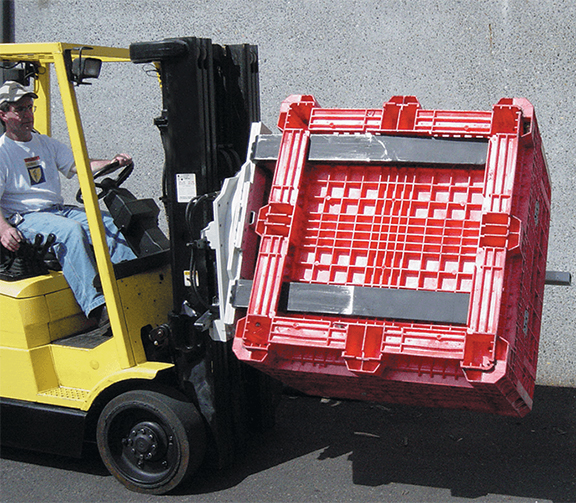

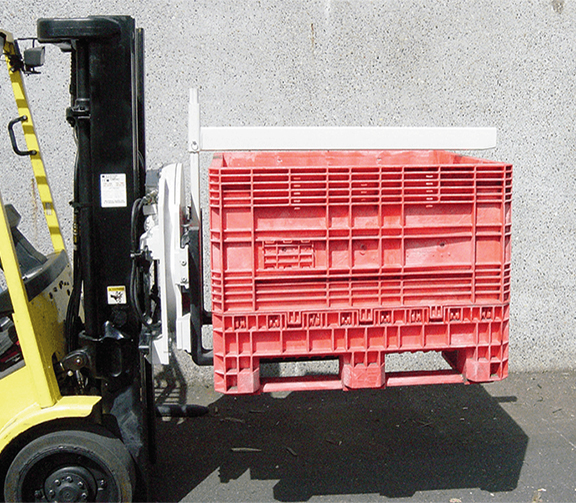

The Cascade Bin Retainer holds compatible bins in place during rotation, giving lift trucks added versatility for inverting and dumping applications. The lightweight agricultural model handles plastic and wooden bins, mounts to a Class II carriage and is rated for 400 lb at a 24-inch load center. For heavier applications, custom hydraulic configurations provide capacities from 3,000 to 10,000 lb across Class II, III and IV mountings. A chamfered pickup bar, stable lower hook and adjustable hold-down design help operators engage bins efficiently. Available arm lengths, vertical ranges, hooks and horizontal bars allow the retainer to be matched to specific bin geometry.

Model Numbers: 30G-RLH | 40G-RLH | 45G-RLH | 55G-RLH | 65G-RLH | 80G-RLH | 100G-RLH | 40D-BRF-01A

  • Retains compatible plastic and wooden bins during rotation, providing added versatility for bin inverting and dumping.
  • Lightweight agricultural configuration is designed for easy mounting and removal.
  • Hydraulic configurations accommodate heavier applications with rated capacities from 3,000 to 10,000 lb at a 24-inch load center.
  • Hydraulic retainers are custom-designed to match the bin and application.
  • Wide lower hook provides stability beneath the bin.
  • Heavy-duty upper fork hook helps hold the bin during rotation.
  • Lightweight hold-down bar adjusts in 3/4-inch increments.
  • Hydraulic models use an 18-inch-wide retainer hook with a 2.5-inch inside depth and 2-inch inside height.
  • Increased vertical range for the lightweight configuration.
  • Shorter or longer horizontal arms for different bin dimensions.
  • Optional hydraulic fork-bar widths for application-specific setups.
  • Optional rubber-faced hook, horizontal bar and side fork stabilizer.
  • Sequence-valve configuration can operate the hydraulic retainer and rotator from a single truck function.
  • Chamfered front bar helps the attachment enter beneath the bin during pickup.
  • Pin-position adjustment allows the lightweight hold-down bar to be set for the bin height.
  • Fork lock must engage a serviceable carriage notch, and the retaining clip must secure the hold-down bar hitch pin.
  • Bins without square corners may require a horizontal bar in addition to the hook to help prevent slippage during rotation.
  • Truck, attachment and fork capacity must be verified against the applicable nameplate before handling a load.
  • Lightweight 40D-BRF-01A model is rated for 400 lb at a 24-inch load center.
  • Hydraulic 30G-RLH through 100G-RLH models are rated from 3,000 to 10,000 lb at a 24-inch load center.
  • Hydraulic bin ranges are 24.2-34.2 inches on Class II models and 24.6-41.2 inches on Class III and IV models.
  • Hydraulic configurations provide an adjustable fork spread of 13-37 inches.
  • Lightweight retainer mounts to a Class II carriage using upper and lower hooks.
  • Every 100 hours, maintenance is limited to checking lower-hook fastener torque and inspecting the hitch pin, retaining clip and fork lock.
  • Replaceable mounting hooks and hold-down components simplify ongoing upkeep.
  • Agriculture
  • Operations rotating or dumping compatible plastic and wooden bins
