Cascade J-Series Foam Clamps

  • 3,200–6,100 lb. capacity
  • Class II or III mounting
  • 23.2–99.2 in. nominal opening range
  • 45.3-53.1 in. frame width
  • 26.4-36.4 in. hook spread



Request a Quote

Documents

Product Documents

Videos

Attachment Resources

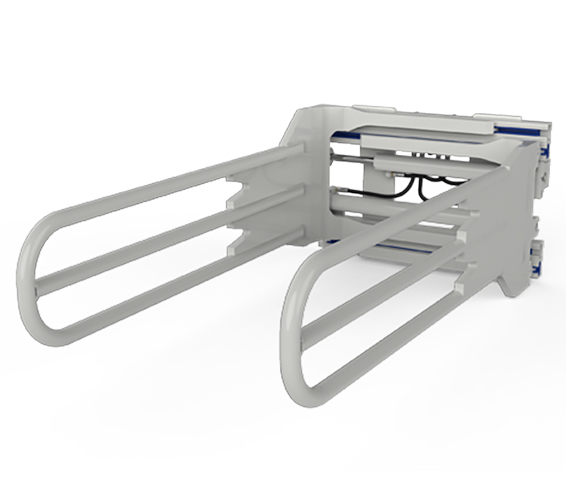

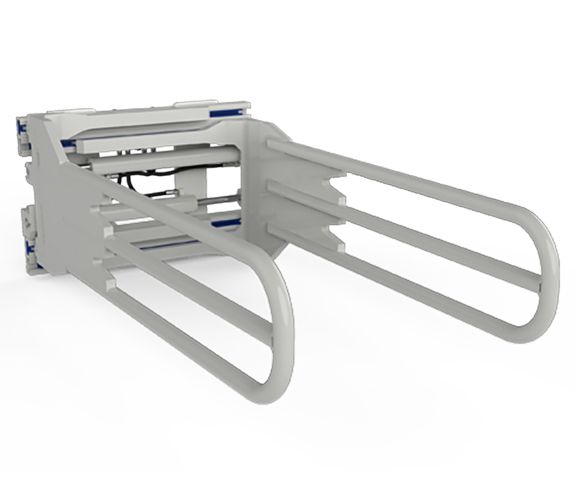

The Cascade J-Series Foam Rubber Clamp is designed for handling large blocks of foam rubber, insulation, and other lightweight, high-volume materials. Its strong, smooth tubular arms provide rigid support while helping protect sensitive loads from damage.
An open, high-visibility design gives operators a clearer view through the attachment, while equal arm movement and adjustable pressure relief support controlled load handling. Four models offer capacities from 3,200 to 6,100 lb, with Class II and Class III mounting configurations. Lubrication-free bearings, accessible hydraulic components, and a replaceable frame wear segment help simplify ongoing service.

Model Numbers: 14J-FMS-2A-0120 | 18J-FMS-2A-0120 | 22J-FMS-2A-0120 | 26J-FMS-3A-0120

  • Handles large blocks of foam rubber and other lightweight, high-volume products such as insulation materials.
  • Strong, smooth tubular arms help reduce the risk of product damage during handling.
  • High-visibility frame and arm construction supports a clearer view of the load.
  • Efficient hydraulic system minimizes energy consumption while supporting clamp and sideshift performance.
  • Flow divider provides equal arm movement.
  • Sideshift circuit relief optimizes sideshift speed and performance.
  • High-strength steel frame and castings provide a durable attachment structure.
  • Special thick-wall tubular arms deliver rigid, reliable operation.
  • Integrated true centering key supports precise, secure installation.
  • High- and low-pressure configurations are available to match the lift truck hydraulic system.
  • Special frame widths, opening ranges, and arm dimensions.
  • Independent arm control.
  • Regeneration valve for faster opening on low-flow electric trucks.
  • External sideshifter mounting.
  • Full-width bolt-on frame wear strips.
  • Valve guard, bumper/cylinder cover, or factory-installed load backrest.
  • Quick Disconnect Mounting Kit.
  • Open frame and tubular arm design provide visibility through and around the attachment.
  • Clamp and backhand pressure protection helps manage hydraulic pressure during operation.
  • Adjustable pressure relief is standard in the clamp and sideshift functions.
  • Maximum clamp force supports secure handling of large, lightweight loads.
  • Four models provide capacities from 3,200 to 6,100 lb at a 24-inch load center.
  • Nominal opening ranges extend from 23.2 inches on the smallest model to 99.2 inches on the largest.
  • Available Class II and Class III mountings support different truck and capacity requirements.
  • Top-mounted hydraulic cartridges and a test port provide convenient access for adjustment and service.
  • Lubrication-free, full-length UHMW bearings reduce routine maintenance requirements and carry a 10,000-hour warranty.
  • Center-mounted hardened frame wear segment is replaceable when worn.
  • Foam rubber manufacturing and distribution.
  • Insulation material manufacturing and handling.
  • Operations moving lightweight, high-volume block materials.
