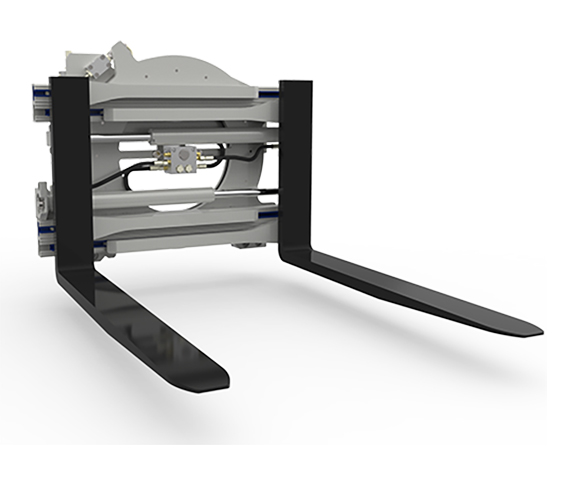

Cascade J-Series Fork Clamps

2,600 – 14,000 lb. capacity
Class II – IV mounting
14.6–137.8 in. nominal opening range
34-98 in. frame width
26.4-66.1 in. hook spread

Documents

Product Documents

Videos

Cascade J-Series Sliding Arm Clamps

Attachment Resources

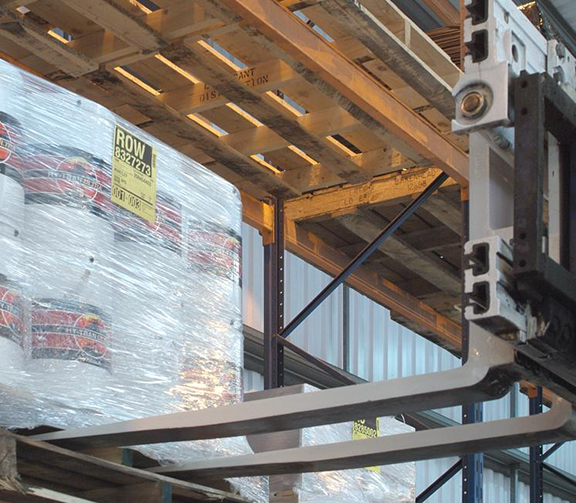

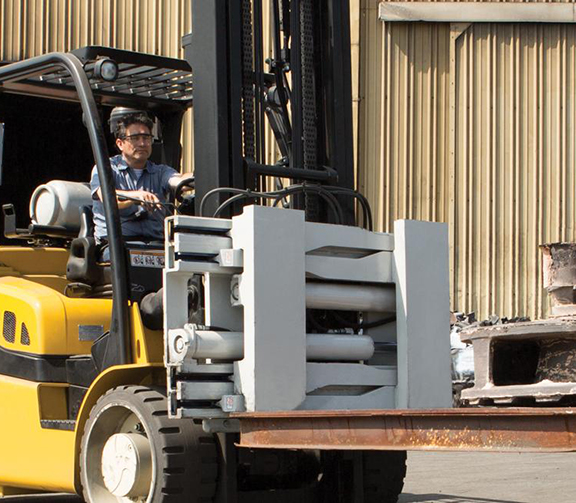

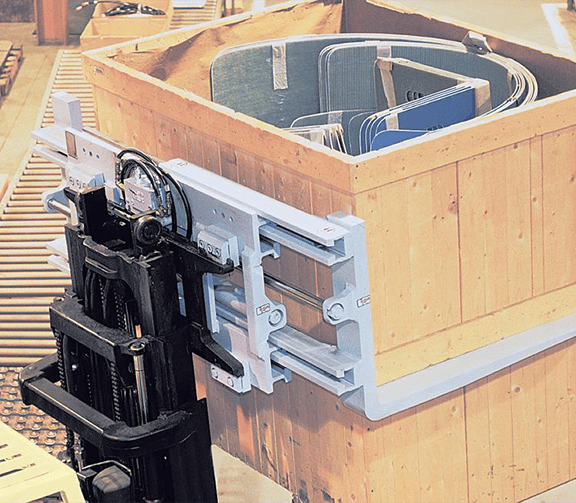

Cascade J-Series Fork Clamps give lift trucks the flexibility to handle pallets and containers while also clamping awkward loads such as crates, bales and tires.

The hydraulically positioned forks can open beyond the attachment frame, helping operations accommodate a wider range of load sizes than a conventional fork positioner. Standard, high-capacity and 360-degree revolving configurations support applications ranging from routine pallet handling to bin and hopper dumping. Accessible hydraulic components, bolt-on forks and lubrication-free bearings help simplify ongoing service.

Combines load clamping and hydraulic fork positioning in one attachment.
Handles pallets and containers as well as awkward loads such as crates, bales and tires.

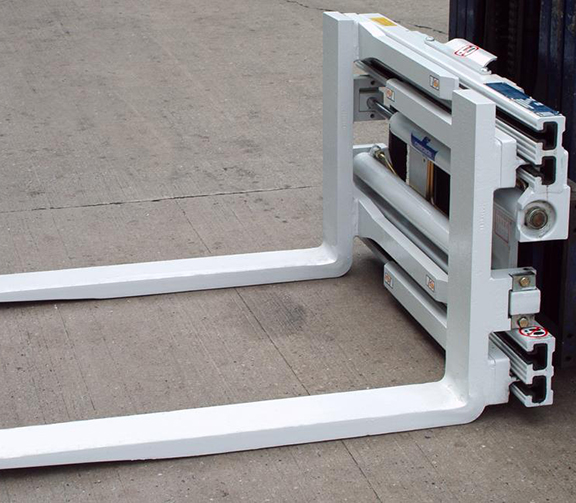

Forks open beyond the frame width to accommodate loads that conventional fork positioners may not handle.
Available in standard, high-capacity and 360-degree revolving configurations.

Bolt-on pallet forks support straightforward removal and replacement.
High-strength steel frame provides a durable attachment structure.
Flow divider promotes equal fork-arm movement.
Integrated centering key supports precise, secure installation.
High- and low-pressure configurations are available to match the lift truck hydraulic system.

Custom and drop-shank forks.
Independent arm control.
External sideshifting mounting.
Full-width lower frame wear strips.
Factory-installed load backrest and quick-disconnect mounting kit.
Slip-on drum arms, container-handling pads and rubber-faced multipurpose pads on applicable models.
Custom frame widths, opening ranges, fork configurations and mounting arrangements for revolving models.

Open-frame visibility helps the operator see through the attachment while positioning forks and loads.
Sideshifting configurations allow lateral load adjustment from the operator compartment.

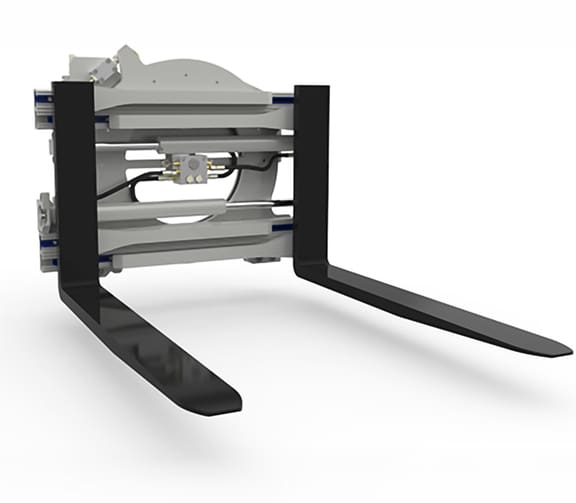

Revolving models provide smooth 360-degree rotation for dumping bins and hoppers.

Adjustable pressure relief is provided for clamp and sideshift functions.
Clamp and backhand protection helps limit overclamping and excessive opening forces.
Revolving models include a steel bumper that shields the valve and hydraulic components from impact and debris.

Efficient hydraulics are designed to reduce energy consumption while maintaining attachment performance.
Sideshift circuit relief supports responsive sideshift speed and operation.
Standard and high-capacity non-revolving models provide clamp capacities from 2,600 to 14,000 lb.
Revolving models provide capacities from 8,800 to 13,200 lb with fast, smooth 360-degree rotation.
Revolving 40J models use a single direct-drive gearbox, while 53J and 67J models use dual direct-drive gearboxes for heavier-duty handling.

Top-mounted hydraulic cartridges and a test port provide accessible adjustment and troubleshooting points.
Lubrication-free, full-length UHMW bearings reduce routine maintenance requirements and carry a 10,000-hour warranty.
Bolt-on forks can be removed or replaced without replacing the complete arm assembly.
Non-revolving models use a hardened, replaceable center frame wear segment.

Food processing.
Automotive manufacturing.
General and automated manufacturing.
Recycling.
Foundries.
Operations that handle or dump bins and hoppers.
