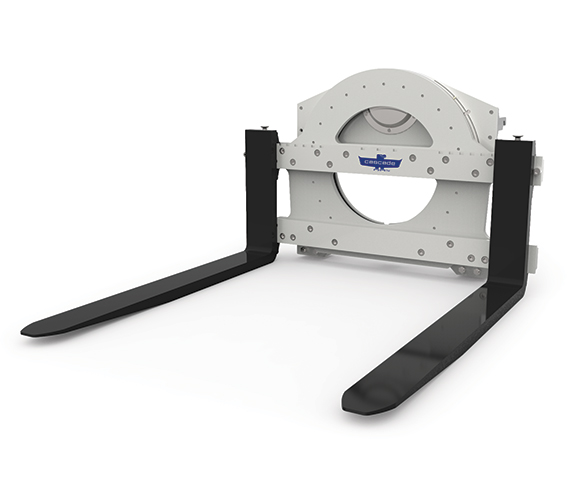

Cascade G-Series Rotator (2)

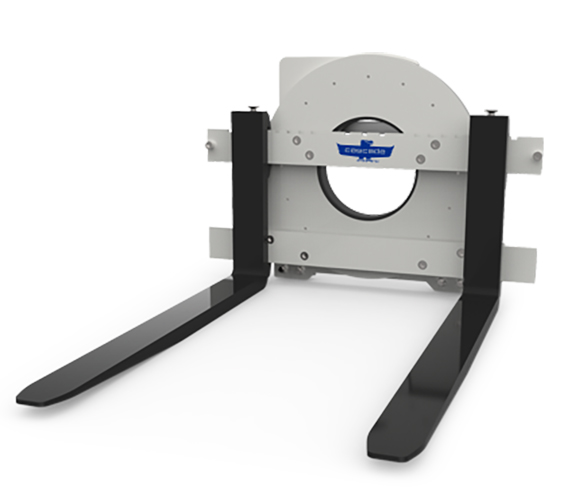

Cascade G-Series Rotator

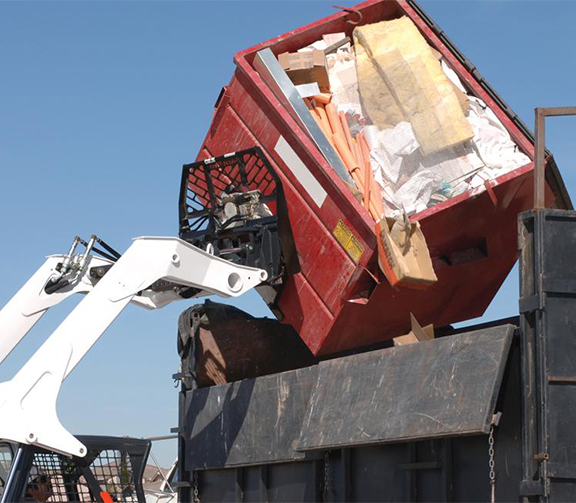

Rotator_G-App3

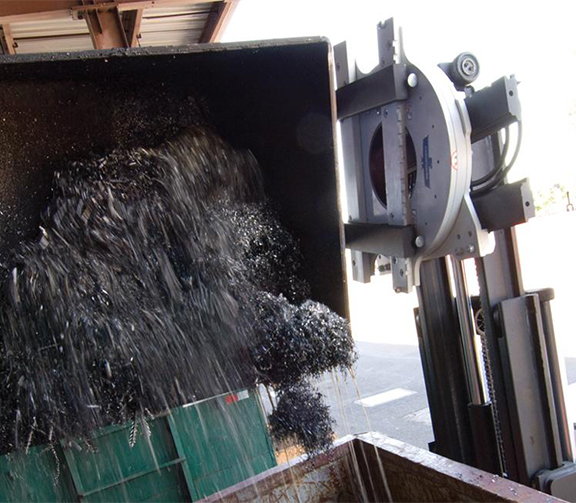

Rotator_G-App2

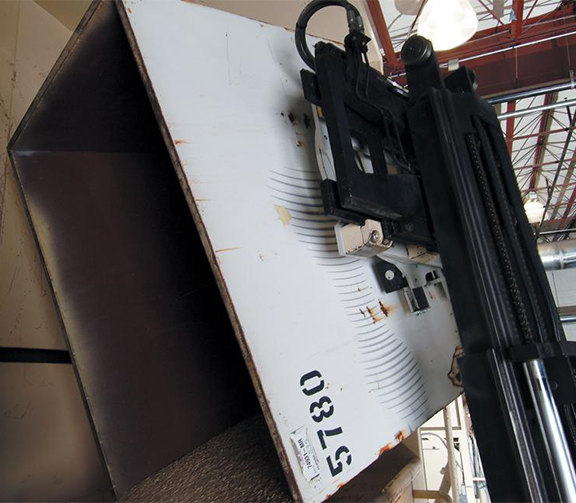

Rotator_G-App1

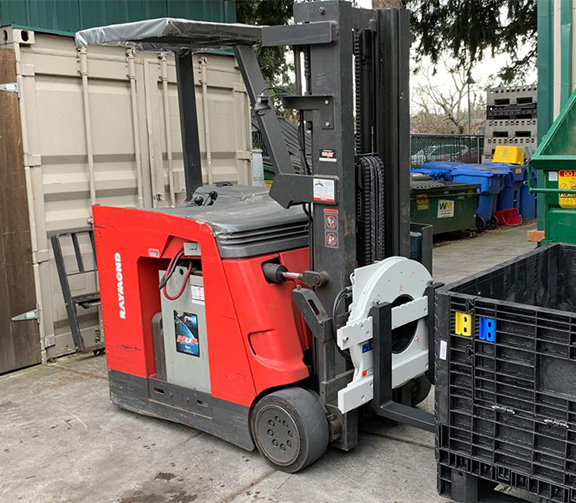

Rotator_G-App4

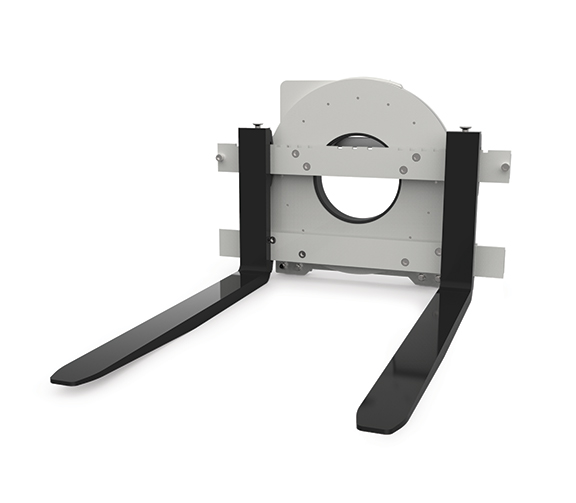

Cascade G-Series Rotator

  • 3,000 – 16,000 lb. capacity
  • II, III, IV and SAE  mounting class
  • 33.9 – 75.3 in. overall width
  •  32 – 73 in. maximum fork spread
  • 30 – 72 in. fork length



Request a Quote

Documents

Product Documents

Videos

Attachment Resources

The Cascade G-Series Rotator enhances efficiency by allowing operators to quickly dump or invert loads and seamlessly return the forks to the pick-up position in one continuous motion. Widely used across industries such as food processing, automotive manufacturing, chemical processing, recycling, smelting, and general manufacturing, this attachment is essential for tasks that require efficient dumping of bins or tote boxes. Designed for durability and precision, the G-Series Rotator simplifies operations, saving time and effort in demanding applications.

Model Numbers: 30G-RRB | 40G-RRB | 45G-RRB | 55G-RRB | 65G-RRB | 80G-RRB | 100G-RRB | 130G-RRB | 160G-RRB

  • Quickly dumps or inverts loads and returns the forks to the pickup position in one continuous motion.
  • Model capacities range from 3,000 to 16,000 lb at a 24-inch load center, depending on the selected forks and configuration.
  • Continuous 360-degree rotation supports both load dumping and general material handling.
  • Multiple fork bar widths, fork lengths and mounting configurations accommodate a broad range of trucks and applications.
  • Proven gear drive box and ring gear construction provides durability in demanding operating environments.
  • Large visibility opening gives the operator a clear view of the fork tips.
  • Center seal helps prevent contaminants and brine from entering the bearing area.
  • High-torque hydraulic motor provides smooth, positive load rotation.
  • Available with standard forks, custom forks or fork bars only.
  • Fork keepers on 45G through 160G models help keep the forks secured to the attachment.
  • 180-degree rotation stop group for applications requiring rotation to stop at a precise inverted position.
  • Electronic Rotation Control on supported models.
  • Hydraulic bin retainer for holding bins without fork pockets during rotation.
  • Mechanical bin retainer for lightweight bins.
  • Quick-change lower mounting hooks for tool-free attachment installation and removal on supported models.
  • Special fork sizes, custom fork configurations and application-specific fork bar widths.
  • Side stabilizers and fork restraints for additional load and fork control during rotation.
  • Foundry configurations designed for applications involving molten-metal splash and high heat.
  • Visibility through the center of the attachment helps operators monitor the fork tips during load engagement.
  • 30G and 40G models also provide sight lines through the center, sides and over the top of the rotator.
  • Smooth, positive rotation gives the operator controlled movement while dumping or repositioning loads.
  • Optional bin retainers hold compatible bins in place while the load is rotated.
  • Optional side stabilizers help retain the load during rotation.
  • Optional fork restraints reduce side-to-side fork movement.
  • Fork keepers on supported models help prevent forks from disengaging from the attachment.
  • Continuous 360-degree rotation supports efficient dumping, inverting and load repositioning.
  • Available capacities span 3,000 to 16,000 lb at a 24-inch load center, subject to fork size and configuration.
  • Published rotational torque ranges from 36,000 inch-pounds on the 30G to 160,000 inch-pounds on the 160G.
  • Published rotation speeds range from 8.3 RPM on the 30G to 3.6 RPM on the 160G at the specified hydraulic flow.
  • Optional motors are available on supported models to prioritize additional speed or torque.
  • Optional quick-change lower mounting hooks allow supported rotators to be installed or removed in minutes without tools.
  • 45G through 160G models provide easier mounting-hook conversion when moving between compatible truck sizes.
  • The sealed visibility opening helps keep contamination away from internal components.
  • Food processing and agriculture
  • Recycling and waste handling
  • Automotive and general manufacturing
  • Chemical processing
  • Casting and foundry operations
  • Machine shops and raw-material handling
  • Construction and demolition with SAE-mounted 30G and 40G configurations
