Cascade Integral Carriages deliver durability and performance with a design that reduces effective thickness, offering significant gains in net capacity. These rugged carriages are available in three configurations: sideshifter, fork positioner, and sideshifting fork positioner. Ideal for maximizing load capacity while maintaining precision and efficiency, Cascade Integral Carriages are a reliable solution for demanding material handling applications.
Cascade Integral Carriages
- 8,000 – 36,000 lb. Capacity
- Fast and Easy ‘No-Weld’ Mounting
- High-Pressure Cylinder
- Backrest Compatibility
Documents
Product Documents
Videos
- Stubshafts, chain anchors, internal reeving connections compatible with OEM. Uses OEM profile forks in applicable
- Install just like you would an OEM carriage. Forks positioned using carriers so no welding of forks is required
- Cylinders can be removed for service without removing forks or frame
- Custom designs available for your specific applications such as slope – used for unloading trucks outside or swing – to allow for alignment
- Both pin-type and ITA versions available. Pin-type design allows use of long forks without special options or modifications. Integral allows use of pin-type forks on trucks which only have ITA carriages from OEM.
- J-Series Integrals are available with capacities from 8,000 lbs to 36,000 lbs. and large or smaller capacities are available upon request
- Available with types of forks, Gypsum handling, lumber and plywood. coil handling and special application forks
- Fully customizable integrals to accommodate the total amount of sideshift stroke your application requires
- All cascade integral sideshifters are shipped ready to install. No welding, drilling or tapping required
- Excellent specifications optimize truck capacity
- Cylinder is removable for service without removing outer frame. Cylinder rod seals are easily serviced
- In some applications Integral attachments offer less effective thickness when compared to a hang-on sideshifter or fork positioner
- Available in widths both wider and narrower than OEM carriages. Design allows for very wide frames
- Hardened high strength fork pins for long service life
- Open frame design allows maximum visibility
- Cross-port relief on form positioner versions protects components and prevents clamping
- Self lubricating, long service life bearings

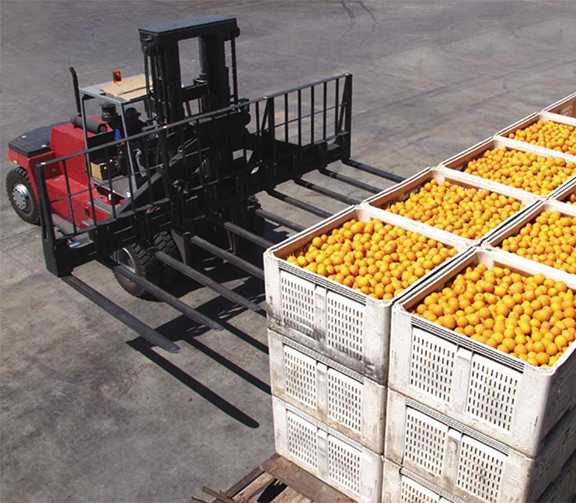

- Food Producing Industry

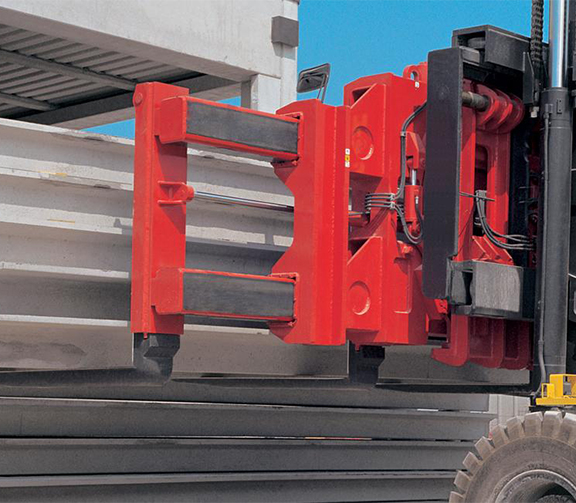

- Pre-Stressed Concrete
- Mining Industry
- Recycling Industry
- Gypsum Handling
- Lumber Industry
- Foundry Industry
- Automotive Industry
- Military Applications
- Aluminum Industry
- Concrete Pipe Industry
- Stevedoring Industry
