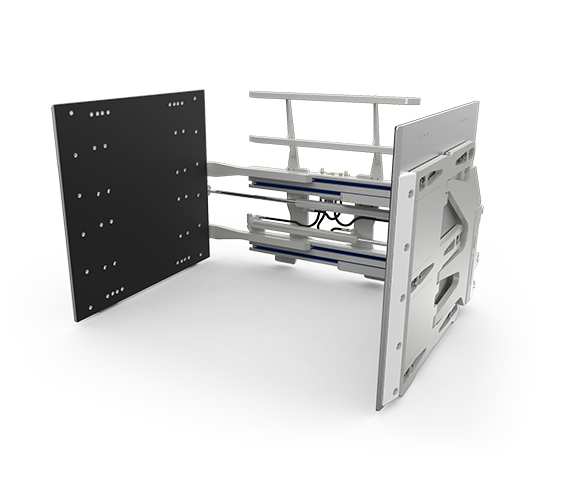

J-Series_CartonClamp

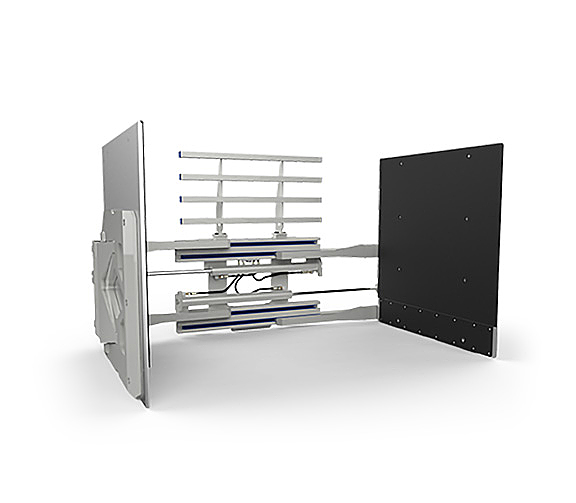

Cascade J-Series Carton Clamps - Image 2

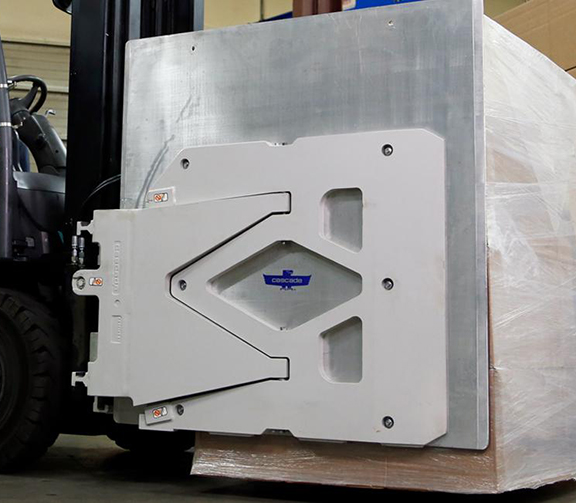

JCartonClamp-App1

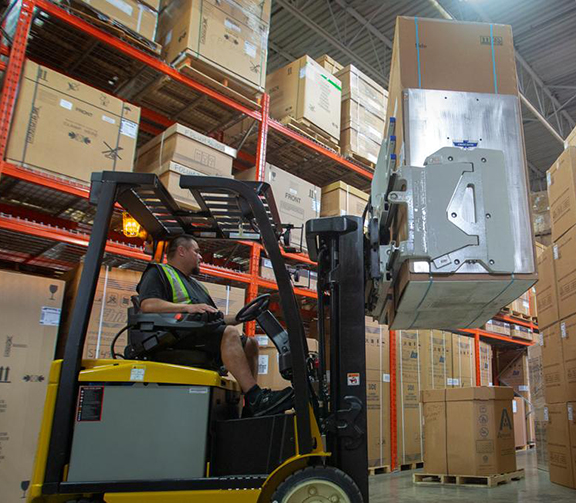

JCartonClamp-App3
Cascade J-Series Carton Clamps - Image 5

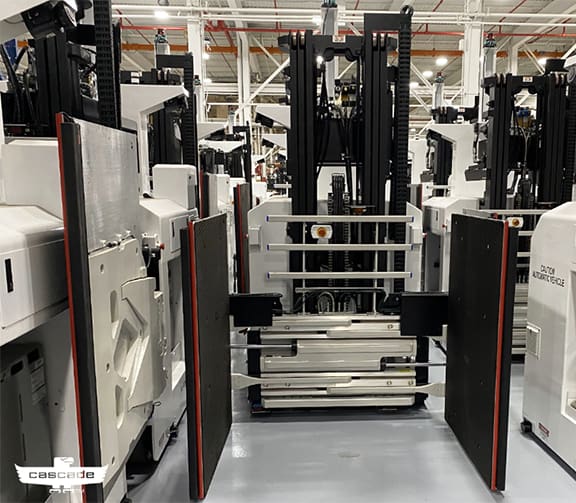

Cascade Carton Clamp Application 2

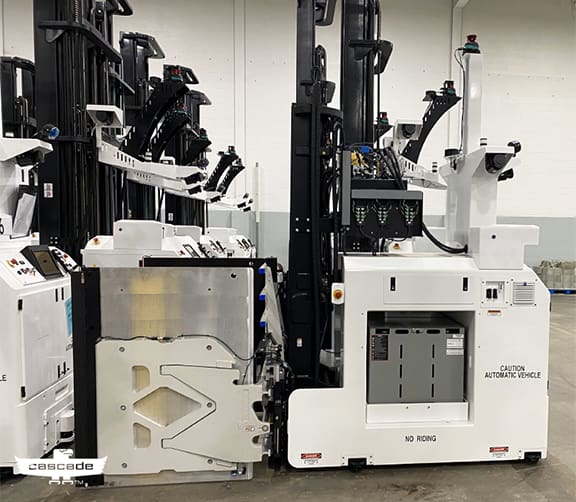

Cascade Carton Clamp Application 1

Cascade J-Series Carton Clamps

  • 1,750–4,850 lb. capacity
  • Class II–III mounting
  • 20.8–77.6 in. nominal opening range
  • 41.3–43.3 in. frame width
  • 32.4–36.4 in. hook spread



Request a Quote

Documents

Product Documents

Videos

Attachment Resources

Cascade J-Series Carton Clamps are designed for palletless handling of unitized loads in warehousing, manufacturing, and distribution operations. They can handle a wide range of low-, medium-, and high-density products, including consumer paper products, appliances, consumer electronics, wine, canned or boxed foods, chemicals, and plastics.

By eliminating pallets in suitable applications, these clamps can reduce costs associated with pallet purchasing, maintenance, shipping, and storage while improving warehouse space utilization.

Model Series: 8J-CCS-2A | 14J-CCS-2A | 18J-CCS-2A | 22J-CCS-3A | 26J-CCS-3A

  • Handles unitized loads without pallets across a wide range of low-, medium-, and high-density products.
  • Open-frame design provides clear visibility through the attachment.
  • Thin arm profiles with tapered leading edges help operators work between tightly stacked loads.
  • Rubber-faced aluminum contact pads provide secure load engagement.
  • Integrated sideshift supports accurate load positioning.
  • High-strength steel frame and castings.
  • Lubrication-free, full-length UHMW bearings.
  • Flow divider for equal arm movement.
  • Clamp and backhand hydraulic protection.
  • Sideshift circuit relief for controlled sideshift speed and performance.
  • True centering key for precise, secure installation.
  • Two pressure configurations are available to match the lift truck hydraulic system.
  • Custom opening ranges, frame widths, arm dimensions, and contact-pad surfaces.
  • Pallet strips on the contact pads for pallet handling.
  • Frame bumper for added protection when handling loose loads.
  • Independent arm control for handling loads that are not centered.
  • Regenerative valve for faster arm movement on low-flow electric trucks.
  • External sideshift and alternate valve configurations.
  • Class III and quick-disconnect ISO mounting options.
  • Load Cushion™, tilt control, four-point tester, and Touch Force Control – TFC™ damage-reduction options.
  • Available capacities range from 1,750 to 4,850 lb, depending on the model and load center.
  • Model configurations cover 8J, 14J, 18J, 22J, and 26J capacity classes.
  • Published opening ranges extend to approximately 77 inches on selected configurations.
  • Efficient hydraulic design is engineered to reduce energy consumption while maintaining attachment performance.
  • Maximum clamp force supports secure handling across varied product densities.
  • Top-mounted hydraulic cartridges and a test port provide convenient access for adjustment and service.
  • Lubrication-free UHMW bearings reduce routine maintenance requirements.
  • Factory-installed wear tiles can be replaced when the lower leading edge of the contact pad becomes worn.
  • The integrated sideshift circuit can be converted to non-sideshifting operation by plugging the valve ports.
  • Consumer paper products
  • Appliances and white goods
  • Consumer electronics
  • Wine and beverage distribution
  • Packaged foods, including canned and boxed products
  • Chemicals and plastics
