Cascade J-Series Doublewide Carton Clamps

  • 2500 lb. capacity at 24 in. load center
  • Class II–III mounting
  • 24.7–102.5 in. nominal opening range
  • 48 or 60 in. frame width
  • 32.4 in. hook spread



Request a Quote

Documents

Product Documents

Videos

Attachment Resources

The Cascade J-Series Doublewide Carton Clamp is designed to handle wide palletless loads weighing up to 2,500 lb at a 24 in. load center. Its opening range reaches 102.5 in., while thin, tapered arms help operators work between closely stacked products.
Through-frame visibility, equal arm movement and integrated sideshift support precise load engagement and placement. High-strength steel construction, lubrication-free UHMW bearings and accessible hydraulic components help the attachment stand up to demanding manufacturing and distribution work. Custom frames, arms, contact pads and damage-reduction systems allow the clamp to be configured for products ranging from paper goods and appliances to packaged foods and electronics.

Model Series: 14J-CCD-2A

  • Increased opening range supports wider loads in manufacturing and distribution applications.
  • Industry-leading through-frame visibility helps operators position the attachment and load.
  • Thin arms with tapered leading edges help the clamp enter tight spaces between stacked loads.

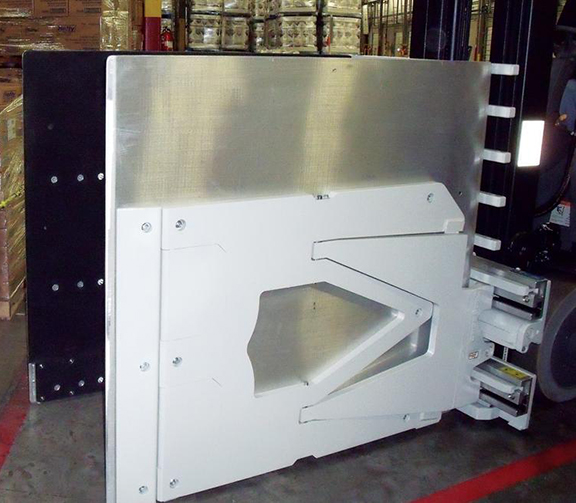

  • Rubber-faced aluminum contact pads provide secure contact with cartons and packaged products.
  • Integrated sideshift allows lateral load positioning without repositioning the lift truck.
  • 2,500 lb capacity at a 24 in. load center.
  • Class II bolt-on mounting with an integrated true-centering key.
  • Flow divider provides equal arm movement.
  • High-strength steel frame and castings support demanding material-handling applications.
  • Lubrication-free, full-length UHMW bearings reduce routine lubrication requirements.
  • Integrated sideshift circuit is included on all listed models.
  • Clamp and backhand protection are incorporated into the hydraulic system.
  • Custom opening ranges, frame widths, arm dimensions and contact-pad surfaces.
  • Pallet strips on the contact pads for operations that also handle palletized loads.
  • Frame bumper for additional protection when handling loose loads.
  • Class III, quick-disconnect and other ISO mounting configurations.
  • Independent arm control for handling off-center or differently sized loads.
  • Regenerative valve for faster arm movement on low-flow electric lift trucks.
  • External sideshift and alternate valve configurations.
  • Damage-reduction options include Load Cushion™, Tilt Control, a four-point tester and Touch Force Control – TFC™.
  • Open-frame construction provides a clear view through the attachment during load engagement and placement.
  • Integrated sideshift helps operators align loads from the truck without repeated steering adjustments.
  • Built-in clamp and backhand protection helps control hydraulic operation.
  • True-centering key supports precise, secure attachment installation.
  • Flow divider keeps the arms moving equally for consistent load engagement.
  • The attachment hydraulic circuit is pressure protected.
  • Nominal opening ranges extend to 102.5 in. for handling wide loads.
  • Sideshift circuit relief is designed to optimize sideshift speed and performance.
  • Efficient hydraulic design balances attachment performance with energy consumption.
  • Two pressure configurations are available to match different lift-truck hydraulic systems.
  • Maximum recommended hydraulic flow is 10 gpm for sideshift and 16 gpm for clamping.
  • Top-mounted hydraulic cartridges and a test port provide convenient access for adjustment and diagnostics.
  • Lubrication-free UHMW bearings eliminate routine bearing lubrication.
  • Factory-installed wear tiles can be replaced to address wear along the front lower edge of the contact pads.
  • Consumer paper products
  • Appliances and white goods
  • Consumer electronics
  • Wine and beverage distribution
  • Packaged foods, including canned and boxed products
  • Chemicals and plastics
  • Manufacturing, warehousing and distribution
