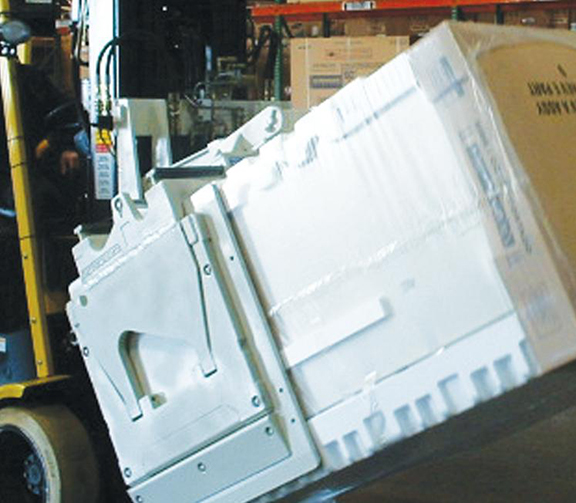

TippingClamp-App3

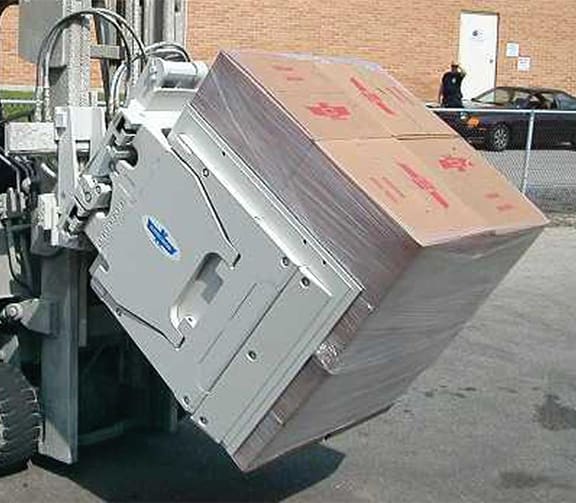

Tipping Clamp Application 1

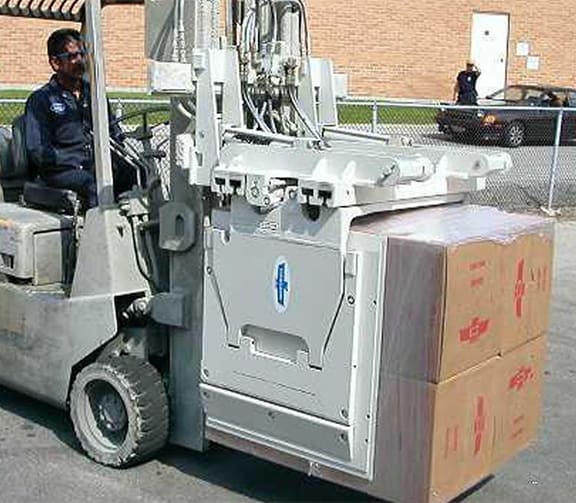

Tipping Clamp Application 2

Cascade J-Series Tipping Clamps

  • 1,500 lb. capacity
  • Class II mounting
  • 23.2 – 81.9 in. opening range
  • 43.3 in. frame width
  • 32 in. hook spread



Request a Quote

Documents

Product Documents

Videos

Attachment Resources

The Cascade J-Series Tipping Clamp is a 1,500 lb forklift attachment designed to handle magnum- and T-loaded appliances inside trailers. Its forward-tipping design, articulating rubber-faced contact pads and thin arm profile help operators engage and securely hold tightly positioned loads.

Integrated sideshift provides additional control when positioning appliances, while cushion-stop tipping cylinders support smooth attachment movement. An open-frame design improves visibility, and top-mounted hydraulic components simplify access for service and adjustment. Lubrication-free UHMW bearings and a high-strength steel structure support demanding appliance-handling operations.

Model Series: 8J-CCU-2A

  • Forward-tipping, articulating clamp designed for handling magnum- and T-loaded appliances in trailers.
  • Articulating, rubber-faced aluminum contact pads securely engage appliance loads.
  • Integrated sideshift helps operators position loads during trailer handling.
  • Thin arm profile supports load engagement in tight spaces between stacked products.
  • Open-frame design provides clear visibility through the attachment.
  • Custom opening ranges and frame widths.
  • Custom arm lengths, arm heights and pad surfaces.
  • Application-specific contact pad sizes and surfaces.
  • Frame bumper for additional protection when handling loose loads.
  • Class III and quick-disconnect ISO mounting options.
  • Independent arm control.
  • Regenerative valve for increased arm speed on low-flow electric trucks.
  • External sideshift.
  • Alternate valve configurations for left- or right-hand third- and fourth-function installations.
  • Load Cushion™, Tilt Control, Four-Point Tester and Touch Force Control – TFC™ damage-reduction options.
  • Efficient hydraulic system designed to minimize energy consumption while maintaining attachment performance.
  • Sideshift circuit relief supports consistent sideshift speed and performance.
  • Maximum attachment operating pressure of 2,250 psi.
  • Recommended hydraulic flow of 5 GPM for sideshift and 12 GPM for clamping.
  • Low-pressure models are designed for trucks delivering up to 2,760 psi; consult Cascade for higher-pressure applications.
  • Top-mounted hydraulic cartridges and test port provide convenient access for adjustment and service.
  • Easy-access valve includes built-in clamp protection.
  • Lubrication-free UHMW bearings reduce routine lubrication requirements.
  • Available pressure configurations help match the attachment to the truck hydraulic system.
  • Appliance distribution and logistics operations handling magnum- and T-loaded products in trailers.
  • Warehousing and trailer loading operations that require controlled, non-palletized appliance handling.
